Viewing Event Details in Operation Record

Last updated: 2024-01-24 17:35:28

    Overview

    This document describes how to view the event details in operation records and the field descriptions involved in event details in the CloudAudit console.

    Directions

    Viewing operation record

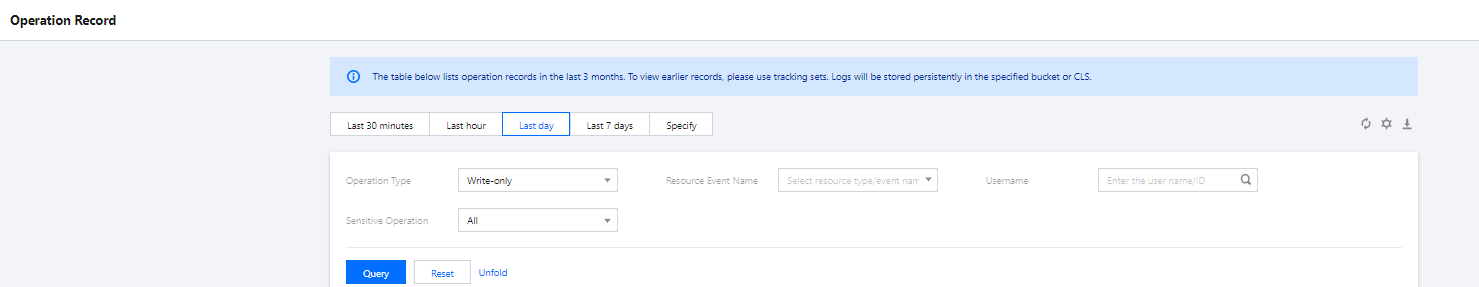

    1. Log in to the CloudAudit console and select Operation Record on the left sidebar.

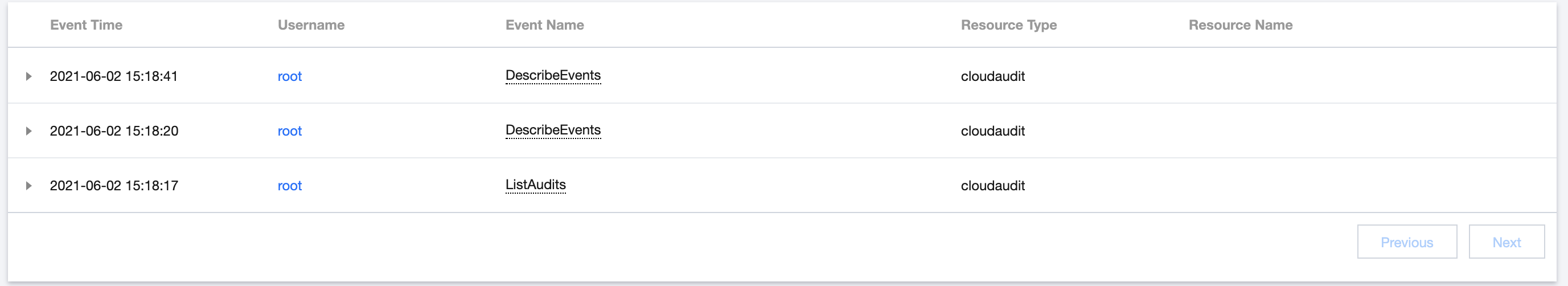

    2. On the operation record list page, you can view the operation records of an event in the operation record list.

    The operator indicates the event operator. It is divided into three types based on the following operation types:
    Operation by a root account: The name “root” is displayed as the operator.
    Operation by a sub-user: The sub-user name is displayed as the operator. If the sub-user has been deleted, the sub-user ID will be displayed instead.
    Operation by a role: The role name is displayed as the operator. If the role has been deleted, the role ID will be displayed as the operator. You can click an operator to go to the User List page in the CAM console to view the detailed user information.
    3. CloudAudit supports many filters, including time, event, username, operation read/write type, sensitive operation, resource tag, resource name, key ID, request ID, and API error code. You can click Unfold and configure filters as needed.

    Filter descriptions:
    Time Range: You can filter logs within a 30-day range in the past 90 days.
    Operation Type: You can filter by All, Read-only, or Write-only.
    Resource Event Name: You can filter desired logs by API name in the API documentation of each product, such as CVM - RunInstances (for instance creation). Up to ten events can be queried at a time.
    Note
    If you can't find a product event name that you want to query in the list, submit a ticket for assistance.
    Username: You can filter logs by root account, sub-account ID, or role ID.
    Operation Query: You can filter all sensitive and non-sensitive operations. Sensitive operations are defined by the platform as events that may involve key operations on cloud resources. If you need to include certain operations as sensitive operations, submit a ticket for assistance.
    Resource Tag: You can filter logs by resource tag. For more information on tags, see Tag Overview.
    Resource Name: You search by resource ID, such as ins-fi8oxxxx.
    Key ID: You can search by key ID, such as AKIDZ0GSXSG2nT5c6Xxxxxxxxxxxxxxxxx.
    Request ID: You can search by request ID, such as a7da0568-7580-4798-88c8-xxxxxxxxxx.
    API Error Code: You can enter an API error code as listed in the corresponding API documentation for search.
    4. Click Query to get the filtered operation records.

    Viewing event details

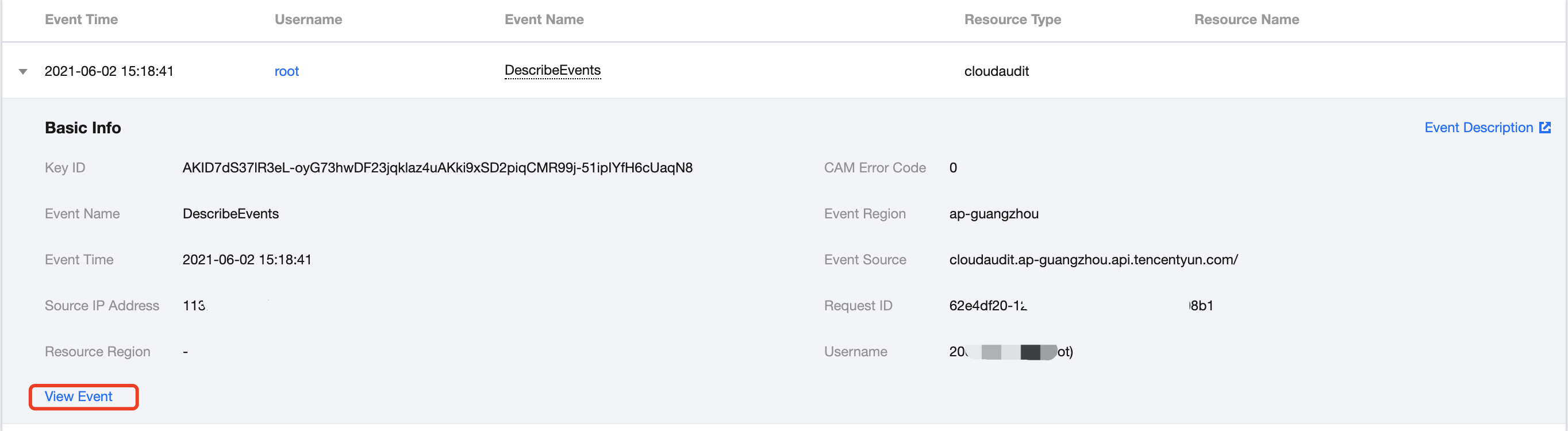

    1. If you need to view the details of an event, you can click the information in the list. You can also click the + icon before the information and click View Event in the expanded module.


    Note
    You can check whether the event was successfully executed through the “CAM Error Code” field. If this field is empty, the event was successfully executed; otherwise, it means the execution failed. For failure details, check the errorCode and errorMessage fields in the event details.
    2. Then you can view the event details in the module on the right. For more information on field descriptions, see Appendix.

    Appendix

    The table below displays the field descriptions of the event details in an operation record.
    Name
    Type
    Example
    Description
    userIdentity
    dict
    N/A
    Identity information of the requester
    eventRegion
    String
    ap-guangzhou
    Cluster region of the requested Tencent Cloud service
    eventVersion
    int
    2
    Event version
    errorCode
    int
    0
    Error code returned when an error occurred while requesting the signature or authentication
    errorMessage
    String
    N/A
    Error message returned when an error occurred while requesting the signature or authentication
    requestID
    String
    be59bbc7-e539-4b14-9d2c-eb7061e61***
    Request ID, which is the ID of each API request
    eventID
    String
    e2c8694c-12e6-4da9-a1e1-48bb703c0892
    Event ID, which is the event GUID generated by CloudAudit
    apiVersion
    String
    3.0
    API version
    eventType
    String
    ConsoleCall
    Source type of the event request. Valid values:

    ConsoleCall: The request is initiated by the Tencent Cloud console.

    ApiCall: The request is initiated by the direct call of TencentCloud API.

    MiniProgramCall: The request is initiated by the Tencent Cloud Assistant mini program.


    actionType
    String
    Read
    Read/write type of the request event. Valid values:

    Write: Write

    Read: Read


    apiErrorCode
    int
    0
    Error code returned for an API request error
    apiErrorMessage
    String
    N/A
    Error message returned for an API request error
    userAgent
    String
    SDK_GO_1.0.374
    The client proxy that sends the API request
    eventTime
    int
    2022-04-01 11:30:36
    Event occurrence time
    sensitiveAction
    int
    0
    Whether the event is a sensitive operation. Valid values:

    1: Sensitive operation

    0: Non-sensitive operation


    eventPlatform
    int
    0
    Whether the event is a platform event. Valid values:

    1: Platform event

    0: Non-platform event


    sourceIPAddress
    String
    113...*
    Source IP address
    resourceType
    String
    cam
    The requested Tencent Cloud service name
    eventName
    String
    GetPolicy
    The requested event name
    eventSource
    String
    cam.ap-guangzhou.api.tencentyun.com
    Request source
    requestParameters
    -
    N/A
    Input parameters of the request
    requestElements
    -
    N/A
    Response information of the request
    resources
    String
    qcs:id/0:cos:ap-shanghai:uid/1252081001:prefix//1252081001/pdd-open-api/images/2018-07-02/6cff3fee97bbf0d2c930fb4ddd5658c4.jpeg
    Resource information of the event, which is the value of the `qcs` segment in the six-segment resource description.
    resourceName
    String
    policy/7934***
    Resource name of the event
    tags
    String
    {"key":"projectId","value":"0"}
    Resource tag
    The tabl
    e b
    elow displays the requester’s identity descriptions.
    Name
    Type
    Example
    Description
    principalId
    String
    100015591***
    Operator account ID. Valid values:
    Operation by a root account: The root account ID
    Operation by a sub-user: The sub-user ID
    Operation by a role: The role ID
    accountId
    String
    100015591***
    ID of the root account to which the operator belongs
    secretId
    String
    AKID4IrZ2GV***
    Key ID of the operator
    type
    String
    root
    Operator type. Valid values:
    root: Tencent Cloud CAM root account
    user: Tencent Cloud CAM account ID (or username)
    AssumedRole: Tencent Cloud role (roleUser)
    userName
    String
    root
    Operator name
    sessionContext
    String
    N/A
    Error code returned for an API request error
    roleSessionName
    String
    EMR-Session
    There are three types of role session name when the operator assumes a role:
    saml: IDP employees use Tencent Cloud user roles to initiate requests.
    WebIdentityUser: OIDC federated user roles initiate requests.
    TencentCloudService: Users authorizing Tencent Cloud Services to assume roles to initiate requests.
