Automatic Compression Configuration
Last updated: 2025-03-19 18:30:12
Overview
During the cluster operation, all update operations on etcd key-value pairs will be recorded. To prevent cluster performance degradation or storage space exhaustion, Cloud Service for etcd supports scheduled data cleanup by using the automatic compaction feature. Currently, etcd clusters support two compaction modes: periodic compaction and revision-based compaction. This document describes automatic data compaction settings for etcd clusters in the console.
Prerequisites
etcd clusters have been created.
Directions
1. Log in to the console of Cloud Service for etcd.
2. Go to the etcd cluster list page, select the region at the top of the page, and find the target etcd cluster in the cluster list below.

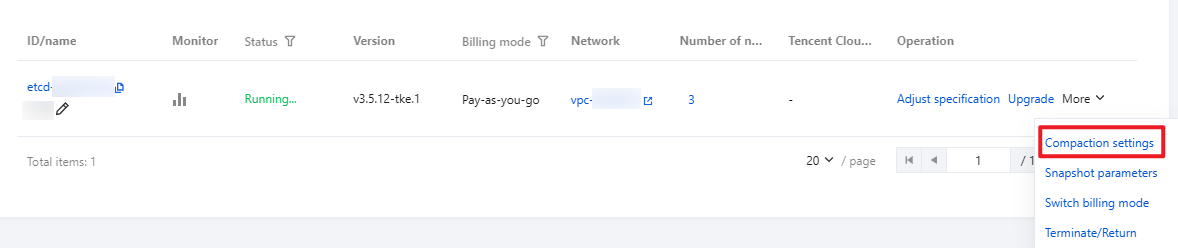

3. Choose More > Compaction settings in the operation column on the right of the target cluster, as shown in the figure below:

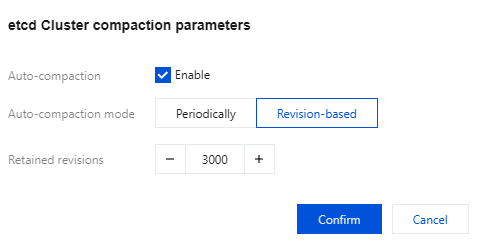

4. Check the Enable option to enable the automatic compaction feature in the pop-up window and select the automatic compaction mode, as shown in the figure below:
Periodically: Set the compaction cycle in "hour, minute, or second".
Revision-based: Set the compression cycle based on the number of retained revisions.
5. Click Confirm to complete the automatic compaction configuration.
