iOS

Last updated: 2024-12-04 17:18:46

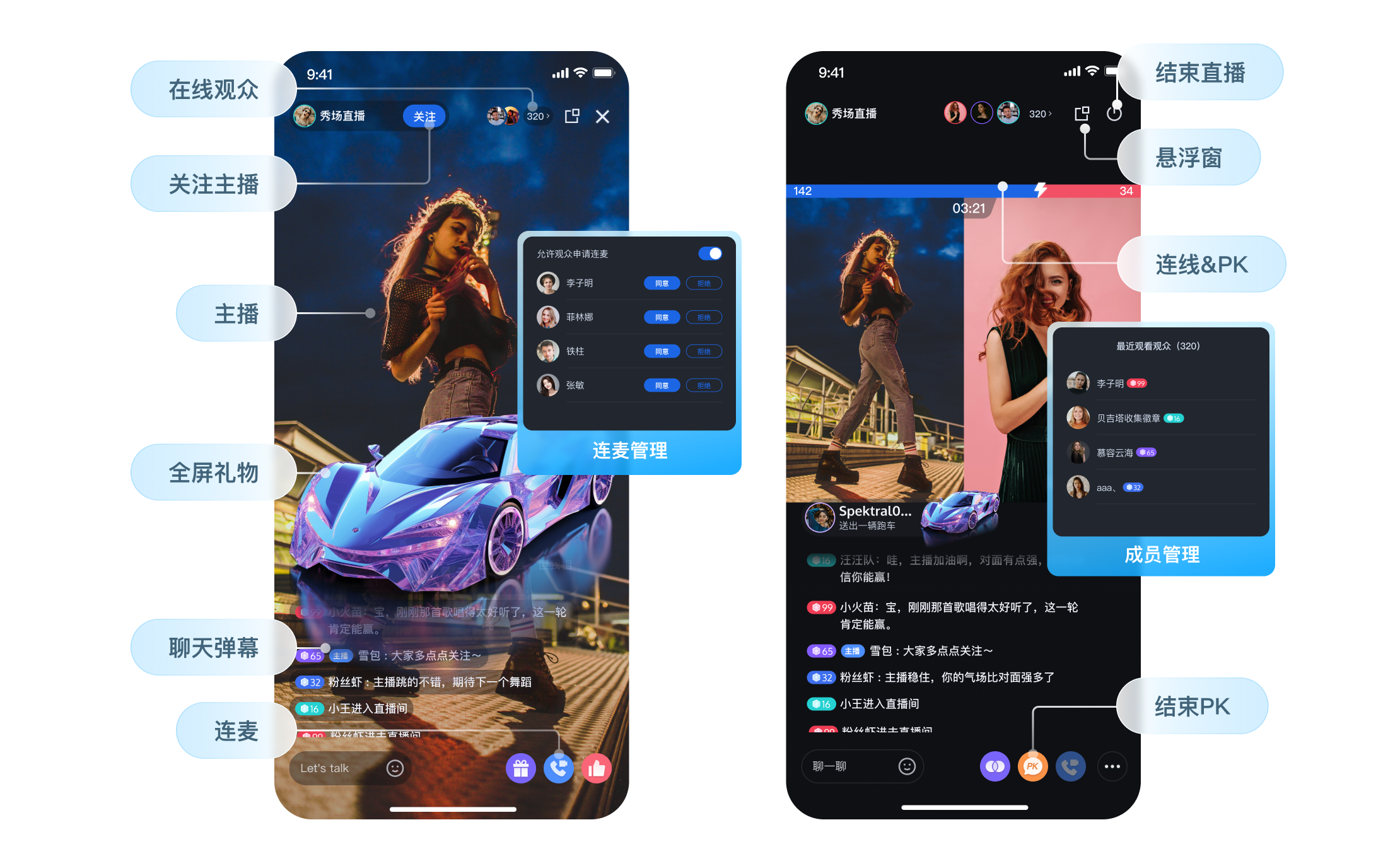

Applicable scenarios
Our anchor start broadcast and audience viewing functions mainly rely on our live video core control (LiveCoreView), which provides rich APIs such as screen preview before broadcast, start live video, close live video, connect with audience in the live broadcast room, connect with other anchors across rooms, etc.
After you access the live video UIKit through quick access, if the UI style is different from your ideal UI style, you can use our LiveCoreView to quickly build the main process of live video in half an hour. Then add your own business UI view on it.
Development environment requirements
Xcode 15 or later.
iOS 13.0 or later.
﻿CocoaPods.
If you have any questions during environment configuration or compilation and running, please refer to the FAQ.
Step 1: Activate the service
Please refer to Activate Service (TUILiveKit) to get the trial version or activate the paid version.
Step 2: Import the LiveStreamCore component
Use CocoaPods to import the components as follows:
1. Add the pod LiveStreamCore dependency to your Podfile file. If you encounter any issues, you can refer to the example project.
Swift
target 'xxxx' do
  ...
  ...
  pod 'LiveStreamCore'
end
If you don't have a Podfile file, first use the terminal to cd to the xxxx.xcodeproj directory and then create the file with the following command.
pod init
2. In the terminal, first cd to the Podfile directory, and then run the following command to install the component.
pod install
If you are unable to install the latest version of LiveStreamCore, first delete Podfile.lock and Pods. Then, update the CocoaPods repository list locally by executing the following command.
pod repo update
Afterwards, execute the following command to update the Pod version of the component library.
pod update
3. Compile and run the project. If you encounter any issues, refer to the FAQ. If the problem still can't be solved, you can try running our example project first. We also welcome any feedback on issues you encounter during the integration process.
Step 3: Log in
To log in to the LiveStreamCore component, add the following code to your project to call the relevant APIs in TUICore. This step is very important, as the user can use the component features properly only after successfully logging in. Carefully check that the relevant parameters are correctly configured:
swift
//
//  AppDelegate.swift
//
﻿
import TUICore
func application(_ application: UIApplication, didFinishLaunchingWithOptions launchOptions: [UIApplication.LaunchOptionsKey: Any]?) -> Bool {

    TUILogin.login(1400000001,               // Replace it with the SDKAppID obtained in Step 1
            userID: "denny",                 // Replace with your UserID
            userSig: "xxxxxxxxxxx") {        // Calculate a UserSig in the console and enter it here
      print("login success")
    } fail: { (code, message) in
      print("login failed, code: \\(code), error: \\(message ?? "nil")")
    }

    return true
}
Parameter description
The key parameters used by the login function are as detailed below:
Parameter
Type
Description
 SDKAppID
int
Obtained in the last step in Step 1  and not detailed here.
UserID
String
The ID of the current user, which is a string that can contain only letters (a–z and A–Z), digits (0–9), hyphens (-), or underscores (_).
userSig
String
The authentication credential used by Tencent Cloud to verify whether the current user is allowed to use the TRTC service. You can get it by using the SDKSecretKey to encrypt the information such as SDKAppID and UserID. You can generate a temporary UserSig on the UserSig Tools page in the console.
Note:
Development Environment: If you are in the local development and debugging stage, you can use the local GenerateTestUserSig.genTestSig function to generate userSig. In this method, the SDKSecretKey is vulnerable to decompilation and reverse engineering, and once your key is leaked, attackers can steal your Tencent Cloud traffic.
Production Environment: If your project is going to be launched, please adopt the method of Server-side Generation of UserSig.
Step 4: Use core controls to implement the live streaming feature
Create core controls and enable preview
Create core controls:
swift
import LiveStreamCore
﻿
let livecoreView = LiveCoreView()
Start live preview: local camera preview, the live broadcast room is not actually started.
swift
livecoreView.startCamera(useFrontCamera: true） {
} onError: { code, message in
}
The anchor starts the live streaming room and the audience joins the live streaming room
Anchor opens live room: Open a live room, and stream the data collected from the local camera and microphone to the live room.
swift
let roomInfo = TUIRoomInfo()
roomInfo.roomId = "123456"
livecoreView.startLiveStream(roomInfo: roomInfo) { roomInfo in
} onError: { code, message in
}
﻿
livecoreView.startMicrophone {
} onError: { code, message in
}
Audience joins live room: Audience enters live room, and pulls the video and audio stream of the anchor from the live room.
swift
livecoreView.joinLiveStream(roomId: "roomId_123456") { roomInfo in
} onError: { code, message in
}
Anchor starts the live streaming room and begins the live stream
Audience joins the live streaming room to watch the live stream
﻿
﻿
﻿
﻿
﻿
﻿
Mic Connect
If you need to implement the audience mic connection feature, refer to the Audience Mic Connection documentation.
Anchor connection
If you need to implement the anchor connection feature, refer to the Anchor Connection documentation.
Set connection layout
You can quickly set the layout between you and the connected anchor or you and the mic-connected audience through the following method.
swift
// Set grid layout
livecoreView.setLayoutMode(layoutMode: .gridLayout)
﻿
// Set floating window layout
livecoreView.setLayoutMode(layoutMode: .floatLayout)
﻿
// Set custom layout
let layoutJson = ""
livecoreView.setLayoutMode(layoutMode: .freeLayout, layoutJson: layoutJson)
Note:
Custom Layout layoutJson is a JSON formatted string. For details, please refer to Custom Layout JSON.
Anchor Connection - Nine-grid Layout
Anchor Connection - Floating Window Layout
Anchor Connection - Custom Layout
﻿
﻿
﻿
﻿
﻿
﻿
﻿
﻿
﻿
Custom Layout JSON
{
  "1": {
    "backgroundColor": "#000000",
    "viewInfoList": [{
      "x": 0.0,
      "y": 0.0,
      "width": 1.0,
      "height": -1.0,
      "zOrder": 0,
      "backgroundColor": "#000000"
    }]
  },
  "2": {
    "backgroundColor": "#000000",
    "viewInfoList": [{
      "x": 0.0,
      "y": 0.384,
      "width": 0.5,
      "height": 0.89333,
      "zOrder": 0,
      "backgroundColor": "#000000"
    }, {
      "x": 0.5,
      "y": 0.384,
      "width": 0.5,
      "height": 0.89333,
      "zOrder": 0,
      "backgroundColor": "#000000"
    }]
  },
  "3": {
    "backgroundColor": "#000000",
    "viewInfoList": [{
      "x": 0.0,
      "y": 0.384,
      "width": 0.666666666,
      "height": 0.666666666,
      "zOrder": 0,
      "backgroundColor": "#000000"
    }, {
      "x": 0.666666666,
      "y": 0.384,
      "width": 0.333333333,
      "height": 0.333333333,
      "zOrder": 0,
      "backgroundColor": "#000000"
    }, {
      "x": 0.666666666,
      "y": 0.717333333,
      "width": 0.333333333,
      "height": 0.333333333,
      "zOrder": 0,
      "backgroundColor": "#000000"
    }]
  },
  "4": {
    "backgroundColor": "#000000",
    "viewInfoList": [{
      "x": 0.0,
      "y": 0.384,
      "width": 0.5,
      "height": 0.5,
      "zOrder": 0,
      "backgroundColor": "#000000"
    }, {
      "x": 0.5,
      "y": 0.384,
      "width": 0.5,
      "height": 0.5,
      "zOrder": 0,
      "backgroundColor": "#000000"
    }, {
      "x": 0.0,
      "y": 0.8826,
      "width": 0.5,
      "height": 0.5,
      "zOrder": 0,
      "backgroundColor": "#000000"
    }, {
      "x": 0.5,
      "y": 0.8826,
      "width": 0.5,
      "height": 0.5,
      "zOrder": 0,
      "backgroundColor": "#000000"
    }]
  },
  "5": {
    "backgroundColor": "#000000",
    "viewInfoList": [{
      "x": 0.0,
      "y": 0.384,
      "width": 0.333333333,
      "height": 0.333333333,
      "zOrder": 0,
      "backgroundColor": "#000000"
    }, {
      "x": 0.333333333,
      "y": 0.384,
      "width": 0.333333333,
      "height": 0.333333333,
      "zOrder": 0,
      "backgroundColor": "#000000"
    }, {
      "x": 0.666666666,
      "y": 0.384,
      "width": 0.333333333,
      "height": 0.333333333,
      "zOrder": 0,
      "backgroundColor": "#000000"
    }, {
      "x": 0.0,
      "y": 0.717333333,
      "width": 0.333333333,
      "height": 0.333333333,
      "zOrder": 0,
      "backgroundColor": "#000000"
    }, {
      "x": 0.333333333,
      "y": 0.717333333,
      "width": 0.333333333,
      "height": 0.333333333,
      "zOrder": 0,
      "backgroundColor": "#000000"
    }]
  },
  "6": {
    "backgroundColor": "#000000",
    "viewInfoList": [{
      "x": 0.0,
      "y": 0.384,
      "width": 0.333333333,
      "height": 0.333333333,
      "zOrder": 0,
      "backgroundColor": "#000000"
    }, {
      "x": 0.333333333,
      "y": 0.384,
      "width": 0.333333333,
      "height": 0.333333333,
      "zOrder": 0,
      "backgroundColor": "#000000"
    }, {
      "x": 0.666666666,
      "y": 0.384,
      "width": 0.333333333,
      "height": 0.333333333,
      "zOrder": 0,
      "backgroundColor": "#000000"
    }, {
      "x": 0.0,
      "y": 0.717333333,
      "width": 0.333333333,
      "height": 0.333333333,
      "zOrder": 0,
      "backgroundColor": "#000000"
    }, {
      "x": 0.333333333,
      "y": 0.717333333,
      "width": 0.333333333,
      "height": 0.333333333,
      "zOrder": 0,
      "backgroundColor": "#000000"
    }, {
      "x": 0.666666666,
      "y": 0.717333333,
      "width": 0.333333333,
      "height": 0.333333333,
      "zOrder": 0,
      "backgroundColor": "#000000"
    }]
  },
  "7": {
    "backgroundColor": "#000000",
    "viewInfoList": [{
      "x": 0.0,
      "y": 0.384,
      "width": 0.333333333,
      "height": 0.333333333,
      "zOrder": 0,
      "backgroundColor": "#000000"
    }, {
      "x": 0.333333333,
      "y": 0.384,
      "width": 0.333333333,
      "height": 0.333333333,
      "zOrder": 0,
      "backgroundColor": "#000000"
    }, {
      "x": 0.666666666,
      "y": 0.384,
      "width": 0.333333333,
      "height": 0.333333333,
      "zOrder": 0,
      "backgroundColor": "#000000"
    }, {
      "x": 0.0,
      "y": 0.717333333,
      "width": 0.333333333,
      "height": 0.333333333,
      "zOrder": 0,
      "backgroundColor": "#000000"
    }, {
      "x": 0.333333333,
      "y": 0.717333333,
      "width": 0.333333333,
      "height": 0.333333333,
      "zOrder": 0,
      "backgroundColor": "#000000"
    }, {
      "x": 0.666666666,
      "y": 0.717333333,
      "width": 0.333333333,
      "height": 0.333333333,
      "zOrder": 0,
      "backgroundColor": "#000000"
    }, {
      "x": 0.0,
      "y": 1.050666666,
      "width": 0.333333333,
      "height": 0.333333333,
      "zOrder": 0,
      "backgroundColor": "#000000"
    }]
  },
  "8": {
    "backgroundColor": "#000000",
    "viewInfoList": [{
      "x": 0.0,
      "y": 0.384,
      "width": 0.333333333,
      "height": 0.333333333,
      "zOrder": 0,
      "backgroundColor": "#000000"
    }, {
      "x": 0.333333333,
      "y": 0.384,
      "width": 0.333333333,
      "height": 0.333333333,
      "zOrder": 0,
      "backgroundColor": "#000000"
    }, {
      "x": 0.666666666,
      "y": 0.384,
      "width": 0.333333333,
      "height": 0.333333333,
      "zOrder": 0,
      "backgroundColor": "#000000"
    }, {
      "x": 0.0,
      "y": 0.717333333,
      "width": 0.333333333,
      "height": 0.333333333,
      "zOrder": 0,
      "backgroundColor": "#000000"
    }, {
      "x": 0.333333333,
      "y": 0.717333333,
      "width": 0.333333333,
      "height": 0.333333333,
      "zOrder": 0,
      "backgroundColor": "#000000"
    }, {
      "x": 0.666666666,
      "y": 0.717333333,
      "width": 0.333333333,
      "height": 0.333333333,
      "zOrder": 0,
      "backgroundColor": "#000000"
    }, {
      "x": 0.0,
      "y": 1.050666666,
      "width": 0.333333333,
      "height": 0.333333333,
      "zOrder": 0,
      "backgroundColor": "#000000"
    }, {
      "x": 0.333333333,
      "y": 1.050666666,
      "width": 0.333333333,
      "height": 0.333333333,
      "zOrder": 0,
      "backgroundColor": "#000000"
    }]
  },
  "9": {
    "backgroundColor": "#000000",
    "viewInfoList": [{
      "x": 0.0,
      "y": 0.384,
      "width": 0.333333333,
      "height": 0.333333333,
      "zOrder": 0,
      "backgroundColor": "#000000"
    }, {
      "x": 0.333333333,
      "y": 0.384,
      "width": 0.333333333,
      "height": 0.333333333,
      "zOrder": 0,
      "backgroundColor": "#000000"
    }, {
      "x": 0.666666666,
      "y": 0.384,
      "width": 0.333333333,
      "height": 0.333333333,
      "zOrder": 0,
      "backgroundColor": "#000000"
    }, {
      "x": 0.0,
      "y": 0.717333333,
      "width": 0.333333333,
      "height": 0.333333333,
      "zOrder": 0,
      "backgroundColor": "#000000"
    }, {
      "x": 0.333333333,
      "y": 0.717333333,
      "width": 0.333333333,
      "height": 0.333333333,
      "zOrder": 0,
      "backgroundColor": "#000000"
    }, {
      "x": 0.666666666,
      "y": 0.717333333,
      "width": 0.333333333,
      "height": 0.333333333,
      "zOrder": 0,
      "backgroundColor": "#000000"
    }, {
      "x": 0.0,
      "y": 1.050666666,
      "width": 0.333333333,
      "height": 0.333333333,
      "zOrder": 0,
      "backgroundColor": "#000000"
    }, {
      "x": 0.333333333,
      "y": 1.050666666,
      "width": 0.333333333,
      "height": 0.333333333,
      "zOrder": 0,
      "backgroundColor": "#000000"
    }, {
      "x": 0.666666666,
      "y": 1.050666666,
      "width": 0.333333333,
      "height": 0.333333333,
      "zOrder": 0,
      "backgroundColor": "#000000"
    }]
  }
}

Contact Us

Contact our sales team or business advisors to help your business.

Technical Support

Open a ticket if you're looking for further assistance. Our Ticket is 7x24 avaliable.

7x24 Phone Support

tencent cloud

Recent Pages

iOS

Applicable scenarios

Development environment requirements

Step 1: Activate the service

Step 2: Import the LiveStreamCore component

Step 3: Log in

Step 4: Use core controls to implement the live streaming feature

Create core controls and enable preview

The anchor starts the live streaming room and the audience joins the live streaming room

Mic Connect

Anchor connection

Set connection layout

Custom Layout JSON

Was this page helpful?

Was this page helpful?

Parameter	Type	Description
SDKAppID	int	Obtained in the last step in Step 1 and not detailed here.
UserID	String	The ID of the current user, which is a string that can contain only letters (a–z and A–Z), digits (0–9), hyphens (-), or underscores (_).
userSig	String	The authentication credential used by Tencent Cloud to verify whether the current user is allowed to use the TRTC service. You can get it by using the `SDKSecretKey` to encrypt the information such as `SDKAppID` and `UserID`. You can generate a temporary `UserSig` on the UserSig Tools page in the console.

Anchor starts the live streaming room and begins the live stream	Audience joins the live streaming room to watch the live stream

Anchor Connection - Nine-grid Layout	Anchor Connection - Floating Window Layout	Anchor Connection - Custom Layout

tencent cloud

Sign Up

Log in

Recent Pages

iOS

Applicable scenarios

Development environment requirements

Step 1: Activate the service

Step 2: Import the LiveStreamCore component

Step 3: Log in

Step 4: Use core controls to implement the live streaming feature

Create core controls and enable preview

The anchor starts the live streaming room and the audience joins the live streaming room

﻿﻿﻿

Mic Connect

Anchor connection

Set connection layout

﻿﻿﻿

﻿﻿﻿

Custom Layout JSON

Was this page helpful?

Was this page helpful?
