Authentication policies include PeerAuthentication and RequestAuthentication. The PeerAuthentication policy is used to configure the mTLS mode of service communication, and the RequestAuthentication policy is used to configure a request authentication method of a service.
PeerAuthentication Configuration Field Description
Major PeerAuthentication fields are described as follows.
Name
Type
Description
metadata.name
string
PeerAuthentication name.
metadata.namespace
string
PeerAuthentication namespace.
spec.selector
map<string, string>
PeerAuthentication uses an entered label key-value pair and an entered namespace to match a scope of workloads to which configurations are to be delivered.
If the entered namespace is istio-system and the selector field is left blank, the policy takes effect for the entire mesh.
If the entered namespace is not istio-system and the selector field is left blank, the policy takes effect for the entered namespace.
If the entered namespace is not istio-system and the selector field is set to a valid key-value pair, the policy takes effect for the workload that is matched based on the selector in the entered namespace.
spec.mtls.mode
-
mTLS mode. Four modes are supported: UNSET
spec.portLevelMtls
map<uint32, mTLS mode>
mTLS mode at the port level.
Note:
The effective priorities of mTLS mode configurations are as follows: port > service/workload > namespace > mesh.
Using PeerAuthentication to Configure the mTLS Mode for Service Communication in a Mesh
The mTLS mode in Tencent Cloud Mesh is PERMISSIVE by default, that is, the communication between services can be encrypted using mTLS or implemented through plaintext connections.
To test the effect of the mTLS mode configurations, you can first initiate a plaintext request to a service in your mesh and test the connectivity of the plaintext request. The following is an example of logging in to the istio-proxy container in the mesh and initiating a plaintext request to another service:
1. In the console of a TKE cluster managed by the mesh, log in to the istio-proxy container.
2. Enter the command curl http://product.base.svc.cluster.local:7000/product to access the product service in the base namespace in plaintext mode.
3. View the plaintext access result. If the product information is correctly returned, the plaintext access is successful.
Then, set the mTLS mode for the base namespace to STRICT and verify whether the configuration takes effect.
YAML Configuration Example

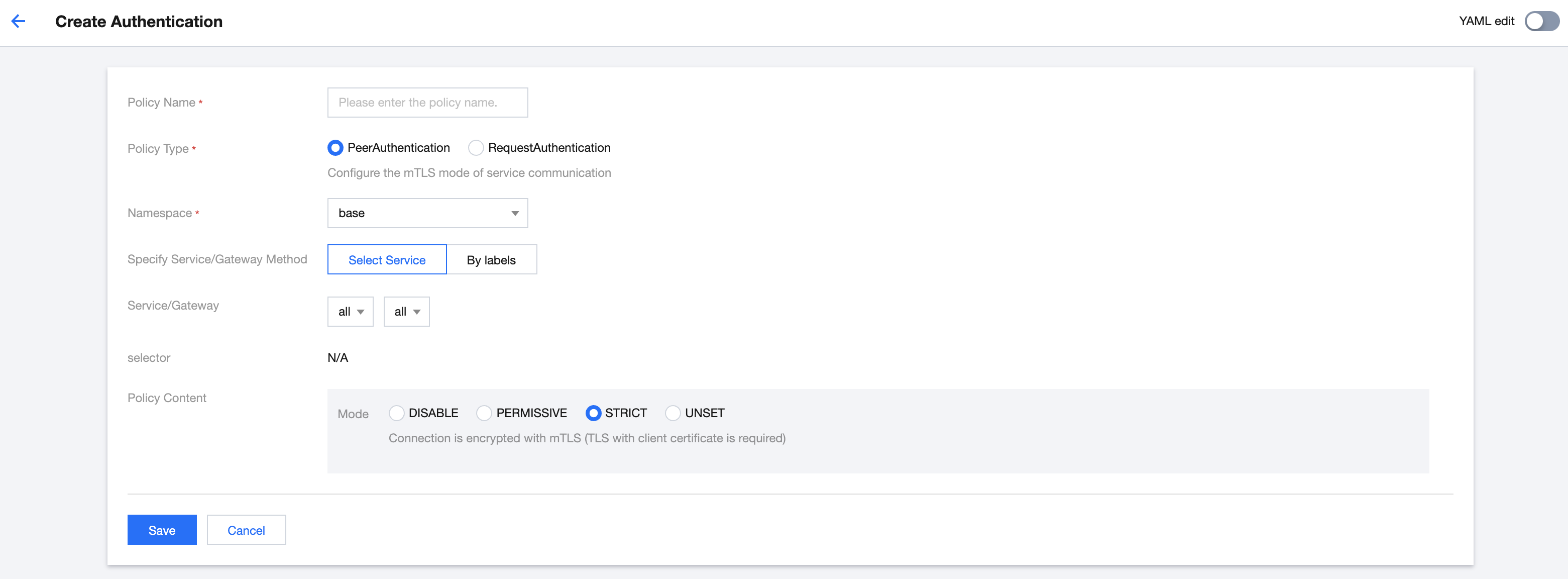

Console Configuration Example
apiVersion: security.istio.io/v1beta1
kind: PeerAuthentication
metadata:
name: base-strict
namespace: base
spec:
mtls:
mode: STRICT
After the configuration is complete, you are prompted that the access fails when you access the product service in the base namespace in the plaintext mode again. This indicates that the mTLS STRICT mode has taken effect.
RequestAuthentication Configuration Field Description
Major RequestAuthentication configuration fields are described as follows.
Name
Type
Description
metadata.name
string
RequestAuthentication name.
metadata.namespace
string
RequestAuthentication namespace.
spec.selector
map<string, string>
RequestAuthentication uses an entered label key-value pair and an entered namespace to match a scope of workloads to which configurations are to be delivered.
If the entered namespace is istio-system and the selector field is left blank, the policy takes effect for the entire mesh.
If the entered namespace is not istio-system and the selector field is left blank, the policy takes effect for the entered namespace.
If the entered namespace is not istio-system and the selector field is set to a valid key-value pair, the policy takes effect for the workload that is matched based on the selector in the entered namespace.
List of JWT audiences that are allowed to access. The service name will be accepted if the audience list is empty.
spec.jwtRules.jwksUri
string
Public key URL for verifying JWT signatures. For details, see OpenID Discovery. When both the jwksUri and jwks fields are configured, jwksUri is ignored.
spec.jwtRules.jwks
string
Public key in a JSON Web Key Set used to verify JWT signatures. When both the jwksUri and jwks fields are configured, jwksUri is ignored.
spec.jwtRules.fromHeaders
map<string,string>[]
List of locations in the header from which the JWT is extracted.
spec.jwtRules.fromParams
string[]
Parameters in the header from which the JWT is extracted. For example, the JWT is extracted from the parameter mytoken (/path?my_token=).
spec.jwtRules.outputPayloadToHeader
string
Header name output by a JWT payload in a case of successful verification. The forwarded data is base64_encoded(jwt_payload_in_JSON). If this field is left blank, a JWT payload is not output by default.
spec.jwtRules.forwardOriginalToken
bool
Whether to forward the raw JWT to upstream. The default value is false.
Using RequestAuthentication to Configure JWT Request Authentication
To verify the effect of configurations for JWT request authentication, you first need to deploy a test program httpbin.foo and then configure this service to be exposed to the public network through an ingress gateway.
Create a foo namespace with automatic sidecar injection enabled, and deploy the httpbin service to the foo namespace.
apiVersion: v1
kind: Namespace
metadata:
name: foo
labels:
istio.io/rev: 1-6-9# Enable automatic sidecar injection for the namespace (The Istio version is 1.6.9).
spec:
finalizers:
- kubernetes
---
apiVersion: v1
kind: ServiceAccount
metadata:
name: httpbin
namespace: foo
---
apiVersion: v1
kind: Service
metadata:
name: httpbin
namespace: foo
labels:
app: httpbin
service: httpbin
spec:
ports:
-name: http
port:8000
targetPort:80
selector:
app: httpbin
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: httpbin
namespace: foo
spec:
replicas:1
selector:
matchLabels:
app: httpbin
version: v1
template:
metadata:
labels:
app: httpbin
version: v1
spec:
serviceAccountName: httpbin
containers:
-image: docker.io/kennethreitz/httpbin
imagePullPolicy: IfNotPresent
name: httpbin
ports:
-containerPort:80
Configure the httpbin service to be exposed to the public network for access through the ingress gateway.
apiVersion: networking.istio.io/v1alpha3
kind: Gateway
metadata:
name: httpbin-gateway
namespace: foo
spec:
selector:
app: istio-ingressgateway
istio: ingressgateway
servers:
-port:
number:80
name: http
protocol: HTTP
hosts:
-"*"
---
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
name: httpbin
namespace: foo
spec:
hosts:
-"*"
gateways:
- httpbin-gateway
http:
-route:
-destination:
port:
number:8000
host: httpbin.foo.svc.cluster.local
Test the connectivity of the service by using the curl statement curl "$INGRESS_IP:80/headers" -s -o /dev/null -w "%{http_code}\\n". Note that you need to replace $INGRESS_IP in the statement with the IP address of your ingress gateway. In normal condition, a 200 return code is returned.
The following configures JWT authentication rules for the ingress gateway to allow requests carrying eligible JWT tokens.
After the configuration is complete, verify whether the configured JWT authentication rule takes effect.
Use the following code that carries an invalid JWT token to initiate access. Note that you need to replace $INGRESS_IP in the code with the IP address of your ingress gateway. The ingress gateway does not allow the request carrying the invalid JWT token and therefore returns a 401 return code.
Use the following code that carries a valid JWT token to initiate access. Note that you need to replace $INGRESS_IP in the code with the IP address of your ingress gateway. The ingress gateway allows the request carrying the illegal JWT token and therefore returns a 200 return code.
Through verification, you can find that the JWT request authentication rule that you configured for the ingress gateway has taken effect. Because only the JWT authentication rule is configured at this time, the ingress gateway still allows requests that do not carry a JWT token. To restrict requests that do not carry a JWT token, you need to configure an AuthorizationPolicy. Apply the following YAML file to the service mesh to control the ingress gateway to deny requests that do not carry a JWT token.
apiVersion: security.istio.io/v1beta1
kind: AuthorizationPolicy
metadata:
name: frontend-ingress
namespace: istio-system
spec:
selector:
matchLabels:
app: istio-ingressgateway
istio: ingressgateway
rules:
-from:
-source:
notRequestPrincipals:
-'*'
action: DENY
Use the following code that does not carry a JWT token to initiate access again: curl "$INGRESS_IP:80/headers" -s -o /dev/null -w "%{http_code}\\n". It is found that the access fails and a 403 return code is returned, indicating that the AuthorizationPolicy policy has taken effect.
