To help you analyze the full-linkage message push effect, Tencent Push Notification Service supports the display of message arrival receipts for vendor channels. The support for message arrival receipts varies with the vendor channel inside Chinese mainland. The message arrival receipts of certain channels cannot be directly obtained without corresponding configuration.
After successfully configuring the message arrival receipt display feature, you can view the push conversion data in push details in the Tencent Push Notification Service console or obtain the push conversion data through a Tencent Push Notification Service RESTful API.
Overview
Vendor Channel
Support for Arrival Receipt
Require Configuration
Huawei channel
Yes
Yes
Meizu channel
Yes
Yes
Mi channel
Yes
No
OPPO channel
Yes
No
vivo channel
Yes
No
FCM channel
Yes
No
Note:
The arrival receipt information of vendor channels is for reference only.
Receipt Configuration Guide for the Huawei Channel
After integrating the Huawei channel SDK, you need to enable and configure the message receipt feature on the Huawei Developer Platform so that the arrival receipts of the Huawei channel can be obtained. For configuration details, see Message Receipt. The configuration process is as follows.

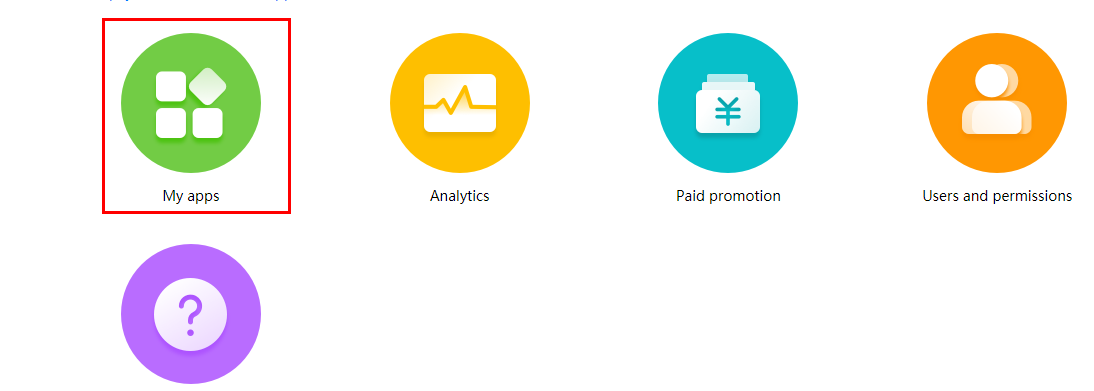

2. Select the parent product name of the application for which the service is to be enabled. The application information page is displayed.
3. On the Application Information page, choose All services > Push Kit.

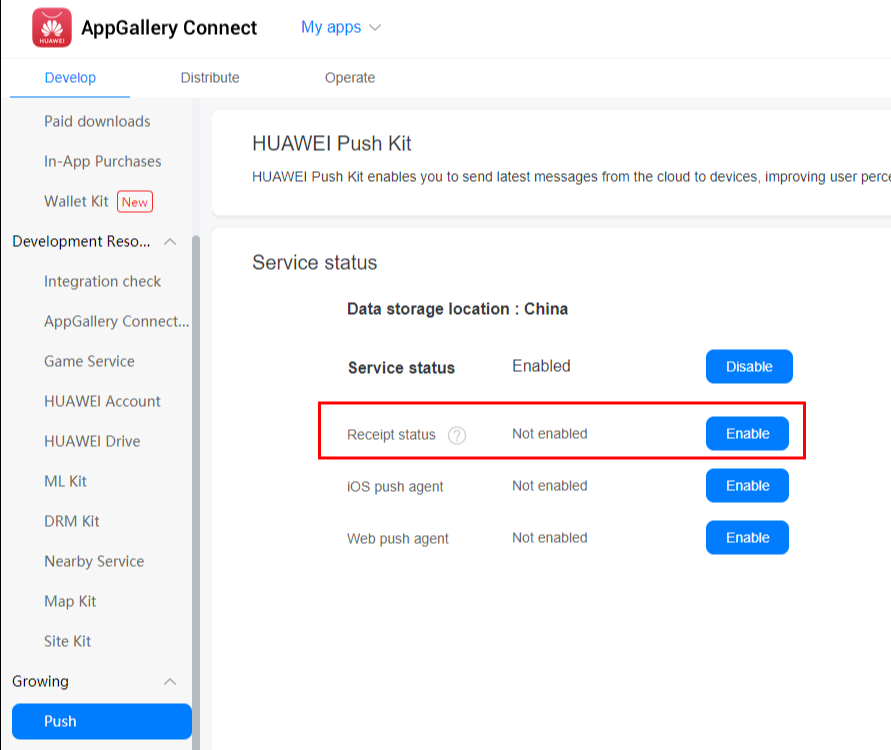

4. On the Push Kit page, find Application Receipt Status and click Activate.
Setting receipt parameters

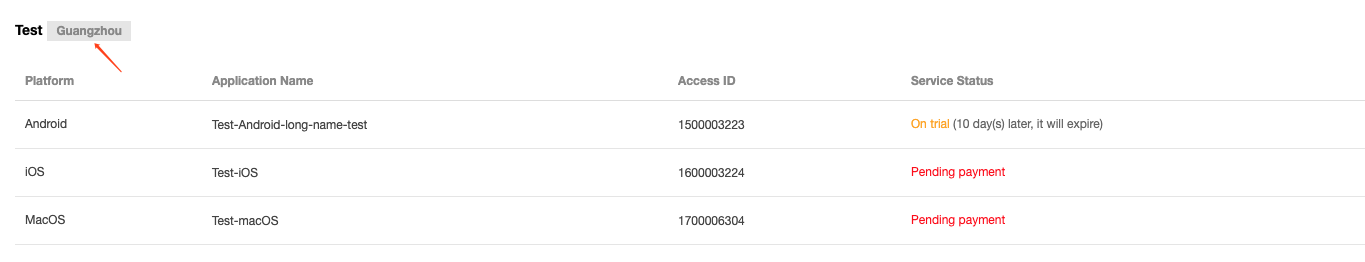

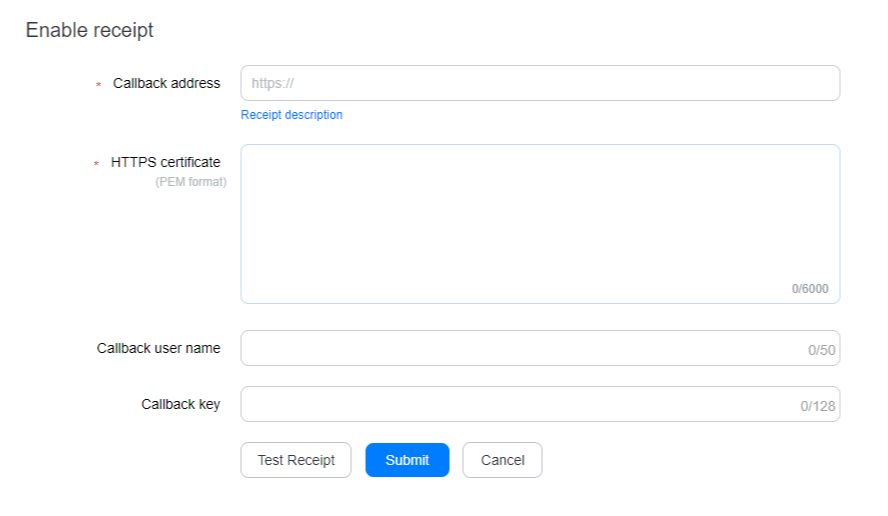

1. Set the message receipt address. Please view the service access point of your application in the Tencent Push Notification Service console and select the corresponding receipt address for configuration.
Replace AccessID in the addresses with the access ID of your application. For example, if your application uses the Guangzhou service access point, set the receipt address to https://stat.tpns.tencent.com/log/statistics/hw/1500016691.
2. Download the HTTPS certificate corresponding to the service access point of your application. Use a text editor to open the certificate file and copy the certificate to the certificate text box.
3. Configure the callback username and key (optional) for authentication.
4. Click Test Receipt to test the receipt address.
Note:
Currently, if you click Test Receipt, the error message "Failed to test the callback address" will be displayed. Ignore it and click Submit.
5. Click Submit to activate the service.
Receipt Configuration Guide for the Meizu Channel
After integrating the Meizu channel SDK, you need to create a receipt on the Flyme push platform and activate it in the Tencent Push Notification Service console so that the arrival receipt of the Meizu channel can be obtained. The configuration process is as follows.
Note:
You need to complete both the following steps; otherwise, delivery through the Meizu channel may fail.
Configuring a receipt
1. Log in to the Flyme Push Platform, select the application for which a receipt is to be configured, and click Open app.
2. On the push notification page, click Configuration Management > Receipt Management.
3. Enter the receipt address in Create Receipt. Please view the service access point of your application in the Tencent Push Notification Service console and select the corresponding receipt address for configuration.
For the Guangzhou service access point, both receipt addresses must be entered.
4. After entering the receipt address, click Add on the right. If the newly created receipt is correctly displayed in Receipt List, the configuration is successful.
Activating the receipt

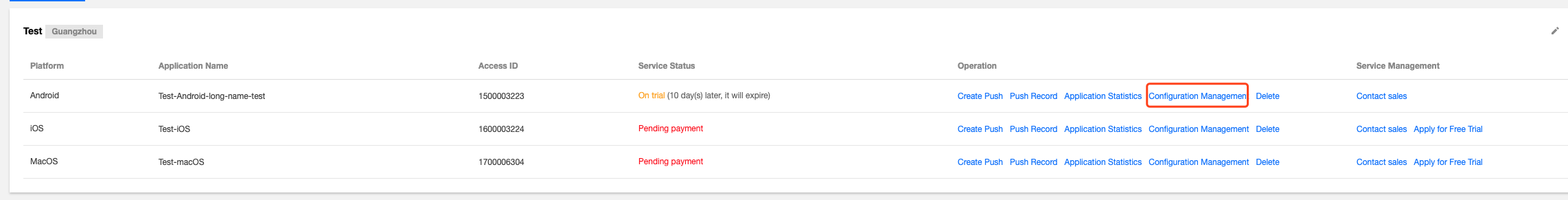

1. Go to the Product Management page, select the application for which a receipt is to be activated, and click Configuration Management.

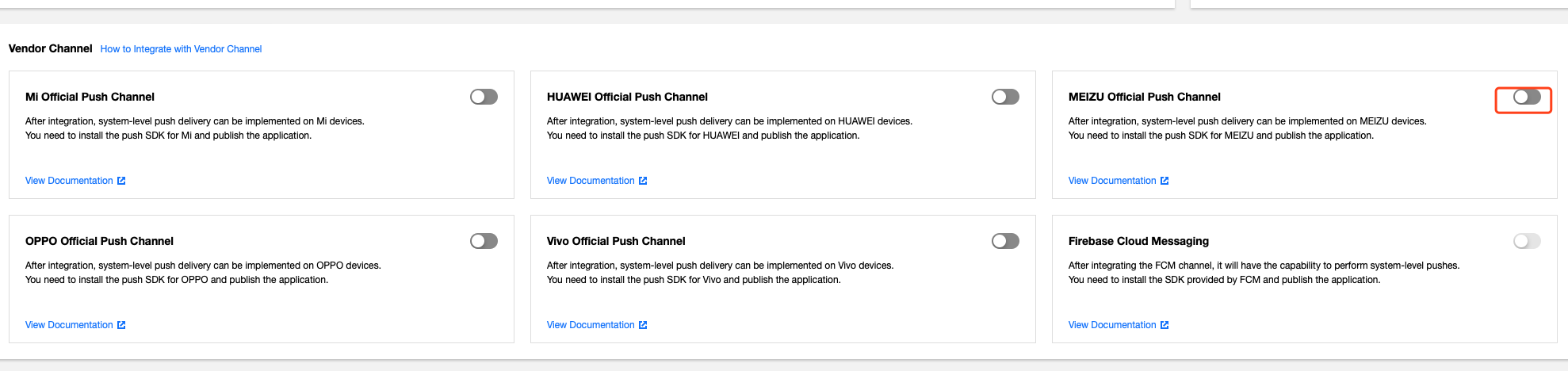

2. On the configuration management page, click the edit icon in Vendor Channel > Meizu Official Push Channel.

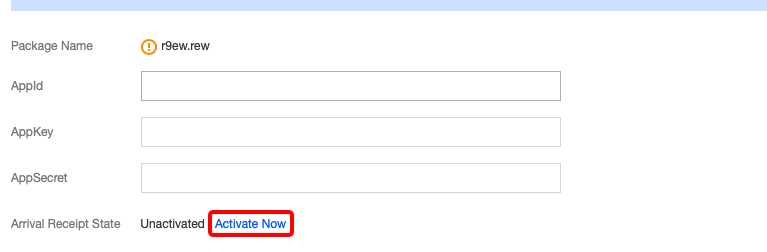

3. On the Meizu official push channel editing page, click Activate Now.
Receipt Configuration Guide for the HONOR Channel
After integrating the HONOR channel SDK, if you want to activate the HONOR channel arrival receipt, you need to contact the HONOR Push team and provide the following callback address for configuration. For more information, please see HONOR Push Receipt Module.
Setting receipt parameters
Please view the service access point of your application in the Tencent Push Notification Service console and select the corresponding receipt address for configuration.
Replace AccessID in the addresses with the access ID of your application. For example, if your application uses the Guangzhou service access point, set the receipt address to https://stat.tpns.tencent.com/log/statistics/honor/1500016691.
