iOS Badge Feature Practice
Download PDF
Last updated: 2024-01-16 17:35:03
iOS Badge Feature Practice
Last updated: 2024-01-16 17:35:03
Download PDF
Tencent Push Notification Service provides a series of badge control methods. The following introduces how to implement the badge feature in two classic scenarios. This document focuses on iOS badge best practices. For Android badge adaptation, see here.

Scenario 1: Clearing the Application's Badge Number and Notification Bar Messages when Opening the Application

Scenario description

When the application is not started, make the badge number equal the number of the application's push messages received by the current device.
When the application enters the background, set the badge number to 0, clear notification bar messages, and set the cloud badge number to 0.

Implementation method

For such a scenario, the badge number auto increase scheme is recommended. The process is as follows: Step 1: when a push task is created via the push API, set badge_type to -2 to enable the application's badge number to automatically increase by 1. Step 2: when the application is started, call the "clearing the application's badge number and notification bar messages" method to clear the local badge number and notification bar messages. The implementation code is as follows.
Step 3: clear the cloud badge number. The implementation code is as follows.
Step 4: if the cloud badge number needs to be updated, call the following API to sync the badge value to the Tencent Push Notification Service server, and the badge value will be used as the benchmark for the next push. For example, if the current Tencent Push Notification Service server badge value is synchronized as N, then the application's badge value will be N+1 when the next push is received.
//Sync the badge value to the TPNS server, and the value will be used as the benchmark for the next push
- (void)setBadge:(NSInteger)badgeNumber;
Note:
1. The setBadge method relies on the Tencent Push Notification Service channel to implement badge value sync. When the application enters the background, the Tencent Push Notification Service channel will be disconnected, and calling the setBadge method will fail. In this case, only the custom badge number scheme is applicable.
2. When the application enters the foreground, the Tencent Push Notification Service channel will try to reconnect, and calling the setBadge method will fail before the connection is resumed. In this case, only the custom badge number scheme is applicable.
3. When the application is cold started, setBadge must be used in the callback of the registration method.
4. For more information on how to listen for Tencent Push Notification Service network connection status, please see here.

Scenario 2: Enabling the Badge Number to Be the Sum of Notification Bar Messages and In-App Messages

Scenario description

Application's badge number = Number of notification bar messages + Number of in-app messages. When a user clicks a notification to start the application, the number of notification bar messages changes, and the application's badge number needs to be updated. In this scenario, developers need to maintain the device's total number of messages (including the number of notification bar messages and the number of in-app messages).

Implementation method

1. Obtain the number of notification bar messages. The code is as follows:
//Obtain the number of notification bar messages
[[UNUserNotificationCenter currentNotificationCenter] getDeliveredNotificationsWithCompletionHandler:^(NSArray<UNNotification *> *notifications) {
NSLog(@"notifications count:%d.",notifications.count);
}];
2. Assume that the number of notification bar messages is a and the number of in-app messages is b. The code for setting the application's badge number is as follows.
//Set the application's badge number
[XGPush defaultManager].xgApplicationBadgeNumber = a + b;
3. Use the custom badge number scheme (recommended). The method is as follows: When a push task is created via the push API, set badge_type to the total number of messages (a custom badge number that is equal to or greater than 0). For example, if the total number of messages is 10, set badge_type to 10.

FAQs

How to clear the badge number but retain the push notifications in the notification center?

//Do not display the number of pushes in the application icon, but retain the push notifications in the system notification bar
+ (void)resetBageNumber{
    if(APNS_IS_IOS11_LATER){
        //For iOS 11 or later, you only need to set `badgeNumber` to `-1`
        [UIApplication sharedApplication].applicationIconBadgeNumber = -1;
    }else{
        UILocalNotification *clearEpisodeNotification = [[UILocalNotification alloc] init];
        clearEpisodeNotification.fireDate = [NSDate dateWithTimeIntervalSinceNow:(0.3)];
        clearEpisodeNotification.timeZone = [NSTimeZone defaultTimeZone];
        clearEpisodeNotification.applicationIconBadgeNumber = -1;
        [[UIApplication sharedApplication] scheduleLocalNotification:clearEpisodeNotification];
    }
}

How can I set the badge number but retain the push notifications in the notification center?

#define APNS_IS_IOS11_LATER ([UIDevice currentDevice].systemVersion.floatValue >= 11.0f)
// Display the badge number in the application icon, but retain the push notifications in the system notification bar.
+ (void)resetBageNumber:(int) number{
/// If the number is not `0`, set directly.
if(number){
[XGPush defaultManager].xgApplicationBadgeNumber = number;
return;
}
/// If the number is `0`, set by the following logic:
if(APNS_IS_IOS11_LATER){
//For iOS 11 or later, you only need to set `badgeNumber` to `-1`
[UIApplication sharedApplication].applicationIconBadgeNumber = -1;
}else{
UILocalNotification *clearEpisodeNotification = [[UILocalNotificationalloc] init];
clearEpisodeNotification.fireDate = [NSDatedateWithTimeIntervalSinceNow:(0.3)];
clearEpisodeNotification.timeZone = [NSTimeZonedefaultTimeZone];
clearEpisodeNotification.applicationIconBadgeNumber = -1;
[[UIApplication sharedApplication] scheduleLocalNotification:clearEpisodeNotification];
}
}

How to delete a specific notification from the notification center?

//objectID: push ID of the notification to delete
- (void)removeNotificationsForObjectID:(ObjectID *)objectID {
    __weak __typeof(self) weakSelf = self;
    [[UNUserNotificationCenter currentNotificationCenter] getDeliveredNotificationsWithCompletionHandler:^(NSArray<UNNotification *> *notifications) {
        __strong __typeof(weakSelf) self = weakSelf;
        NSMutableArray <NSString *> *identifiersToRemove = [@[] mutableCopy];
        for (UNNotification *notification in notifications) {
            //Filter the notification that meets the deletion criteria
            ObjectID *objectIDFromNotification = [self marshalNotification:notification];
            if ([objectID isEqual:objectIDFromNotification]) {
                [identifiersToRemove addObject:notification.request.identifier];
            }
        }
        [[UNUserNotificationCenter currentNotificationCenter] removeDeliveredNotificationsWithIdentifiers:identifiersToRemove];
    }];
}
Caution:
This method applies only to iOS 10 and later.

How to update only the application's badge number when the application is not started?

Use the custom badge number scheme to create a push with only a badge number but without content.

How to listen for Tencent Push Notification Service network connection status?

For SDK v1.3.1.0 or later, the recommended method is as follows:
// TPNS network connected
- (void)xgPushNetworkConnected;
// TPNS network disconnected
- (void)xgPushNetworkDisconnected;

How to keep the badge number unchanged when I create a push via the push API?

Set badge_type to -1 to make the badge number remain unchanged.

How can I query the function stack of the app's badge modification method?

You can use the setApplicationIconBadgeNumber: method of the UIApplication hook system class to print the function call stack to find out the caller information. The code is as follows: UIApplication+ApplicationIconBadgeNumber.h file
#import <UIKit/UIKit.h>

NS_ASSUME_NONNULL_BEGIN

@interface UIApplication (ApplicationIconBadgeNumber)

@end

NS_ASSUME_NONNULL_END

UIApplication+ApplicationIconBadgeNumber.m file
#import "UIApplication+ApplicationIconBadgeNumber.h"
#import <objc/runtime.h>

@implementation UIApplication (ApplicationIconBadgeNumber)

// Load class method (called when the code of a certain class is read into memory)
+ (void)load
{
SEL origSel = @selector(setApplicationIconBadgeNumber:);
SEL swizSel = @selector(swiz_setApplicationIconBadgeNumber:);
[UIApplication swizzleMethods:[self class] originalSelector:origSel swizzledSelector:swizSel];
}

// Swap the implementations of the two methods.
+ (void)swizzleMethods:(Class)class originalSelector:(SEL)origSel swizzledSelector:(SEL)swizSel
{
Method origMethod = class_getInstanceMethod(class, origSel);
Method swizMethod = class_getInstanceMethod(class, swizSel);
BOOL didAddMethod = class_addMethod(class, origSel, method_getImplementation(swizMethod), method_getTypeEncoding(swizMethod));
if (didAddMethod){
class_replaceMethod(class, swizSel, method_getImplementation(origMethod), method_getTypeEncoding(origMethod));
}else{
method_exchangeImplementations(origMethod, swizMethod);
}
}

/// Set the badge using hook.
- (void)swiz_setApplicationIconBadgeNumber:(NSInteger)number
{
NSLog(@" called the `swiz_setApplicationIconBadgeNumber` method.");
/// Print the current function call stack.
NSArray *syms = [NSThread  callStackSymbols];
for(int i = 0 ; i < [syms count]; i++){
NSLog(@"<%@ %p> %@ - caller: %@ ", [self class], self, NSStringFromSelector(_cmd),[syms objectAtIndex:i]);
}
// Jump to the `setApplicationIconBadgeNumber` method when this statement is executed.
[self swiz_setApplicationIconBadgeNumber:number];
}

@end

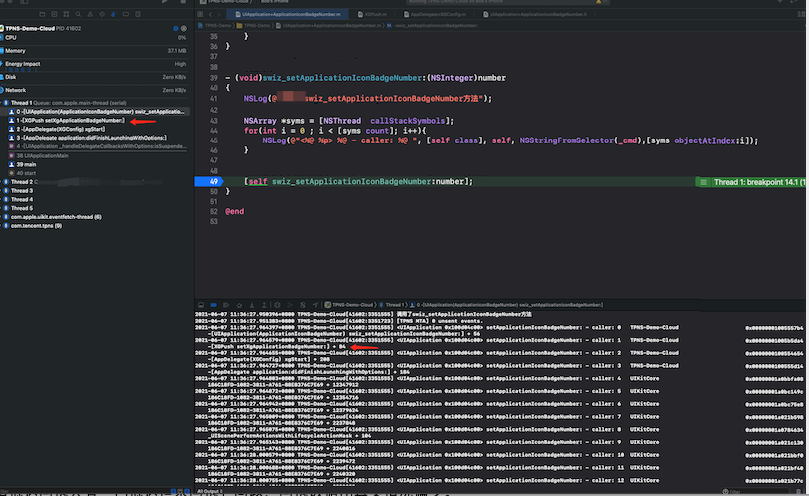

Add the above two files to your project. The following figure is an example of adding them to the Tencent Push Notification Service demo:
