Cache Directory

Last updated: 2023-12-29 11:44:51

    title: Cache Directory - CODING Help Center pageTitle: Cache Directory pagePrevTitle: Build Snapshots pagePrev: ci/configuration/snapshot.html pageNextTitle: Build Node Types pageNext: ci/node/type.html alias:
    devops/ci/cache.html
    ci/cache.html
    practice/jenkins-dockerfile.html

    When installing dependencies for a local project, the downloaded files are cached for the next installation. After you run the npm install command, ./node_modules is generated in the project and is cached in the ~/.npm directory, which is more compact and universal.
    Default build nodes
    CODING distributes computing resources for each build plan, which are destroyed once a build is finished. As a new build node is assigned for each build, the "cache directory" needs to be specified to accelerate the next build.
    Custom build nodes
    If you would like to access computing resources and execute the task in the build plan using a custom build node, the server will not be destroyed once the build is finished, so you do not need to specify the "cache directory".
    When using Docker in Continuous Integration, you will need to enable the "cache directory" in Docker.
    CODING provides the basic task computing resources for build plans. A CVM is assigned for each task in a Linux build environment with root user permissions, the cache directory is as follows:
    Package management tool
    Cache directory
    Maven
    /root/.m2/
    Gradle
    /root/.gradle/
    npm
    /root/.npm/
    composer
    /root/.cache/composer/
    pip3
    /root/.cache/pip/
    yarn
    /usr/local/share/.cache/yarn/
    In "Build Plan Settings" > "Variables and Caches", select or enter the cache directory.



    If you are using Docker in a build plan, go to "Variables and Caches", select the cache directory, and then enable it in Docker.

    Jenkinsfile

    pipeline {
    agent any
    stages {
    stage('check out') {
    steps {
    checkout([
    $class: 'GitSCM',
    branches: [[name: env.GIT_BUILD_REF]],
    userRemoteConfigs: [[url: env.GIT_REPO_URL, credentialsId: env.CREDENTIALS_ID]]
    ])
    }
    }
    stage('Java cache') {
    agent {
    docker {
    image 'adoptopenjdk:11-jdk-hotspot'
    args '-v /root/.gradle/:/root/.gradle/ -v /root/.m2/:/root/.m2/'
    reuseNode true
    }
    }
    steps {
    sh './gradlew test'
    }
    }
    stage('npm cache') {
    steps {
    script {
    docker.image('node:14').inside('-v /root/.npm/:/root/.npm/') {
    sh 'npm install'
    }
    }
    }
    }
    }
    }
    When using a Docker environment in a custom build node, find the cache directory corresponding to the server username. For example, if the default username for Ubuntu servers is ubuntu, the cache directory is /home/ubuntu/.npm/, and the codes are as follows:
    docker.image('node:14').inside('-v /home/ubuntu/.npm/:/root/.npm/') {
    sh 'npm install'
    }
    As the basic Docker images, such as the basic Dockerfile image and CI agent image, need to be pulled for every build, the process can be accelerated by caching the images.
    You can use the Jenkinsfile below by modifying the image name:
    pipeline {
    agent any
    environment{
    DOCKER_CACHE_EXISTS = fileExists '/root/.cache/docker/php-8.0-cli.tar'
    }
    stages {
    stage('Load cache') {
    when { expression { DOCKER_CACHE_EXISTS == 'true' } }
    steps {
    sh 'docker load -i /root/.cache/docker/php-8.0-cli.tar'
    }
    }
    stage('Use images (modify this section)') {
    agent {
    docker {
    image 'php:8.0-cli'
    args '-v /root/.cache/:/root/.cache/'
    reuseNode 'true'
    }
    }
    steps {
    sh "php -v"
    }
    }
    stage('Generate cache (run once only)') {
    when { expression { DOCKER_CACHE_EXISTS == 'false' } }
    steps {
    sh 'mkdir -p /root/.cache/docker/'
    sh 'docker save -o /root/.cache/docker/php-8.0-cli.tar php:8.0-cli'
    }
    }
    }
    }

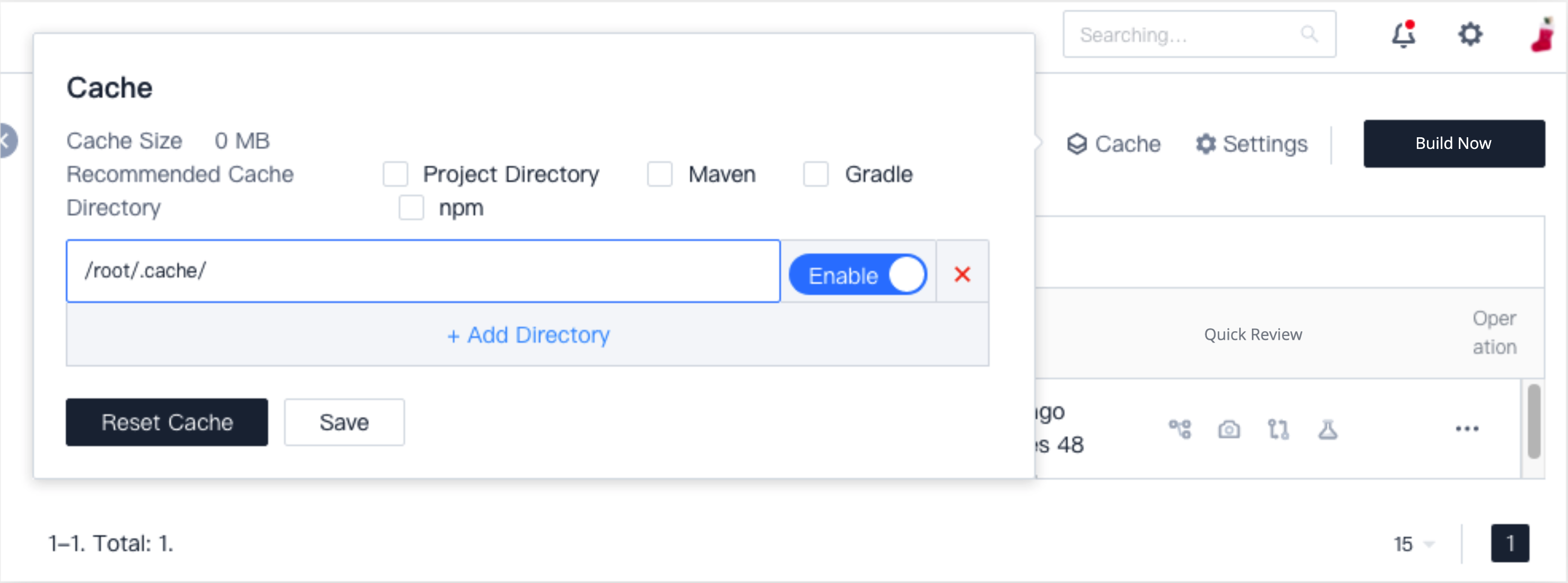

    Add the path /root/.cache/ in "Cache Directory". The duration of the second build is significantly shorten due to the cache:



    ⚠️Keep cached images up to date with official updates.
    If you are using a Dockerfile as the build environment in Continuous Integration, instead of running the docker build command at initialization, save the built Docker images to a repository to pull and reuse them again.

    Jenkinsfile

    // Creates a CODING Docker repository and obtains the username, password, and repository URL
    sh "docker login -u $DOCKER_USER -p $DOCKER_PASSWORD my-team-docker.pkg.coding.net"

    // Use MD5 of Dockerfile as tag
    md5 = sh(script: "md5sum Dockerfile | awk '{print \\$1}'", returnStdout: true).trim()
    imageFullName = "my-team-docker.pkg.coding.net/my-project/my-repo/my-app:dev-${md5}"

    // Check if images exist in remote repository
    dockerNotExists = sh(script: "docker manifest inspect $imageFullName > /dev/null", returnStatus: true)
    def testImage = null
    if (dockerNotExists) {
    testImage = docker.build("$imageFullName", "--build-arg APP_ENV=testing ./")
    sh "docker push $imageFullName"
    } else {
    testImage = docker.image(imageFullName)
    }

    // Use images for automated testing
    testImage.inside("-e 'APP_ENV=testing'") {
    stage('Test') {
    echo 'testing...'
    sh 'ls'
    echo 'test done.'
    }
    }
    Explanation: By running the following command in the shell, you can determine "if the images exist" based on the returned value.
    docker manifest inspect ecoding/foo:bar
    no such manifest
    $ echo $?
    1
    ==== 2021/09/17 ====
