      Basics

      This document describes the live playback feature of Live Flutter Plugin.

      Live streaming overview

      In live streaming, the video source is pushed by the host in real time. When the host stops pushing the source, the player will also stop playing the video. Because the live stream is played back in real time, no progress bar will be displayed in the player during the playback.

      Supported protocols

      Common live streaming protocols are as listed below. We recommend you use an FLV-based live streaming URL that starts with http and ends with .flv for LVB. For LEB, we recommend you use the WebRTC protocol. For more information, see LEB.
      Protocol
      Advantage
      Disadvantage
      Playback Latency
      HLS
      Mature, well adapted to high-concurrency scenarios
      SDK integration is required
      3–5 seconds
      FLV
      Mature, well adapted to high-concurrency scenarios
      SDK integration is required.
      2-3 seconds
      RTMP
      Relatively low latency
      Poor performance in high-concurrency scenarios
      1-3 seconds
      WebRTC
      Lowest latency
      SDK integration is required
      < 1 second
      Note:
      LVB and LEB are priced differently. For details, see LVB Billing Overview and LEB Billing Overview.

      Notes

      The SDK does not impose any restrictions on the sources of playback URLs, which means you can use it to play both Tencent Cloud and non-Tencent Cloud URLs. However, the player of the SDK supports only live streaming URLs in FLV, RTMP, HLS (M3U8), and WebRTC formats and VOD URLs in MP4, HLS (M3U8), and FLV formats.

      Sample Code

      Tencent Cloud offers an easy-to-understand API example project to help you quickly learn how to use different APIs.
      Platform
      GitHub Address
      iOS
      Android
      Flutter

      Getting Started

      1. Set dependencies

      Integrate live_flutter_plugin into your application as instructed in SDK Integration Guide.
      dependencies:
        live_flutter_plugin: latest version number

      2. Configure a license for the SDK

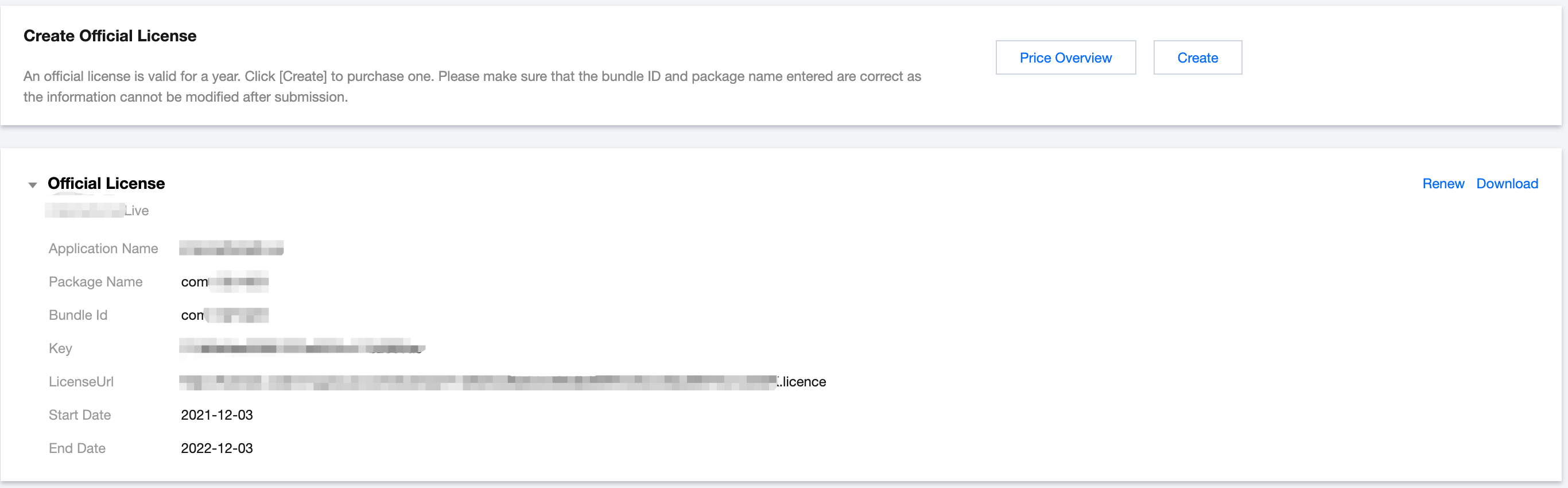

      1. Get the license:
      If you have the required license, get the license URL and key in the CSS console.

      If you don't have the required license, apply for a license as instructed in New License and Renewal.
      2. Before your application calls features of live_flutter_plugin, complete the following configuration:
      import 'package:live_flutter_plugin/v2_tx_live_premier.dart';

       /// Tencent Cloud license management page (https://console.tencentcloud.com/live/license)
      setupLicense() {
        // The license URL of the current application
        var LICENSEURL = "";
        // The license key of the current application
        var LICENSEURLKEY = "";
        V2TXLivePremier.setLicence(LICENSEURL, LICENSEURLKEY);
      }
      Note:
      The packageName/BundleId configured in the license must be the same as that of the application; otherwise, playback will fail.

      3. Create the player

      The V2TXLivePlayer module in the SDK offers live playback capabilities.
      import 'package:live_flutter_plugin/v2_tx_live_player.dart';
      /// Initialize `V2TXLivePlayer`
      initPlayer() {
        _livePlayer = V2TXLivePlayer();
        _livePlayer.addListener(onPlayerObserver);
      }

      4. Render the view

      In Flutter, you need to depend on v2_tx_live_video_widget to create a video rendering view for the player to display video images on.
      import 'package:live_flutter_plugin/widget/v2_tx_live_video_widget.dart';

      /// The video rendering view widget
      Widget renderView() {
        return V2TXLiveVideoWidget(
          onViewCreated: (viewId) async {
            // Set the video rendering view
            _livePlayer.setRenderViewID(_renderViewId);
          },
        );
      }


      5. Start playback

      /// Start pulling the stream
      startPlay() async {
        // Generate the `url` (RTMP/TRTC/LEB)
        var url = ""
        // Start pulling the stream
        await _livePlayer?.startPlay(url);
      }

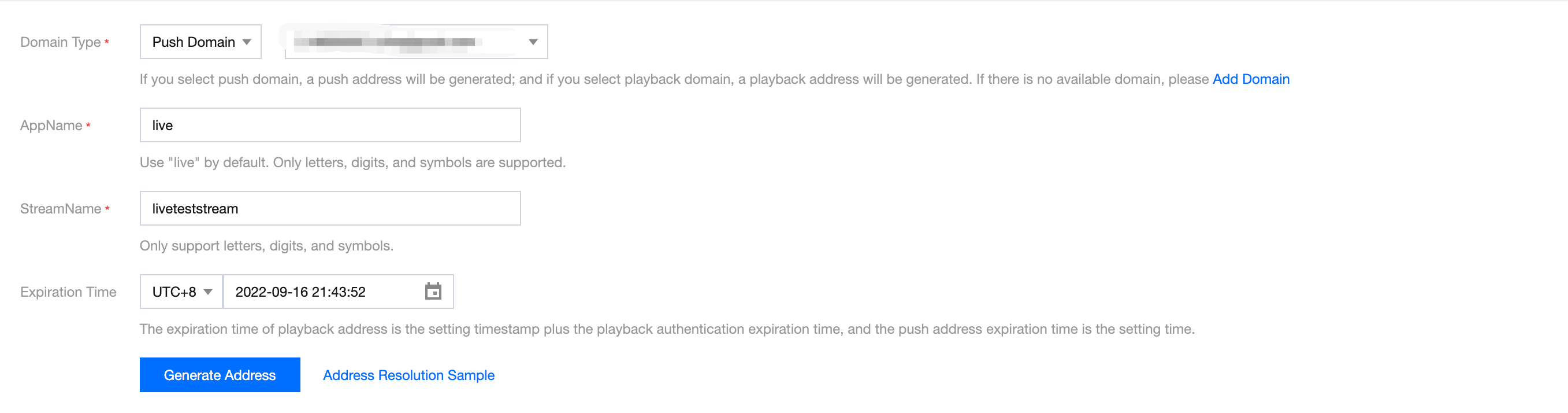

      How do I get a valid stream push URL? Activate CSS. In the CSS console, go to Auxiliary Tools > Address Generator to generate a stream push URL. For more information, see Publishing/Playback URL.

      Why is V2TXLIVE_ERROR_INVALID_LICENSE returned?If the startPush API returns V2TXLIVE_ERROR_INVALID_LICENSE, it means your license verification failed. Please check your configuration against Step 2. Configure a license for the SDK.

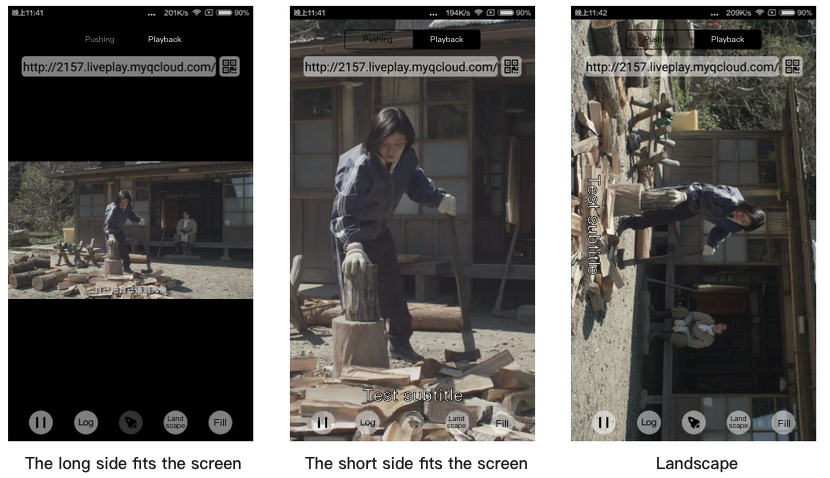

      6. Adjust the image

      setRenderFillMode: Fill or fit
      Value
      Description
      V2TXLiveFillModeFill
      Images are scaled to fill the entire screen, and the excess parts are cropped. There are no black bars in this mode, but images may not be displayed entirely.
      V2TXLiveFillModeFit
      Images are scaled so that the long side of the video fits the screen. Neither side exceeds the screen after scaling. Images are centered, and there may be black bars visible.

      setRenderRotation: Clockwise rotation of video
      Value
      Description
      V2TXLiveRotation0
      No rotation
      V2TXLiveRotation90
      Rotate 90 degrees clockwise
      V2TXLiveRotation180
      Rotate 180 degrees
      V2TXLiveRotation270
      Rotate 270 degrees clockwise




      7. Pause playback

      Technically speaking, you cannot pause a live playback. In this document, pausing live playback refers to freezing the video and disabling the audio. While the video is frozen, new video streams continue to be sent to the cloud. When you resume playback, it resumes playing the current latest stream. This is different from pausing and resuming playback in VOD, in which the player behaves the same way as it does when you pause and resume a local video file.
      // Pause playback
      _livePlayer.pauseAudio();
      _livePlayer.pauseVideo();
      // Resume playback
      _livePlayer.resumeAudio();
      _livePlayer.resumeVideo();

      8. Stop playback

      // Stop playback
      _livePlayer.stopPlay();

      Latency Control

      The live playback feature of the SDK is not based on FFmpeg, but Tencent Cloud's proprietary playback engine, which is why the SDK offers better latency control than open-source players do. We provide three latency control modes, which can be used for live showrooms, game streaming, and hybrid scenarios.
      Comparison of control modes
      Mode
      Stutter
      Average Latency
      Scenario
      Remarks
      Speedy
      Relatively high
      2-3s
      Live showroom
      Has better latency control and is suitable for scenarios that require a low latency.
      Smooth
      Low
      >= 5s
      Game streaming
      Suitable for game live streaming scenarios with a high bitrate.
      Auto
      Adapts to network conditions
      2-8s
      Hybrid
      The better the network conditions at the audience end, the lower the latency.
      Code to integrate the three modes
      // Auto mode
      _txLivePlayer.setCacheParams(1, 5);
      // Speedy mode
      _txLivePlayer.setCacheParams(1, 1);
      // Smooth mode
      _txLivePlayer.setCacheParams(5, 5);

      // Start playback after configuration
      Note:
      For more information on stutter and latency control, see Video Stutter.

      Listening for SDK Events

      You can bind a V2TXLivePlayerObserver to V2TXLivePlayer. Then, all internal SDK status information, such as player status, playback volume level, reception of the first audio/video frame, statistical data, warnings, and errors, will be notified to you through corresponding callbacks.

      Periodically triggered notification

      The onStatisticsUpdate notification is triggered once every 2 seconds to provide real-time feedback on the current player status. It can act as a dashboard to inform you of what is happening inside the SDK so you can better understand the current network conditions and video information.
      Parameter
      Description
      appCpu
      CPU usage (%) of the application
      systemCpu
      CPU usage (%) of the system
      width
      Video width
      height
      Video height
      fps
      Frame rate (fps)
      audioBitrate
      Audio bitrate (Kbps)
      videoBitrate
      Video bitrate (Kbps)
      onPlayoutVolumeUpdate is the callback for the player volume level. It will be returned only when you call enableVolumeEvaluation to enable the prompt for the player volume level. The callback interval is the same as that specified by the intervalMs parameter in enableVolumeEvaluation.

      Event-triggered notifications

      Other callbacks are triggered when specific events occur.
