Note:
Origin-pull data query is not available for ECDN domain names now.
Metric Description
Metrics on the overview page
Log in to the CDN Console and select Statistics > Realtime Monitoring on the left sidebar to enter the management page. The Access Monitoring tab is displayed by default. You can click Origin-Pull Monitoring on the right to enter the origin-pull monitoring metrics page. The monitoring curves of all domain names with a 1-minute granularity in the last 6 hours will be returned, including the following metrics:
- Origin-pull bandwidth: Calculated by dividing the total origin-pull traffic in one minute by 60 seconds.
- Origin-pull traffic: Total origin-pull traffic in the cache node at the last layer.
- Origin-pull requests: Total number of origin-pull requests in the cache node at the last layer.
- Origin-pull failure rate: Percentage of failing origin-pull requests out of all origin-pull requests.
- Percentage of origin-pull status code: Percentage charts of status codes (2XX/3XX/4XX/5XX) returned for origin-pull requests within the selected time period.
- 2XX origin-pull status codes: Status codes generated by 2XX origin-pull status code monitoring will be counted.
- 3XX origin-pull status codes: Status codes generated by 3XX origin-pull status code monitoring will be counted.
- 4XX origin-pull status codes: Status codes generated by 4XX origin-pull status code monitoring will be counted.
- 5XX origin-pull status codes: Status codes generated by 5XX origin-pull status code monitoring will be counted.
The following conditions will be counted as failing origin-pull requests:
- Timeout in receiving origin-pull data.
- Timeout in sending origin-pull request.
- Timeout in establishing a TCP connection for origin-pull.
- The origin server actively closes the connection.
- HTTP protocol compatibility error of the origin server.
Data on the details page

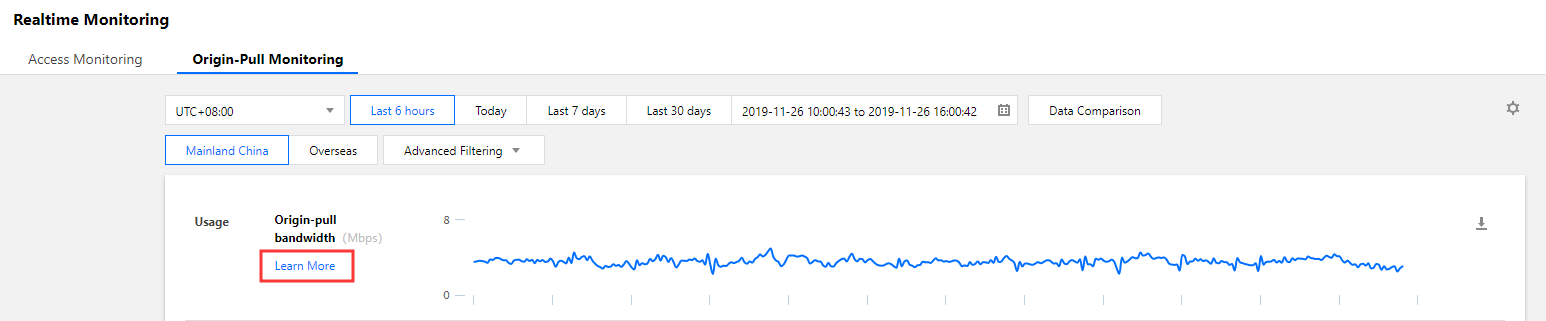

Click Learn More under each metric to enter the metric details page.
![](https://main.qcloudimg.com/raw/f63c60b1e8d89db0302c9e102548fe70.png)

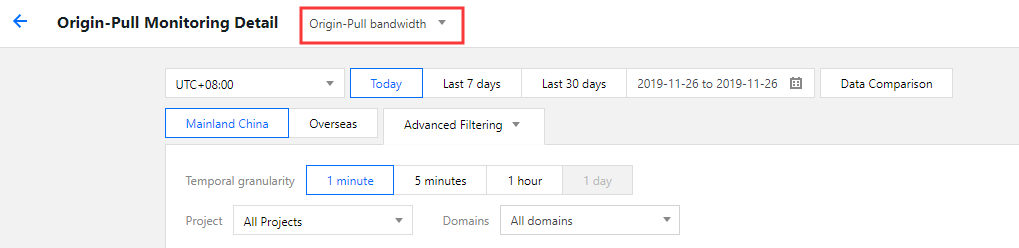

You can also switch to another metric by selecting it from the drop-down list on the top-left corner of the details page.
![](https://main.qcloudimg.com/raw/795eeb398f3f73663f5168f3b41612c4.png)
Granularity Description
Granularity on the overview page
The monitoring page provides options to display data curves at a 1-minute, 5-minute, 1-hour, or 1-day granularity. The minimum time granularity can be displayed varies by the selected time period.
- Time period ≤ 6 hours: The minimum time granularity is 1 minute. The latency for displaying the 1-minute curve is about 3 minutes.
- 6 hours < time period ≤ 24 hours: The minimum time granularity is 5 minutes. The latency for displaying the 5-minute curve is about 5–10 minutes.
- 24 hours < time period ≤ 31 days: The minimum time granularity is 1 hour.
- Time period > 31 days: The minimum time granularity is 1 day.
Granularity on the details page
The time granularity options on the metric details page are as follows:
- Time period ≤ 24 hours: The minimum time granularity is 1 minute. The latency for displaying the 1-minute curve is about 3 minutes.
- 24 hours < time period ≤ 31 days: The minimum time granularity can be 5 minutes, 1 hour, or 1 day.
- Time period > 31 days: The minimum time granularity is 1 day.
Note:
- The data collected at a 1-minute granularity can be queried only in the new version of the console. For historical data, the minimum granularity for query is 5 minutes.
- The maximum time period for query is 90 days.
Aggregation Description
The method for aggregating 1-minute data into 5-minute, 1-hour, or 1-day data varies by data metric.
- Origin-pull bandwidth: The smallest granularity provided by CDN for monitoring bandwidth data is 1 minute. Based on industry standard, fees are generally billed by 5-minute granularity, which is calculated by taking the average of 1-minute data values. Therefore, the bandwidth data at a 1-hour or 1-day granularity can be calculated based on the maximum 5-minute bandwidth value.
- Origin-pull traffic: The traffic data at a 5-minute, 1-hour, or 1-day granularity is obtained by aggregating 1-minute traffic data.
- Origin-pull requests: The request count at a 5-minute, 1-hour, or 1-day granularity is obtained by aggregating 1-minute request counts.
- Origin-pull failure rate: Calculated by dividing the total number of origin-pull failures by the total number of origin-pull requests based on the selected time granularity.
- Origin-pull status codes: The status code data at a 5-minute, 1-hour, or 1-day granularity is obtained by aggregating 1-minute status code data.
