Use of GitHub Actions in TEM
GitHub Actions
Note:
GitHub Actions makes it easy to automate all your software workflows, now with world-class CI/CD.
Application release types supported by TEM
The TEM platform uses cloud native as its infrastructure, where all applications exist in the form of containers at runtime. TEM especially supports the release of JAR and WAR packages for Java applications and takes care of the build and management of images. For other languages, you need to build images on your own and push them to Tencent Cloud Image Registry.
How to use
The following takes .NET as an example to describe how to use GitHub Actions.
name: .NET
on:
push:
branches: [ master ]
pull_request:
branches: [ master ]
jobs:
build:
runs-on: ubuntu-latest
steps:
- uses: actions/checkout@v2
- name: Setup .NET
uses: actions/setup-dotnet@v1
with:
dotnet-version: 5.0.x
- name: Declare some variables
id: vars
shell: bash
run: |
echo "::set-output name=sha_short::$(git rev-parse --short HEAD)"
- name: Build Code
run: dotnet publish -o ./target
- name: Set up Docker Buildx
uses: docker/setup-buildx-action@v1
- name: Login to Registry
uses: docker/login-action@v1
with:
registry: ${{ secrets.REGISTRY_URL }}
username: ${{ secrets.REGISTRY_USERNAME }}
password: ${{ secrets.REGISTRY_TOKEN }}
- name: Build and push
uses: docker/build-push-action@v2
with:
context: .
push: true
platforms: linux/amd64,linux/arm64
tags: ccr.ccs.tencentyun.com/han_test/my-web-app:${{ steps.vars.outputs.sha_short }}
1. Your code repository should include the dockerfile
file for use by the built action.
FROM mcr.microsoft.com/dotnet/aspnet:5.0
COPY ./target /app
WORKDIR /app
ENTRYPOINT ["dotnet", "myWebApp.dll"]
2. Here, commitId
is used as the image tag, which makes it easier to confirm the runtime's application code version. If you don't need this, you can directly use the latest image tag.
git rev-parse --short HEAD
3. Tencent Cloud Image Registry Personal Edition requires your login information. The account information will automatically pop up when you open the Personal Edition page for the first time. The Enterprise Edition works in a similar way. You can find relevant documents by yourself. - name: Login to Registry
uses: docker/login-action@v1
with:
registry: ${{ secrets.REGISTRY_URL }}
username: ${{ secrets.REGISTRY_USERNAME }}
password: ${{ secrets.REGISTRY_TOKEN }}

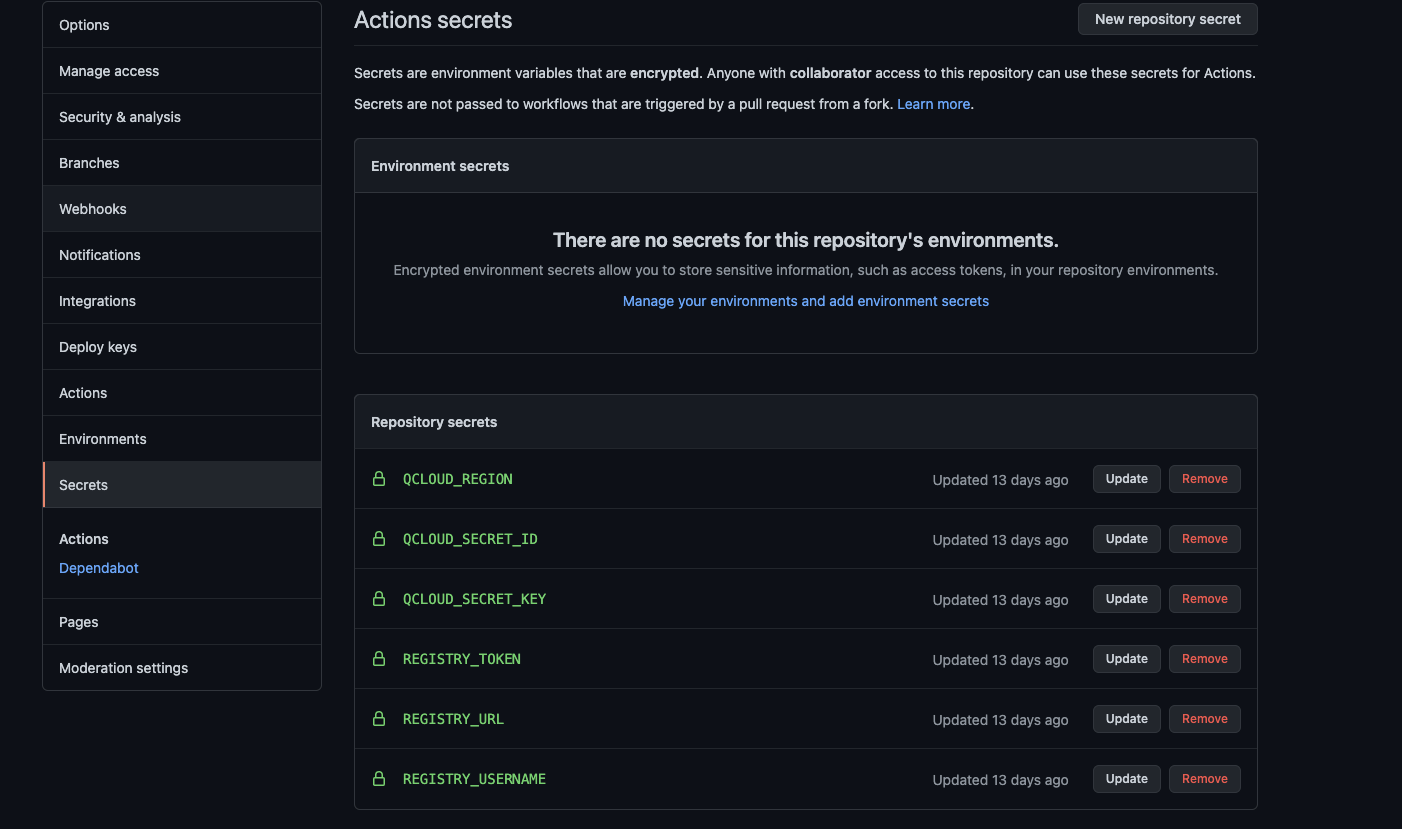

4. Relevant keys can be managed by using the Secrets module on the Repository Settings page.
