Voice Chat

Last updated: 2024-01-18 15:11:45
    This document describes how to access and debug GME client APIs for the voice chat feature for Cocos2d.

    Key Considerations for Using GME

    GME provides the real-time voice, voice message, and speech-to-text services, which all depend on core APIs such as Init and Poll.

    Key notes

    You have created a GME application and obtained the AppID and Key of the SDK as instructed in Activating Services.
    You have activated the real-time voice, voice message, and speech-to-text services of GME as instructed in Activating Services.
    Configure your project before using GME; otherwise, the SDK will not take effect.
    After a GME API is called successfully, QAVError.OK will be returned with the value being 0.
    GME APIs should be called in the same thread.
    The Poll API should be called periodically for GME to trigger event callbacks.
    For detailed error code, please see Error Codes.

    Connecting to the SDK

    Directions

    Key processes involved in SDK connection are as follows:




    C++ classes

    Class
    Description
    ITMGContext
    Key APIs
    ITMGRoom
    Room APIs
    ITMGRoomManager
    Room management APIs
    ITMGAudioCtrl
    Audio APIs
    ITMGAudioEffectCtrl
    Sound effect and accompaniment APIs

    Key APIs

    API
    Description
    Init
    Initializes GME
    Poll
    Triggers event callback
    Pause
    Pauses the system
    Resume
    Resumes the system
    Uninit
    Uninitializes GME

    Preparations

    You need to import the header file tmg_sdk.h first before you can access GME. The classes in the header file inherit ITMGDelegate for message delivery and callback.

    Sample code

    #include "tmg_sdk.h"

    class TMGTestScene : public cocos2d::Scene,public ITMGDelegate
    {
    public:
    ...
    private:
    ...

    Setting a singleton

    You need to get ITMGContext first before you can call the EnterRoom function. All calls begin with ITMGContext, which is returned to the application through the ITMGDelegate callback and must be set first.

    Sample code

    ITMGContext* context = ITMGContextGetInstance();
    context->SetTMGDelegate(this);

    Message delivery

    The API class uses the Delegate method to send callback notifications to the application. ITMG_MAIN_EVENT_TYPE indicates the message type. The data on Windows is in json string format. For the key-value pairs, please see the relevant documentation.

    Sample code

    // Function implementation:
    //TMGTestScene.h:
    class TMGTestScene : public cocos2d::Scene,public ITMGDelegate
    {
    public:
    void OnEvent(ITMG_MAIN_EVENT_TYPE eventType, const char* data);

    //TMGTestScene.cpp:
    void TMGTestScene::OnEvent(ITMG_MAIN_EVENT_TYPE eventType,const char* data){
    // Identify and manipulate `eventType` here
    }

    Initializing the SDK

    You need to initialize the SDK through the Init API before you can use the real-time voice, voice message, and speech-to-text services. The Init API must be called in the same thread as other APIs. We recommend you call all APIs in the main thread.

    API prototype

    ITMGContext virtual int Init(const char* sdkAppId, const char* openId)
    Parameter
    Type
    Description
    sdkAppId
    const char*
    AppID provided in the GME console, which can be obtained as instructed in Activating Services.
    openID
    const char*
    openID can only be in Int64 type, which is passed in after being converted to a const char*. You can customize its rules, and it must be unique in the application. To pass in openID as a string, submit a ticket for application.

    Returned values

    Returned Value
    Description
    AV_OK = 0
    Initialized SDK successfully.
    AV_ERR_SDK_NOT_FULL_UPDATE=7015
    Checks whether the SDK file is complete. It is recommended to delete it and then import the SDK again.
    Notes on 7015 error code:
    The 7015 error code is judged by md5. If this error is reported during integration, please check the integrity and version of the SDK file as prompted.
    The returned value AV_ERR_SDK_NOT_FULL_UPDATE is only a reminder but will not cause an initialization failure.
    Due to the third-party reinforcement, Unity packaging mechanism and other factors, the md5 of the library file will be affected, resulting in misjudgment. Please ignore this error in the logic for official release, and try to avoid displaying it in the UI.

    Sample code

    #define SDKAPPID3RD "14000xxxxx"
    cosnt char* openId="10001";
    ITMGContext* context = ITMGContextGetInstance();
    context->Init(SDKAPPID3RD, openId);

    Triggering event callback

    Event callbacks can be triggered by periodically calling the Poll API in update. Poll is the message pump of GME, and the Poll API should be called periodically for GME to trigger event callbacks; otherwise, the entire SDK service will run exceptionally. You can refer to the EnginePollHelper.cpp file in the demo.
    Calling the `Poll` API periodically:
    The Poll API must be called periodically and in the main thread to avoid abnormal API callbacks.

    API prototype

    class ITMGContext {
    protected:
    virtual ~ITMGContext() {}

    public:
    virtual void Poll()= 0;
    }

    Sample code

    // Declaration in the header file
    class TMGTestScene : public cocos2d::Scene,public ITMGDelegate
    {
    void update(float delta);
    }

    // Code implementation
    void TMGTestScene::update(float delta)
    {
    ITMGContextGetInstance()->Poll();
    }

    Pausing the system

    When a Pause event occurs in the system, the engine should also be notified for pause. If you do not need the background to play back the audio in the room, please call Pause API to pause the GME service.

    API prototype

    ITMGContext int Pause()

    Resuming the system

    When a Resume event occurs in the system, the engine should also be notified for resumption. The Resume API only supports resuming voice chat.

    API prototype

    ITMGContext int Resume()

    Uninitializing SDK

    This API is used to uninitialize the SDK to make it uninitialized. If the game business account is bound to openid, switching game account requires uninitializing GME and then using the new openid to initialize again.

    API prototype

    ITMGContext int Uninit()

    Sample code

    ITMGContext* context = ITMGContextGetInstance();
    context->Uninit();

    Voice Chat Room APIs

    You should initialize and call the SDK to enter a room before voice chat can start.
    If you have any questions when using the service, please see FAQs About Voice Chat.



    API
    Description
    GenAuthBuffer
    Calculates the local authentication key
    EnterRoom
    Enters a room
    ExitRoom
    Exits the room
    IsRoomEntered
    Determines whether room entry is successful
    SwitchRoom
    Switches the room quickly

    Local authentication key calculation

    Generate AuthBuffer for encryption and authentication of relevant features. For release in the production environment, please use the backend deployment key as detailed in Authentication Key.

    API prototype

    int QAVSDK_AuthBuffer_GenAuthBuffer(unsigned int dwSdkAppID, const char* strRoomID, const char* strOpenID,
    const char* strKey, unsigned char* strAuthBuffer, unsigned int bufferLength);
    Parameter
    Type
    Description
    dwSdkAppID
    unsigned int
    AppId from the Tencent Cloud console
    strRoomID
    const char*
    Room ID, which can contain up to 127 characters.
    strOpenID
    const char*
    User ID, which is the same as openID during initialization.
    strKey
    const char*
    Permission key from the Tencent Cloud console
    strAuthBuffer
    const char*
    Returned authbuff
    bufferLength
    int
    The length of the returned authbuff. 500 is recommended.

    Sample code

    unsigned int bufferLen = 512;
    unsigned char retAuthBuff[512] = {0};
    QAVSDK_AuthBuffer_GenAuthBuffer(atoi(SDKAPPID3RD), roomId, "10001", AUTHKEY,retAuthBuff,bufferLen);

    Entering a room

    This API is used to enter a room with the generated authentication information. The mic and speaker are not enabled by default after room entry.
    Note:
    If the room entry callback result is 0, the room entry is successful. If 0 is returned from the EnterRoom API, it doesn't necessarily mean that the room entry is successful.
    The audio type of the room is determined by the first user entering the room. After that, if a member in the room changes the room type, it will take effect for all members there. For example, if the first user entering the room uses the smooth sound quality, and the second user entering the room uses the HD sound quality, the room audio type of the second user will change to the smooth sound quality. Only after a member in the room calls the ChangeRoomType API will the audio type of the room be changed.
    ITMGContext virtual int EnterRoom(const char* roomID, ITMG_ROOM_TYPE roomType, const char* authBuff, int buffLen)
    Parameter
    Type
    Description
    roomID
    const char*
    Room ID, which can contain up to 127 characters.
    roomType
    ITMG_ROOM_TYPE
    Room type. We recommend you select ITMG_ROOM_TYPE_FLUENCY for games. For more information on room audio types, see Sound Quality.
    authBuffer
    const char*
    Authentication key
    buffLen
    int
    Authentication key length

    Sample code

    ITMGContext* context = ITMGContextGetInstance();
    context->EnterRoom(roomID, ITMG_ROOM_TYPE_FLUENCY, (char*)retAuthBuff,bufferLen);

    Callback for room entry

    After the user enters the room, the message ITMG_MAIN_EVENT_TYPE_ENTER_ROOM will be sent and identified in the OnEvent function for callback and processing. A successful callback means that the room entry is successful, and the billing starts.

    Sample code

    void TMGTestScene::OnEvent(ITMG_MAIN_EVENT_TYPE eventType,const char* data){
    switch (eventType) {
    case ITMG_MAIN_EVENT_TYPE_ENTER_ROOM:
    {
    // Process
    break;
    }
    }
    }

    Data details

    Message
    Data
    Sample
    ITMG_MAIN_EVENT_TYPE_ENTER_ROOM
    result; error_info
    {"error_info":"","result":0}
    ITMG_MAIN_EVENT_TYPE_ROOM_DISCONNECT
    result; error_info
    {"error_info":"waiting timeout, please check your network","result":0}
    If the network is disconnected, there will be a disconnected callback prompt ITMG_MAIN_EVENT_TYPE.ITMG_MAIN_EVENT_TYPE_ROOM_DISCONNECT. At this time, the SDK will automatically reconnect, and the callback is ITMG_MAIN_EVENT_TYPE_RECONNECT_START. When the reconnection is successful, there will be a callback ITMG_MAIN_EVENT_TYPE_RECONNECT_SUCCESS.

    Error codes

    Error Code Value
    Cause and Suggested Solution
    7006
    Authentication failed:
    The AppID does not exist or is incorrect.
    An error occurred while authenticating the authbuff.
    Authentication expired.
    The OpenId does not meet the specification.
    7007
    Already in another room.
    1001
    The user was already in the process of entering a room but repeated this operation. It is recommended not to call the room entering API until the room entry callback is returned.
    1003
    The user was already in the room and called the room entering API again.
    1101
    Make sure that the SDK is initialized, OpenId complies with the rules, the APIs are called in the same thread, and the Poll API is called normally

    Exiting a room

    This API is used to exit the current room. It is an async API. The returned value AV_OK indicates a successful async delivery. If there is a scenario in the application where room entry is performed immediately after room exit, you don't need to wait for the RoomExitComplete callback notification from the ExitRoom API during API call; instead, you can directly call the EnterRoom API.

    API prototype

    ITMGContext virtual int ExitRoom()

    Sample code

    ITMGContext* context = ITMGContextGetInstance();
    context->ExitRoom();

    Callback for room exit

    After the user exits a room, a callback will be returned with the message being ITMG_MAIN_EVENT_TYPE_EXIT_ROOM.

    Sample code

    void TMGTestScene::OnEvent(ITMG_MAIN_EVENT_TYPE eventType,const char* data){
    switch (eventType) {
    case ITMG_MAIN_EVENT_TYPE_EXIT_ROOM:
    {
    // Process
    break;
    }
    }
    }

    Data details

    Message
    Data
    Sample
    ITMG_MAIN_EVENT_TYPE_EXIT_ROOM
    result; error_info
    {"error_info":"","result":0}

    Determining whether a user has entered a room

    This API is used to determine whether the user has entered a room. A value in bool type will be returned. Do not call this API during room entry.

    API prototype

    ITMGContext virtual bool IsRoomEntered()

    Sample code

    ITMGContext* context = ITMGContextGetInstance();
    context->IsRoomEntered();


    Switching room

    User can call this API to quickly switch the voice chat room after entering the room. After the room is switched, the device is not reset, that is, if the microphone is already enabled in this room, the microphone will keep enabled after the room is switched. The callback for quickly switching rooms is ITMG_MAIN_EVENT_TYPE.ITMG_MAIN_EVENT_TYPE_SWITCH_ROOM, and the fields are error_info and result.

    API prototype

    ITMGContext virtual int SwitchRoom(const char* targetRoomID, const char* authBuff, int buffLen);

    Type descriptions

    Parameter
    Type
    Description
    targetRoomID
    const char*
    ID of the room to enter
    authBuffer
    const char*
    Generates a new authentication key with the ID of the room to enter
    buffLen
    int
    Authentication key length

    Room Status Maintenance

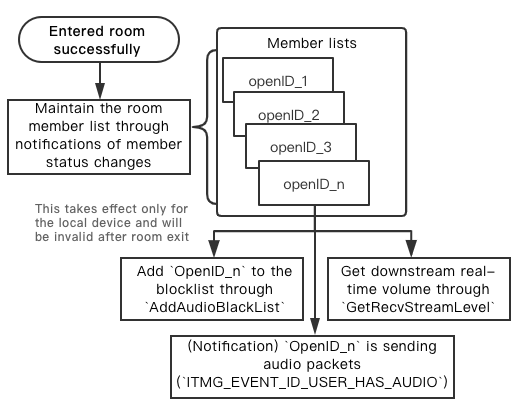

    APIs in this section are used to display speaking members and members entering or exiting the room and mute a member in the room at the business layer.



    API/Notification
    Description
    ITMG_MAIN_EVNET_TYPE_USER_UPDATE
    The member status changed
    AddAudioBlackList
    Mutes a member in the room
    RemoveAudioBlackList
    Unmutes a user

    Notification events of member room entry and speaking status

    This API is used to obtain the user speaking in the room and display it in the UI, and to send a notification when someone entering or exiting the room. Notification for this event will be sent only when the status changes. To get member status in real time, cache the notification when it is received at a higher layer. The event message is ITMG_MAIN_EVNET_TYPE_USER_UPDATE, where the data contains event_id and user_list. The event message will be identified in the OnEvent function. Notifications for audio events are subject to a threshold, and a notification will be sent only when this threshold is exceeded. The notification "A member has stopped sending audio packets" will be sent if no audio packets are received in more than two seconds.
    event_id
    Description
    Maintenance
    ITMG_EVENT_ID_USER_ENTER
    Return the openid of the member entering the room.
    Member list
    ITMG_EVENT_ID_USER_EXIT
    Return the openid of the member exiting the room.
    Member list
    ITMG_EVENT_ID_USER_HAS_AUDIO
    Return the openid of the member sending audio packets in the room. This event can be used to determine whether a user is speaking and display the voiceprint effect.
    Chat member list
    ITMG_EVENT_ID_USER_NO_AUDIO
    Return the openid of the member stopping sending audio packets in the room.
    Chat member list

    Sample code

    void TMGTestScene::OnEvent(ITMG_MAIN_EVENT_TYPE eventType,const char* data){
    switch (eventType) {
    case ITMG_MAIN_EVNET_TYPE_USER_UPDATE:
    {
    // Process
    // Parse the parameter to get `eventID` and `user_list`
    switch (eventID)
    {
    case ITMG_EVENT_ID_USER_ENTER:
    // A member enters the room
    break;
    case ITMG_EVENT_ID_USER_EXIT:
    // A member exits the room
    break;
    case ITMG_EVENT_ID_USER_HAS_AUDIO:
    // A member sends audio packets
    break;
    case ITMG_EVENT_ID_USER_NO_AUDIO:
    // A member stops sending audio packets
    break;
    default:
    break;
    }
    break;
    }
    }
    }

    Muting a member in the room

    This API is used to add an ID to the audio data blocklist. This operation blocks audio from someone and only applies to the local device without affecting other devices. The returned value 0 indicates that the call is successful. Assume that users A, B, and C are all speaking using their mic in a room:
    If A blocks C, A can only hear B;
    If B blocks neither A nor C, B can hear both of them;
    If C blocks neither A nor B, C can hear both of them.
    This API is suitable for scenarios where a user is muted in a room.

    API prototype

    ITMGContext ITMGAudioCtrl int AddAudioBlackList(const char* openId)
    Parameter
    Type
    Description
    openId
    char*
    openid of the user to be blocked

    Sample code

    ITMGContextGetInstance()->GetAudioCtrl()->AddAudioBlackList(openId);

    Unmuting

    This API is used to remove an ID from the audio data blacklist. A returned value of 0 indicates the call is successful.

    API prototype

    ITMGContext ITMGAudioCtrl int RemoveAudioBlackList(const char* openId)
    Parameter
    Type
    Description
    openId
    char*
    ID to be unblocked

    Sample code

    ITMGContextGetInstance()->GetAudioCtrl()->RemoveAudioBlackList(openId);

    Voice Chat Capturing APIs

    The voice chat APIs can only be called after SDK initialization and room entry.
    When the user clicks the button of enabling/disabling the mic or speaker on the UI, we recommend you call the EnableMic or EnableSpeaker API.
    To enable the user to press the mic button on the UI to speak and release it to stop speaking, we recommend you call EnableAudioCaptureDevice once during room entry and call EnableAudioSend to enable the user to speak while pressing the button.
    API
    Description
    EnableMic
    Enables/Disables the mic
    GetMicState
    Gets the mic status
    EnableAudioCaptureDevice
    Enables/Disables the capturing device
    IsAudioCaptureDeviceEnabled
    Gets the capturing device status
    EnableAudioSend
    Enables/Disables audio upstreaming
    IsAudioSendEnabled
    Gets the audio upstreaming status
    GetMicLevel
    Gets the real-time mic volume level
    GetSendStreamLevel
    Gets real-time audio upstreaming volume
    SetMicVolume
    Sets the mic volume level
    GetMicVolume
    Gets the mic volume level

    Enabling or disabling mic

    This API is used to enable/disable the mic. The mic and speaker are not enabled by default after room entry. EnableMic = EnableAudioCaptureDevice + EnableAudioSend

    API prototype

    ITMGAudioCtrl virtual int EnableMic(bool bEnabled)
    Parameter
    Type
    Description
    bEnabled
    bool
    To enable the mic, set this parameter to true, otherwise, set it to false.

    Sample code

    // Enable mic
    ITMGContextGetInstance()->GetAudioCtrl()->EnableMic(true);

    Getting the mic status

    This API is used to get the mic status. The returned value 0 indicates that the mic is off, while 1 is on.

    API prototype

    ITMGAudioCtrl virtual int GetMicState()

    Sample code

    ITMGContextGetInstance()->GetAudioCtrl()->GetMicState();

    Enabling or disabling capturing device

    This API is used to enable/disable a capturing device. The device is not enabled by default after room entry.
    This API can only be called after room entry. The device will be disabled automatically after room exit.
    Operations such as permission application and volume type adjustment will generally be performed when a capturing device is enabled on a mobile device.

    API prototype

    ITMGAudioCtrl virtual int EnableAudioCaptureDevice(bool enable)
    Parameter
    Type
    Description
    enable
    bool
    To enable the capturing device, set this parameter to true, otherwise, set it to false.

    Sample code

    // Enable capturing device
    ITMGContextGetInstance()->GetAudioCtrl()->EnableAudioCaptureDevice(true);

    Getting the capturing device status

    This API is used to get the status of a capturing device.

    API prototype

    ITMGContext virtual bool IsAudioCaptureDeviceEnabled()

    Sample code

    ITMGContextGetInstance()->GetAudioCtrl()->IsAudioCaptureDeviceEnabled();

    Enabling or disabling audio upstreaming

    This API is used to enable/disable audio upstreaming. If a capturing device is already enabled, it will send captured audio data; otherwise, it will remain mute. For more information on how to enable/disable the capturing device, please see the EnableAudioCaptureDevice API.

    API prototype

    ITMGContext virtual int EnableAudioSend(bool bEnable)
    Parameter
    Type
    Description
    bEnable
    bool
    To enable audio upstreaming, set this parameter to true; otherwise, set it to false.

    Sample code

    ITMGContextGetInstance()->GetAudioCtrl()->EnableAudioSend(true);

    Getting audio upstreaming status

    This API is used to get the status of audio upstreaming.

    API prototype

    ITMGContext virtual bool IsAudioSendEnabled()

    Sample code

    ITMGContextGetInstance()->GetAudioCtrl()->IsAudioSendEnabled();

    Getting the real-time mic volume

    This API is used to get the real-time mic volume. An int-type value in the range of 0-100 will be returned. It is recommended to call this API once every 20 ms.

    API prototype

    ITMGAudioCtrl virtual int GetMicLevel()

    Sample code

    ITMGContextGetInstance()->GetAudioCtrl()->GetMicLevel();

    Getting the real-time audio upstreaming volume

    This API is used to get the local real-time audio upstreaming volume. An int-type value in the range of 0-100 will be returned.

    API prototype

    ITMGAudioCtrl virtual int GetSendStreamLevel()

    Sample code

    ITMGContextGetInstance()->GetAudioCtrl()->GetSendStreamLevel();

    Setting the mic software volume

    This API is used to set the mic volume level. The corresponding parameter is volume, which is equivalent to attenuating or gaining the captured sound.

    API prototype

    ITMGAudioCtrl virtual int SetMicVolume(int vol)
    Parameter
    Type
    Description
    vol
    int
    Value range: 0–200. Default value: 100. 0 indicates that the audio is mute, while 100 indicates that the volume level remains unchanged.

    Sample code

    int micVol = (int)(value * 100);
    ITMGContextGetInstance()->GetAudioCtrl()->SetMicVolume(vol);

    Getting the mic software volume

    This API is used to obtain the microphone volume. An "int" value is returned. Value 101 represents API SetMicVolume has not been called.

    API prototype

    ITMGAudioCtrl virtual int GetMicVolume()

    Sample code

    ITMGContextGetInstance()->GetAudioCtrl()->GetMicVolume();

    Voice Chat Playback APIs

    API
    Description
    EnableSpeaker
    Enables/Disables the speaker
    GetSpeakerState
    Gets the speaker status
    EnableAudioPlayDevice
    Enables/Disables the playback device
    IsAudioPlayDeviceEnabled
    Gets playback device status
    EnableAudioRecv
    Enables/Disables audio downstreaming
    IsAudioRecvEnabled
    Gets the audio downstreaming status
    GetSpeakerLevel
    Gets the real-time speaker volume level
    GetRecvStreamLevel
    Gets the real-time downstreaming audio volume levels of other members in the room
    SetSpeakerVolume
    Sets the speaker volume level
    GetSpeakerVolume
    Gets the speaker volume level

    Enabling or disabling speaker

    This API is used to enable/disable the speaker. EnableSpeaker = EnableAudioPlayDevice + EnableAudioRecv

    API prototype

    ITMGAudioCtrl virtual int EnableSpeaker(bool enable)
    Parameter
    Type
    Description
    enable
    bool
    To disable the speaker, set this parameter to false; otherwise, set it to true.

    Sample code

    // Enable the speaker
    ITMGContextGetInstance()->GetAudioCtrl()->EnableSpeaker(true);

    Getting the speaker status

    This API is used to get the speaker status. 0 indicates that the speaker is off, and 1 is on.

    API prototype

    ITMGAudioCtrl virtual int GetSpeakerState()

    Sample code

    ITMGContextGetInstance()->GetAudioCtrl()->GetSpeakerState();

    Enabling or disabling playback device

    This API is used to enable/disable a playback device.

    API prototype

    ITMGAudioCtrl virtual int EnableAudioPlayDevice(bool enable)
    Parameter
    Type
    Description
    enable
    bool
    To disable the playback device, set this parameter to false; otherwise, set it to true.

    Sample code

    ITMGContextGetInstance()->GetAudioCtrl()->EnableAudioPlayDevice(true);

    Getting the playback device status

    This API is used to get the status of a playback device.

    API prototype

    ITMGAudioCtrl virtual bool IsAudioPlayDeviceEnabled()

    Sample code

    ITMGContextGetInstance()->GetAudioCtrl()->IsAudioPlayDeviceEnabled();

    Enabling or disabling audio downstreaming

    This API is used to enable/disable audio downstreaming. If a playback device is already enabled, it will play back audio data from other members in the room; otherwise, it will remain mute. For more information on how to enable/disable the playback device, please see the EnableAudioPlayDevice API.

    API prototype

    ITMGAudioCtrl virtual int EnableAudioRecv(bool enable)
    Parameter
    Type
    Description
    enable
    bool
    To enable audio downstreaming, set this parameter to true; otherwise, set it to false.

    Sample code

    ITMGContextGetInstance()->GetAudioCtrl()->EnableAudioRecv(true);

    Getting audio downstreaming status

    This API is used to get the status of audio downstreaming.

    API prototype

    ITMGAudioCtrl virtual bool IsAudioRecvEnabled()

    Sample code

    ITMGContextGetInstance()->GetAudioCtrl()->IsAudioRecvEnabled();

    Getting the real-time speaker volume

    This API is used to get the real-time speaker volume. An int-type value will be returned to indicate the volume. It is recommended to call this API once every 20 ms.

    API prototype

    ITMGAudioCtrl virtual int GetSpeakerLevel()

    Sample code

    ITMGContextGetInstance()->GetAudioCtrl()->GetSpeakerLevel();

    Getting the real-time downstreaming audio levels of other members in the room

    This API is used to get the real-time audio downstreaming volume of other members in the room. An int-type value will be returned. Value range: 0-200.

    API prototype

    ITMGAudioCtrl virtual int GetRecvStreamLevel(const char* openId)
    Parameter
    Type
    Description
    openId
    char*
    openId of other members in the room

    Sample code

    iter->second.level = ITMGContextGetInstance()->GetAudioCtrl()->GetRecvStreamLevel(iter->second.openid.c_str());

    Setting the speaker volume

    This API is used to set the speaker volume.

    API prototype

    ITMGAudioCtrl virtual int SetSpeakerVolume(int vol)
    Parameter
    Type
    Description
    vol
    int
    Volume level. Value range: 0–200. Default value: 100. 0 indicates that the audio is mute, while 100 indicates that the volume level remains unchanged.

    Sample code

    int vol = 100;
    ITMGContextGetInstance()->GetAudioCtrl()->SetSpeakerVolume(vol);

    Getting the speaker volume

    This API is used to get the speaker volume. An int-type value will be returned to indicate the volume. 101 indicates that the SetSpeakerVolume API has not been called. "Level" indicates the real-time volume, and "Volume" the speaker volume. The final volume = Level * Volume%. For example, if the "Level" is 100 and "Volume" is 60, the final volume is "60".

    API prototype

    ITMGAudioCtrl virtual int GetSpeakerVolume()

    Sample code

    ITMGContextGetInstance()->GetAudioCtrl()->GetSpeakerVolume();

    Device Selection APIs

    Device selection APIs can be used only on PC.
    API
    Description
    GetMicListCount
    Gets the number of mics
    GetMicList
    Lists mics
    GetSpeakerListCount
    Gets the number of speakers
    GetSpeakerList
    Lists speakers
    SelectMic
    Selects mics
    SelectSpeaker
    Selects speakers

    Getting the number of mics

    This API is used to get the number of mics.

    Function prototype

    ITMGAudioCtrl virtual int GetMicListCount()


    Sample code

    ITMGContextGetInstance()->GetAudioCtrl()->GetMicListCount();

    Enumerating mics

    This API is used together with the GetMicListCount API to enumerate mics.

    Function prototype

    ITMGAudioCtrl virtual int GetMicList(TMGAudioDeviceInfo* ppDeviceInfoList, int nCount)

    class TMGAudioDeviceInfo
    {
    public:
    const char* pDeviceID;
    const char* pDeviceName;
    };

    Parameter
    Type
    Description
    ppDeviceInfoList
    TMGAudioDeviceInfo
    Device list
    nCount
    int
    Number of the mics
    TMGAudioDeviceInfo Parameter
    Type
    Description
    pDeviceID
    const char*
    Device ID
    pDeviceName
    const char*
    Device name

    Sample code

    ITMGContextGetInstance()->GetAudioCtrl()->GetMicList(ppDeviceInfoList,nCount);

    Selecting a mic

    This API is used to select a mic. If this API is not called or DEVICEID_DEFAULT is passed in, the default mic will be selected. The 0th device id returned in the GetMicList API is the default device of the call device. If there is a selected call device, it will be maintained by service. If it is unplugged, the call device will be changed back into the default device.

    Function prototype

    ITMGAudioCtrl virtual int SelectMic(const char* pMicID)

    Parameter
    Type
    Description
    pMicID
    const char*
    Mic ID, which is from the list returned by GetMicList.

    Sample code

    const char* pMicID ="{0.0.1.00000000}.{7b0b712d-3b46-4f7a-bb83-bf9be4047f0d}";
    ITMGContextGetInstance()->GetAudioCtrl()->SelectMic(pMicID);

    Getting the number of speakers

    This API is used to get the number of speakers.

    Function prototype

    ITMGAudioCtrl virtual int GetSpeakerListCount()


    Sample code

    ITMGContextGetInstance()->GetAudioCtrl()->GetSpeakerListCount();


    Enumerating speakers

    This API is used together with the GetSpeakerListCount API to enumerate speakers.

    Function prototype

    ITMGAudioCtrl virtual int GetSpeakerList(TMGAudioDeviceInfo* ppDeviceInfoList, int nCount)
    Parameter
    Type
    Description
    ppDeviceInfoList
    TMGAudioDeviceInfo
    Device list
    nCount
    int
    Number of the speakers
    TMGAudioDeviceInfo Parameter
    Type
    Description
    pDeviceID
    const char*
    Device ID
    pDeviceName
    const char*
    Device name

    Sample code

    ITMGContextGetInstance()->GetAudioCtrl()->GetSpeakerList(ppDeviceInfoList,nCount);


    Selecting a speaker

    This API is used to select a playback device. If this API is not called or DEVICEID_DEFAULT is passed in, the default playback device will be selected.

    Function prototype

    ITMGAudioCtrl virtual int SelectSpeaker(const char* pSpeakerID)

    Parameter
    Type
    Description
    pSpeakerID
    const char*
    Speaker ID, which is from the list returned by GetSpeakerList.

    Sample code

    const char* pSpeakerID ="{0.0.1.00000000}.{7b0b712d-3b46-4f7a-bb83-bf9be4047f0d}";
    ITMGContextGetInstance()->GetAudioCtrl()->SelectSpeaker(pSpeakerID);


    Advanced APIs

    Enabling in-ear monitoring

    This API is used to enable in-ear monitoring. You need to call EnableLoopBack+EnableSpeaker before you can hear your own voice.

    API prototype

    ITMGAudioCtrl virtual int EnableLoopBack(bool enable)
    Parameter
    Type
    Description
    enable
    bool
    Specifies whether to enable

    Sample code

    ITMGContextGetInstance()->GetAudioCtrl()->EnableLoopBack(true);


    Getting a user's room audio type

    This API is used to get a user's room audio type. The returned value is the room audio type. Value 0 indicates that an error occurred while getting the user's room audio type. For room audio types, please see the EnterRoom API.

    API prototype

    class ITMGRoom {
    public:
    virtual ~ITMGRoom() {} ;
    virtual int GetRoomType() = 0;

    };


    Sample code

    ITMGContext* context = ITMGContextGetInstance();
    ITMGContextGetInstance()->GetRoom()->GetRoomType();

    Changing the room type

    This API is used to modify a user's room audio type. For the result, please see the callback event. The event type is ITMG_MAIN_EVENT_TYPE_CHANGE_ROOM_TYPE. The audio type of the room is determined by the first user to enter the room. After that, if a member in the room changes the room type, it will take effect for all members there.

    API prototype

    IITMGContext TMGRoom public int ChangeRoomType((ITMG_ROOM_TYPE roomType)
    Parameter
    Type
    Description
    roomType
    ITMG_ROOM_TYPE
    Room type to be switched to the target type. For room audio types, please see the EnterRoom API.

    Sample code

    ITMGContext* context = ITMGContextGetInstance();
    ITMGContextGetInstance()->GetRoom()->ChangeRoomType(ITMG_ROOM_TYPE_FLUENCY);

    Data details

    Message
    Data
    Sample
    ITMG_MAIN_EVENT_TYPE_CHANGE_ROOM_TYPE
    result; error_info; new_room_type
    {"error_info":"","new_room_type":0,"result":0}

    Callback for room type setting completion

    After the room type is set, the event message ITMG_MAIN_EVENT_TYPE_CHANGE_ROOM_TYPE will be returned in the callback. The returned parameters include result, error_info, and new_room_type. The new_room_type represents the following information. The event message will be identified in the OnEvent function.
    Event Subtype
    Parameter
    Description
    ITMG_ROOM_CHANGE_EVENT_ENTERROOM
    1
    Indicates that the existing audio type is inconsistent with and changed to that of the entered room.
    ITMG_ROOM_CHANGE_EVENT_START
    2
    Indicates that a user is already in the room and the audio type starts changing (e.g., calling the ChangeRoomType API to change the audio type).
    ITMG_ROOM_CHANGE_EVENT_COMPLETE
    3
    Indicates that a user is already in the room and the audio type has been changed.
    ITMG_ROOM_CHANGE_EVENT_REQUEST
    4
    Indicates that a room member calls the ChangeRoomType API to request a change of room audio type.

    Sample code

    void TMGTestScene::OnEvent(ITMG_MAIN_EVENT_TYPE eventType,const char* data){
    if (ITMGContext.ITMG_MAIN_EVENT_TYPE.ITMG_MAIN_EVENT_TYPE_CHANGE_ROOM_TYPE == type)
    {
    // Process room type events
    }
    }

    The monitoring event of room call quality

    This is the quality monitoring event, which is triggered once every two seconds after room entry, and its message is ITMG_MAIN_EVENT_TYPE_CHANGE_ROOM_QUALITY. The returned parameters include weight, loss, and delay, which are as detailed below:
    Parameter
    Type
    Description
    weight
    int
    Value range: 1-50. 50 indicates excellent sound quality, 1 indicates very poor (barely usable) sound quality, and 0 represents an initial meaningless value. Generally, if the value is below 30, the business layer will remind users that the network is poor and recommend them to switch the network.
    loss
    double
    Upstream packet loss rate
    delay
    int
    Voice chat delay in ms

    Getting the version number

    This API is used to get the SDK version number for analysis.

    API prototype

    ITMGContext virtual const char* GetSDKVersion()

    Sample code

    ITMGContextGetInstance()->GetSDKVersion();

    Setting the log printing level

    This API is used to set the level of logs to be printed, and needs to be called before the initialization. It is recommended to keep the default level.

    API prototype

    ITMGContext int SetLogLevel(ITMG_LOG_LEVEL levelWrite, ITMG_LOG_LEVEL levelPrint)

    Parameter description

    Parameter
    Type
    Description
    levelWrite
    ITMG_LOG_LEVEL
    Sets the level of logs to be written. TMG_LOG_LEVEL_NONE indicates not to write. Default value: TMG_LOG_LEVEL_INFO
    levelPrint
    ITMG_LOG_LEVEL
    Sets the level of logs to be printed. TMG_LOG_LEVEL_NONE indicates not to print. Default value: TMG_LOG_LEVEL_ERROR
    ITMG_LOG_LEVEL is as detailed below:
    ITMG_LOG_LEVEL
    Description
    TMG_LOG_LEVEL_NONE
    Does not print logs
    TMG_LOG_LEVEL_ERROR
    Prints error logs (default)
    TMG_LOG_LEVEL_INFO
    Prints info logs
    TMG_LOG_LEVEL_DEBUG
    Prints debug logs
    TMG_LOG_LEVEL_VERBOSE
    Prints verbose logs

    Sample code

    ITMGContextGetInstance()->SetLogLevel(TMG_LOG_LEVEL_INFO,TMG_LOG_LEVEL_INFO);

    Setting the log printing path

    This API is used to set the log printing path. The default path is as follows. It needs to be called before Init.
    OS
    Path
    Windows
    %appdata%\\Tencent\\GME\\ProcessName
    iOS
    Application/xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx/Documents
    Android
    /sdcard/Android/data/xxx.xxx.xxx/files
    Mac
    /Users/username/Library/Containers/xxx.xxx.xxx/Data/Documents

    API prototype

    ITMGContext virtual int SetLogPath(const char* logDir)

    Parameter
    Type
    Description
    logDir
    const char*
    Path

    Sample code

    cosnt char* logDir = ""// Set a path by yourself

    ITMGContext* context = ITMGContextGetInstance();
    context->SetLogPath(logDir);


    Getting the diagnostic messages

    This API is used to get information on the quality of real-time audio/video calls, which is mainly used to view real-time call quality and troubleshoot and can be ignored on the business side.

    API prototype

    ITMGRoom virtual const char* GetQualityTips()

    Sample code

    ITMGContextGetInstance()->GetRoom()->GetQualityTips();


    Callback Messages

    Message
    Description
    Parameter
    Sample
    ITMG_MAIN_EVENT_TYPE_ENTER_ROOM
    A member entered the audio room
    result; error_info
    {"error_info":"","result":0}
    ITMG_MAIN_EVENT_TYPE_EXIT_ROOM
    A member exited the audio room
    result; error_info
    {"error_info":"","result":0}
    ITMG_MAIN_EVENT_TYPE_ROOM_DISCONNECT
    The room was disconnected for network or other reasons
    result; error_info
    {"error_info":"waiting timeout, please check your network","result":0}
    ITMG_MAIN_EVNET_TYPE_USER_UPDATE
    The room members were updated
    user_list; event_id
    {"event_id":1,"user_list":["0"]}
    ITMG_MAIN_EVENT_TYPE_RECONNECT_START
    Room reconnection started
    result; error_info
    {"error_info":"","result":0}
    ITMG_MAIN_EVENT_TYPE_RECONNECT_SUCCESS
    Room reconnection succeeded
    result; error_info
    {"error_info":"","result":0}
    ITMG_MAIN_EVENT_TYPE_SWITCH_ROOM
    The room was quickly switched
    result; error_info
    {"error_info":"","result":0}
    ITMG_MAIN_EVENT_TYPE_CHANGE_ROOM_TYPE
    The room status changed
    result; error_info; sub_event_type; new_room_type
    {"error_info":"","new_room_type":0,"result":0}
    ITMG_MAIN_EVENT_TYPE_ROOM_SHARING_START
    Cross-room mic connect started
    result;
    {"result":0}
    ITMG_MAIN_EVENT_TYPE_ROOM_SHARING_STOP
    Cross-room mic connect stopped
    result;
    {"result":0}
    ITMG_MAIN_EVENT_TYPE_SPEAKER_DEFAULT_DEVICE_CHANGED
    The default speaker was changed
    result; error_info
    {"deviceID":"{0.0.0.00000000}.{a4f1e8be-49fa-43e2-b8cf-dd00542b47ae}","deviceName":"speaker (Realtek High Definition Audio)","error_info":"","isNewDevice":true,"isUsedDevice":false,"result":0}
    ITMG_MAIN_EVENT_TYPE_SPEAKER_NEW_DEVICE
    A speaker was added
    result; error_info
    {"deviceID":"{0.0.0.00000000}.{a4f1e8be-49fa-43e2-b8cf-dd00542b47ae}","deviceName":"speaker (Realtek High Definition Audio)","error_info":"","isNewDevice":true,"isUsedDevice":false,"result":0}
    ITMG_MAIN_EVENT_TYPE_SPEAKER_LOST_DEVICE
    A speaker was lost
    result; error_info
    {"deviceID":"{0.0.0.00000000}.{a4f1e8be-49fa-43e2-b8cf-dd00542b47ae}","deviceName":"speaker (Realtek High Definition Audio)","error_info":"","isNewDevice":false,"isUsedDevice":false,"result":0}
    ITMG_MAIN_EVENT_TYPE_MIC_NEW_DEVICE
    A mic was added
    result; error_info
    {"deviceID":"{0.0.1.00000000}.{5fdf1a5b-f42d-4ab2-890a-7e454093f229}","deviceName":"mic (Realtek High Definition Audio)","error_info":"","isNewDevice":true,"isUsedDevice":true,"result":0}
    ITMG_MAIN_EVENT_TYPE_MIC_LOST_DEVICE
    A mic was lost
    result; error_info
    {"deviceID":"{0.0.1.00000000}.{5fdf1a5b-f42d-4ab2-890a-7e454093f229}","deviceName":"mic (Realtek High Definition Audio)","error_info":"","isNewDevice":false,"isUsedDevice":true,"result":0}
    ITMG_MAIN_EVENT_TYPE_MIC_DEFAULT_DEVICE_CHANGED
    The default mic was changed
    result; error_info
    {"deviceID":"{0.0.1.00000000}.{5fdf1a5b-f42d-4ab2-890a-7e454093f229}","deviceName":"mic (Realtek High Definition Audio)","error_info":"","isNewDevice":false,"isUsedDevice":true,"result":0}
    ITMG_MAIN_EVENT_TYPE_CHANGE_ROOM_QUALITY
    Room quality message
    weight; loss; delay
    {"weight":5,"loss":0.1,"delay":1}
    ITMG_MAIN_EVNET_TYPE_PTT_RECORD_COMPLETE
    Recording of a voice message was completed
    result; file_path
    {"file_path":"","result":0}
    ITMG_MAIN_EVNET_TYPE_PTT_UPLOAD_COMPLETE
    Upload of a voice message was completed
    result; file_path;file_id
    {"file_id":"","file_path":"","result":0}
    ITMG_MAIN_EVNET_TYPE_PTT_DOWNLOAD_COMPLETE
    Download of a voice message was completed
    result; file_path;file_id
    {"file_id":"","file_path":"","result":0}
    ITMG_MAIN_EVNET_TYPE_PTT_PLAY_COMPLETE
    Playback of a voice message was completed
    result; file_path
    {"file_path":"","result":0}
    ITMG_MAIN_EVNET_TYPE_PTT_SPEECH2TEXT_COMPLETE
    Fast recording-to-text conversion was completed
    result; text;file_id
    {"file_id":"","text":"","result":0}
    ITMG_MAIN_EVNET_TYPE_PTT_STREAMINGRECOGNITION_COMPLETE
    Streaming speech-to-text conversion was completed
    result; file_path; text;file_id
    {"file_id":"","file_path":","text":"","result":0}
    ITMG_MAIN_EVNET_TYPE_PTT_STREAMINGRECOGNITION_IS_RUNNING
    A voice message is being converted into text in a streaming manner
    result; file_path; text;file_id
    {"file_id":"","file_path":","text":"","result":0}
    ITMG_MAIN_EVNET_TYPE_PTT_TEXT2SPEECH_COMPLETE
    Text-to-speech conversion was completed
    result; text;file_id
    {"file_id":"","text":"","result":0}
    ITMG_MAIN_EVNET_TYPE_PTT_TRANSLATE_TEXT_COMPLETE
    Text translation was completed
    result; text;file_id
    {"file_id":"","text":"","result":0}

    Contact Us

    Contact our sales team or business advisors to help your business.

    Technical Support

    Open a ticket if you're looking for further assistance. Our Ticket is 7x24 avaliable.

    7x24 Phone Support
