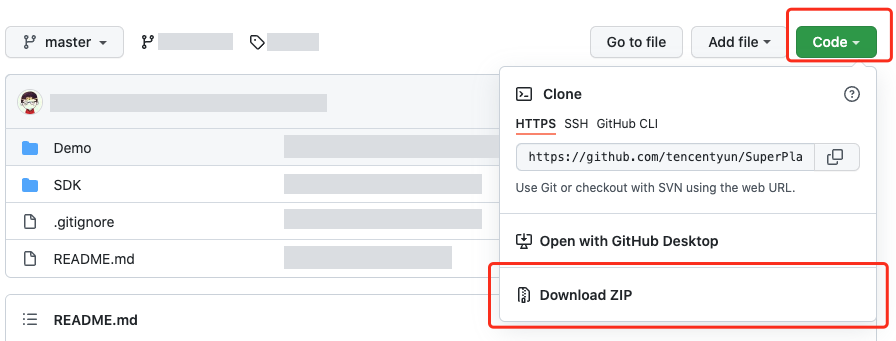

git clone git@github.com:tencentyun/SuperPlayer_iOS.git
正克隆到 'SuperPlayer_iOS'...remote: Enumerating objects: 2637, done.remote: Counting objects: 100% (644/644), done.remote: Compressing objects: 100% (333/333), done.remote: Total 2637 (delta 227), reused 524 (delta 170), pack-reused 1993接收对象中: 100% (2637/2637), 571.20 MiB | 3.94 MiB/s, 完成.处理 delta 中: 100% (1019/1019), 完成.
文件名 | 作用 |
SDK | 存放播放器的 framework 静态库 |
Demo | 存放超级播放器 Demo |
App | 程序入口界面 |
SuperPlayerDemo | 超级播放器 Demo |
SuperPlayerKit | 超级播放器组件 |
pod 'SuperPlayer
pod 'SuperPlayer/Player'
pod 'SuperPlayer/Player_Premium'
pod 'SuperPlayer/Professional'
pod install
或 pod update

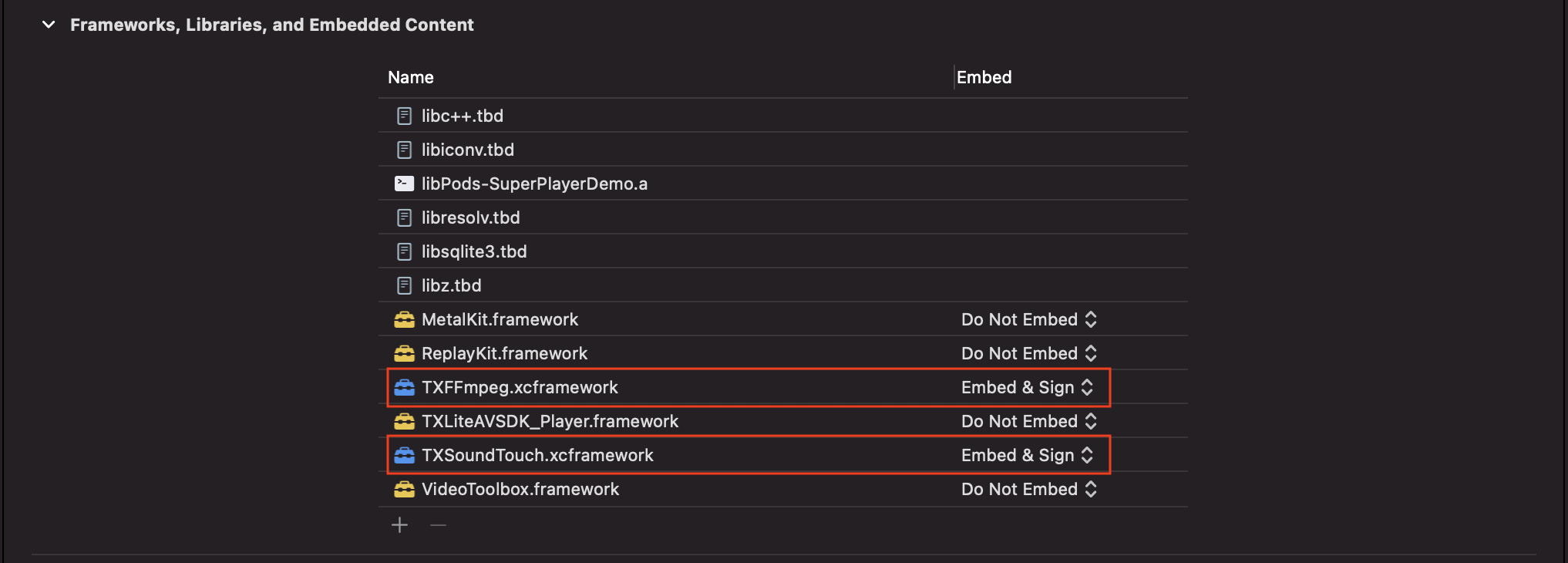

。TXLiteAVSDK_Player_Premium.framework
到工程中,并勾选 Do Not Embed
。SuperPlayerView
,创建后即可播放视频。// 引入头文件#import <SuperPlayer/SuperPlayer.h>// 创建播放器_playerView = [[SuperPlayerView alloc] init];// 设置代理,用于接受事件_playerView.delegate = self;// 设置父 View,_playerView 会被自动添加到 holderView 下面_playerView.fatherView = self.holderView;
//在未开启防盗链进行播放的过程中,如果出现了 “no v4 play info” 异常,建议您使用 Adaptive-HLS(10)转码模板对视频进行转码,或直接获取源视频播放链接通过 url 方式进行播放。SuperPlayerModel *model = [[SuperPlayerModel alloc] init];model.appId = 1400329071;// 配置 AppIdmodel.videoId = [[SuperPlayerVideoId alloc] init];model.videoId.fileId = @"5285890799710173650"; // 配置 FileId// psign 即播放器签名,签名介绍和生成方式参见链接:https://www.tencentcloud.com/document/product/266/38099model.videoId.pSign = @"eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJhcHBJZCI6MTQwMDMyOTA3MSwiZmlsZUlkIjoiNTI4NTg5MDc5OTcxMDE3MzY1MCIsImN1cnJlbnRUaW1lU3RhbXAiOjEsImV4cGlyZVRpbWVTdGFtcCI6MjE0NzQ4MzY0NywidXJsQWNjZXNzSW5mbyI6eyJ0IjoiN2ZmZmZmZmYifSwiZHJtTGljZW5zZUluZm8iOnsiZXhwaXJlVGltZVN0YW1wIjoyMTQ3NDgzNjQ3fX0.yJxpnQ2Evp5KZQFfuBBK05BoPpQAzYAWo6liXws-LzU";[_playerView playWithModelNeedLicence:model];
SuperPlayerModel *model = [[SuperPlayerModel alloc] init];model.videoURL = @"http://your_video_url.mp4"; // 配置您的播放视频 url[_playerView playWithModelNeedLicence:model];
SuperPlayerModel *model = [[SuperPlayerModel alloc]init];//把您的视频文件添加到工程,然后通过NSBundle获取视频的文件路径NSString *filePath = [[NSBundle mainBundle] pathForResource:@"your_video_name" ofType:@"mp4"];model.videoURL = [filePath stringByReplacingOccurrencesOfString:@"file://" withString:@""];[_playerView playWithModelNeedLicence:model];
resetPlayer
清理播放器内部状态,释放内存。[_playerView resetPlayer];
- (void)superPlayerFullScreenChanged:(SuperPlayerView *)player {//用户可在此自定义切换全屏后的逻辑}
// 返回事件- (void)superPlayerBackAction:(SuperPlayerView *)player;单击左上角返回按钮触发// 全屏改变通知- (void)superPlayerFullScreenChanged:(SuperPlayerView *)player;
// 用户可通过以下接口控制是否锁屏@property(nonatomic, assign) BOOL isLockScreen;
SPDefaultControlView *dv = (SPDefaultControlView *)**self**.playerView.controlView;[dv.danmakuBtn addTarget:**self** action:**@selector**(danmakuShow:) forControlEvents:UIControlEventTouchUpInside];
// 以下属性都是必须配置的--------// 弹幕动画时间@property(nonatomic, assign) CGFloat duration;// 中间上边/下边弹幕动画时间@property(nonatomic, assign) CGFloat centerDuration;// 弹幕弹道高度@property(nonatomic, assign) CGFloat lineHeight;// 弹幕弹道之间的间距@property(nonatomic, assign) CGFloat lineMargin;// 弹幕弹道最大行数@property(nonatomic, assign) NSInteger maxShowLineCount;// 弹幕弹道中间上边/下边最大行数@property(nonatomic, assign) NSInteger maxCenterLineCount;
// 如果在竖屏且正在播放的情况下单击返回按钮会触发接口[SuperPlayerWindowShared setSuperPlayer:self.playerView];[SuperPlayerWindowShared show];// 单击浮窗返回窗口触发的代码接口SuperPlayerWindowShared.backController = self;
PLAY_ACTION_AUTO_PLAY
时,视频自动播放,此时将在视频首帧加载出来之前展示封面。PLAY_ACTION_MANUAL_PLAY
时,需用户单击 播放 后视频才开始播放。在单击 播放 前将展示封面;在单击 播放 后到视频首帧加载出来前也将展示封面。SuperPlayerModel *model = [[SuperPlayerModel alloc] init];SuperPlayerVideoId *videoId = [SuperPlayerVideoId new];videoId.fileId = @"8602268011437356984";model.appId = 1400329071;model.videoId = videoId;//播放模式,可设置自动播放模式:PLAY_ACTION_AUTO_PLAY,手动播放模式:PLAY_ACTION_MANUAL_PLAYmodel.action = PLAY_ACTION_MANUAL_PLAY;//设定封面的地址为网络 url 地址,如果 coverPictureUrl 不设定,那么就会自动使用云点播控制台设置的封面model.customCoverImageUrl = @"http://1500005830.vod2.myqcloud.com/6c9a5118vodcq1500005830/cc1e28208602268011087336518/MXUW1a5I9TsA.png";[self.playerView playWithModelNeedLicence:model];
//步骤1:构建轮播数据的 NSMutableArrayNSMutableArray *modelArray = [NSMutableArray array];SuperPlayerModel *model = [SuperPlayerModel new];SuperPlayerVideoId *videoId = [SuperPlayerVideoId new];videoId.fileId = @"8602268011437356984";model.appId = 1252463788;model.videoId = videoId;[modelArray addObject:model];model = [SuperPlayerModel new];videoId = [SuperPlayerVideoId new];videoId.fileId = @"4564972819219071679";model.appId = 1252463788;model.videoId = videoId;[modelArray addObject:model];//步骤2:调用 SuperPlayerView 的轮播接口[self.playerView playWithModelListNeedLicence:modelArray isLoopPlayList:YES startIndex:0];
(void)playWithModelListNeedLicence:(NSArray *)playModelList isLoopPlayList:(BOOL)isLoop startIndex:(NSInteger)index;
参数名 | 类型 | 描述 |
playModelList | NSArray * | 轮播数据列表 |
isLoop | Boolean | 是否循环 |
index | NSInteger | 开始播放的视频索引 |

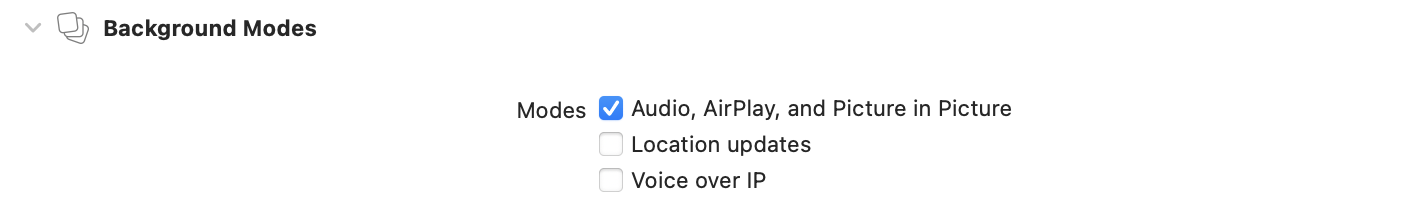

// 进入画中画if (![TXVodPlayer isSupportPictureInPicture]) {return;}[_vodPlayer enterPictureInPicture];// 退出画中画[_vodPlayer exitPictureInPicture];
//步骤1:创建试看 modelTXVipWatchModel *model = [[TXVipWatchModel alloc] init];model.tipTtitle = @"可试看15秒,开通 VIP 观看完整视频";model.canWatchTime = 15;//步骤2:设置试看 modelself.playerView.vipWatchModel = model;//步骤3:调用方法展示试看功能[self.playerView showVipTipView];
参数名 | 类型 | 描述 |
tipTtitle | NSString | 试看提示信息 |
canWatchTime | float | 试看时长,单位为妙 |
//步骤1:创建视频源信息 modelSuperPlayerModel * playermodel = [SuperPlayerModel new];//添加视频源其他信息//步骤2:创建动态水印 modelDynamicWaterModel *model = [[DynamicWaterModel alloc] init];//步骤3:设置动态水印的数据model.dynamicWatermarkTip = @"shipinyun";model.textFont = 30;model.textColor = [UIColor colorWithRed:255.0/255.0 green:255.0/255.0 blue:255.0/255.0 alpha:0.8];playermodel.dynamicWaterModel = model;//步骤4:调用方法展示动态水印[self.playerView playWithModelNeedLicence:playermodel];
参数名 | 类型 | 描述 |
dynamicWatermarkTip | NSString | 水印文本信息 |
textFont | CGFloat | 文字大小 |
textColor | UIColor | 文字颜色 |

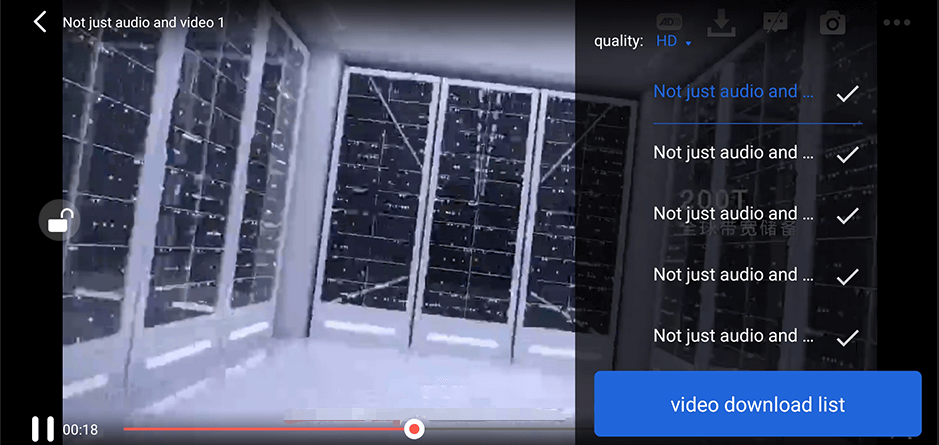

// 步骤1:初始化缓存选择列表视图//@property (nonatomic, strong) VideoCacheView *cacheView;_cacheView = [[VideoCacheView alloc] initWithFrame:CGRectZero];_cacheView.hidden = YES;[self.playerView addSubview:_cacheView];// 步骤2:设置正在播放的视频选项[_cacheView setVideoModels:_currentPlayVideoArray currentPlayingModel:player.playerModel];// video download list 按钮的点击事件- (UIButton *)viewCacheListBtn;
- (void)setVideoModels:(NSArray *)models currentPlayingModel:(SuperPlayerModel *)currentModel;
参数名 | 类型 | 描述 |
models | NSArray | 下载列表的视频数据模型 |
SuperPlayerModel | currentModel | 当前在播放的视频数据模型 |

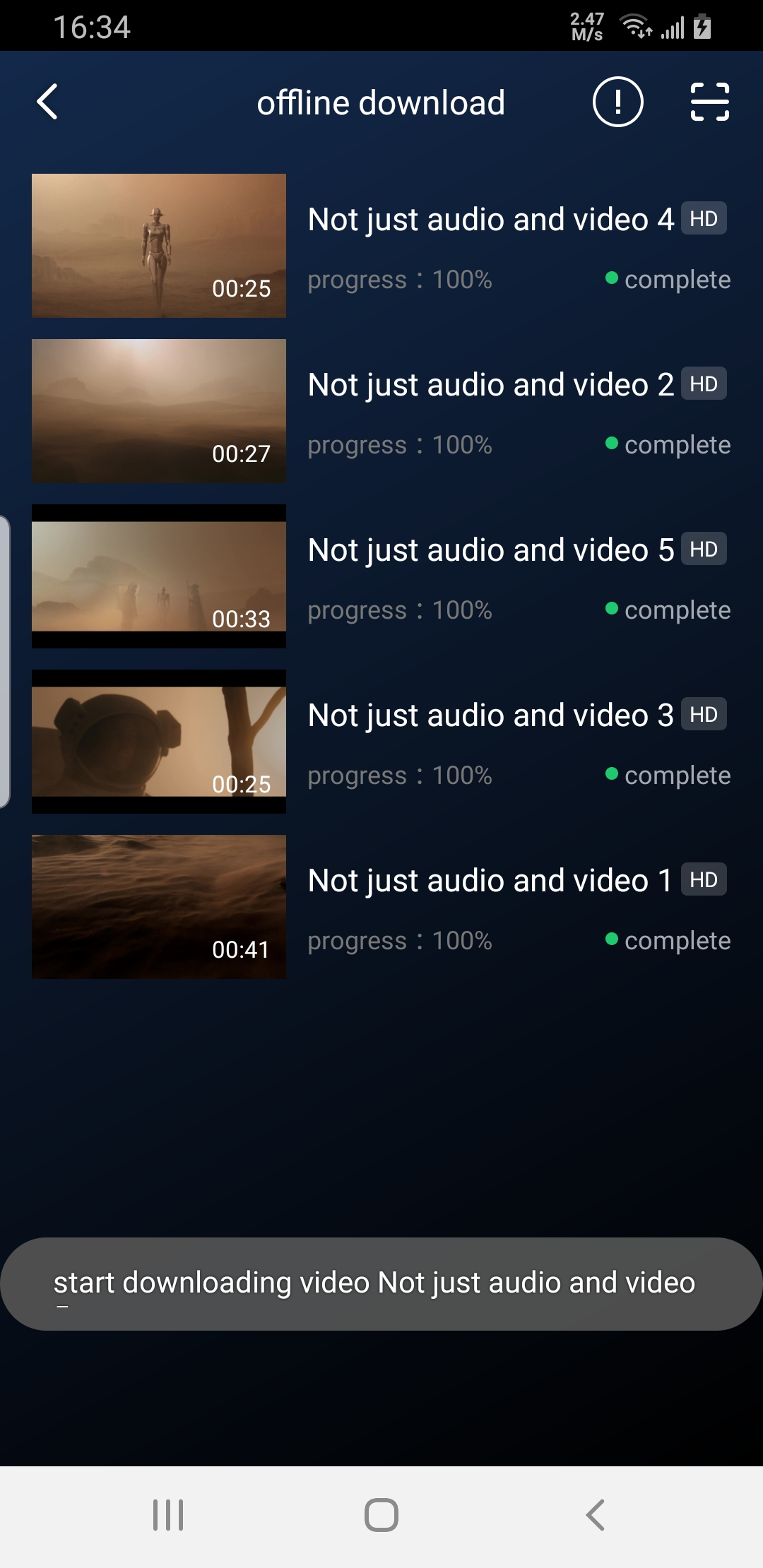

// 添加数据,数据从TXVodDownloadManager#getDownloadMediaInfoList 接口获取到NSArray<TXVodDownloadMediaInfo *> *array = [[[TXVodDownloadManager shareInstance] getDownloadMediaInfoList] mutableCopy];for (TXVodDownloadMediaInfo *info in array) {VideoCacheListModel *model = [[VideoCacheListModel alloc] init];model.mediaInfo = info;[self.videoCacheArray addObject:model];}// 列表项支持点击播放、长按删除等操作- (void)longPress:(UILongPressGestureRecognizer *)longPress; // 长按
NSArray<TXVodDownloadMediaInfo *> *mediaInfoList = [[TXVodDownloadManager shareInstance] getDownloadMediaInfoList];TXVodDownloadMediaInfo *mediaInfo = [mediaInfoList firstObject];SuperPlayerUrl *superPlayerUrl = [[SuperPlayerUrl alloc] init];superPlayerUrl.title = @"*********";superPlayerUrl.url = mediaInfo.playpath;NSArray<SuperPlayerUrl *> *multiVideoURLs = @[superPlayerUrl];SuperPlayerModel *playerModel = [[SuperPlayerModel alloc] init];playerModel.multiVideoURLs = multiVideoURLs;[self.playerView playWithModelNeedLicence:playerModel];

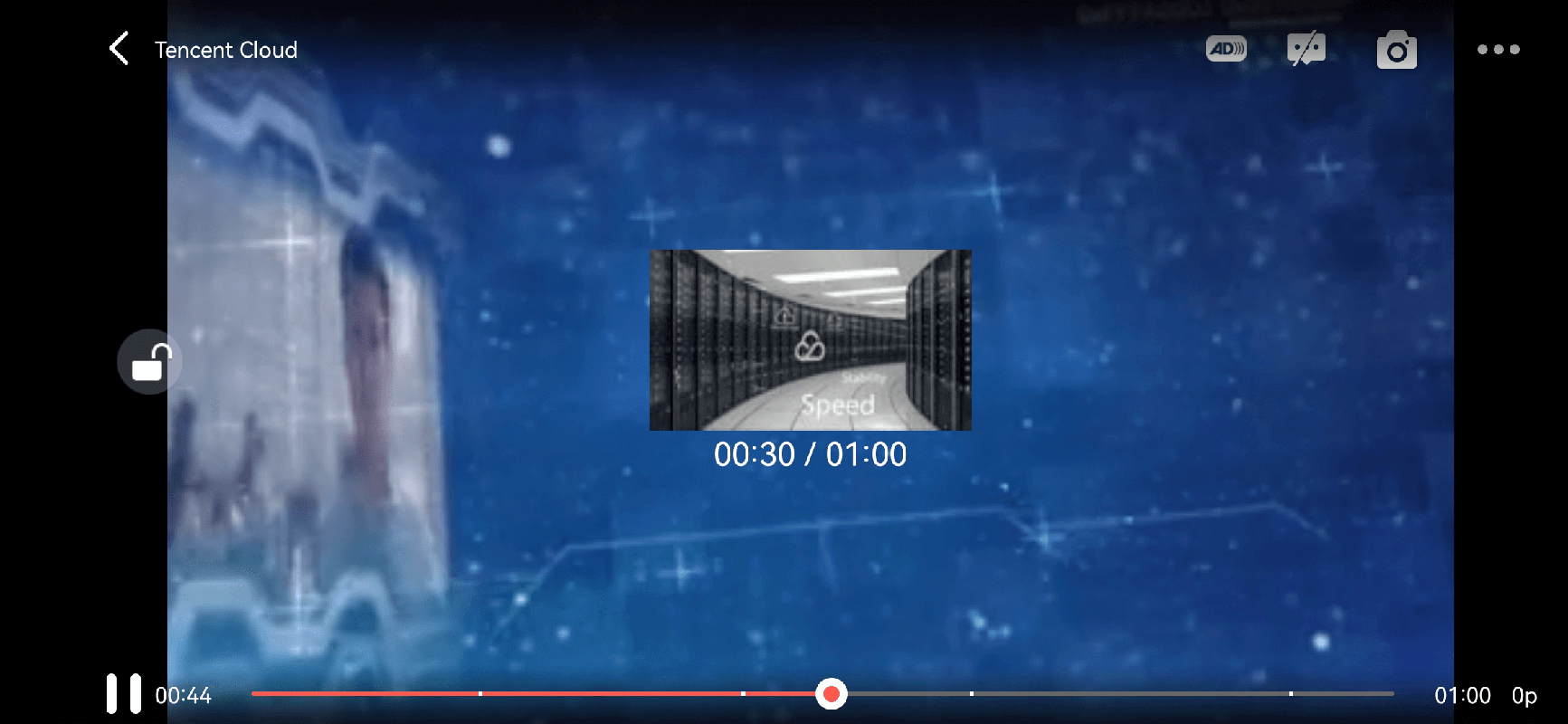

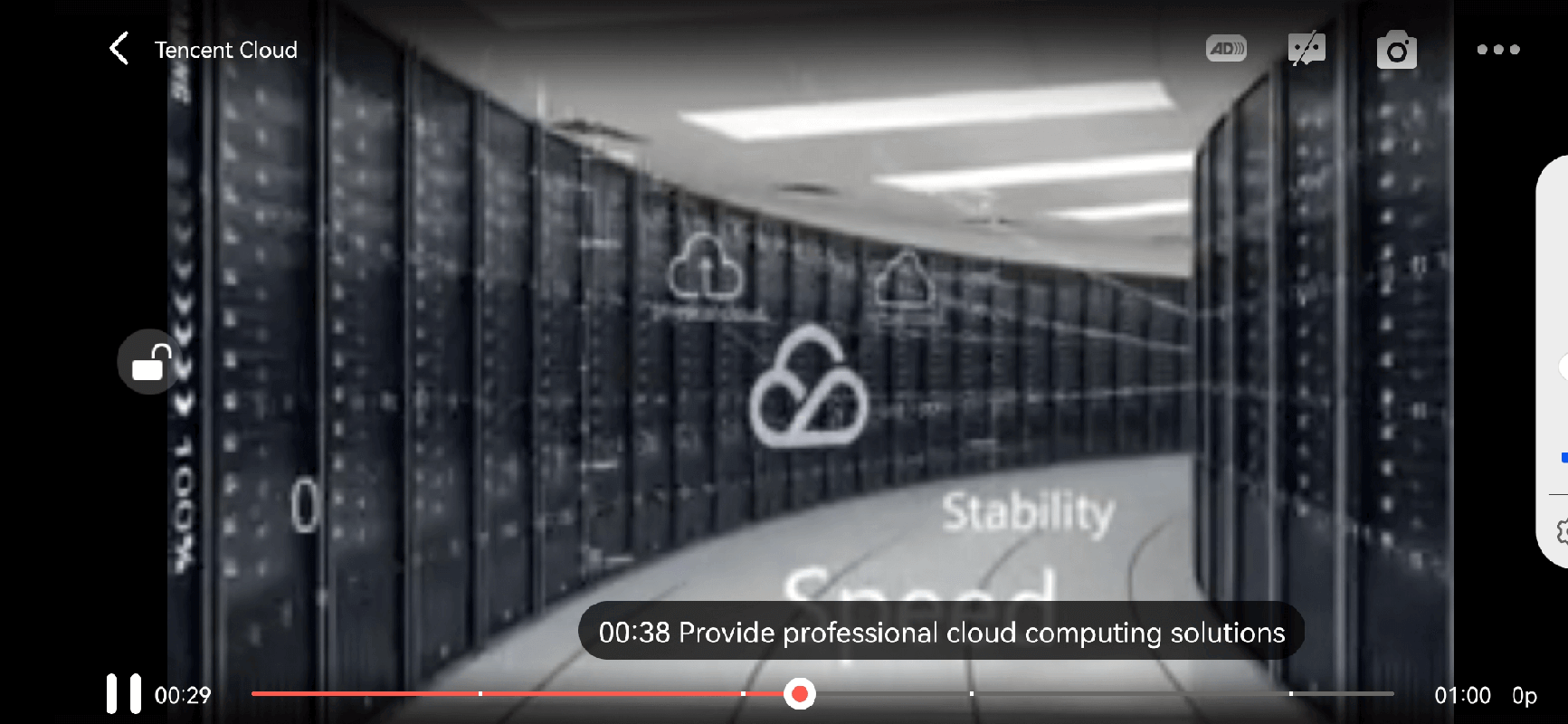

// 步骤1:通过 playWithModelNeedLicence 播放器视频,才能在 onPlayEvent 回调中获取到雪碧图和打点信息数据[self.playerView playWithModelNeedLicence:playerModel];// 步骤2: playWithModelNeedLicence 在 VOD_PLAY_EVT_GET_PLAYINFO_SUCC 回调事件中取得关键帧和雪碧图信息NSString *imageSpriteVtt = [param objectForKey:VOD_PLAY_EVENT_IMAGESPRIT_WEBVTTURL]?:@"";NSArray<NSString *> *imageSpriteList = [param objectForKey:VOD_PLAY_EVENT_IMAGESPRIT_IMAGEURL_LIST];NSArray<NSURL *> *imageURLs = [self convertImageSpriteList:imageSpriteList];[self.imageSprite setVTTUrl:[NSURL URLWithString:imageSpriteVtt] imageUrls:imageURLs];// 步骤3: 将拿到的打点信息和雪碧图,并显示到界面上if (self.isFullScreen) {thumbnail = [self.imageSprite getThumbnail:draggedTime];}if (thumbnail) {[self.fastView showThumbnail:thumbnail withText:timeStr];}
SuperPlayerModel#subtitlesArray
传入外挂字幕类别字段。// 传入 字幕url, 字幕名称, 字幕类型SuperPlayerSubtitles *subtitleModel = [[SuperPlayerSubtitles alloc] init];subtitleModel.subtitlesUrl = @"https://mediacloud-76607.gzc.vod.tencent-cloud.com/DemoResource/TED-CN.srt";subtitleModel.subtitlesName = @"ex-cn-srt";subtitleModel.subtitlesType = 0;[subtitlesArray addObject:subtitleModel];// 播放[self.playerView playWithModelNeedLicence:model];
// 开始播放视频后,选中添加的外挂字幕- (void)controlViewSwitch:(UIView *)controlView withSubtitlesInfo:(TXTrackInfo *)info preSubtitlesInfo:(TXTrackInfo *)preInfo {if (info.trackIndex == -1) {[self.vodPlayer deselectTrack:preInfo.trackIndex];self->_lastSubtitleIndex = -1;} else {if (preInfo.trackIndex != -1) {// 其它字幕不需要的话, 进行deselectTrack[self.vodPlayer deselectTrack:preInfo.trackIndex];}// 选中字幕[self.vodPlayer selectTrack:info.trackIndex];self->_lastSubtitleIndex = info.trackIndex;}}
TXPlayerSubtitleRenderModel *model = [[TXPlayerSubtitleRenderModel alloc] init];model.canvasWidth = 1920; // 字幕渲染画布的宽model.canvasHeight = 1080; // 字幕渲染画布的高model.isBondFontStyle = NO; // 设置字幕字体是否为粗体model.fontColor = 0xFF000000; // 设置字幕字体颜色,默认白色不透明[_txVodPlayer setSubtitleStyle:model];

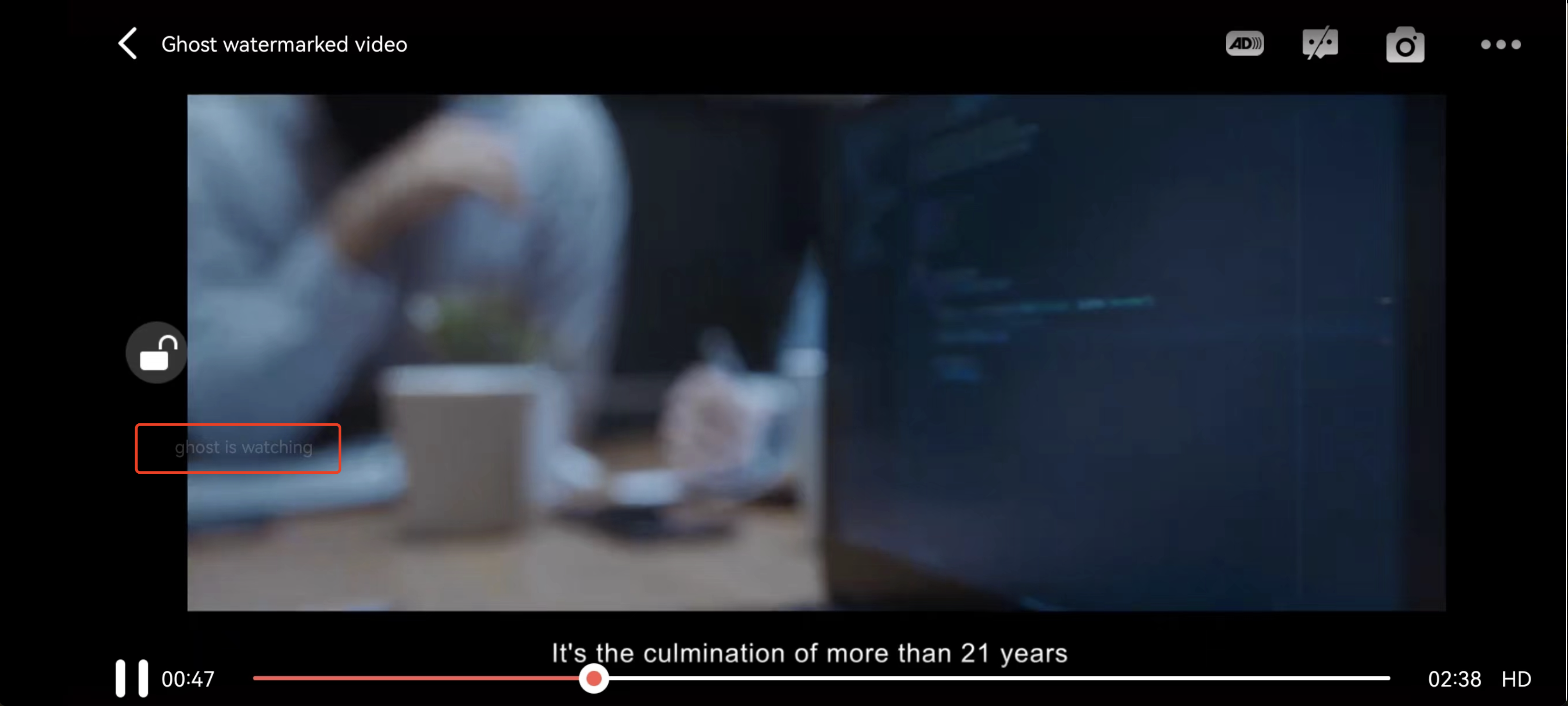

VOD_PLAY_EVT_GET_PLAYINFO_SUCC
事件后, 通过[param objectForKey:@"EVT_KEY_WATER_MARK_TEXT"]
获取。// 步骤 1: 配置支持幽灵水印的 FileId 播放视频SuperPlayerModel *model = [[SuperPlayerModel alloc] init];model.appId = 1500006438;model.videoId = [[SuperPlayerVideoId alloc] init];model.videoId.fileId = @"387702307847129127";model.videoId.pSign =@"eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJhcHBJZCI6MTUwMDAwNjQzOCwiZmlsZUlkIjoiMzg3NzAyMzA3ODQ3MTI5MTI3IiwiY29udGVudEluZm8iOnsiYXVkaW9WaWRlb1R5cGUiOiJSYXdBZGFwdGl2ZSIsInJhd0FkYXB0aXZlRGVmaW5pdGlvbiI6MTB9LCJjdXJyZW50VGltZVN0YW1wIjoxNjg2ODgzMzYwLCJnaG9zdFdhdGVybWFya0luZm8iOnsidGV4dCI6Imdob3N0IGlzIHdhdGNoaW5nIn19.0G2o4P5xVZ7zFlFUgBLntfX03iGxK9ntD_AONClUUno";[_playerView playWithModelNeedLicence:model];// 步骤 2: 在 SuperPlayerView 收到 PLAY_EVT_GET_PLAYINFO_SUCC事件后,获取幽灵水印内容展示- (void)onPlayEvent:(TXVodPlayer *)player event:(int)EvtID withParam:(NSDictionary *)param {dispatch_async(dispatch_get_main_queue(), ^{if (EvtID == PLAY_EVT_PLAY_EVT_GET_PLAYINFO_SUCCPLAY_PROGRESS) {NSString *ghostWaterText = [param objectForKey:@"EVT_KEY_WATER_MARK_TEXT"];if (ghostWaterText && ghostWaterText.length > 0) {DynamicWaterModel *model = [[DynamicWaterModel alloc] init];model.showType = ghost;model.duration = self.playerModel.duration;model.dynamicWatermarkTip = ghostWaterText;model.textFont = 30;model.textColor = [UIColor redColor];if (![self.subviews containsObject:self.watermarkView]) {[self addSubview:self.watermarkView];[self.watermarkView mas_makeConstraints:^(MASConstraintMaker *make) {make.edges.equalTo(self);}];}[self.watermarkView setDynamicWaterModel:model];}}};}
pod update
,重新生成 TXLiteAVDemo.xcworkspace
文件。
