Use of C++ SDK
Download PDF
Last updated: 2024-01-17 16:56:06
Use of C++ SDK
Last updated: 2024-01-17 16:56:06
Download PDF

Overview

This document describes how to use an open-source SDK to send and receive messages with the SDK for C++ serving as example, for you to better understand the complete procedure involved in message sending and receiving.
Note:
The C++ client is used as an example. For clients of other languages, see the SDK Documentation.

Prerequisites

You have created and prepared the required resources.
You have installed a compiler suite supporting C++11.
You have installed Bazel version 5.2.0 or CMake version 3.13 and later.
If you use CMake for compilation, gRPC version 1.46.3 is recommended due to incompatibilities between higher versions and the SDK.
You have downloaded the demo.

Directions:

Step 1: Installing the SDK for C++

Install the SDK.
Note:
TDMQ for RocketMQ 5.x series does not currently support TLS. A patch must be applied.

Step 2: Producing Messages

#include <algorithm>
#include <atomic>
#include <iostream>
#include <memory>
#include <random>
#include <string>
#include <system_error>

#include "rocketmq/CredentialsProvider.h"
#include "rocketmq/Logger.h"
#include "rocketmq/Message.h"
#include "rocketmq/Producer.h"

using namespace ROCKETMQ_NAMESPACE;

const std::string &alphaNumeric() {
    static std::string alpha_numeric("0123456789abcdefghijklmnopqrstuvwxyzABCDEFGHIJKLMNOPQRSTUVWXYZ");
    return alpha_numeric;
}

std::string randomString(std::string::size_type len) {
    std::string result;
    result.reserve(len);
    std::random_device rd;
    std::mt19937 generator(rd());
    std::string source(alphaNumeric());
    std::string::size_type generated = 0;
    while (generated < len) {
        std::shuffle(source.begin(), source.end(), generator);
        std::string::size_type delta = std::min({len - generated, source.length()});
        result.append(source.substr(0, delta));
        generated += delta;
    }
    return result;
}

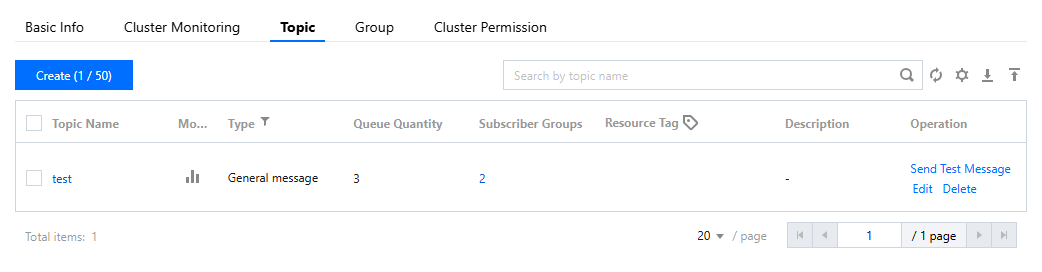

static const std::string topic = "xxx";

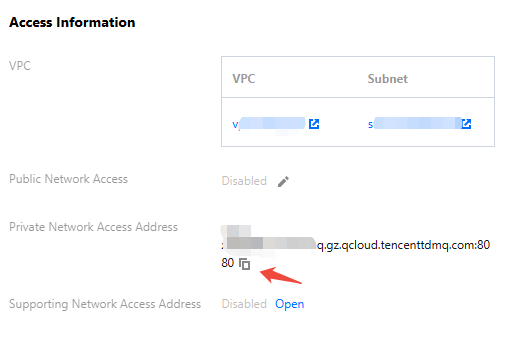

// Enter the access address provided by Tencent Cloud
static const std::string access_point = "rmq-xxx.rocketmq.xxxtencenttdmq.com:8081";

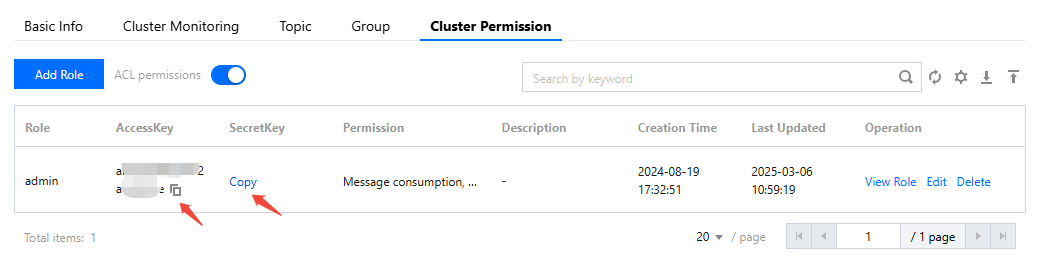

// Add the configured ak and sk
static const std::string access_key = "xxx";
static const std::string access_secret = "xxx";
static const uint32_t total = 32;
static const int32_t message_body_size = 128;


int main(int argc, char *argv[]) {
    CredentialsProviderPtr credentials_provider;
    if (!access_key.empty() && !access_secret.empty()) {
        credentials_provider = std::make_shared<StaticCredentialsProvider>(access_key, access_secret);
    }

    // In most case, you don't need to create too many producers, singletion pattern is recommended.
    auto producer = Producer::newBuilder()
            .withConfiguration(Configuration::newBuilder()
                                       .withEndpoints(access_point)
                                       .withCredentialsProvider(credentials_provider)
                                       .withSsl(false)
                                       .build())
            .withTopics({topic})
            .build();

    std::atomic_bool stopped;
    std::atomic_long count(0);

    auto stats_lambda = [&] {
        while (!stopped.load(std::memory_order_relaxed)) {
            long cnt = count.load(std::memory_order_relaxed);
            while (count.compare_exchange_weak(cnt, 0)) {
                break;
            }
            std::this_thread::sleep_for(std::chrono::seconds(1));
            std::cout << "QPS: " << cnt << std::endl;
        }
    };

    std::thread stats_thread(stats_lambda);

    std::string body = randomString(message_body_size);

    try {
        for (std::size_t i = 0; i < total; ++i) {
            auto message = Message::newBuilder()
                    .withTopic(topic)
                    .withTag("TagA")
                    .withKeys({"Key-" + std::to_string(i)})
                    .withBody(body)
                    .build();
            std::error_code ec;
            SendReceipt send_receipt = producer.send(std::move(message), ec);
            if (ec) {
                std::cerr << "Failed to publish message to " << topic << ". Cause: " << ec.message() << std::endl;
            } else {
                std::cout << "Publish message to " << topic << " OK. Message-ID: " << send_receipt.message_id
                          << std::endl;
                count++;
            }
        }
    } catch (...) {
        std::cerr << "Ah...No!!!" << std::endl;
    }
    stopped.store(true, std::memory_order_relaxed);
    if (stats_thread.joinable()) {
        stats_thread.join();
    }

    return EXIT_SUCCESS;
}

Step 3: Consuming Messages

TDMQ for RocketMQ 5.x series of Tencent Cloud supports two consumption modes: Push Consumer and Simple Consumer.
The following code is an example based on Push Consumer:
#include <chrono>
#include <iostream>
#include <mutex>
#include <thread>

#include "rocketmq/Logger.h"
#include "rocketmq/PushConsumer.h"

using namespace ROCKETMQ_NAMESPACE;

static const std::string topic = "xxx";
// Enter the access address provided by Tencent Cloud
static const std::string access_point = "rmq-xxx.rocketmq.xxxtencenttdmq.com:8081";
// Add the configured ak and sk
static const std::string access_key = "xxx";
static const std::string access_secret = "xxx";

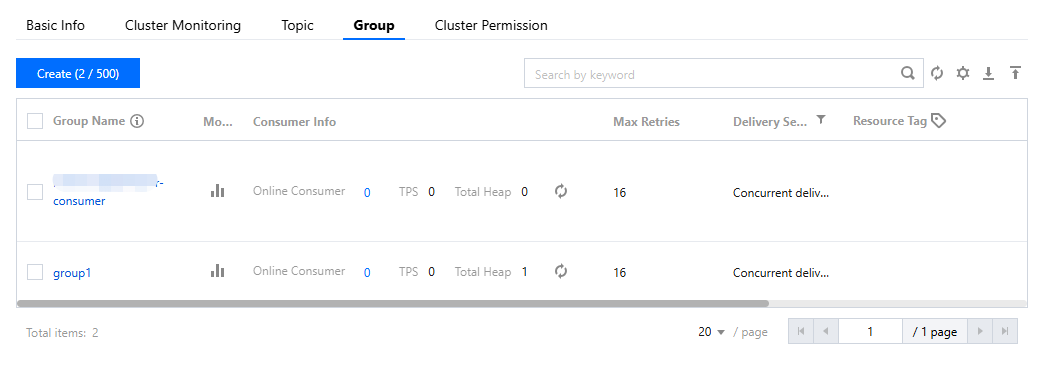

static const std::string group = "group-xxx";

int main(int argc, char *argv[]) {
    auto &logger = getLogger();
    logger.setConsoleLevel(Level::Info);
    logger.setLevel(Level::Info);
    logger.init();

    std::string tag = "*";

    auto listener = [](const Message &message) {
        std::cout << "Received a message[topic=" << message.topic() << ", MsgId=" << message.id() << "]" << std::endl;
        return ConsumeResult::SUCCESS;
    };

    CredentialsProviderPtr credentials_provider;
    if (!access_key.empty() && !access_secret.empty()) {
        credentials_provider = std::make_shared<StaticCredentialsProvider>(access_key, access_secret);
    }

    // In most case, you don't need to create too many consumers, singletion pattern is recommended.
    auto push_consumer = PushConsumer::newBuilder()
            .withGroup(group)
            .withConfiguration(Configuration::newBuilder()
                                       .withEndpoints(access_point)
                                       .withRequestTimeout(std::chrono::seconds(3))
                                       .withCredentialsProvider(credentials_provider)
                                       .withSsl(false)
                                       .build())
            .withConsumeThreads(4)
            .withListener(listener)
            .subscribe(topic, tag)
            .build();

    std::this_thread::sleep_for(std::chrono::minutes(30));

    return EXIT_SUCCESS;
}

Step 4: Viewing Message Details

After the message is sent, you will receive a message ID (messageID). Developers can query the recently sent messages on the Message Query page, as shown in the following figure. Information such as details and traces for specific messages is also available. For details, see Message Query.
