SDK for C++
Last updated: 2024-06-28 11:33:56

Overview

This document describes how to use open-source SDK to send and receive messages by using the SDK for C++ as an example and helps you better understand the message sending and receiving processes.

Prerequisites

Directions

1. Prepare the environment.
1.1 Install the Pulsar C++ client in the client environment as instructed in Pulsar C++ client.
1.2 Introduce the files and dynamic libraries that are related to the Pulsar C++ client to the project.
2. Create a client.
// Client configuration information
ClientConfiguration config;
// Set the role token
AuthenticationPtr auth = pulsar::AuthToken::createWithToken(AUTHENTICATION);
config.setAuth(auth);
// Create a client
Client client(SERVICE_URL, config);

Parameter
Description
SERVICE_URL
Cluster access address, which can be viewed and copied on the Cluster page in the console.



AUTHENTICATION
Role token, which can be copied in the Token column on the Role Management page.



3. Create a producer.
// Producer configurations
ProducerConfiguration producerConf;
producerConf.setBlockIfQueueFull(true);
producerConf.setSendTimeout(5000);
// Producer
Producer producer;
// Create a producer
Result result = client.createProducer(
// Complete path of the topic in the format of `persistent://cluster (tenant) ID/namespace/topic name`
"persistent://pulsar-xxx/sdk_cpp/topic1",
producerConf,
producer);
if (result != ResultOk) {
std::cout << "Error creating producer: " << result << std::endl;
return -1;
}

Note:
You need to enter the complete path of the topic name, i.e., persistent://clusterid/namespace/Topic, where the clusterid/namespace/topic part can be copied directly from the Topic page in the console.
4. Send the message.
// Message content
std::string content = "hello cpp client, this is a msg";
// Create a message object
Message msg = MessageBuilder().setContent(content)
.setPartitionKey("mykey") // Business key
.setProperty("x", "1") // Set message parameters
.build();
// Send the message
Result result = producer.send(msg);
if (result != ResultOk) {
// The message failed to be sent
std::cout << "The message " << content << " could not be sent, received code: " << result << std::endl;
} else {
// The message was successfully sent
std::cout << "The message " << content << " sent successfully" << std::endl;
}

5. Create a consumer.
// Consumer configuration information
ConsumerConfiguration consumerConfiguration;
consumerConfiguration.setSubscriptionInitialPosition(pulsar::InitialPositionEarliest);
// Consumer
Consumer consumer;
// Subscribe to a topic
Result result = client.subscribe(
// Complete path of the topic in the format of `persistent://cluster (tenant) ID/namespace/topic name`
"persistent://pulsar-xxx/sdk_cpp/topic1",
// Subscription name
"sub_topic1",
consumerConfiguration,
consumer);

if (result != ResultOk) {
std::cout << "Failed to subscribe: " << result << std::endl;
return -1;
}

Note:
You need to enter the complete path of the topic name, i.e., persistent://clusterid/namespace/Topic, where the clusterid/namespace/topic part can be copied directly from the Topic page in the console.


You need to enter the subscription name in the subscriptionName parameter, which can be viewed on the Consumption Management page.
6. Consume the message.
Message msg;
// Obtain the message
consumer.receive(msg);
// Simulate the business processing logic
std::cout << "Received: " << msg << " with payload '" << msg.getDataAsString() << "'" << std::endl;
// Return `ack` as the acknowledgement
consumer.acknowledge(msg);
// Return `nack` if the consumption fails, and the message will be delivered again
// consumer.negativeAcknowledge(msg);

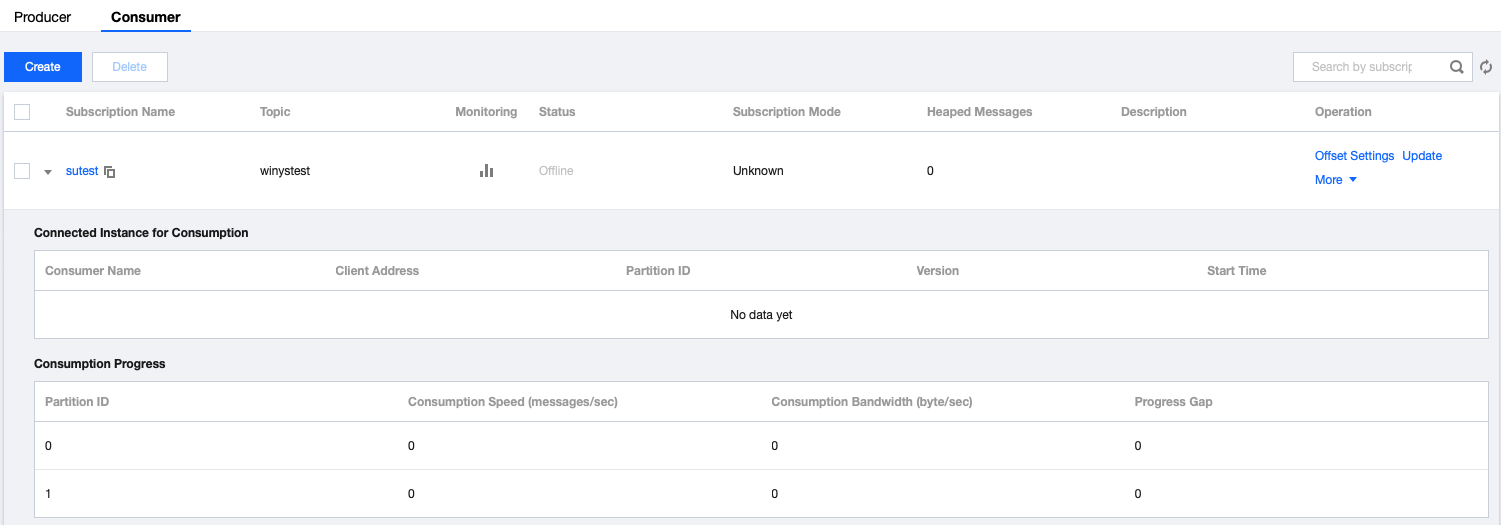

7. Log in to the TDMQ for Apache Pulsar console, click Topic > Topic Name to enter the Consumption Management page, and click the triangle below a subscription name to view the production and consumption records.



Note:
The above is a brief introduction to the way of publishing and subscribing to messages. For more operations, see Demo or Pulsar C++ client.
