Spring Cloud Stream
Last updated: 2024-01-03 11:45:32
Download PDF

Overview

This document describes how to use open-source SDK to send and receive messages by using the SDK for Spring Cloud Stream as an example and helps you better understand the message sending and receiving processes.

Prerequisites

You have created the required resources as instructed in Resource Creation and Preparation.
You have installed JDK 1.8 or later.
You have installed Maven 2.5 or later.
You have downloaded the demo

Directions

Step 1. Add dependencies

Add Stream RabbitMQ dependencies to pom.xml.
<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-stream-rabbit</artifactId>
</dependency>

Step 2. Prepare configurations

1. Configure the configuration file (with the configuration of a direct exchange as an example).
spring:
    application:
    name: application-name
    cloud:
    stream:
      rabbit:
        bindings:
          # Output channel name
          output:
            # Producer configuration information
            producer:
              # Type of the exchange used by the producer. If the exchange name already exists, this type must be the same as that of the exchange type
              exchangeType: direct
              # It is used to specify a routing key expression
              routing-key-expression: headers["routeTo"] # This field indicates that the `routeTo` field in the header is used as the routing key
              queueNameGroupOnly: true
          # Input channel name
          input:
            # Consumer configuration information
            consumer:
              # Type of the exchange used by the consumer. If the exchange name already exists, this type must be the same as that of the exchange type
              exchangeType: direct
              # Routing keys bound to the consumer message queue
              bindingRoutingKey: info,waring,error
              # The configuration will process the above routing keys
              bindingRoutingKeyDelimiter: ","  # This configuration item indicates that commas are used to separate the configured routing keys
              # Message acknowledgment mode. For more information, see `AcknowledgeMode`
              acknowledge-mode: manual
              queueNameGroupOnly: true
      bindings:
          # Output channel name
        output: # Channel name
          destination: direct_logs # Name of the exchange to be used
          content-type: application/json
          default-binder: dev-rabbit
        # Input channel name
        input: # Channel name
          destination: direct_logs # Name of the exchange to be used
          content-type: application/json
          default-binder: dev-rabbit
          group: route_queue1 # Name of the message queue to be used
      binders:
        dev-rabbit:
          type: rabbit
          environment:
            spring:
              rabbitmq:
                host: amqp-xxx.rabbitmq.xxx.tencenttdmq.com #Cluster access address, which can be obtained by clicking “Access Address” in the “Operation” column on the cluster management page.
                port: 5672
                username: admin # Role name
                password: password # Role token
                virtual-host: vhostnanme # Vhost name
Parameter
Description
bindingRoutingKey
Routing keys bound to the consumer message queue. Message routing rule can be obtained in the Binding Key column in the binding list in the console.

direct_log
Exchange name, which can be obtained from the exchange list in the console.
route_queue1
Queue name, which can be obtained from the queue list in the console.
host
Cluster access address, which can be obtained from the Client Access section on the Basic Info page of the cluster.

port
Cluster access address port, which can be obtained in the Operation column on the Cluster Management page
username
Enter the name of the user created in the console.
password
Enter the password of the user created in the console.
virtual-host
Vhost name, which can be obtained from the vhost list in the console.
2. Create a configuration file loading program.
OutputMessageBinding.java
   public interface OutputMessageBinding {
     /**
        * Name of the channel to be used (output channel name)
        */
     String OUTPUT = "output";

     @Output(OUTPUT)
     MessageChannel output();
   }
InputMessageBinding.java
   public interface InputMessageBinding {

     /**
        * Name of the channel to be used
        */
     String INPUT = "input";

     @Input(INPUT)
     SubscribableChannel input();
   }

Step 3. Send messages

Create and compile the message sending program IMessageSendProvider.java.
// Import the configuration class
@EnableBinding(OutputMessageBinding.class)
public class MessageSendProvider {

    @Autowired
    private OutputMessageBinding outputMessageBinding;

    public String sendToDirect() {
        outputMessageBinding.output().send(MessageBuilder.withPayload("[info] This is a new message.[" + System.currentTimeMillis() + "]").setHeader("routeTo", "info").build());
        outputMessageBinding.output().send(MessageBuilder.withPayload("[waring] This is a new waring message.[" + System.currentTimeMillis() + "]").setHeader("routeTo", "waring").build());
        outputMessageBinding.output().send(MessageBuilder.withPayload("[error] This is a new error message.[" + System.currentTimeMillis() + "]").setHeader("routeTo", "error").build());
        return "success";
    }

    public String sendToFanout() {
        for (int i = 0; i < 3; i++) {
            outputMessageBinding.output().send(MessageBuilder.withPayload("This is a new message" + i).build());
        }
        return "success";
    }
}
Inject MessageSendProvider to the message sending class to send messages.

Step 4. Consume messages

Create and compile the message consuming program MessageConsumer.java. You can configure multiple channels to listen on different message queues.
@Service
@EnableBinding(InputMessageBinding.class)
public class MessageConsumer {

    @StreamListener(InputMessageBinding.INPUT)
    public void test(Message<String> message) throws IOException {
        Channel channel = (com.rabbitmq.client.Channel) message.getHeaders().get(AmqpHeaders.CHANNEL);
        Long deliveryTag = (Long) message.getHeaders().get(AmqpHeaders.DELIVERY_TAG);
        channel.basicAck(deliveryTag, false);
        String payload = message.getPayload();
        System.out.println(payload);
    }
}

Step 5. View messages

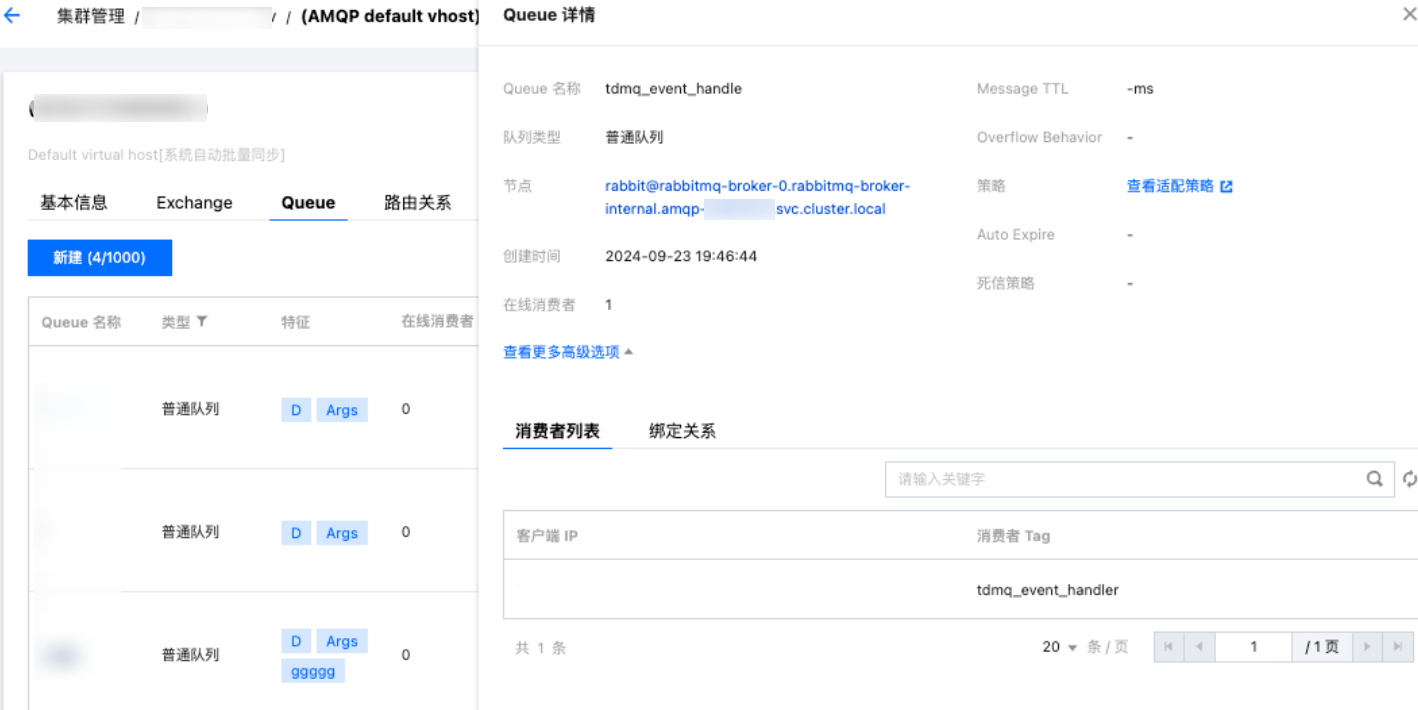

If you want to confirm whether the messages have been successfully sent to TDMQ for RabbitMQ, you can view the status of connected consumers on the Cluster > Queue page in the console.

Note
Above is a sample based on the pub/sub pattern of RabbitMQ, which can be configured as needed. For more information, see Demo or Spring cloud stream official documentation.
