SDK for PHP
Last updated: 2024-01-03 11:45:32
Download PDF

Overview

This document describes how to use open-source SDK to send and receive messages by using the SDK for PHP as an example and helps you better understand the message sending and receiving processes.

Prerequisites

Install PHP 5.6 or later
Install PEAR
You have downloaded the demo

Directions

Step 1. Install the php-amqplib library

RabbitMQ officially recommends the php-amqplib client. First, you need to import the php-amqplib library into your project.
1. Add the composer.json file to your project.
{
    "require": {
        "php-amqplib/php-amqplib": ">=3.0"
    }
}
2. Use Composer for installation.
composer.phar install
You can also run the following command:
composer install
3. Import the library file into the client files to create a client.
require_once('../vendor/autoload.php');
After completing the above steps, you can create a connection for interaction with the server.

Step 2. Send messages

Create and compile a message producing program (with a direct exchange as an example).
require_once('../vendor/autoload.php');

use PhpAmqpLib\Connection\AMQPStreamConnection;
use PhpAmqpLib\Message\AMQPMessage;

$exchange_name = 'exchange_name';
$exchange_type = 'direct';

// Create a connection
$connection = new AMQPStreamConnection(
    $host,
    $port,
    $username,
    $password,
    $vhost,
    false,
    'PLAIN');
// Establish a channel
$channel = $connection->channel();
// Declare the exchange
$channel->exchange_declare($exchange_name, $exchange_type, false, true, false);

// Set the message routing key
$routing_keys = array('info', 'waring', 'error');

for ($x = 0; $x < count($routing_keys); $x++) {
    // Message content
    $msg = new AMQPMessage('This is a direct[' . $routing_keys[$x] . '] message!');
    // Send a message to the specified exchange and set the routing key
    $channel->basic_publish($msg, $exchange_name, $routing_keys[$x]);

    echo " [Producer(Routing)] Sent '" . $msg->body . "'\n";
}
// Release resources
$channel->close();
$connection->close();
Parameter
Description
$exchange_name
Exchange name, which can be obtained from the exchange list in the console.
$exchange_type
It must be the same as the type of the above exchange.
$host
Cluster access address, which can be obtained from Access Address in the Operation column on the Cluster page.


$port
Cluster access port.
$username
Role name, which can be copied on the Role Management page.
$password
Role key, which can be copied in the Key column on the Role Management page.


$vhost
Vhost name in the format of "cluster ID + | + vhost name", which can be copied on the Vhost page in the console.


$routing_keys[$x]
Routing key bound to the consumer message queue, which is also the message routing rule and can be obtained in the Binding Key column in the binding list in the console.



Step 3. Consume messages

Create and compile a message consuming program.
<?php

require_once('../vendor/autoload.php');
require_once('../Constant.php');

use PhpAmqpLib\Connection\AMQPStreamConnection;

$exchange_name = 'exchange_name';
$exchange_type = 'direct';
$queue_name = 'route_queue1';

// Create a connection
$connection = new AMQPStreamConnection(
    $host,
    $port,
    $username,
    $password,
    $vhost,
    false,
    'PLAIN');
// Establish a channel
$channel = $connection->channel();
// Declare the exchange
$channel->exchange_declare($exchange_name, $exchange_type, false, true, false);
// Declare the message queue
$channel->queue_declare($queue_name, false, true, false, false);

// Set the queue routing key
$routing_keys = array('info', 'waring', 'error');
for ($x = 0; $x < count($routing_keys); $x++) {
    // Bind the message queue to the specified exchange and set `routingKey`
    $channel->queue_bind($queue_name, $exchange_name, $routing_keys[$x]);
}

echo " [Consumer1(Routing: info/waring/error)] Waiting for messages. To exit press CTRL+C\n";

// Message callback (message consumption logic)
$callback = function ($msg) {
    echo ' [Consumer1(Routing: info/waring/error)] Received ', $msg->body, "\n";
};
// Create a consumer to listen on the specified message queue
$channel->basic_consume($queue_name, '', false, true, false, false, $callback);

while ($channel->is_open()) {
    $channel->wait();
}
// Disable the resource
$channel->close();
$connection->close();

Parameter
Description
$exchange_name
Exchange name, which can be obtained from the exchange list in the console.
$exchange_type
It must be the same as the type of the above exchange.
$queue_name
Queue name, which can be obtained from the queue list in the console.
$host
Cluster access address, which can be obtained from Access Address in the Operation column on the Cluster page.


$port
Cluster access port.
$username
Role name, which can be copied on the Role Management page.
$password
Role key, which can be copied in the Key column on the Role Management page.


$vhost
Vhost name in the format of "cluster ID + | + vhost name", which can be copied on the Vhost page in the console.


$routing_keys[$x]
Routing key bound to the consumer message queue, which is also the message routing rule and can be obtained in the Binding Key column in the binding list in the console.



Step 4. View messages

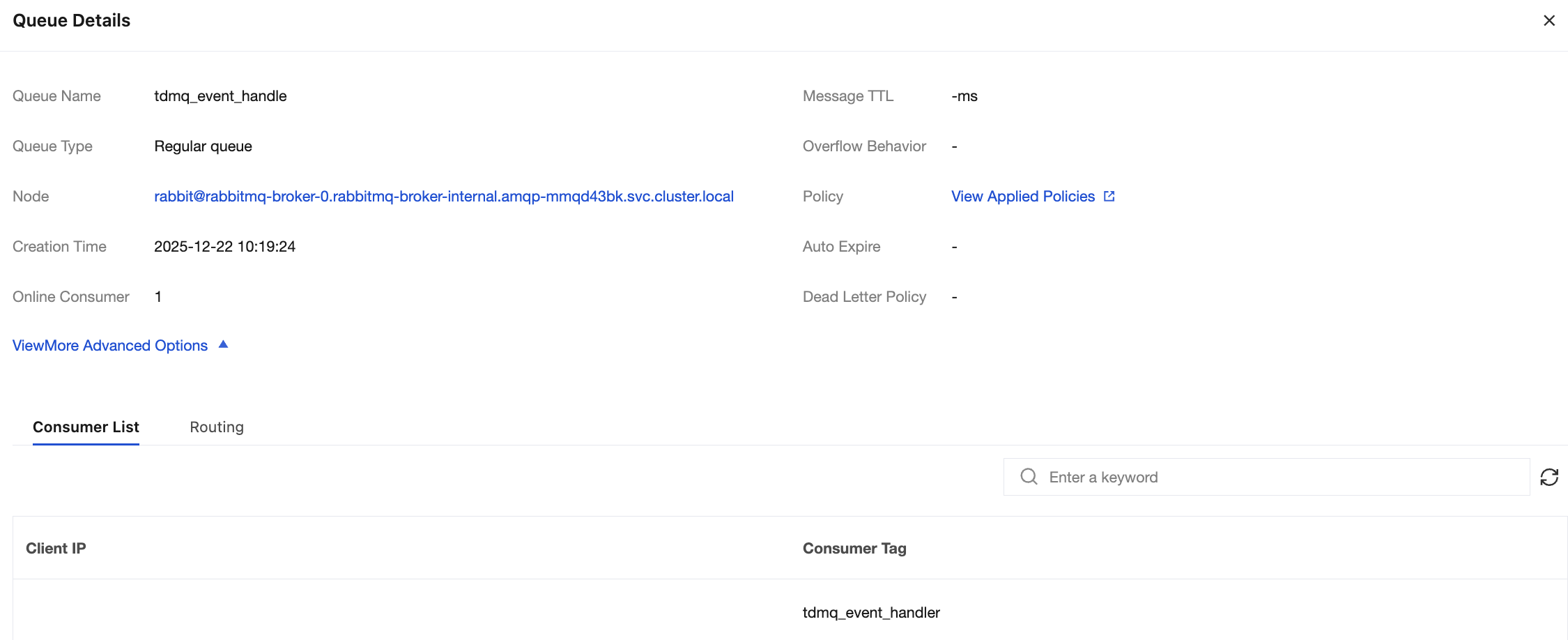

To check whether messages are sent to TDMQ for RabbitMQ successfully, view the connected consumer status on the Cluster > Queue page in the console.



Note:
For the complete sample code and other use cases, see Demo or RabbitMQ Tutorials.
