1. Log in to the new Anti-DDoS console and click Cloud Assets on the left sidebar.
2. In the Asset security status section, you can see the business IP security data.
3. In the Asset protection status section, you can see the business IP protection data and directly connect to the Anti-DDoS service.
Viewing asset instance details
1. Log in to the new Anti-DDoS console and click Cloud Assets on the left sidebar.
2. Take CVM as an example. On the details page, you can view the detailed information of a CVM asset, including the asset name, asset IP, defense type, Anti-DDoS instance ID, protection bandwidth cap, and attack status.
Anti-DDoS can be activated for the following products:
Cloud Virtual Machine (CVM): This is a scalable cloud computing service that frees you from estimation of resource usage and upfront investment. With Tencent Cloud CVM, you can launch any number of CVM instances and deploy applications quickly.
Cloud Load Balancer (CLB): This is a service that distributes traffic to multiple CVM instances securely and quickly so as to eliminate single points of failure for higher availability.
NAT Gateway: This is a service that supports IP address translation and provides the SNAT and DNAT capabilities. It provides secure and high-performance internet access for resources in virtual private clouds (VPCs).
VPN Connection: This is a transfer service based on network tunneling technology that brings about connectivity between local IDCs and resources on Tencent Cloud. It can help you quickly build a secure and reliable encrypted tunnel on the internet.
Cloud Bare Metal (CBM): This is an on-demand pay-as-you-go physical server rental service that provides high-performance, securely isolated physical server clusters for cloud users.
Bare Metal Cloud Load Balancer (Bare Metal CLB): It virtualizes multiple physical servers in the same availability zone into a high-performance and high-availability application service pool by setting a virtual IP (VIP) address.
Bare Metal Elastic IP (Bare Metal EIP): A Bare Metal EIP address is an IP address dedicated to dynamic cloud computing, and it is a public IP address that can be separately applied for.
Global Application Acceleration Platform (GAAP): This is a PaaS product that allows optimum access latency for businesses across the globe. Via high-speed connections, cluster forwarding, and intelligent routing among global nodes, it enables users in different regions to access the closest nodes and forwards traffic to the origin server, reducing access lag and latency.
Elastic Network Interface (ENI): An ENI is used to bind a CVM instance within a VPC, and it can be freely migrated among CVM instances. ENIs can help configure and manage networks, as well as develop highly reliable network solutions.
Tencent Cloud Lighthouse: This is a new-gen, out-of-the-box cloud server service for small- and medium-sized enterprises (SMEs) and developers. It is designed for cloud-based lightweight use cases, such as websites, web applications, mini programs, mini games, apps, ecommerce, cloud storage, image hosting, and various development and testing environments. It is easier to use than traditional cloud server services and integrates common basic cloud services into different high-bandwidth/traffic packages. Such packages contain popular open-source software programs, enabling you to build applications swiftly and enjoy a minimalist cloud experience.
Managing cloud assets
1. Log in to the new Anti-DDoS console and click Cloud Assets on the left sidebar.
2. Click a product tab and find the asset you want to manage. If there are many instances, you can use the search box in the top right corner for filtering.
3. After selecting the asset, you can perform the following operations on it:

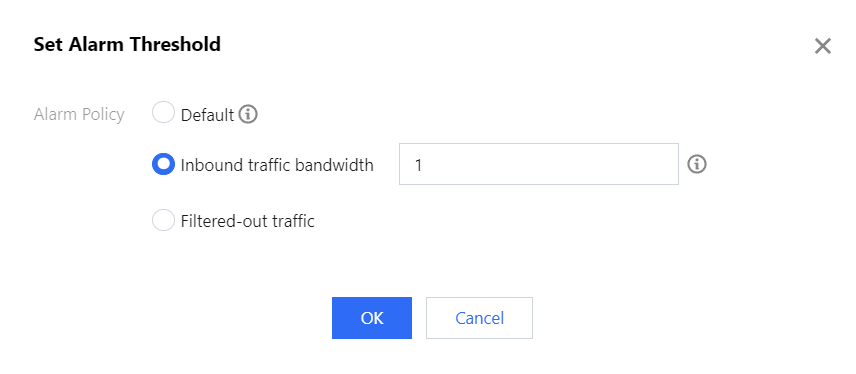

Click Set Alarm Threshold, set an alarm policy as needed, and click OK.
Upgrade protection. When business growth requires the same Anti-DDoS instance to protect multiple business IPs, you can upgrade protection to cover all business IPs. For more information, see Upgrading Protection.
Click Attack analysis to view the attack data.
Click Configurations to view the DDoS protection configurations.
