    Key-Value Extraction Functions

    Last updated: 2024-01-20 17:44:35
    Download PDF

      Overview

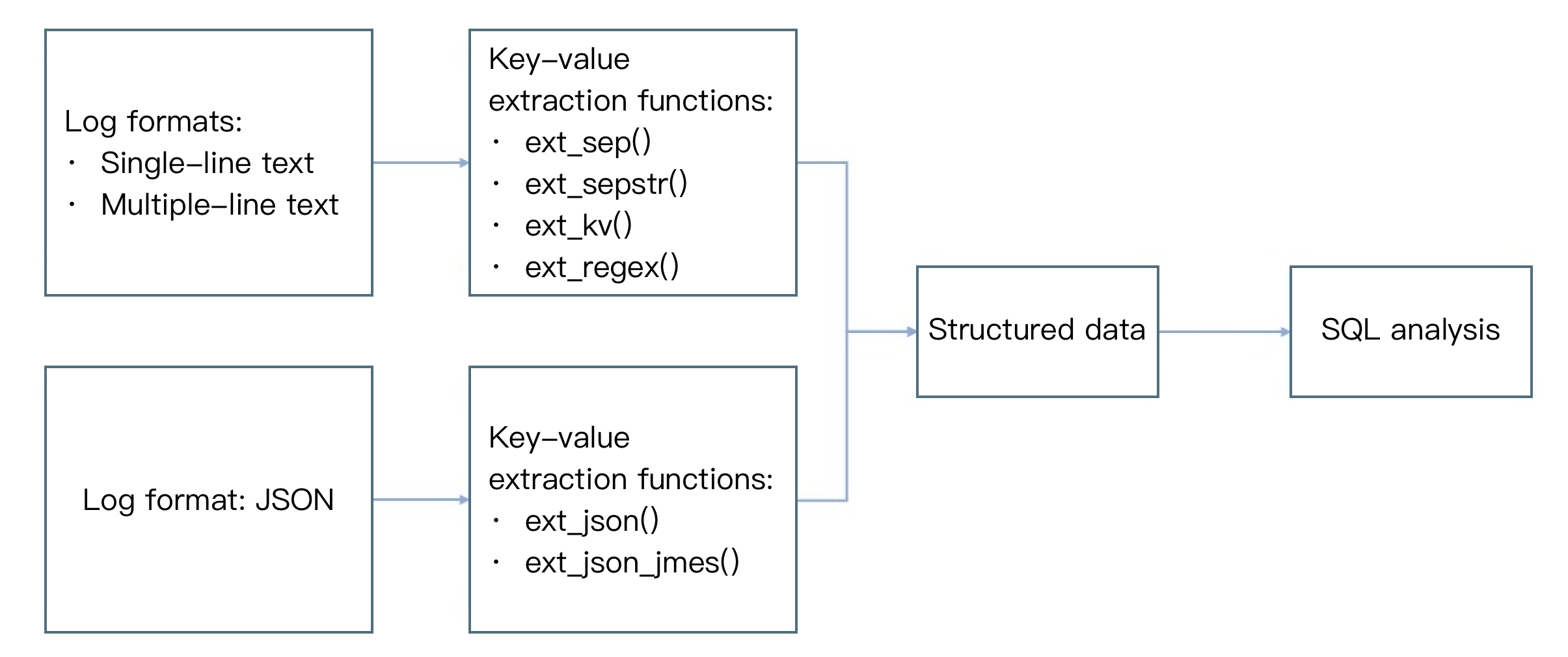

      The figure below shows the common use cases of key-value extraction functions. After key-value extraction, logs are processed into structured data, which can be used for SQL analysis.




      Function ext_sep()

      Function definition

      This function is used to extract field value content based on a separator (single character).

      Syntax description

      ext_sep("Source field name", "Target field 1,Target field 2,Target field...", sep="Separator", quote="Non-segmentation part"", restrict=False, mode="overwrite")

      Field description

      Parameter
      Description
      Parameter Type
      Required
      Default Value
      Value Range
      field
      Field to extract
      string
      Yes
      -
      Name of an existing field in the user log
      output
      A single field name or multiple new field names concatenated with commas
      string
      Yes
      -
      -
      sep
      Separator
      string
      No
      ,
      Any single character
      quote
      Characters that enclose the value
      string
      No
      -
      -
      restrict
      Handling mode when the number of extracted values is inconsistent with the number of target fields entered by the user:
      True: ignore the extraction function and do not perform any extraction processing.
      False: try to match the first few fields
      bool
      No
      False
      -
      mode
      Write mode of the new field
      string
      No
      overwrite
      -

      Sample

      Example 1. Extract values from logs by using a comma as the separatorRaw log:
      {"content": "hello Go,hello Java,hello python"}
      Processing rule:
      // Use a comma as the separator to divide the `content` field into three parts, corresponding to the `f1`, `f2`, and `f3` fields separately.
      ext_sep("content", "f1, f2, f3", sep=",", quote="", restrict=False, mode="overwrite")
      // Delete the `content` field.
      fields_drop("content")
      Processing result:
      {"f1":"hello Go","f2":"hello Java","f3":"hello python"}
      Example 2. Process the content string as a whole by using quoteRaw log:
      {"content": " Go,%hello ,Java%,python"}
      Processing rule:
      ext_sep("content", "f1, f2",  quote="%", restrict=False)
      Processing result:
      // Though `%hello ,Java%` does contain a comma, it does not participate in separator extraction as a whole.
      {"content":" Go,%hello ,Java%,python","f1":" Go","f2":"hello ,Java"}
      Example 3: restrict=True indicates the number of divided values is different from the target fields, the function is not executed.Raw log:
      {"content": "1,2,3"}
      Processing rule:
      ext_sep("content", "f1, f2", restrict=True)
      Processing result:
      {"content":"1,2,3"}

      Function ext_sepstr()

      Function definition

      This function is used to extract field value content based on multiple characters (string).

      Syntax description

      ext_sepstr("Source field name","Target field 1,Target field 2,Target field...", sep="abc", restrict=False, mode="overwrite")

      Field description

      Parameter
      Description
      Parameter Type
      Required
      Default Value
      Value Range
      field
      Field to extract
      string
      Yes
      -
      Name of an existing field in the user log
      output
      A single field name or multiple new field names concatenated with commas
      string
      Yes
      -
      -
      sep
      Separator (string)
      string
      No
      ,
      -
      restrict
      Handling mode when the number of extracted values is inconsistent with the number of target fields entered by the user:
      True: ignore the extraction function and do not perform any extraction processing.
      False: try to match the first few fields
      bool
      No
      False
      -
      mode
      Write mode of the new field
      string
      No
      overwrite
      -

      Sample

      Raw log:
      {"message":"1##2##3"}
      Processing rule:
      // Use "##" as the separator to extract key-values.
      ext_sepstr("message", "f1,f2,f3,f4", sep="##")
      Processing result:
      // If the number of target fields is greater than the number of divided values, `""` is returned for the excessive fields.
      {"f1":"1","f2":"2","message":"1##2##3","f3":"3","f4":""}

      Function ext_json()

      Function definition

      This function is used to extract field values from JSON data.

      Syntax description

      ext_json("Source field name",prefix="",suffix="",format="full",exclude_node="JSON nodes not to expand")

      Field description

      Parameter
      Description
      Parameter Type
      Required
      Default Value
      Value Range
      field
      Field to extract
      string
      Yes
      -
      -
      prefix
      Prefix of the new field
      string
      No
      -
      -
      suffix
      Suffix of the new field
      string
      No
      -
      -
      format
      full: The field name format is in full path format (parent + sep + prefix + key + suffix).
      simple: non-full path format (prefix + key + suffix)
      string
      No
      simple
      -
      sep
      Concatenation character, used to concatenate node names
      string
      No
      #
      -
      depth
      Depth to which the function expands the source field, beyond which nodes will not be expanded any more
      number
      No
      100
      1-500
      expand_array
      Whether to expand an array node
      bool
      No
      False
      -
      include_node
      Allowlist of node names that match the specified regular expression
      string
      No
      -
      -
      exclude_node
      Blocklist of node names that match the specified regular expression
      string
      No
      -
      -
      include_path
      Allowlist of node paths that match the specified regular expression
      string
      No
      -
      -
      exclude_path
      Allowlist of node paths that match the specified regular expression
      string
      No
      -
      -
      retain
      Retains some special symbols without escaping them, such as \\n and \\t.
      string
      No
      -
      -
      escape
      Whether to escape data. Default value: True. If special symbols are contained, escaping cannot be performed.
      bool
      No
      True
      -

      Sample

      Example 1. Extract the key-values of all nodes and construct new fields based on the extracted values. The example log is multi-level nesting, but the extraction does not distinguish hierarchy.Raw log:
      {
      "data": "{  \\"k1\\": 100, \\"k2\\": {  \\"k3\\": 200,  \\"k4\\": { \\"k5\\": 300}}}"
      }
      Processing rule:
      ext_json("data")
      Processing result:
      {"data":"{  \\"k1\\": 100, \\"k2\\": {  \\"k3\\": 200,  \\"k4\\": { \\"k5\\": 300}}}","k1":"100","k3":"200","k5":"300"}
      Example 2. Perform extraction excluding sub_field1 Raw log:
      {"content": "{\\"sub_field1\\":1,\\"sub_field2\\":\\"2\\"}"}
      Processing rule:
      // `exclude_node=subfield1` indicates not to extract the node.
      ext_json("content", format="full", exclude_node="sub_field1")
      Processing result:
      {"sub_field2":"2","content":"{\\"sub_field1\\":1,\\"sub_field2\\":\\"2\\"}"}
      Example 3. Add prefix to subnodesRaw log:
      {"content": "{\\"sub_field1\\":{\\"sub_sub_field3\\":1},\\"sub_field2\\":\\"2\\"}"}
      Processing rule 1:
      // When `sub_field2` is extracted, the prefix `udf\\_` is automatically added to it, making it `udf\\_\\_sub\\_field2`.
      ext_json("content", prefix="udf_", format="simple")
      Processing result 1:
      {"content":"{\\"sub_field1\\":{\\"sub_sub_field3\\":1},\\"sub_field2\\":\\"2\\"}","udf_sub_field2":"2","udf_sub_sub_field3":"1"}
      Processing rule 2:
      // `format=full` indicates to retain the hierarchy of the extracted field name. When `sub_field2` is extracted, the name of its parent node is automatically to it, making it `#content#__sub_field2`.
      ext_json("content", prefix="__", format="full")
      Processing result 2:
      {"#content#__sub_field2":"2","#content#sub_field1#__sub_sub_field3":"1","content":"{\\"sub_field1\\":{\\"sub_sub_field3\\":1},\\"sub_field2\\":\\"2\\"}"}
      Example 4. Support special symbols Raw log 1:
      {"content": "{\\"sub_field1\\":1,\\"sub_field2\\":\\"\\\\n2\\"}"}
      Processing rule 1:
      ext_json("content",retain="\\n")
      Processing result 1:
      {"sub_field2":"\\\\n2","content":"{\\"sub_field1\\":1,\\"sub_field2\\":\\"\\\\n2\\"}","sub_field1":"1"}
      Raw log 2:
      {"content": "{\\"sub_field1\\":1,\\"sub_field2\\":\\"\\\\n2\\\\t\\"}"}
      Processing rule 2:
      ext_json("content",retain="\\n,\\t")
      Processing result 2:
      {"sub_field2":"\\\\n2\\\\t","content":"{\\"sub_field1\\":1,\\"sub_field2\\":\\"\\\\n2\\\\t\\"}","sub_field1":"1"}
      Example 5. Specify whether to escape Raw log:
      {"message":"{\\"ip\\":\\"183.6.104.157\\",\\"params\\":\\"[{\\\\\\"tokenType\\\\\\":\\\\\\"RESERVED30\\\\\\",\\\\\\"otherTokenInfo\\\\\\":{\\\\\\"unionId\\\\\\":\\\\\\"123\\\\\\"},\\\\\\"unionId\\\\\\":\\\\\\"adv\\\\\\"}]\\"}"}
      Processing rule:
      ext_json("message", escape=False)
      fields_drop("message")
      Processing result:
      {"ip":"183.6.104.157", "params":"[{\\"tokenType\\":\\"RESERVED30\\",\\"otherTokenInfo\\":{\\"unionId\\":\\"123\\"},\\"unionId\\":\\"adv\\"}]"}

      Function ext_json_jmes()

      Function definition

      This function is used to extract field values from JSON data.

      Syntax description

      ext_json_jmes("Source field name", jmes= "JSON extraction expression", output="Target field", ignore_null=True, mode="overwrite")

      Field description

      Parameter
      Description
      Parameter Type
      Required
      Default Value
      Value Range
      field
      Field to extract
      string
      Yes
      -
      -
      jmes
      JMES expression. For more information, see JMESPath.
      string
      Yes
      -
      -
      output
      Output field name. Only a single field is supported.
      string
      Yes
      -
      -
      ignore_null
      Whether to ignore a node whose value is null. The default value is True, ignoring fields whose value is null. Otherwise, an empty string is returned.
      bool
      No
      True
      -
      mode
      Write mode of the new field. Default value: overwrite
      string
      No
      overwrite
      -

      Sample

      Example 1. Extract only one node from multi-layer JSON data Raw log:
      {"content": "{\\"a\\":{\\"b\\":{\\"c\\":{\\"d\\":\\"value\\"}}}}"}
      Processing rule:
      // `jmes="a.b.c.d"` means to extract the value of `a.b.c.d`.
      ext_json_jmes("content", jmes="a.b.c.d", output="target")
      Processing result:
      {"content":"{\\"a\\":{\\"b\\":{\\"c\\":{\\"d\\":\\"value\\"}}}}","target":"value"}
      Example 2Raw log:
      {"content": "{\\"a\\":{\\"b\\":{\\"c\\":{\\"d\\":\\"value\\"}}}}"}
      Processing rule:
      // `jmes="a.b.c.d"` means to extract the value of `a.b.c`.
      ext_json_jmes("content", jmes="a.b.c", output="target")
      Processing result:
      {"content":"{\\"a\\":{\\"b\\":{\\"c\\":{\\"d\\":\\"value\\"}}}}","target":"{\\"d\\":\\"value\\"}"}

      Function ext_regex()

      Function definition

      This function is used to extract the value of a field by using a regular expression.

      Syntax description

      ext_regex("Source field name", regex="Regular expression", output="Target field 1,Target field 2,Target field.......", mode="overwrite")

      Field description looking for b

      Parameter
      Description
      Parameter Type
      Required
      Default Value
      Value Range
      field
      Field to extract
      string
      Yes
      -
      -
      regex
      Regular expression. If the expression contains a special character, escaping is required. Otherwise, syntax error is reported.
      string
      Yes
      -
      -
      output
      A single field name or multiple new field names concatenated with commas
      string
      No
      -
      -
      mode
      Write mode of the new field. Default value: overwrite
      string
      No
      overwrite
      -

      Sample

      Example 1. Match digitsRaw log:
      {"content": "1234abcd5678"}
      Processing rule:
      ext_regex("content", regex="\\d+", output="target1,target2")
      Processing result:
      {"target2":"5678","content":"1234abcd5678","target1":"1234"}
      Example 2. The regular expression contains named capturing group, and some field values are automatically filled Raw log:
      {"content": "1234abcd"}
      Processing rule:
      ext_regex("content", regex="(?<target1>\\d+)(.*)", output="target2")
      Processing result:
      {"target2":"abcd","content":"1234abcd","target1":"1234"}

      Function ext_kv()

      Function definition

      This function is used to extract key-value pairs by using two levels of separators.

      Syntax description

      ext_kv("Source field name", pair_sep=r"\\s", kv_sep="=", prefix="", suffix="", mode="fill-auto")

      Field description

      Parameter
      Description
      Parameter Type
      Required
      Default Value
      Value Range
      field
      Field to extract
      string
      Yes
      -
      -
      pair_sep
      Level-1 separator, separating multiple key-value pairs
      string
      Yes
      -
      -
      kv_sep
      Level-2 separator, separating keys and values
      string
      Yes
      -
      -
      prefix
      Prefix of the new field
      string
      No
      -
      -
      suffix
      Suffix of the new field
      string
      No
      -
      -
      mode
      Write mode of the new field. Default value: overwrite
      string
      No
      -
      -

      Sample

      The raw log contains two levels of separators: "|" and "=".
      Raw log:
      {"content": "a=1|b=2|c=3"}
      Processing rule:
      ext_kv("content", pair_sep="|", kv_sep="=")
      Processing result:
      {"a":"1","b":"2","c":"3","content":"a=1|b=2|c=3"}

      Function ext_first_notnull()

      Function definition

      This function is used to return the first non-null and non-empty result value.

      Syntax description

      ext_first_notnull(value 1, value 2, ...)

      Field description

      Parameter
      Description
      Type
      Required
      Default Value
      Value Range
      Variable parameter list
      Parameters or expressions that participate in the calculation
      string
      Yes
      -
      -

      Sample

      Raw log:
      {"data1": null, "data2": "", "data3": "first not null"}
      Processing rule:
      fields_set("result", ext_first_notnull(v("data1"), v("data2"), v("data3")))
      Processing result:
      {"result":"first not null","data3":"first not null","data2":"","data1":"null"}

      Function ext_grok

      Function definition

      This function is used to extract the matched result value according to the Grok syntax.

      Syntax description

      ext_grok(Field value, grok="", extend="")

      Field description

      Parameter
      Description
      Type
      Required
      Default Value
      Value Range
      field
      Field value
      string
      Yes
      -
      -
      grok
      Expression
      string
      Yes
      -
      -
      extend
      Custom Grok expression
      string
      Yes
      -
      -

      Sample

      Example 1 Raw log:
      {"content":"2019 June 24 \\"I am iron man\\""}
      Processing rule:
      ext_grok("content", grok="%{YEAR:year} %{MONTH:month} %{MONTHDAY:day} %{QUOTEDSTRING:motto}")
      fields_drop("content")
      Processing result:
      {"day":"24", "month":"June", "motto":"I am iron man", "year":"2019"}
      Example 2 Raw log:
      {"content":"Beijing-1104,Beijing-Beijing"}
      Processing rule:
      ext_grok("content", grok="%{ID1:user_id1},%{ID2:user_id2}",extend="ID1=%{WORD}-%{INT},ID2=%{WORD}-%{WORD}")
      fields_drop("content")
      Processing result:
      {"user_id1":"Beijing-1104", "user_id2":"Beijing-Beijing"}

      Contact Us

      Contact our sales team or business advisors to help your business.

      Contact Us
      Technical Support

      Open a ticket if you're looking for further assistance. Our Ticket is 7x24 avaliable.

      Submit a Ticket
      7x24 Phone Support
      Copyright © 2013-2024 Tencent Cloud. All Rights Reserved.
      Privacy PolicyLegalCookie Policy
