DLC JDBC Access

Last updated: 2024-08-07 17:36:25

    Environment Preparation

    Dependency: JDK 1.8

    Connecting to DLC

    1. Load the JDBC driver for DLC.
    Class.forName("com.tencent.cloud.dlc.jdbc.DlcDriver");
    2. Create a connection using DriverManager.
    Connection cnct = DriverManager.getConnection(url, secretId, secretKey);

    URL Format

    jdbc:dlc:<dlc_endpoint>?task_type=SQLTask&database_name=abc&datasource_connection_name=DataLakeCatalog&region=ap-nanjing&data_engine_name=spark-cu&result_type=COS&read_type=Stream
    Description of parameters in the JDBC access URL:
    Parameter
    Required
    Description
    dlc_endpoint
    Yes
    Endpoint of the DLC service. The value is fixed at dlc.tencentcloudapi.com.
    datasource_connection_name
    Yes
    Data source connection name, corresponding to the DLC data directory.
    task_type
    Yes
    Task type
    Fill in SQLTask for the Presto engine.
    Fill in SparkSQLTask for the SparkSQL engine.
    Fill in BatchSQLTask for the Spark engine.
    database_name
    No
    Database name
    region
    Yes
    Region supported by the DLC service, including: ap-nanjing, ap-beijing, ap-guangzhou, ap-shanghai, ap-chengdu, ap-chongqing, na-siliconvalley, ap-singapore, and ap-hongkong.
    data_engine_name
    Yes
    Data engine name
    secretId
    Yes
    SecretId managed by Tencent Cloud KMS
    secretKey
    Yes
    Secretkey managed by Tencent Cloud KMS
    result_type
    No
    Default value: Service. You can set the value to COS if you demand a higher speed of obtaining results.
    Service: Obtain results through the DLC API.
    COS: Obtain results from the COS client.
    read_type
    No
    Stream: Obtain results from COS via streams.
    DownloadSingle: Obtain results by downloading a single file to a local path.
    Default value: Stream. This value takes effect only when result_type is set to COS.
    The file is downloaded to the temporary directory /tmp. Make sure that the read and write permissions on this directory are granted. The data will be automatically deleted after it is read.

    Querying

    Statement stmt = cnct.createStatement();ResultSet rset = stmt.executeQuery("SELECT * FROM dlc");
    while (rset.next())
    {// process the results
    }
    rset.close();
    stmt.close();
    conn.close();
    }
    rset.close();
    stmt.close();
    conn.close();

    Statement Support

    Currently, the statement that can be used by the JDBC driver is consistent with the standard statement of DLC.

    Sample Code

    Database and Table Operation

    import java.sql.*;
    public class MetaTest {
    public static void main(String[] args) throws SQLException {
    try {
    Class.forName("com.tencent.cloud.dlc.jdbc.DlcDriver");
    } catch (ClassNotFoundException e) {
    e.printStackTrace();
    return;
    }
    Connection connection = DriverManager.getConnection(
    "jdbc:dlc:<dlc_endpoint>?task_type=<task_type>&database_name=<database_name>&datasource_connection_name=DataLakeCatalog&region=<region>&data_engine_name=<data_engine_name>&result_type=<result_type>",
    "<secret_id>",
    "secret_key");
    Statement statement = connection.createStatement();
    String dbName = "dlc_db1";
    String createDatabaseSql = String.format("CREATE DATABASE IF NOT EXISTS %s", dbName);
    statement.execute(createDatabaseSql);
    String tableName = "dlc_t1";
    String wholeTableName = String.format("%s.%s", dbName, tableName);
    String createTableSql =
    String.format(
    "CREATE EXTERNAL TABLE %s ( "
    + " id string , "
    + " name string , "
    + " status string , "
    + " type string ) "
    + "ROW FORMAT SERDE "
    + " 'org.apache.hadoop.hive.ql.io.orc.OrcSerde' "
    + "STORED AS INPUTFORMAT "
    + " 'org.apache.hadoop.hive.ql.io.orc.OrcInputFormat' "
    + "OUTPUTFORMAT "
    + " 'org.apache.hadoop.hive.ql.io.orc.OrcOutputFormat' "
    + "LOCATION\\\\n"
    + " 'cosn://<bucket_name>/<path>' ",
    wholeTableName);
    statement.execute(createTableSql);
    // get meta data
    DatabaseMetaData metaData = connection.getMetaData();
    System.out.println("product = " + metaData.getDatabaseProductName());
    System.out.println("jdbc version = "
    + metaData.getDriverMajorVersion() + ", "
    + metaData.getDriverMinorVersion());
    ResultSet tables = metaData.getTables(null, dbName, tableName, null);
    while (tables.next()) {
    String name = tables.getString("TABLE_NAME");
    System.out.println("table: " + name);
    ResultSet columns = metaData.getColumns(null, dbName, name, null);
    while (columns.next()) {
    System.out.println(
    columns.getString("COLUMN_NAME") + "\\\\t" +
    columns.getString("TYPE_NAME") + "\\\\t" +
    columns.getInt("DATA_TYPE"));
    }
    columns.close();
    }
    tables.close();
    statement.close();
    connection.close();
    }
    }


    Data Query

    import java.sql.*;
    public class DataTest {
    public static void main(String[] args) throws SQLException {
    try {
    Class.forName("com.tencent.cloud.dlc.jdbc.DlcDriver");
    } catch (ClassNotFoundException e) {
    e.printStackTrace();
    return;
    }
    Connection connection = DriverManager.getConnection(
    "jdbc:dlc:<dlc_endpoint>?task_type=<task_type>&database_name=<database_name>&datasource_connection_name=DataLakeCatalog&region=<region>&data_engine_name=<data_engine_name>&result_type=<result_type>",
    "<secret_id>",
    "secret_key");
    Statement statement = connection.createStatement();
    String sql = "select * from dlc_test";
    statement.execute(sql);
    ResultSet rs = statement.getResultSet();
    while (rs.next()) {
    System.out.println(rs.getInt(1) + ":" + rs.getString(2));
    }
    rs.close();
    statement.close();
    connection.close();
    }
    }


    Database Client

    You can load the package of JDBC driver for DLC into the SQL client and then connect the client to the DLC service for querying.

    Prerequisites

    1. The DLC service has been activated.
    2. The JDBC driver package mentioned above has been downloaded.
    3. SQL Workbench/J has been downloaded and installed.

    Directions

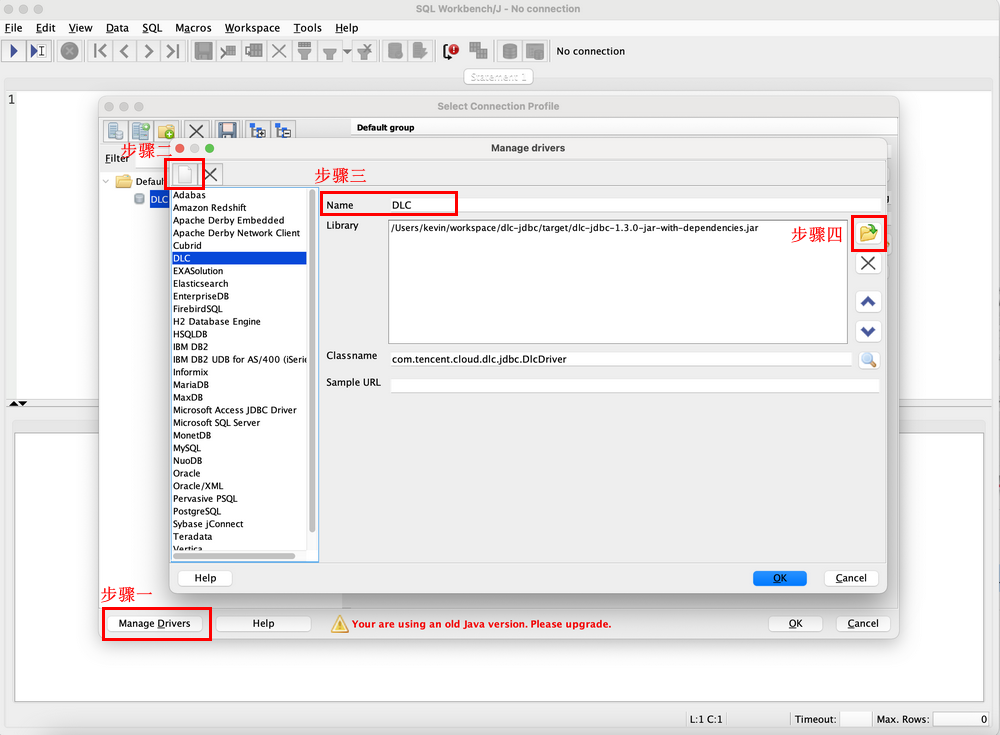

    1. Create the driver for DLC based on the JDBC driver package.

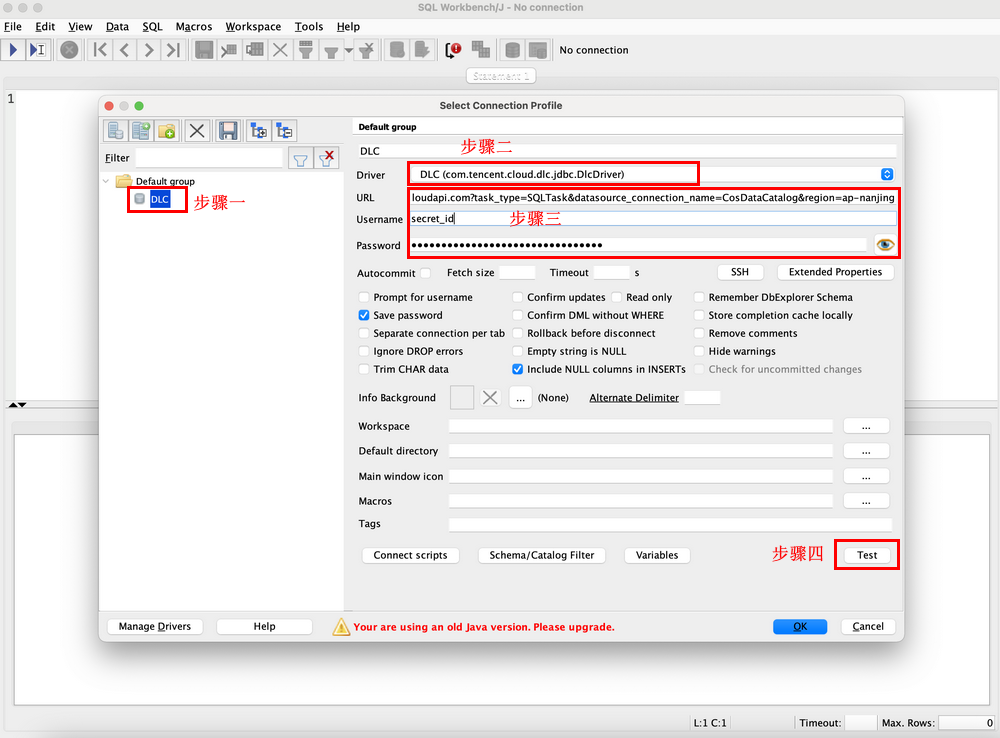

    2. Connect to DLC, fill in the following parameters, and click Test. After the test passes, the connection to DLC is completed.
    Name: Connection name, used to identify the connection to DLC.
    Username: Correspond to the secret_id of the Tencent Cloud user.
    Password: Correspond to the secret_key of the Tencent Cloud user.
    URL: URL used to connect to DLC. The format is the same as the URL for creating a connection through JDBC mentioned above.



    3. View the database and table information.


    4. Query the data.
