When you submit multiple tasks to the engine, for example, submitting multiple SQL tasks to the Spark SQL cluster simultaneously, the tasks submitted by the business may have dependencies, so the engine will default to scheduling these tasks in a FIFO manner when scheduling and executing.
However, in some special cases, you may need to define the priorities of certain tasks yourself, for example in the following scenario:
The submitted task has a high priority and needs to be executed with the highest priority, not wanting it to queue for cluster resources.
The submitted task has a low priority, hoping that it will not preempt resources from other tasks as much as possible. It will be executed when resources are available, and it will queue when resources are not.
Customize Scheduling Rules
In the Spark SQL Engine, each executed SQL task Job is split into a collection of multiple tasks, TaskSet, and our scheduling is based on TaskSet. Whenever the cluster has idle resources, it takes a Task from all Job's TaskSet according to the scheduling algorithm for dispatch execution.
Our scheduling algorithm is to define multiple scheduling pools, placing Job/TaskSet in the corresponding scheduling pool, and obtaining the Task that needs to be dispatched for execution according to the scheduling pool.
Scheduling Pool and Its Attributes
You can define multiple scheduling pools, each with four attributes:
name: The name of the scheduling pool, which you can name yourself. It can be named default, indicating the default scheduling pool.
schedulingMode: The scheduling rule, supporting two modes: FIFO and FAIR. The scheduling algorithm when there are multiple TaskSets within a scheduling pool.
FIFO: Tasks are dispatched in the order that TaskSets are submitted.
FAIR: Tasks from multiple TaskSets are dispatched fairly. The specific dispatch rules are related to the minShare and weight attributes of the scheduling pool.
minShare: The minimum number of cores required, must be greater than 0, that is, the minimum number of Tasks that can run. During scheduling, priority is given to the number of Tasks running in the scheduling pool reaching minShare.
weight: The weight. Scheduling pools with a higher weight will have their Tasks prioritized. Weight comparison will only occur after minShare is met.
The scheduling configuration requires you to write an xml file, in the following formats:
<?xml version="1.0"?>
<allocations>
<pool name="production">
<schedulingMode>FAIR</schedulingMode>
<weight>1</weight>
<minShare>2</minShare>
</pool>
<pool name="test">
<schedulingMode>FIFO</schedulingMode>
<weight>2</weight>
<minShare>3</minShare>
</pool>
</allocations>
Scheduling Configuration Reference Example
You can refer to the settings for three scheduling pools:
Default Scheduling Pool default:schedulingMode = FIFO, weight = 1, minShare = (Cluster Cores - Driver Cores). This scheduling pool is the default submission pool for tasks, with ordinary priority. Execution is in sequential order, and it can utilize all of the cluster's computing resources.
Slow Task Scheduling Pool straggler:schedulingMode = FAIR, weight = 1, minShare = 1. This scheduling pool is dedicated to slow task submissions, with ordinary priority. Since minShare = 1, it does not preempt resources from tasks submitted to the default pool. Tasks in the straggler scheduling pool are executed when the cluster has more available resources.
High Priority Scheduling Pool special:schedulingMode = FIFO, weight = 1000, minShare = (Cluster Cores - Driver Cores). This scheduling pool is for tasks that need priority execution in special circumstances. However, due to the presence of minShare, this pool does not monopolize all cluster resources. Tasks in both the default and special pools continue to be executed, typically dispatching an equal number of Tasks from each pool.
Taking a 16CU cluster (with the driver being 4CU) as an example, the configuration for this reference example is as follows:
<?xml version="1.0"?>
<allocations>
<pool name="default">
<schedulingMode>FIFO</schedulingMode>
<weight>1</weight>
<minShare>12</minShare>
</pool>
<pool name="straggler">
<schedulingMode>FAIR</schedulingMode>
<weight>1</weight>
<minShare>1</minShare>
</pool>
<pool name="special">
<schedulingMode>FIFO</schedulingMode>
<weight>1000</weight>
<minShare>12</minShare>
</pool>
</allocations>
Operation method
1. After preparing the xml file for the scheduling pool, place it in a path on cos, for example cosn://bucket-appid/fairscheduler.xml.

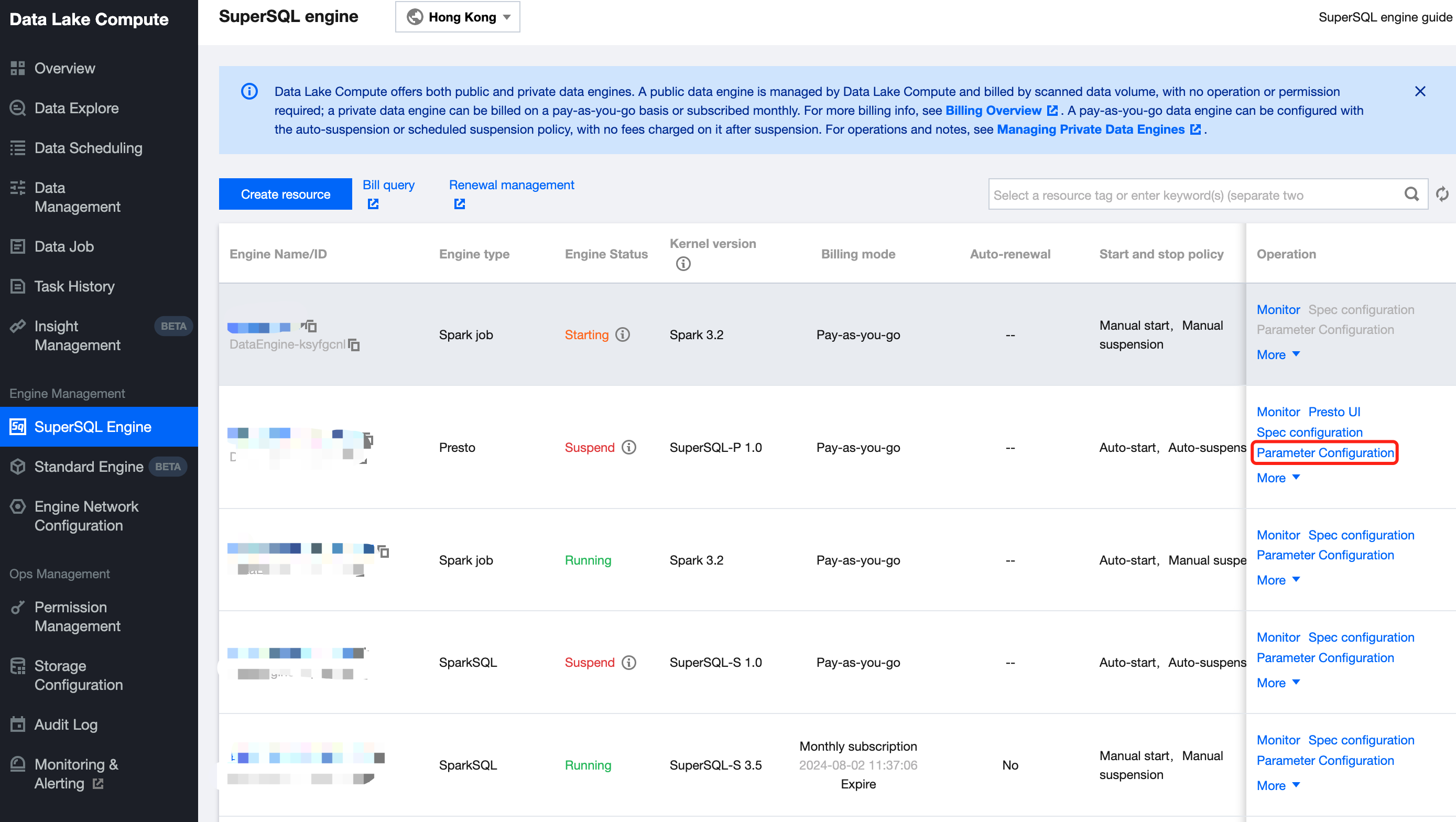

2. Add the following configuration in the engine settings.
Parameter configuration spark.scheduler.allocation.file, set to the path of your scheduling pool xml file cosn://bucket-appid/fairscheduler.xml.
This operation requires restarting the cluster.
3. When submitting a task, specify the following parameters as task parameters: spark.scheduler.pool = the name of the scheduling pool to submit to. If it is the default scheduling pool, it does not need to be specified.
Notes
Scheduling occurs at the time node when: the cluster has idle resources and there is a task that needs scheduling. Therefore, if the cluster is already fully occupied by a task, for example, a slow task, it must wait for one Task of that task to be completed before beginning to schedule other tasks with higher priority. Therefore, it is important to note that the time consumption of a single Task of a slow task should be relatively reasonable; otherwise, it might still lead to long periods of occupying cluster resources.
