This document describes how to use MirrorMaker to migrate data from a self-built Kafka cluster to a CKafka cluster.
Kafka MirrorMaker can back up data in a self-built Kafka cluster to a CKafka cluster in the following way:
MirrorMaker can use a consumer to consume messages in the self-built Kafka cluster and then use a producer to transfer the message data to the CKafka cluster. After this, you can transfer the production and consumption configurations of the client to the accessed network of the CKafka cluster so as to complete data migration.
# What to do when there is no initial offset in Kafka or if the current
# offset does not exist any more on the server: latest, earliest, none
#auto.offset.reset=
Parameter
Description
bootstrap.servers
List of broker access points of the self-built cluster.
group.id
ID of the consumer group used during data migration. It must be different from the names of existing consumer groups in the self-built cluster.
partition.assignment.strategy
Partition assignment policy, such as partition.assignment.strategy=org.apache.kafka.clients.consumer.RoundRobinAssignor
3. Configure the producer.properties file.
# list of brokers used for bootstrapping knowledge about the rest of the cluster
# format: host1:port1,host2:port2 ...
bootstrap.servers=localhost:9092
# specify the compression codec for all data generated: none, gzip, snappy, lz4
compression.type=none
Parameter
Description
bootstrap.servers

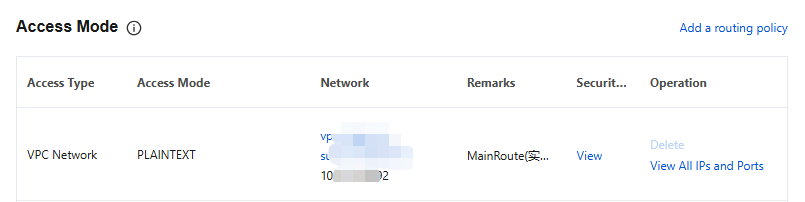

Accessed network of the CKafka instance, which can be copied from the Network column in the Access Mode section on the Instance Details page in the console.
compression.type
Data compression type. CKafka does not support the Gzip compression format.
4. Start MirrorMaker in the .bin directory to start migration.
sh bin/kafka-mirror-maker.sh --consumer.config config/consumer.properties --producer.config config/producer.properties --whitelist topicName
Note:
whitelist is a regular expression, and topics whose names hit it will be migrated.

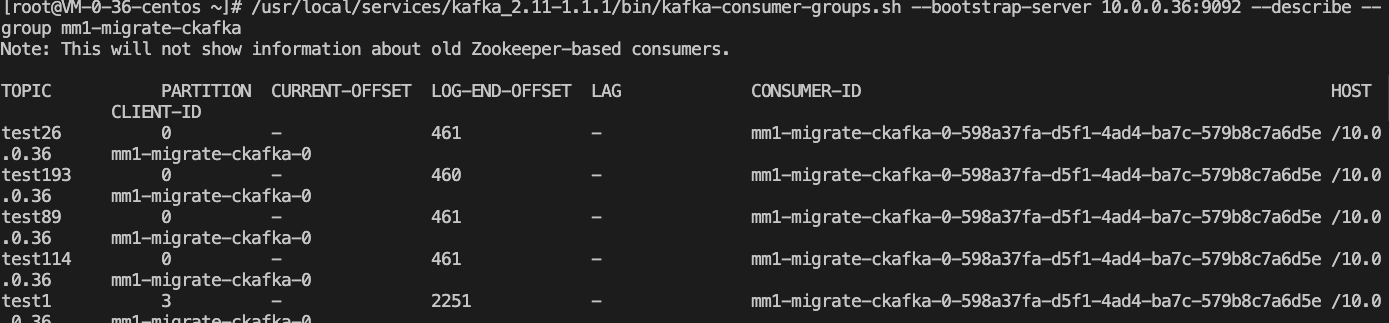

5. Run kafka-consumer-groups.sh in the bin directory to view the consumption progress of the self-built cluster.
bin/kafka-consumer-groups.sh --new-consumer --describe --bootstrap-server self-built cluster access point --group test-consumer-group
Note:
group is the ID of the consumer group used during data migration.
Subsequent Operations
After data migration, transfer the production and consumption configurations of the client to the access point of the CKafka cluster.
