Data Processing Rule Description

Last updated: 2024-11-07 11:40:36

Overview
It is usually necessary to perform some cleaning operations on data, such as formatting raw data, parsing specific fields, and converting data format, when CKafka Connector is used to handle data transfer tasks. Developers often need to build their own data cleaning services (ETL).
Logstash is a free and open server-side data processing pipeline that can collect data from multiple sources, transform the data, and send the data to the respective "storage". Logstash has many filter plugins, making it a widely used and powerful data transformation tool.

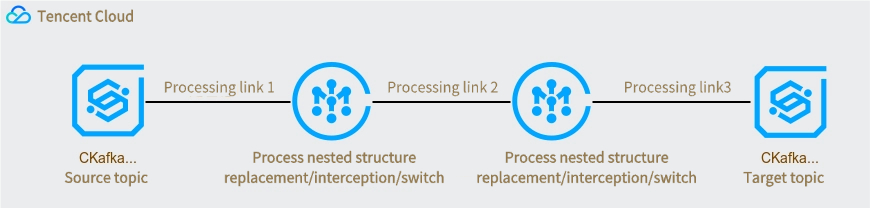

However, building, configuring, and maintaining Logstash services increases the difficulty of development and Ops. Therefore, CKafka provides data processing services comparable to Logstash. Developers only need to create data processing tasks in the console. The data processing services allow users to edit the corresponding data processing rules, create chained processing tasks, and preview the data processing result.
﻿
Feature List
Logstash
Data Processing Services of Connector
Feature
Codec.json
✔
Data parsing (JSON)
Filter.grok
✔
Data parsing (regular expression match)
Filter.mutate.split
✔
Data parsing (character segmentation)
Filter.date
✔
Date format processing
Filter.json
✔
Internal JSON struct parsing
Filter.mutate.convert
✔
Data modification (format conversion)
Filter.mutate.gsub
✔
Data modification (character replacement)
Filter.mutate.strip
✔
Data modification (leading and trailing space removal)
Filter.mutate.join
✔
Data modification (field concatenation)
Filter.mutate.rename
✔
Field modification (field renaming)
Filter.mutate.update
✔
Field modification (field update)
Filter.mutate.replace
✔
Field modification (field replacement)
Filter.mutate.add_field
✔
Field modification (field addition)
Filter.mutate.remove_field
✔
Field modification (field deletion)
Filter.mutate.copy
✔
Field modification (field value copying)
Filter.mutate.merge
﻿
TODO
Filter.mutate.uppercase
﻿
TODO
Filter.mutate.lowercase
﻿
TODO
Introduction to Operation Methods
Data Parsing
Logstash processing method:
  // Codec.json
  input {
      file {
          path => "/var/log/nginx/access.log_json""
          codec => "json"
      }
  }
  // Filter.grok
  filter {
      grok {
          match => {
              "message" => "\\s+(?<request_time>\\d+(?:\\.\\d+)?)\\s+"
          }
      }
  }
  // Filter.mutate.split
  filter {
      split {
          field => "message"
          terminator => "#"
      }
  }
Connector processing method:

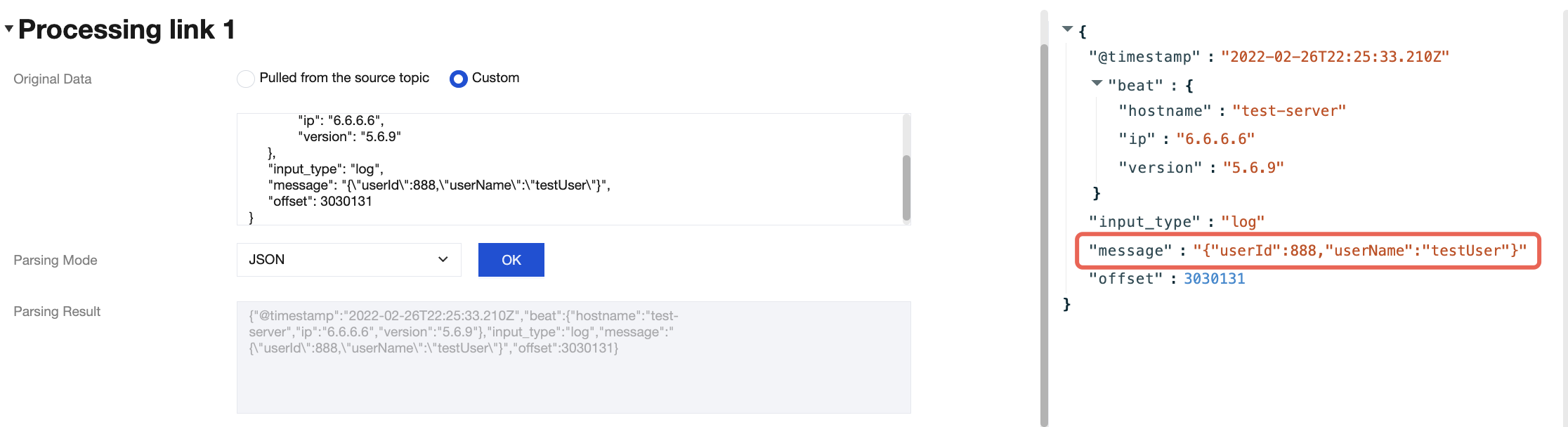

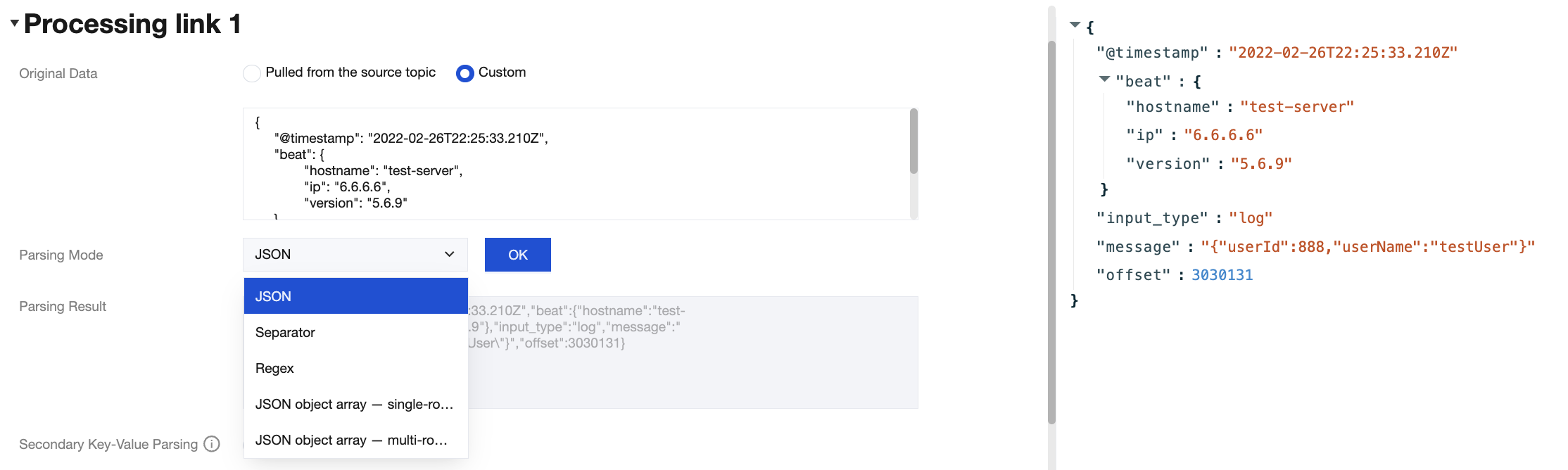

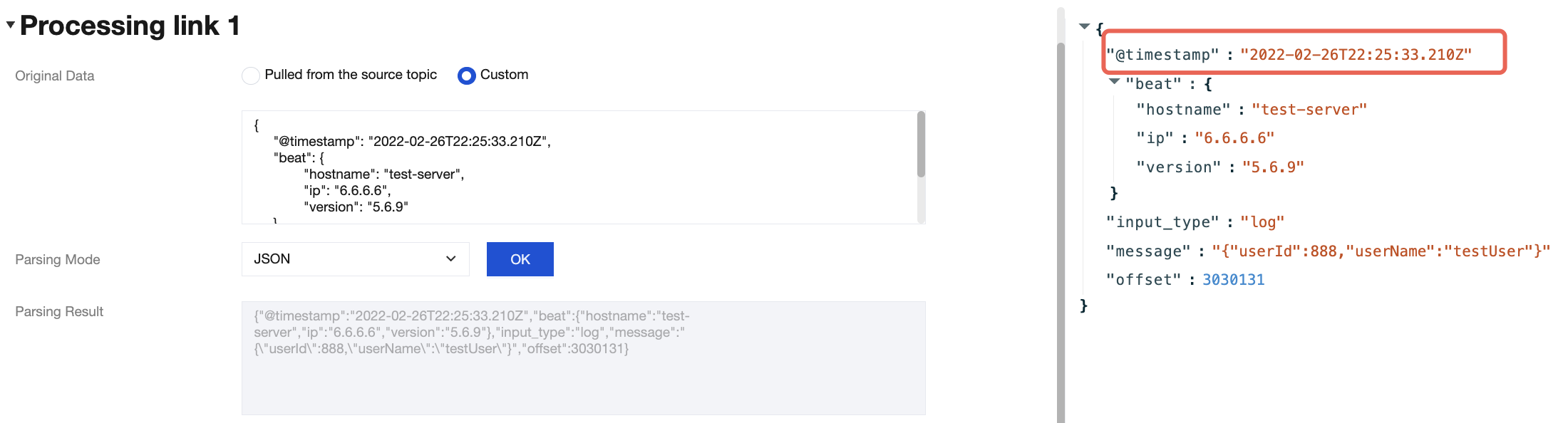

Select the corresponding data parsing mode, and click the button to preview the result:
Date Format Processing
Logstash processing method:
  // Filter.date
  filter {
      date {
          match => ["client_time", "yyyy-MM-dd HH:mm:ss"]
      }
  }
Connector processing method:

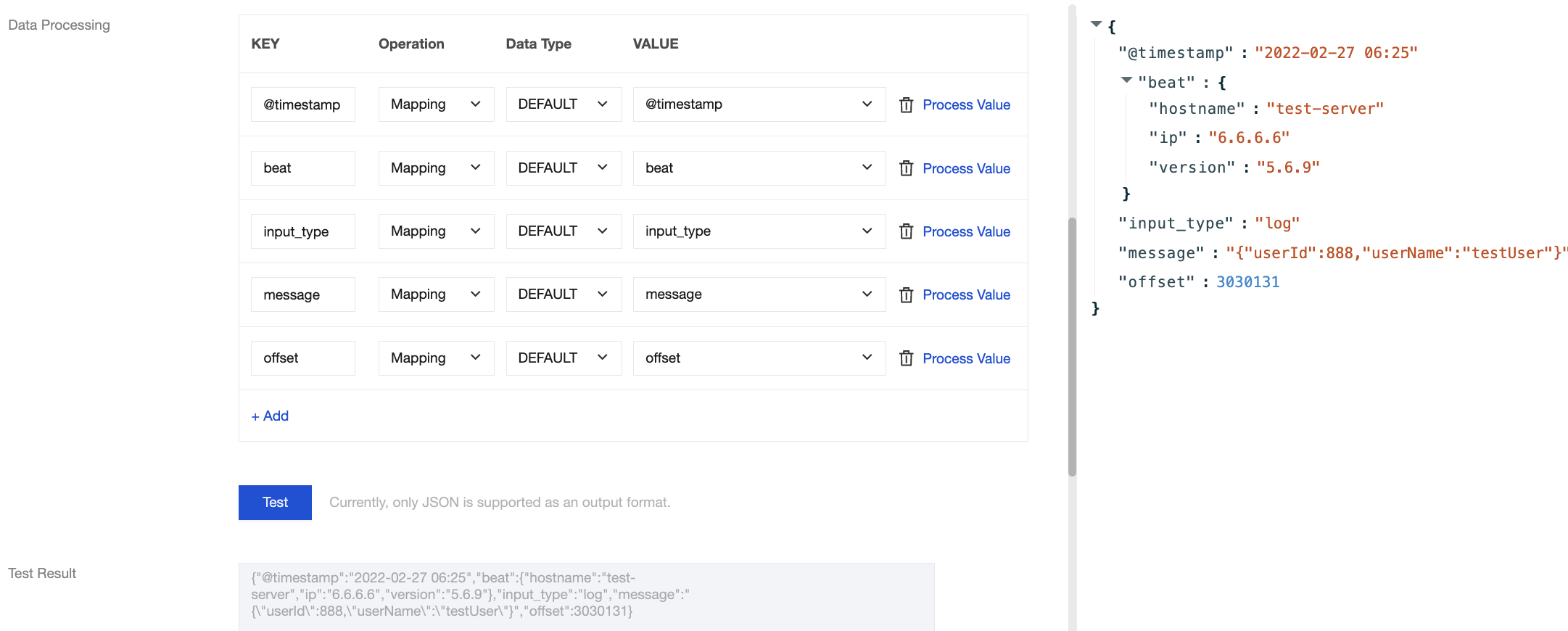

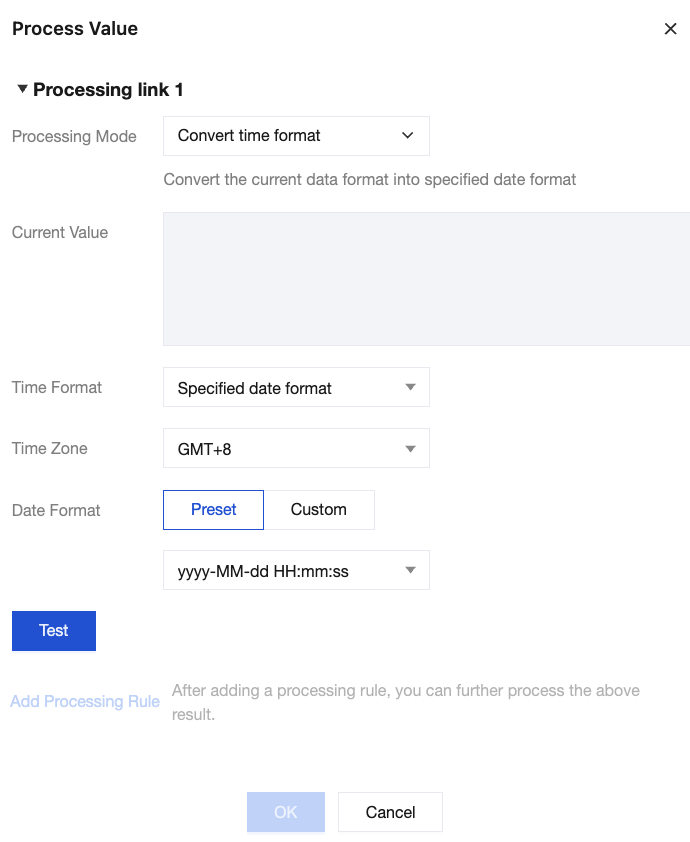

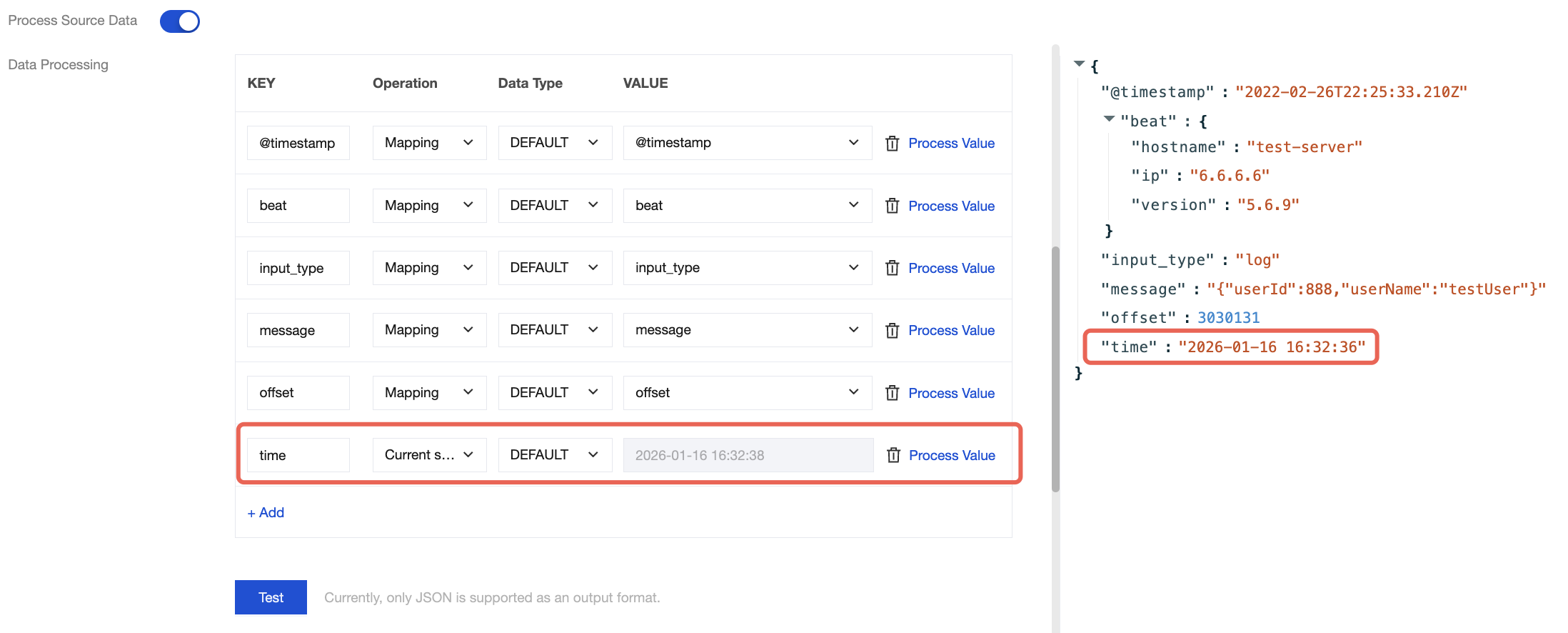

1.1 Assign a value to a field by presetting the current system time:

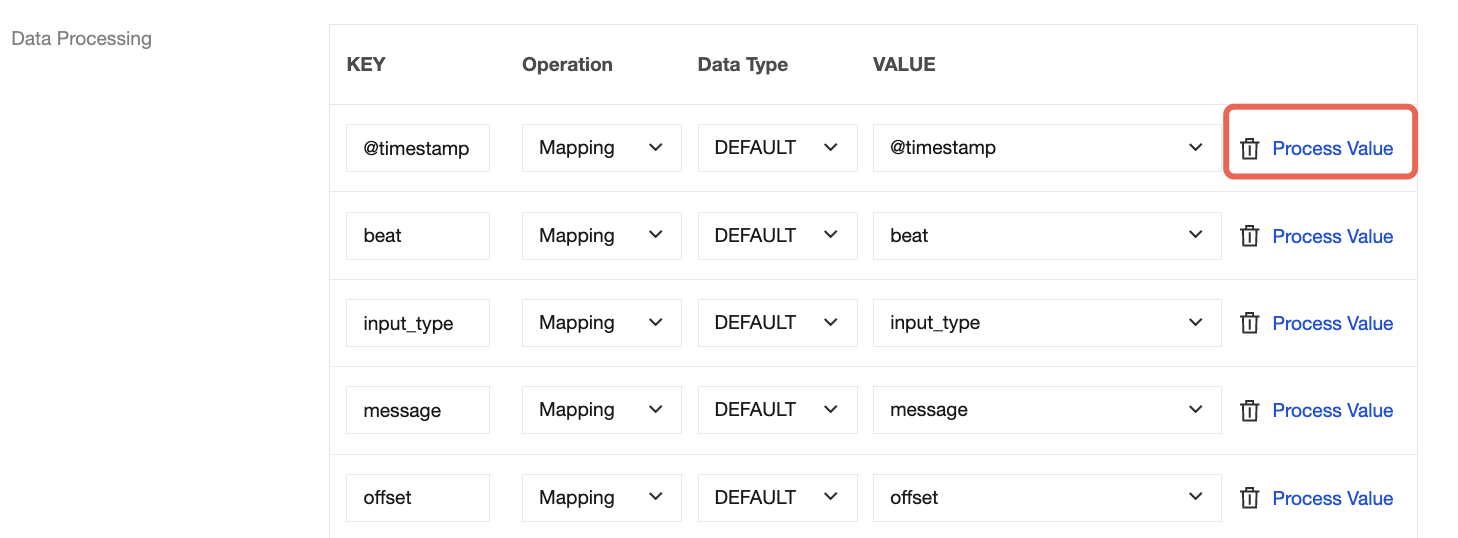

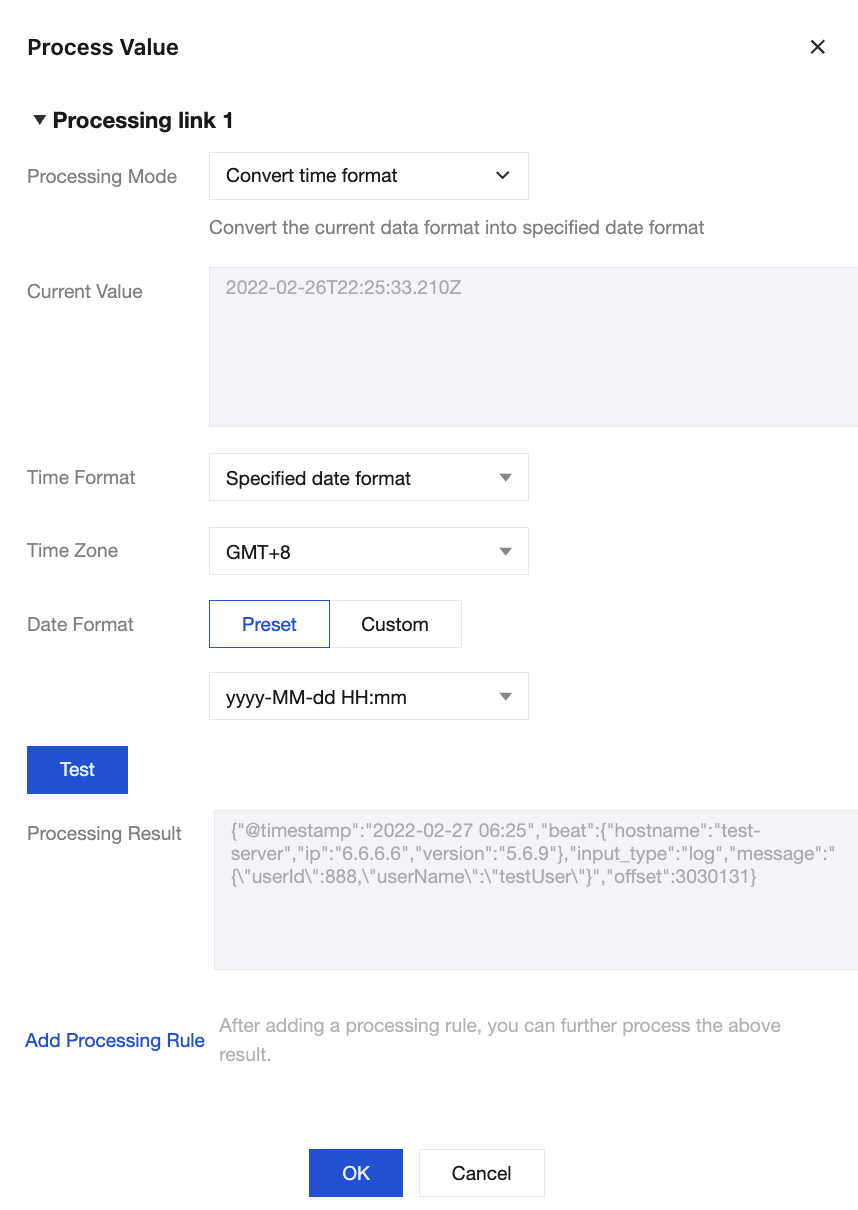

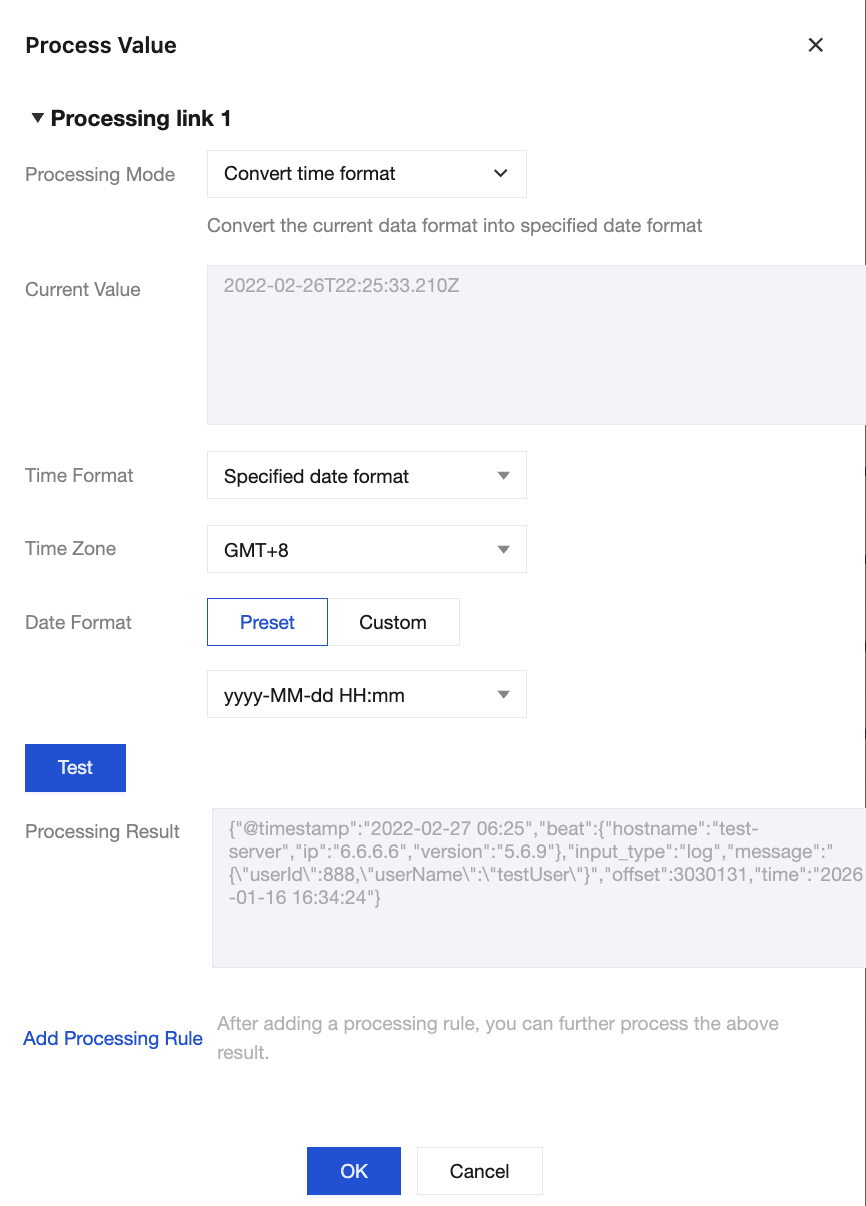

1.2 Process the data by using the Process value  feature:
﻿
Internal JSON Struct Parsing
Logstash processing method:
  // Filter.json
  filter {
      json {
          source => "message"
          target => "jsoncontent"
      }
  }
Connector processing method:

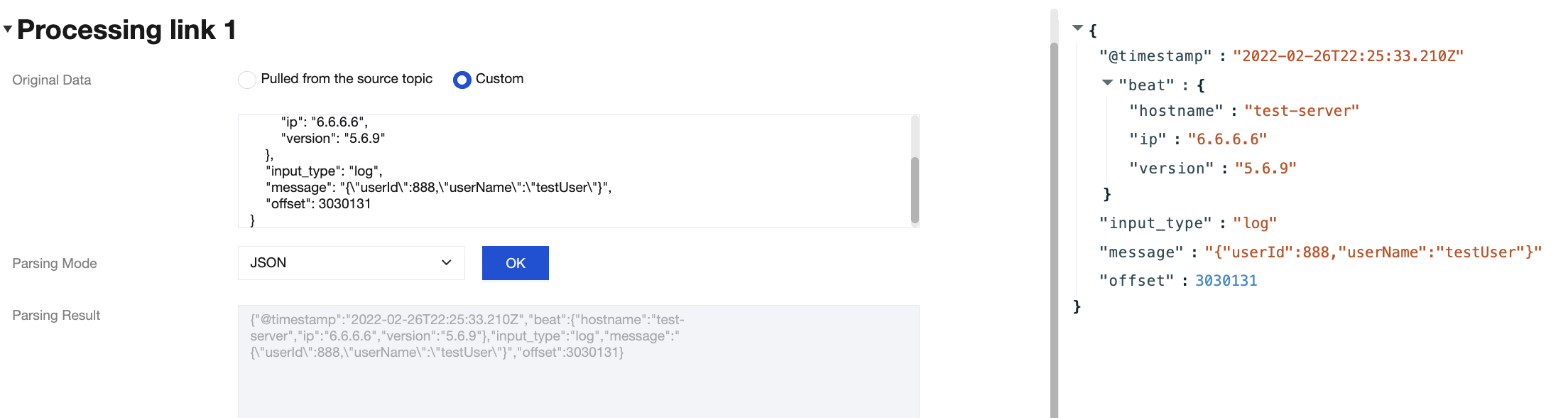

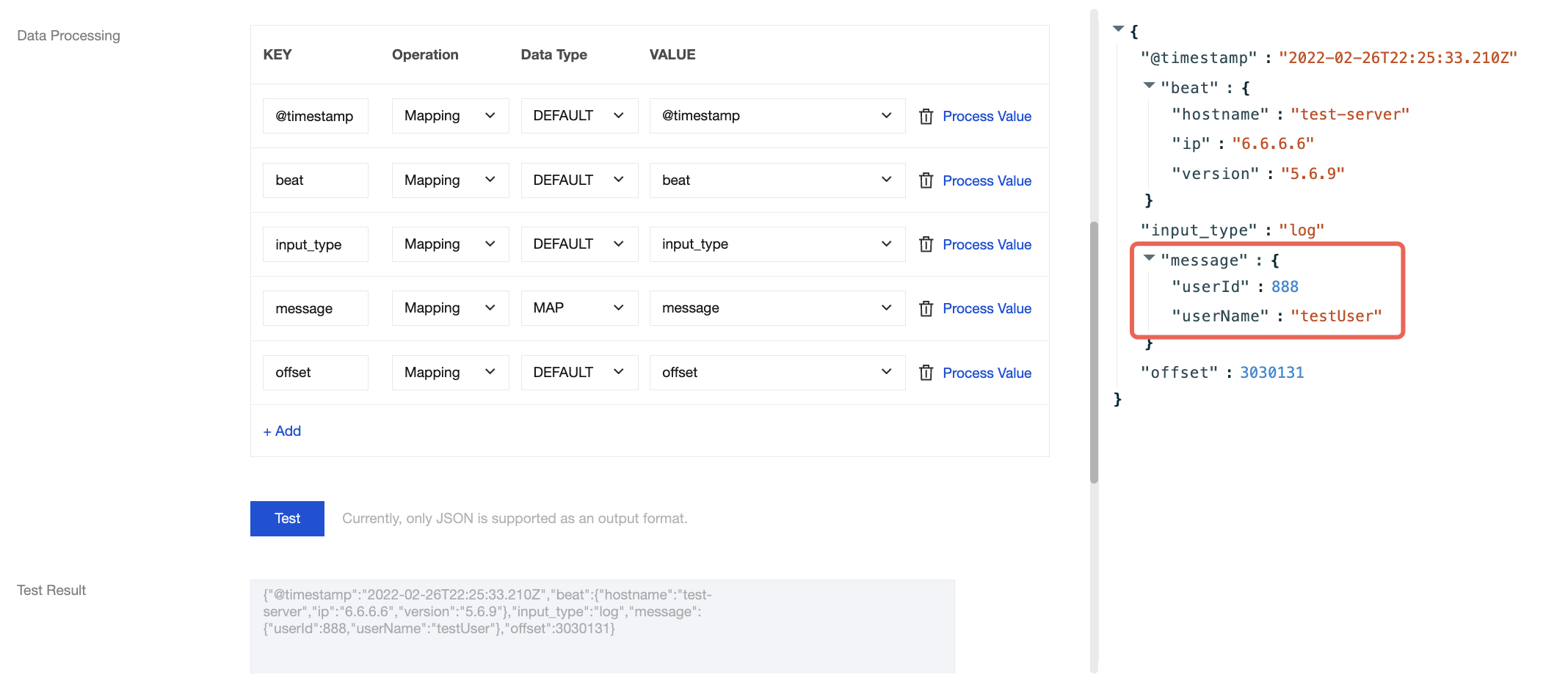

Select the Map operation for a specific field to parse the field into a JSON object:
Data Modification
Logstash processing method:
  // Filter.mutate.convert
  filter {
      mutate {
          convert => ["request_time", "float"]
      }
  }
  // Filter.mutate.gsub
  filter {
      mutate {
          gsub => ["urlparams", ",", "_"]
      }
  }
﻿
  // Filter.mutate.strip
  filter {
      mutate {
          strip => ["field1", "field2"]
      }
  }
﻿
  // Filter.mutate.join
  filter {
      mutate {
         join => { "fieldname" => "," }
       }
  }
﻿
Connector processing method:
Select the corresponding value processing mode to set the rule:
﻿

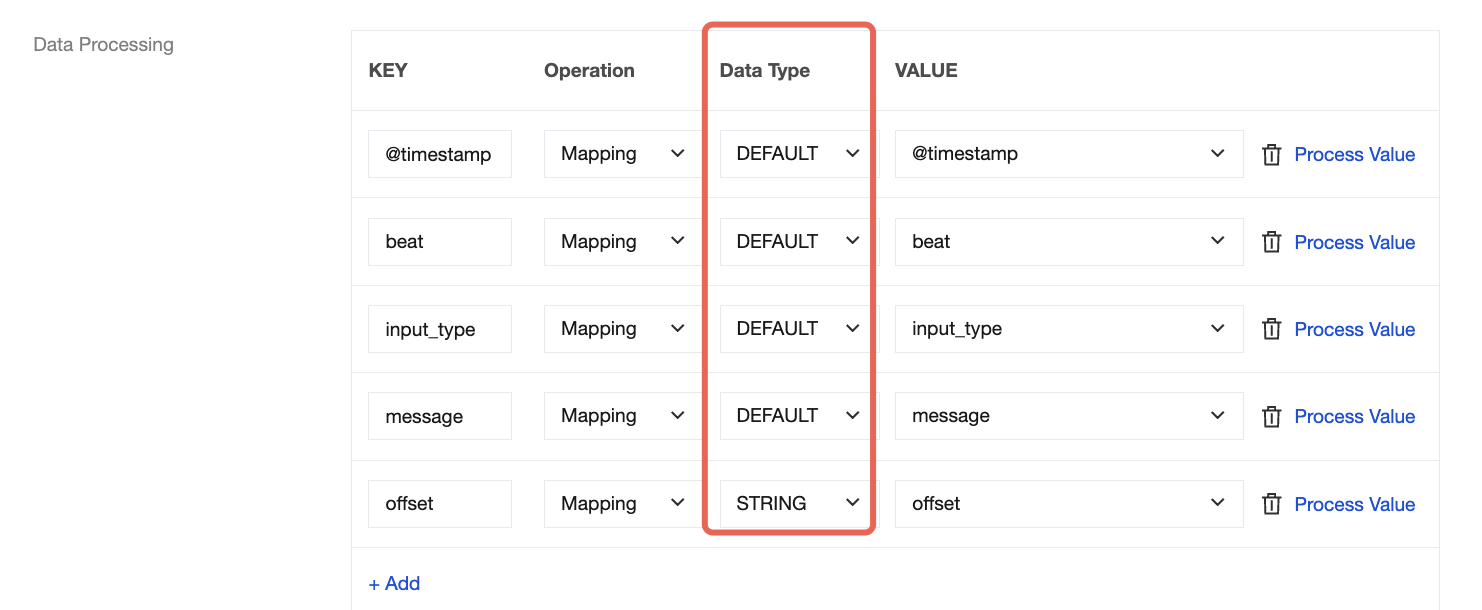

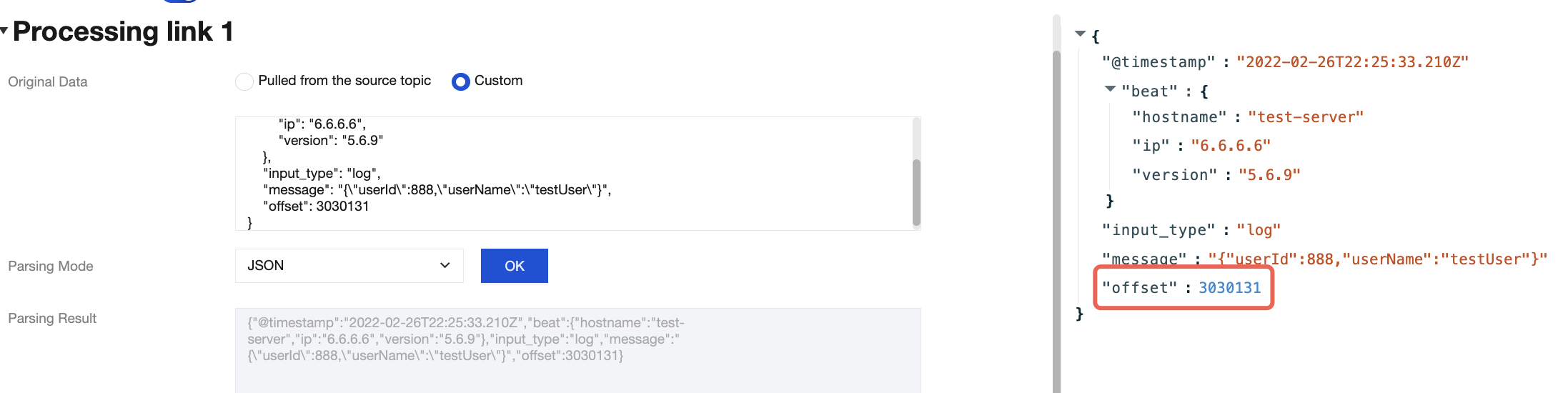

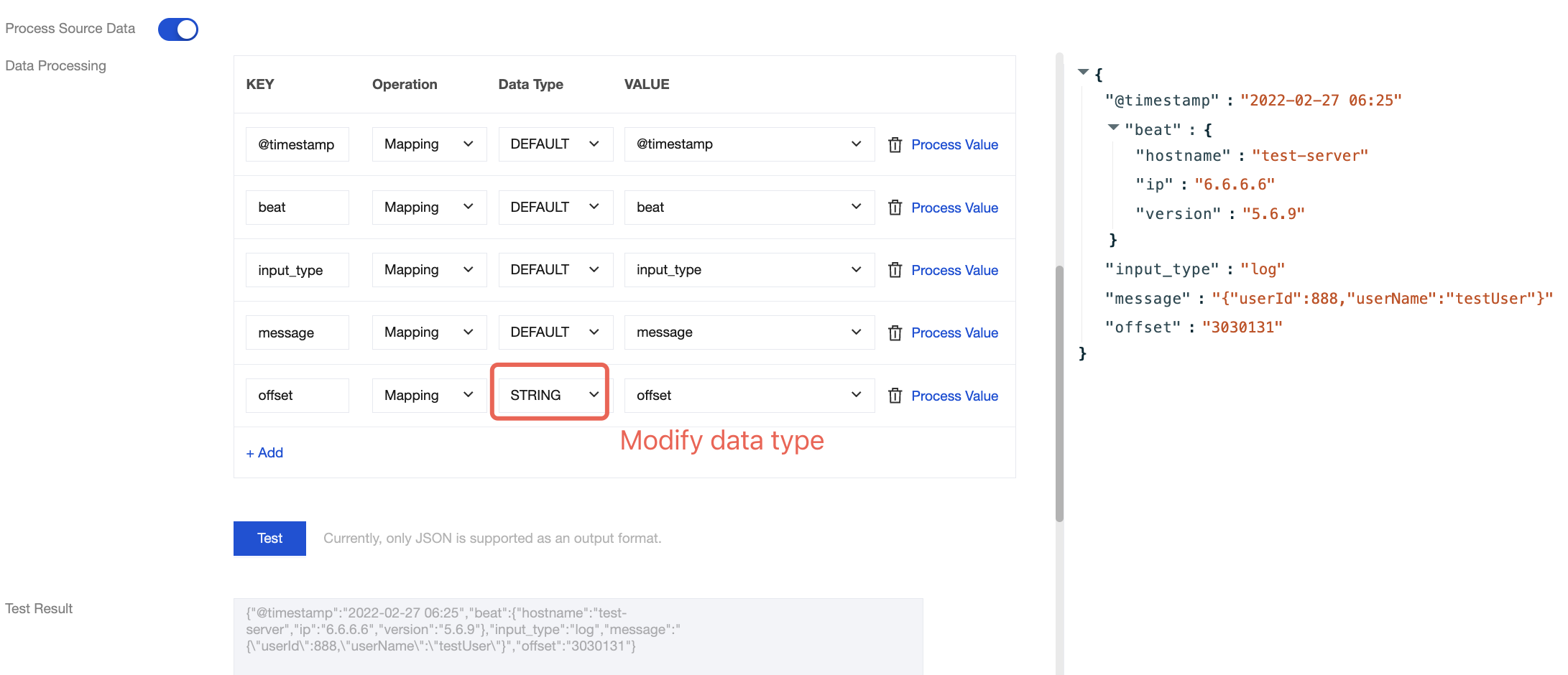

1.1 Select the data format to change the data format of the corresponding field with one click:
1.2 Use JSONPath syntax to concatenate elements. For example, use the $.concat($.data.Response.SubnetSet[0].VpcId,&quot;#&quot;,$.data.Response.SubnetSet[0].SubnetId,&quot;#&quot;,$.data.Response.SubnetSet[0].CidrBlock)) syntax to concatenate VPC and subnet attributes, which can be separated with the # character.
1.3 The result is as follows:
Field Modification
Logstash processing method:
  // Filter.mutate.rename
  filter {
      mutate {
          rename => ["syslog_host", "host"]
      }
  }
  // Filter.mutate.update
  filter {
      mutate {
          update => { "sample" => "My new message" }
       }
  }
  // Filter.mutate.replace
  filter {
      mutate {
          replace => { "message" => "%{source_host}: My new message" }
      }
  }
  // Filter.mutate.add_field
  filter {
      mutate {
          split => { "hostname" => "." }
          add_field => { "shortHostname" => "%{[hostname][0]}" }
      }
  }
  // Filter.mutate.remove_field
  filter {
      mutate {
          remove_field => ["field_name"]
      }
   }
  // Filter.mutate.copy
  filter {
      mutate {
           copy => { "source_field" => "dest_field" }
      }
  }

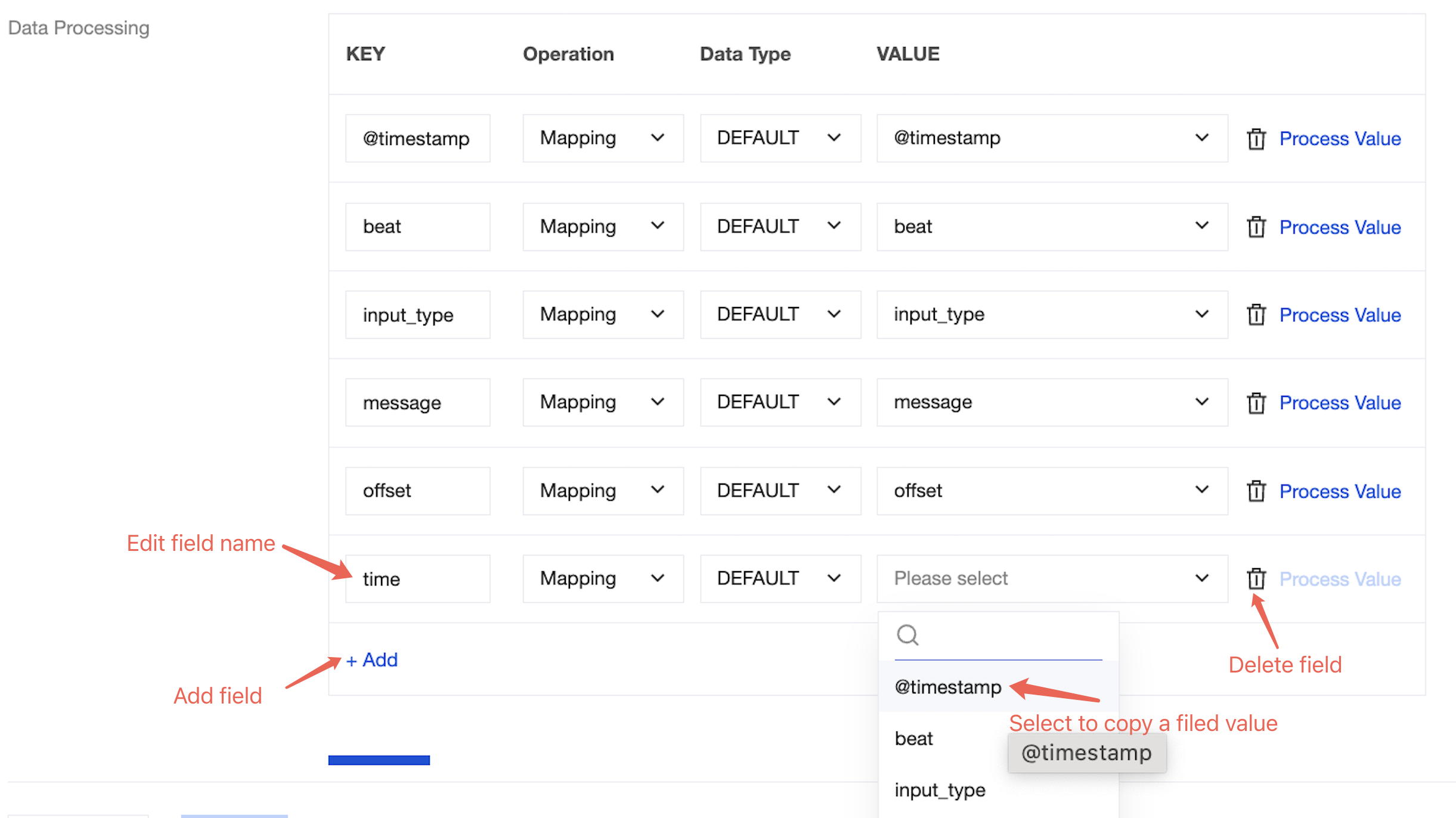

Connector processing method:
Examples
Example 1: Multi-Level Field Parsing
Input message:
{
    "@timestamp": "2022-02-26T22:25:33.210Z",
    "beat": {
        "hostname": "test-server",
        "ip": "6.6.6.6",
        "version": "5.6.9"
    },
    "input_type": "log",
    "message": "{\\"userId\\":888,\\"userName\\":\\"testUser\\"}",
    "offset": 3030131,
}
Output message :
{
    "@timestamp": "2022-02-26T22:25:33.210Z",
    "input_type": "log",
    "hostname": "test-server",
    "ip": "6.6.6.6",
    "userId": 888,
    "userName": "testUser"
}
Connector configuration:

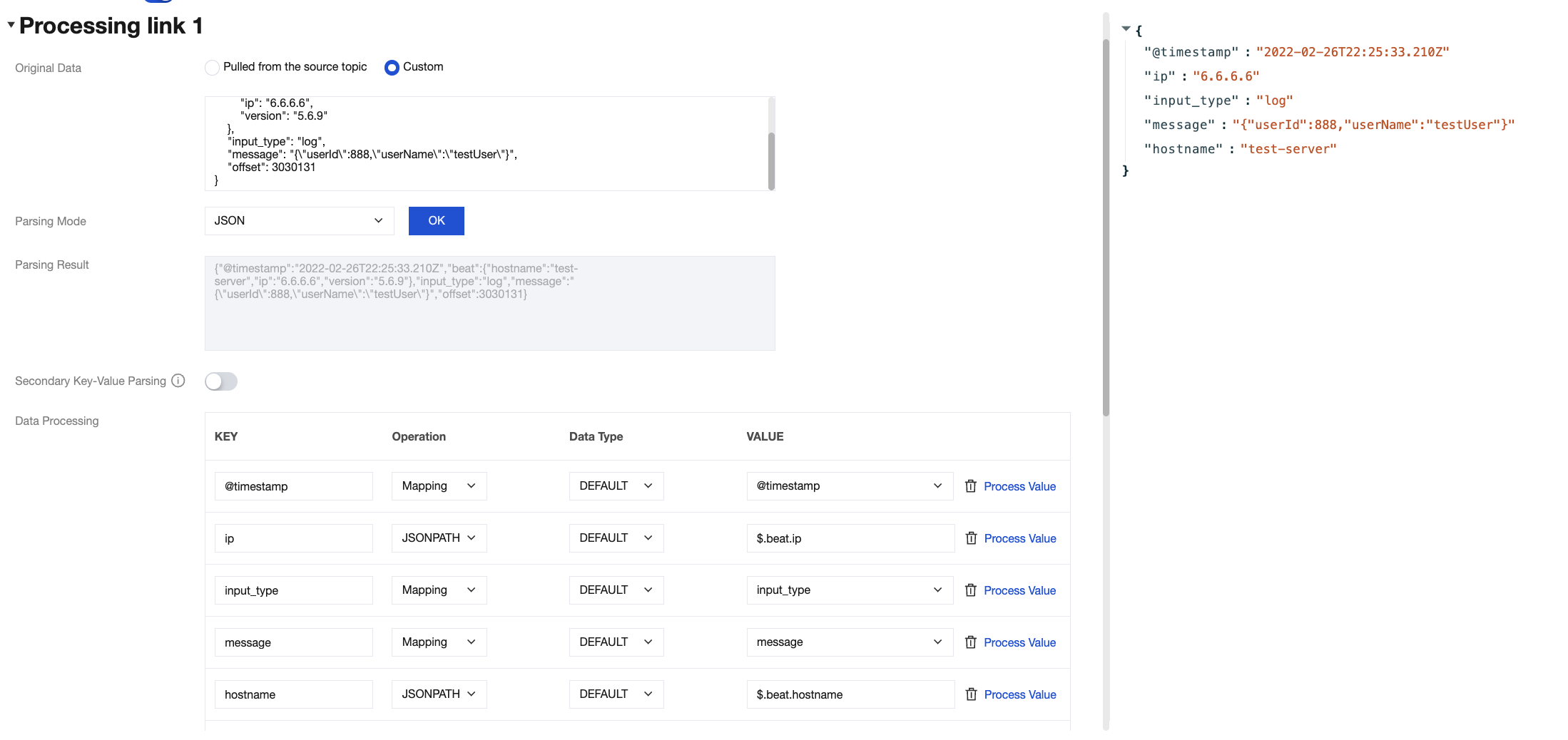

1.1 The configuration of processing chain 1 is as follows:
1.2 The result of processing chain 1 is as follows:
{
    "@timestamp": "2022-02-26T22:25:33.210Z",
    "input_type": "log",
    "message": "{\\"userId\\":888,\\"userName\\":\\"testUser\\"}",
    "hostname": "test-server",
    "ip": "6.6.6.6"
}
1.3 The configuration of processing chain 2 is as follows:
1.4 The result of processing chain 2 is as follows:
{
    "@timestamp": "2022-02-26T22:25:33.210Z",
    "input_type": "log",
    "hostname": "test-server",
    "ip": "6.6.6.6",
    "userId": 888,
    "userName": "testUser"
}
Example 2: Non-JSON Data Parsing
Input message:
region=Shanghai$area=a1$server=6.6.6.6$user=testUser$timeStamp=2022-02-26T22:25:33.210Z
Output message:
{
    "region": "Shanghai",
    "area": "a1",
    "server": "6.6.6.6",
    "user": "testUser",
    "timeStamp": "2022-02-27 06:25:33",
    "processTimeStamp": "2022-06-27 11:14:49"
}
Connector configuration:

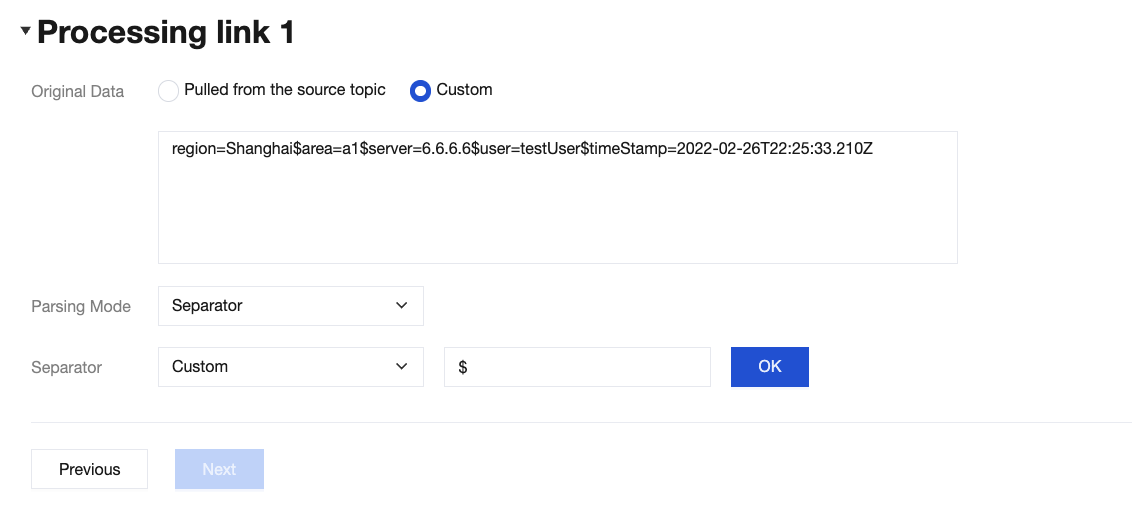

1.1 Use delimiter $ to parse the original message:
1.2 The preliminary parsing result is as follows:
{
  "0": "region=Shanghai",
  "1": "area=a1",
  "2": "server=6.6.6.6",
  "3": "user=testUser",
  "4": "timeStamp=2022-02-26T22:25:33.210Z"
}

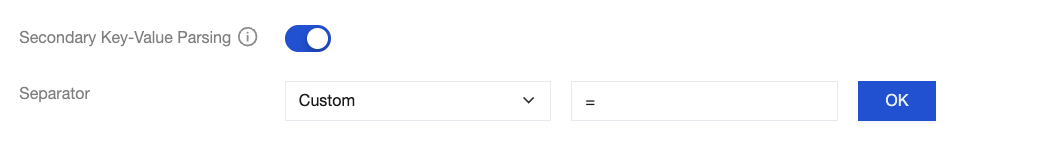

1.3 Use delimiter = for further parsing:
1.4 The parsing result is as follows:
{
  "0": "region=Shanghai",
  "1": "area=a1",
  "2": "server=6.6.6.6",
  "3": "user=testUser",
  "4": "timeStamp=2022-02-26T22:25:33.210Z",
  "0.region": "Shanghai",
  "1.area": "a1",
  "2.server": "6.6.6.6",
  "3.user": "testUser",
  "4.timeStamp": "2022-02-26T22:25:33.210Z"
}

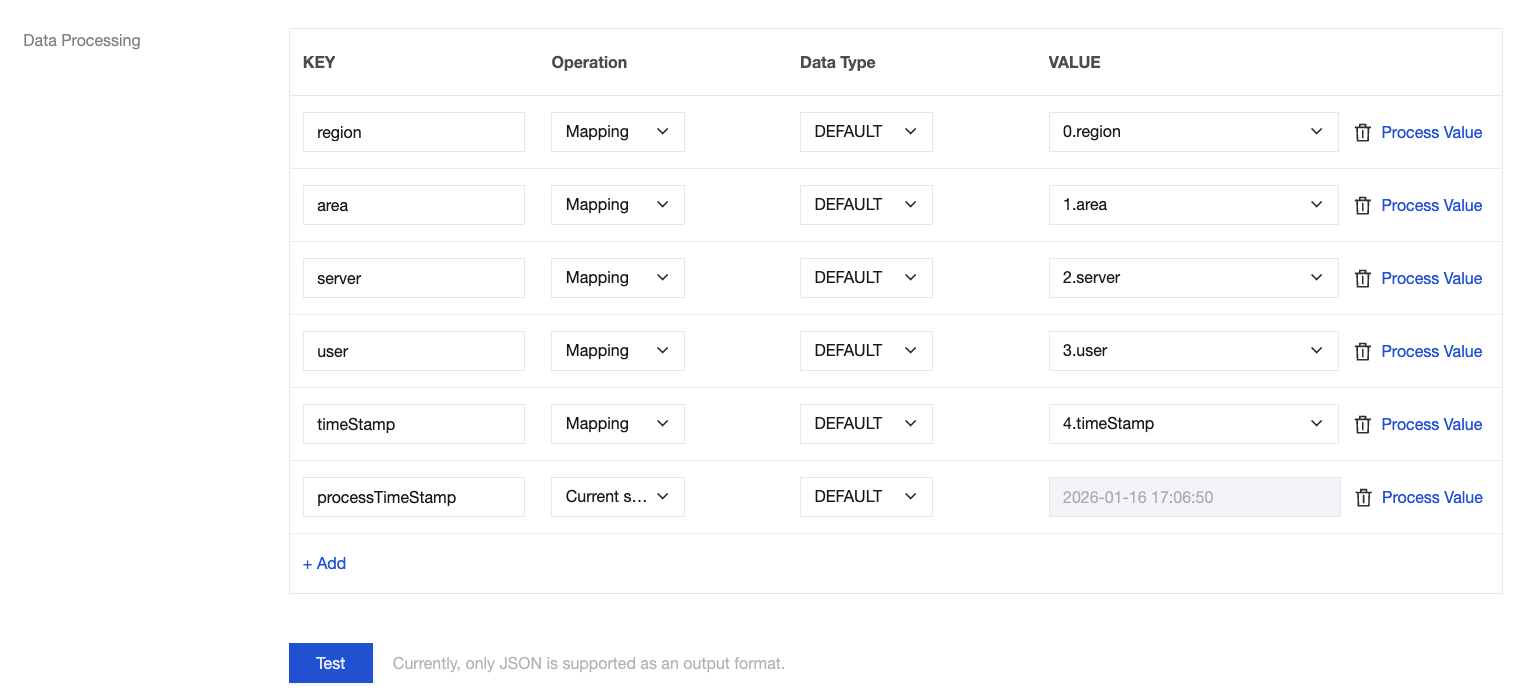

1.5 Edit and delete fields, adjust the timestamp format, and add the field of the current system time:
The final result is as follows:
{
    "region": "Shanghai",
    "area": "a1",
    "server": "6.6.6.6",
    "user": "testUser",
    "timeStamp": "2022-02-27 06:25:33",
    "processTimeStamp": "2022-06-27 11:14:49"
}
﻿
﻿
