    Public Network Access Through SASL_SSL

    Last updated: 2024-11-07 15:40:42
    Download PDF

      Overview

      This document describes how to access CKafka to send/receive messages with the SDK for Python through SASL_SSL over public network.

      Prerequisites

      Install Python
      Install pip
      Configure an ACL policy
      Download demo
      Download the SASL_SSL certificate

      Directions

      Step 1. Make preparations

      1. Create an access point.
      1.1 On the Instance List page in the CKafka console, click the target instance ID to enter the instance details page.

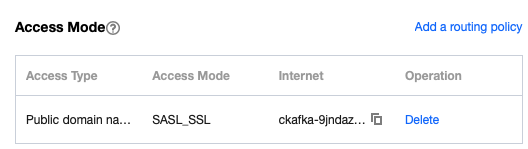

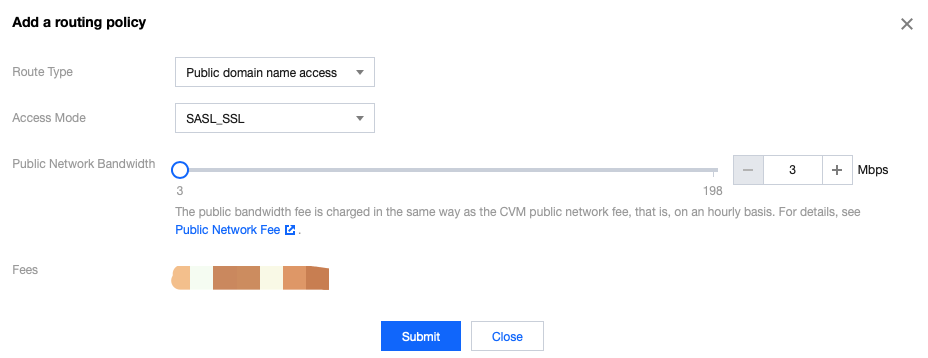

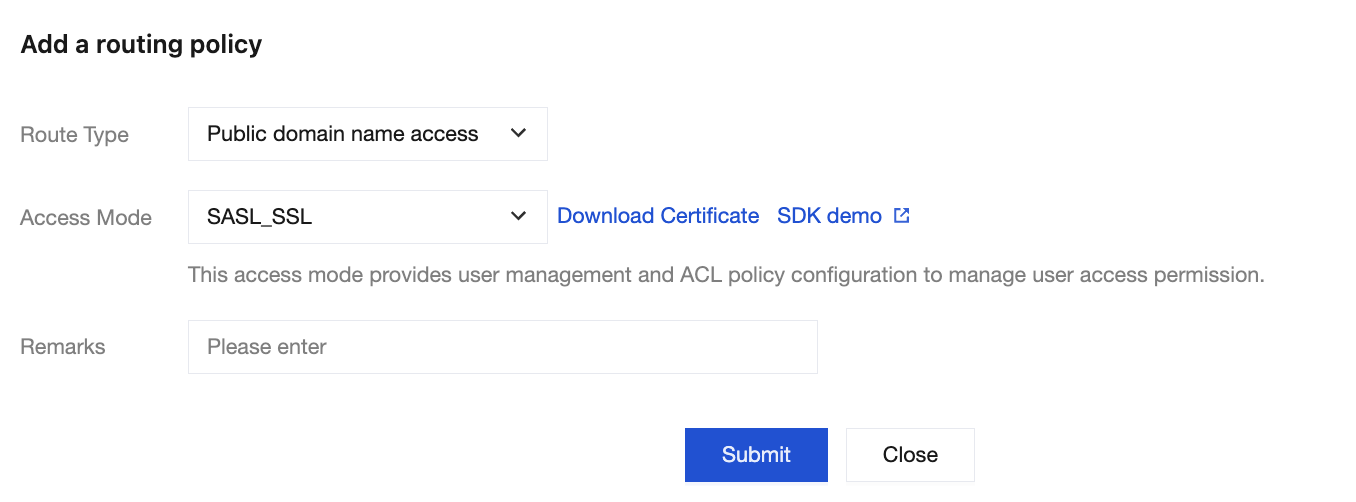

      1.2 In Basic Info > Access Mode, click Add a routing policy. In the pop-up window, select Route Type: Public domain name access, Access Mode: SASL_SSL.

      2. Create a role.

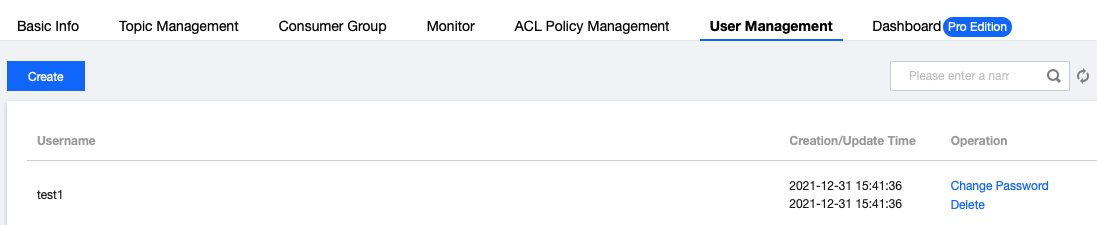

      On the User Management tab page under ++ACL Policy Management++, create a role and set a password.

      3. Create a topic.
      Create a topic on the Topic Management tab page as instructed in Creating a topic.
      4. Add the Python dependent library.
      Run the following command to install the dependent library:
      pip install kafka-python

      Step 2. Produce messages

      1. Modify the configuration parameters in the message production program producer.py.
      producer = KafkaProducer(
       bootstrap_servers = ['xx.xx.xx.xx:port'],
       api_version = (1, 1),

       #
       # Public network access through SASL_SSL
       #
       security_protocol = "SASL_SSL",
       sasl_mechanism = "PLAIN",
       sasl_plain_username = "instanceId#username",
       sasl_plain_password = "password",
       ssl_cafile = "CARoot.pem",
       ssl_check_hostname = False,
      )

      message = "Hello World! Hello Ckafka!"
      msg = json.dumps(message).encode()
      producer.send('topic_name', value = msg)
      print("produce message " + message + " success.")
      producer.close()
      Parameter
      Description
      bootstrap_servers
      Accessed network, which can be copied from the Network column in the Access Mode section in Basic Info on the instance details page in the console.

      sasl_plain_username

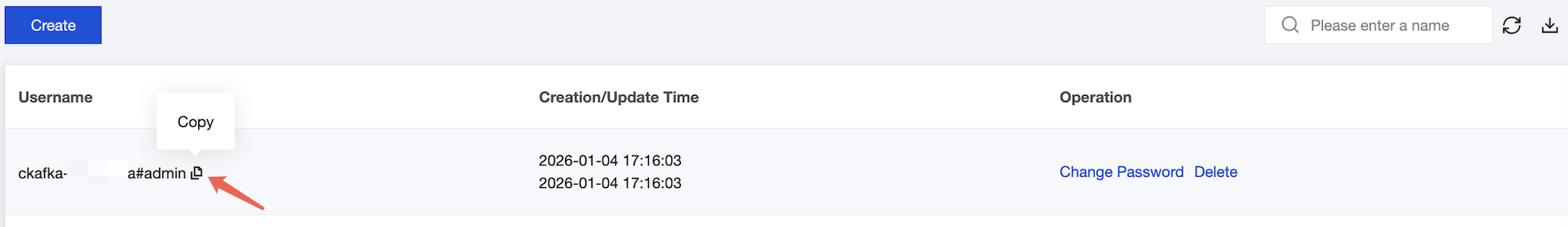

      Username in the format of instance ID + # + username. The instance ID can be obtained in Basic Info on the instance details page in the CKafka console, and the username is set when the user is created in on the User Management tab page under ACL Policy Management.
      sasl_plain_password
      User password, which is set when the user is created on the User Management tab page under ACL Policy Management on the instance details page in the CKafka console.
      topic_name
      Topic name, which can be copied from the Topic Management page in the console.

      CARoot.pem
      Certificate path that is required when the access mode is SASL_SSL.
      2. Compile and run producer.py.
      3. View the execution result.

      4. On the Topic Management tab page on the instance details page in the CKafka console, select the target topic, and click More > Message Query to view the message just sent.


      Step 3. Consume messages

      1. Modify the configuration parameters in the message consumption program consumer.py.
      consumer = KafkaConsumer(
       'topic_name',
       group_id = "group_id",
       bootstrap_servers = ['xx.xx.xx.xx:port'],
       api_version = (1,1),

       #
       # Public network access through SASL_SSL
       #
       security_protocol = "SASL_SSL",
       sasl_mechanism = 'PLAIN',
       sasl_plain_username = "instanceId#username",
       sasl_plain_password = "password",
       ssl_cafile = "CARoot.pem",
       ssl_check_hostname = False,

      )

      for message in consumer:
       print ("Topic:[%s] Partition:[%d] Offset:[%d] Value:[%s]" %
       (message.topic, message.partition, message.offset, message.value))

      Parameter
      Description
      bootstrap_servers
      Accessed network, which can be copied from the Network column in the Access Mode section in Basic Info on the instance details page in the console.

      group_id
      Consumer group ID, which can be customized based on business requirements.
      sasl_plain_username
      Username in the format of instance ID + # + username. The instance ID can be obtained in Basic Info on the instance details page in the CKafka console, and the username is set when the user is created on the User Management tab page under ACL Policy Management.
      sasl_plain_password
      User password, which is set when the user is created on the User Management tab page under ACL Policy Management on the instance details page in the CKafka console.
      topic_name
      Topic name, which can be copied from the Topic Management page in the console.

      CARoot.pem
      Certificate path that is required when the access mode is SASL_SSL.
      2. Compile and run consumer.py.
      3. View the execution result.

      4. On the Consumer Group tab page in the CKafka console, select the corresponding consumer group name, enter the topic name, and click View Details to view the consumption details.
