    Live Streaming Audio Auditing Service Event Notification

    Last updated: 2024-11-20 16:35:23
    Download PDF
      If you have configured an audio moderation callback address, the server will return the moderation results in JSON to the specified callback address after the audio moderation is complete. You can then proceed with subsequent file processing operation based on the callback content.
      This document describes the notification fields of the callback message sent by Tencent Cloud Streaming Services (CSS) to the user after the audio moderation callback event is triggered.

      Note

      Before reading this document, ensure that you have understood how the callback function is configured and callback messages are received in Tencent CSS. For detailed procedures, see How to Receive Event Notifications.
      In streaming audio moderation, only potentially non-compliant results are called back by default, not normal results.

      Audio Moderation Service Event Parameter Description

      Event Type Parameter

      Event Type
      Field Value Description
      Streaming Audio Moderation Service
      event_type = 315

      Common Callback Parameters

      Field Name
      Type
      Description
      t
      int64
      Expiration time. It is the UNIX timestamp signifying the expiration of the event notification signature.
      The default expiration time for message notifications from Tencent Cloud is 10 minutes. If the time designated by the t value in a message notification has expired, the notification is deemed invalid, thereby safeguarding against network replay attacks.
      The format of t is a decimal UNIX timestamp, which is the seconds elapsed from midnight of January 1, 1970 (UTC/GMT).
      sign
      string
      Security signature for event notification: sign = MD5(key + t)
      Tencent Cloud concatenates the encrypted key and t into a string, and then uses MD5 calculation to obtain the sign value, which is then placed in the notification message. After the notification is received, your backend server can determine whether the sign is correct using the same algorithm, thus confirming whether the message comes from Tencent Cloud's backend.
      Note：

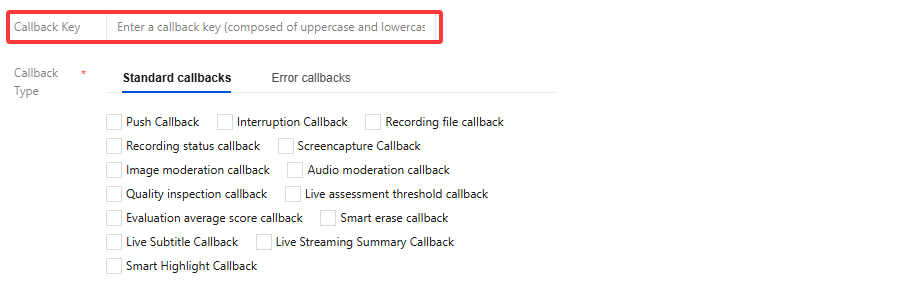

      The key is the callback key which is in Feature Configuration > Live Stream Callback and used for authentication. You are advised to specify this field to ensure data security.


      Callback Message Parameters

      Parameter
      Required or Not
      Data Type
      Description
      appid
      Required
      Number
      Business ID.
      stream_id
      Mandatory
      String
      Stream name.
      channel_id
      Mandatory
      String
      Channel ID.
      domain
      Mandatory
      String
      Push domain name.
      path
      Optional
      String
      Push stream path.
      asr_text
      Optional
      String
      Audio text.
      cdn_url
      Optional
      String
      CDN address.
      duration
      Optional
      Number
      Speech recognition duration (seconds).
      label
      Optional
      String
      This field is used to return the malicious label with the highest priority in the detection result (LabelResults) to indicate the moderation result recommended by the model. You are advised to process different violation types and suggested values according to your business requirements.
      language_results
      Optional
      Array of AudioResultDetailLanguageResult
      This field is used to return the detailed moderation results of minority language audio detection.
      For specific result content, please see the detailed descriptions of AudioResultDetailLanguageResult data structure.
      Note: This field may return null, indicating that there is no valid value available.
      moan_results
      Optional
      Array of MoanResult
      Moderation result of vulgar content in the audio; Note: This field may return null, indicating that there is no valid value available.
      recognition_results
      Optional
      Array of RecognitionResult
      Label result information list of the identification class.
      Note: This field may return null, indicating that there is no valid value available.
      request_id
      Optional
      String
      Request ID
      seq
      Optional
      Number
      Audio sequence
      speaker_results
      Optional
      Array of AudioResultDetailSpeakerResult
      Speaker identification result in the audio.
      Note: This field may return null, indicating that there is no valid value available.
      sub_label
      Optional
      String
      Sub-label name. If the sub-label is not matched, an empty string will be returned.
      suggestion
      Optional
      string
      Recommended value. Valid values:
      Block: content filtering
      Review: pending re-moderation
      Pass: normal
      text_results
      Optional
      Array of TextResult
      Dialog content moderation result in the audio.
      Note: This field may return null, indicating that there is no valid value available.
      data
      Optional
      Data
      Speech recognition result.

      AudioResultDetailLanguageResult

      Minority language detection result in the audio.
      Name
      Type
      Description
      Label
      String
      This field is used to return the corresponding language type information.
      Note: This field may return null, indicating that there is no valid value available.
      Score
      Integer
      This parameter is used to return the confidence of the current label. Value range: 0 (lowest confidence) to100 (highest confidence). A larger value indicates a higher possibility that the audio belongs to the current returned language label.
      Note: This field may return null, indicating that there is no valid value available.
      StartTime
      Float
      This parameter is used to return the start time of the segment corresponding to the specified language label within the audio file, in the unit of seconds. Note: This field may return null, indicating that there is no valid value available.
      EndTime
      Float
      This parameter is used to return the end time of the segment corresponding to the specified language label within the audio file, in the unit of seconds.
      Note: This field may return null, indicating that there is no valid value available.

      MoanResult

      Vulgar content moderation result.
      Name
      Type
      Description
      Label
      String
      The value is fixed at Moan (moan/panting). If there is no MoanResult in the callback result for the audio, there are no relevant violations about moan/panting in this audio.
      Note: This field may return null, indicating that there is no valid value available.
      Score
      Integer
      The confidence determined by the machine for the current category. Value range: 0 to 100. A higher score indicates a higher possibility that it belongs to the current category.
      (Example: Moan 99 indicates that the sample has a high possibility of belonging to the moan/panting category)
      Suggestion
      String
      You are advised to perform operations after obtaining the judgment result.
      Recommended value. Valid values:
      Block: Blocking is recommended.
      Review: Re-moderation is recommended.
      Pass: Pass is recommended.
      StartTime
      Float
      Violation event start time, in the unit of seconds (s).
      EndTime
      Float
      Violation event end time, in the unit of seconds (s).
      SubLabel
      String
      This field is used to return the secondary label under the current label (Label).
      Note: This field may return null, indicating that there is no valid value available.

      RecognitionResult

      Result information list of the recognition category label.
      Name
      Type
      Description
      Label
      String
      Possible values include: Teenager, Gender
      Note: This field may return null, indicating that there is no valid value available.
      Tags
      Array of Label
      Identifying Tag List
      Note: This field may return null, indicating that there is no valid value available.

      AudioResultDetailSpeakerResult

      Returned speaker recognition result in the audio.
      Name
      Type
      Description
      Label
      String
      This field is used to return the content types requiring detection for the result.
      Note: This field may return null, indicating that there is no valid value available.
      Score
      Integer
      This field is used to return the confidence level of the moaning detection. Value range: 0 (lowest confidence) to 100 (highest confidence). A larger value indicates a higher possibility that the audio is the speaker's voice print.
      Note: This field may return null, indicating that there is no valid value available.
      StartTime
      Float
      This field is used to return the start time of the corresponding speaker's segment within the audio file, in the unit of seconds.
      Note: This field may return null, indicating that there is no valid value available.
      EndTime
      Float
      This field is used to return the end time of the corresponding speaker's segment within the audio file, in the unit of seconds.
      Note: This field may return null, indicating that there is no valid value available.

      TextResult

      Content moderation result in the audio.
      Name
      Type
      Description
      Label
      String
      Malicious label:
      Normal: Normal
      Porn: Porn
      Abuse: Abuse
      Ad: Advertisement
      Custom: Custom dictionary
      And other types of content that are offensive, unsafe or inappropriate.
      If there is no TextResults returned in the callback result for the audio, there are no relevant violations in this audio
      Note: This field may return null, indicating that there is no valid value available.
      Keywords
      Array of String
      Keywords that are matched. If it is empty, the violation is determined by the model.
      Note: This field may return null, indicating that there is no valid value available.
      LibId
      String
      Library identifier of the matched keyword library
      Note: This field may return null, indicating that there is no valid value available.
      LibName
      String
      Name of the matched keyword library
      Note: This field may return null, indicating that there is no valid value available.
      Score
      Integer
      The confidence determined by the machine for the current category. Value range: 0 to 100. A higher score indicates a higher possibility that it belongs to the current category.
      (Example: Porn 99 indicates that the sample has an extremely high possibility of being pornographic.)
      Note: This field may return null, indicating that there is no valid value available.
      Suggestion
      String
      You are advised to perform operations after obtaining the judgment result.
      Recommended value. Valid values:
      Block: Blocking is recommended.
      Review: Re-moderation is recommended.
      Pass: Pass is recommended.
      Note: This field may return null, indicating that there is no valid value available.
      LibType
      Integer
      Type of custom dictionary. Information related to the custom dictionary can be viewed after you log in to the console.
      Custom Block and Allow Library
      Custom Library
      SubLabel
      String
      This field is used to return the secondary label under the current label (Label).
      Note: This field may return null, indicating that there is no valid value available.

      Data

      Name
      Type
      Description
      asr_tmp_full_results
      Array of AsrTmpFullResults
      Details of the audio detection result, which may be empty.

      AsrTmpFullResults

      Details of the audio detection results.
      Name
      Type
      Description
      appearing_point
      Array of Number
      Time point of occurrence.
      confidence
      Number
      Confidence level.
      id
      String
      Audio text.
      periods
      String
      Time period.
      url
      String
      Audio URL.

      Tag

      Recognition label list
      Name
      Type
      Description
      Name
      String
      The specific name is determined based on the Label field:
      When the Label field is Teenager, possible values for Name include: Teenager
      When the Label field is Gender, possible values for Name include: Male, Female
      Note: This field may return null, indicating that there is no valid value available.
      Score
      Integer
      Confidence score: 0 to 100. A larger value indicates a greater confidence.
      Note: This field may return null, indicating that there is no valid value available.
      StartTime
      Float
      Recognition start offset time, unit: milliseconds
      Note: This field may return null, indicating that there is no valid value available.
      EndTime
      Float
      Recognition end offset time, unit: milliseconds
      Note: This field may return null, indicating that there is no valid value available.

      Callback Message Example

      {
          "appid": xxx08,
          "asr_text": "",
          "cdn_url": "",
          "channel_id": "xxxun01",
          "data": {
              "asr_tmp_full_results": [
                  {
                      "appearing_point": [
                          0.02300000004470348,
                          15.02299976348877
                      ],
                      "confidence": 100,
                      "create_time": 1685929588,
                      "id": "",
                      "periods": "00:00:00-00:00:15",
                      "url": "https://xxx.Audit-09-46-27.wav"
                  }
              ]
          },
          "domain": "xxx.cn",
          "duration": 10,
          "event_type": 315,
          "interface": "general_callback",
          "label": "Moan",
          "language_results": [ ],
          "moan_results": [
              {
                  "EndTime": 15,
                  "Label": "Moan",
                  "Score": 99,
                  "StartTime": 0,
                  "SubLabel": "PornMoan",
                  "Suggestion": "Block"
              }
          ],
          "path": "live",
          "recognition_results": [ ],
          "request_id": "xxx594-4f4d-a5d0-99cce8b750b4",
          "seq": 3232590095,
          "speaker_results": [ ],
          "status": 2,
          "stream_id": "xxxn01",
          "sub_label": "PornMoan",
          "suggestion": "Block",
          "task_id": xxx36881,
          "text_results": [ ]
