    Stream Pushing Notification

    Last updated: 2024-09-25 16:55:50
    Download PDF
      The stream pushing callback informs you whether stream pushing is successful or interrupted. You need to configure a server address for the callback in a callback template and bind the template with your push domain name. After push starts via a URL generated under the domain, the Tencent Cloud backend will send the callback to the server you set.
      This document describes the parameters in a stream pushing callback notification sent to you by CSS.

      Note

      This guide assumes that you understand how to configure callbacks and receive callback notifications from CSS. For details, see How to Receive Event Notification.

      Stream Pushing Event Parameters

      Event type

      Event Type
      Value
      Successful push
      event_type = 1
      Push interrupted
      event_type = 0

      Common callback parameters

      Parameter
      Type
      Description
      t
      int64
      Expiration time, which is the Unix timestamp when the event notification signature expires.
      The default validity period of a callback notification from Tencent Cloud is 10 minutes. If the time specified by the t value in a notification has elapsed, then this notification is considered invalid. This prevents network replay attacks.
      The value of t is a decimal Unix timestamp, that is, the number of seconds that have elapsed since 00:00:00 (UTC/GMT time), January 1, 1970.
      sign
      string
      Security signature. sign = MD5(key + t). Tencent Cloud splices the encryption key and t, generates the MD5 hash of the spliced string, and embeds it in callback messages. Your backend server can perform the same calculation when it receives a callback message. If the signature matches, it indicates the message is from Tencent Cloud.
      Note:

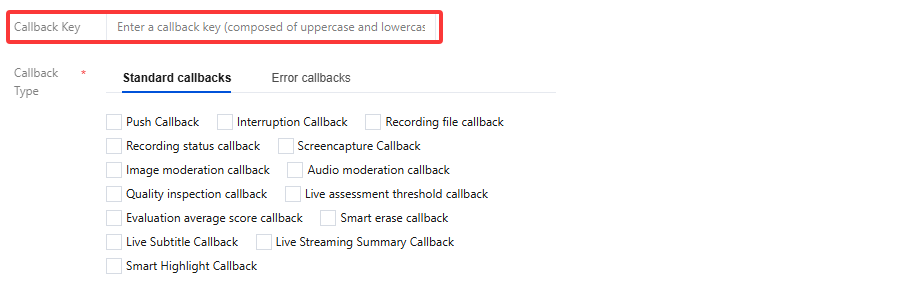

      You can set the callback key in Feature Configuration > Live Stream Callback, which is used for authentication. We recommend you set this field to ensure data security.




      Callback parameters

      Parameter
      Type
      Description
      appid
      int
      User APPID
      app
      string
      Push domain name
      appname
      string
      Push path
      stream_id
      string
      Live stream name
      channel_id
      string
      Same as the live stream name
      event_time
      int64
      UNIX timestamp when the event message is generated
      sequence
      string
      Message sequence number, which identifies a push. The notifications for a push, whether they are for successful push or stream interruption, have the same sequence number.
      node
      string
      IP of the live stream access point
      user_ip
      string
      User push IP
      stream_param
      string
      User push URL parameters
      push_duration
      string
      Push duration of the interrupted stream in milliseconds
      errcode
      int
      Stream pushing error code
      errmsg
      string
      Stream pushing error message
      set_id
      int
      Whether the push is from inside the Chinese mainland. 1-6: yes; 7-200: no.
      width
      int
      Video width. The value of this parameter may be 0 if the video header information is missing at the beginning of a push.
      height
      int
      Video height. The value of this parameter may be 0 if the video header information is missing at the beginning of a push.

      Causes of stream interruption

      For a list of the causes of stream interruption, see Stream Interruption Records.

      Sample callback

      Live Stream Push Callback Message Example

      {
    "app":"test.domain.com",
    "appid":12345678,
    "appname":"live",
    "channel_id":"test_stream",
    "errcode":0,
    "errmsg":"ok",
    "event_time":1703731478,
    "event_type":1,
    "height":0,
    "idc_id":34,
    "node":"42.81.194.37",
    "sequence":"2210464508206756938",
    "set_id":2,
    "sign":"df49************************f5d4",
    "stream_id":"test_stream",
    "stream_param":"stream_param=test",
    "t":1703732078,
    "user_ip":"1.1.1.1",
    "width":0
}

      Live Stream Interruption Callback Message Example

      {
    "app":"test.domain.com",
    "appid":12345678,
    "appname":"live",
    "channel_id":"test_stream",
    "errcode":1,
    "errmsg":"The push client actively stopped the push",
    "event_time":1703731606,
    "event_type":0,
    "height":0,
    "idc_id":34,
    "node":"42.81.194.37",
    "push_duration":"128581",
    "sequence":"2210464508206756938",
    "set_id":2,
    "sign":"3485************************56ae",
    "stream_id":"test_stream",
    "stream_param":"stream_param=test",
    "t":1703732206,
    "user_ip":"1.1.1.1",
    "width":0
}

      Stream Pushing Error Code

      Error Code
      Description
      1
      The push client actively stopped the push.
      2
      3
      4
      35
      5
      The live streaming system has an internal error.
      9
      11
      24
      6
      Abnormal RTMP protocol content.
      7
      The size of a single RTMP frame exceeds the maximum value allowed by the configuration.
      8
      The system actively stopped the push with no data for a long time.
      20
      10
      The live streaming system has an internal error.
      12
      Abnormal stream pushing link network.
      13
      14
      15
      16
      17
      19
      Third-party authentication failure.
      20
      The system actively stopped the push with no data for a long time.
      23
      Abnormal RTMP protocol content.
      24
      The live streaming system has an internal error.
      33
      Abnormal RTMP AMF data.
      0
      Unknown reason. Please contact us by submitting a ticket.
      22
      25
      26
      27
      28
      29
      30
      31
      32
      34
      Other unknown values
