Introduction
This document describes how to view an existing node pool of a cluster and query the details of the node pool via the TKE console for subsequent node pool management.
Prerequisites
You have created a node pool for the cluster. For more information on how to create a node pool, see Creating a Node Pool.
Directions
Viewing the node pool list page
- Log in to the Tencent Kubernetes Engine console and click Cluster in the left sidebar.
- On the “Cluster Management” page, click the desired cluster ID to open the “Deployment” page.

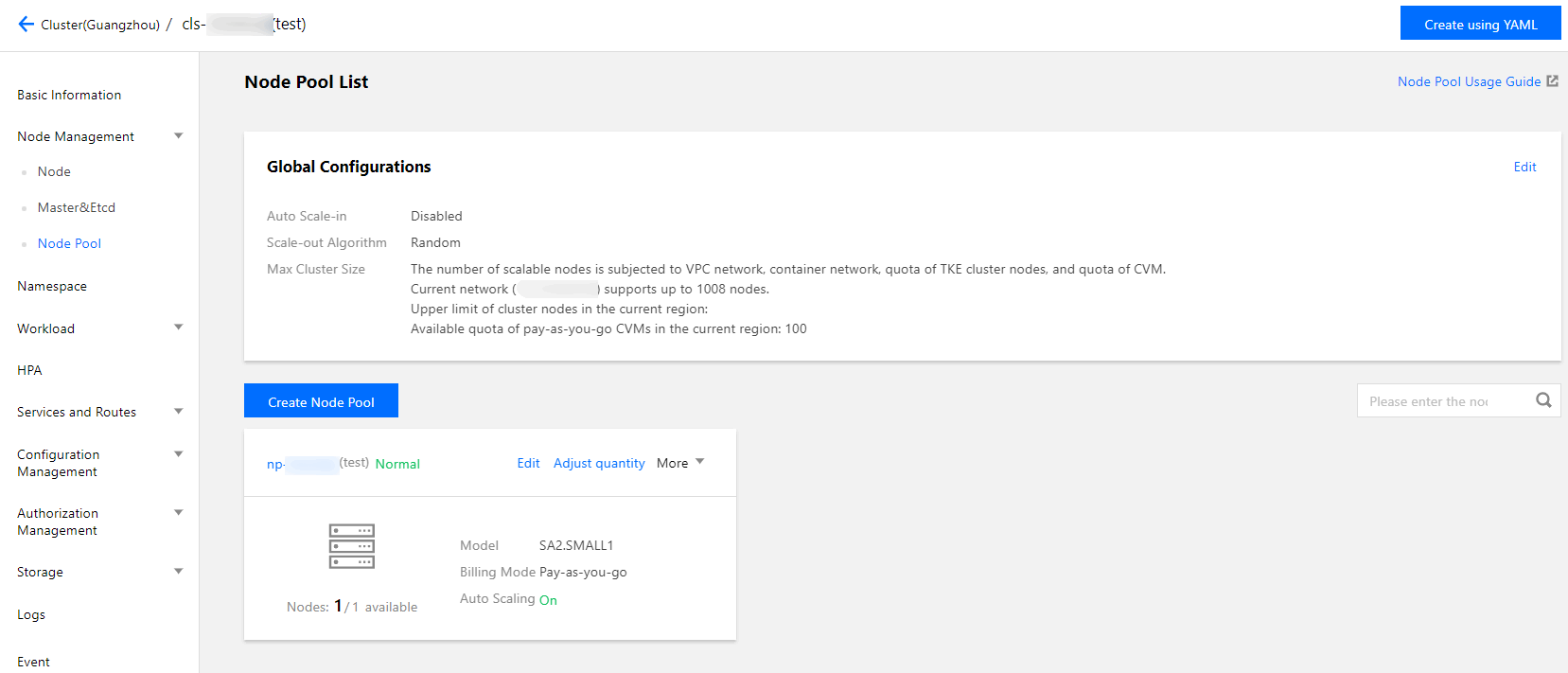

- On the left sidebar, choose Node Management -> Node Pool to open the “Node pool list” page. You can view existing node pools and global node pool configurations, as shown in the following figure.
![](https://main.qcloudimg.com/raw/2e8aca5a76690724c78987537d09ce4c.png)
Node pool information and configurations are as follows:
- Global Configuration: the common configuration items for all node pools of the cluster. You can click Edit in the upper-right corner of the module to modify the values. For more information, see Adjusting Global Node Pool Configurations.
- Auto scale-down: this feature is disabled in this example. If this feature is enabled, auto scale-down is triggered when a large amount of node resources in the cluster is idle. For more information, see Cluster Scaling.
- Scale-up Algorithm: the value is “Random” by default in this example, indicating that a scaling group in the node pool is randomly selected for scale-up. TKE further supports the following scale-up algorithms and you can modify the value as required:
- most-pods: scales up the scaling group that can schedule the most Pods.
- least-waste: scales up the scaling group that has the fewest remaining resources after Pod scheduling.
- Max cluster size: displays the size information of the current cluster. When you adjust the number of existing node pools or recreate a node pool, note the size limit specified by this parameter and properly specify the number of nodes in a node pool.
- Node pool card page: the node pool sorting area is located under the Global Configuration area. Each node pool is displayed as a card that includes the following information:
Note:
When many node pools are displayed, you can enter the node pool ID or node pool name in the search box in the upper-right corner of the area to filter node pools.
- Node pool ID (which is the name of the node pool): the value is np-***(test) in this example. Click the ID to open the details page of the node pool. You can view more information about the node pool on the page.
- Node pool status: the value is “Normal” in this example, indicating that the node pool is in the normal state.
- Node pool operation: the operations include Edit, Adjust Number, and More. For more information, see Adjusting Node Pool Configurations.
- Number of available nodes/Total number of nodes in the node pool: the value is “1 available/1 in total” in this example.
- Model: the model of all the nodes in the node pool.
- Billing Mode: the billing mode of all the nodes in the node pool. The value is “Pay-as-you-go” in this example, indicating that the instance is billed based on actual usage. For more information on billing, see Payment Modes.
- Auto scaling: the value is “On” in this example.
Viewing a single node pool

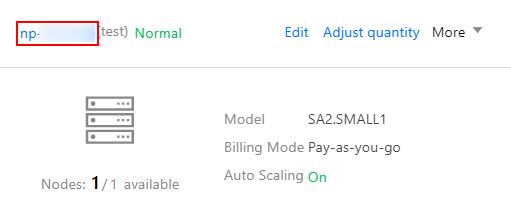

- On the “Node pool card” page, click the desired node pool ID, as shown in the following figure.
![](https://main.qcloudimg.com/raw/7e6f25fbb6a1401c1d7e9ee63501f498.png)

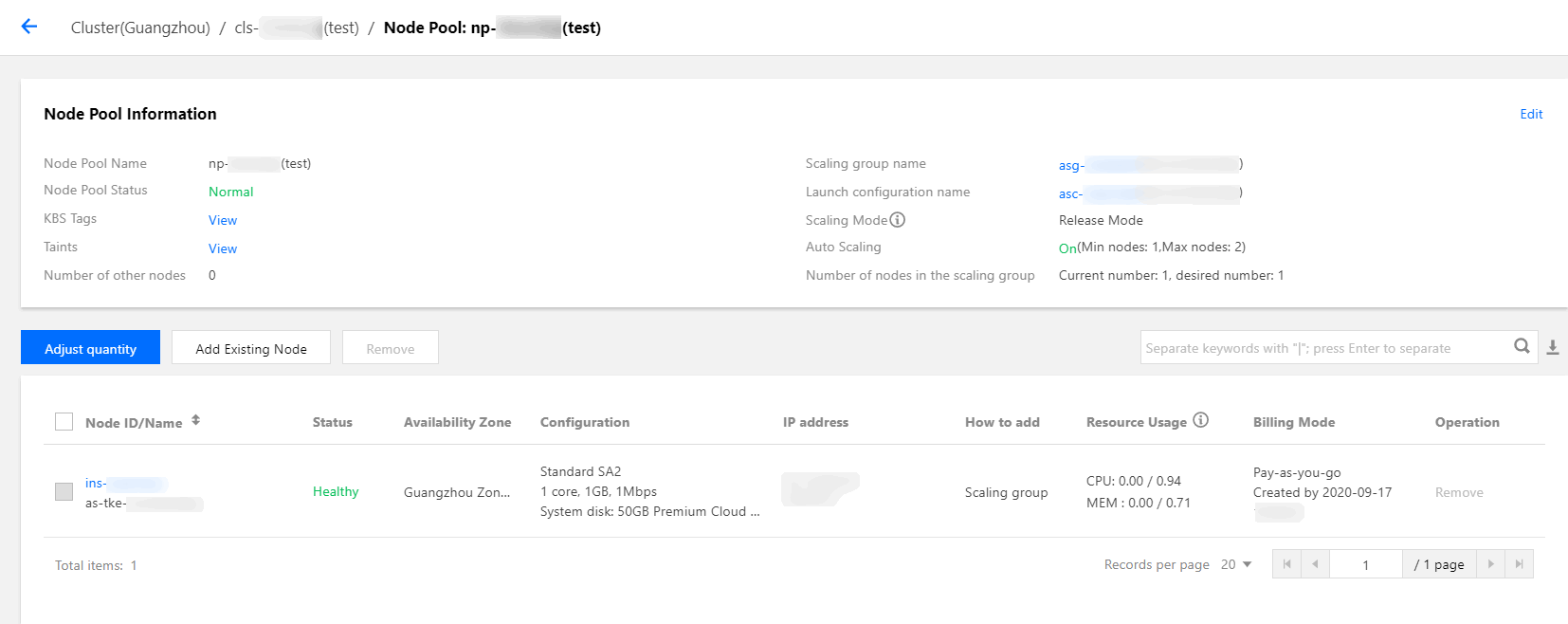

- On the details page of the node pool, you can view more basic information and node information of the node pool, as shown in the following figure.
![](https://main.qcloudimg.com/raw/df047f354ca9f326f87975456f6b249b.png)
Relevant Operations
For more information on the features of node pools, see the following documents:
