Configuring ExternalDNS in TKE

Last updated: 2023-11-21 10:52:40
This document introduces how to configure ExternalDSN in a Tencent Cloud TKE cluster.

What is ExternalDNS?

ExternalDNS can sync the public Kubernetes Services and Ingress to the DNS provider.
Inspired by Kubernetes DNS, Kubernetes' cluster-internal DNS server, ExternalDNS makes Kubernetes resources discoverable via public DNS servers. Like KubeDNS, it retrieves a list of resources (Services, Ingresses, etc.) from the Kubernetes API to determine a desired list of DNS records. Unlike KubeDNS, however, it's not a DNS server itself, but merely configures other DNS providers accordingly. For more information, see ExternalDNS Readme.

Directions

Configuring CAM Permissions for the API Key

Go to the Tencent Cloud CAM console and get the SecretId and SecretKey of the API key. Make sure the current user is assigned with the following permissions.

{
"version": "2.0",
"statement": [
{
"effect": "allow",
"action": [
"dnspod:ModifyRecord",
"dnspod:DeleteRecord",
"dnspod:CreateRecord",
"dnspod:DescribeRecordList",
"dnspod:DescribeDomainList"
],
"resource": [
"*"
]
},
{
"effect": "allow",
"action": [
"privatedns:DescribePrivateZoneList",
"privatedns:DescribePrivateZoneRecordList",
"privatedns:CreatePrivateZoneRecord",
"privatedns:DeletePrivateZoneRecord",
"privatedns:ModifyPrivateZoneRecord"
],
"resource": [
"*"
]
}
]
}

Deploying ExternalDNS Service

Configuring PrivateDNS or DNSPod

Tencent Cloud DNSPod provides free intelligent resolution services to all types of domain names. It features massive processing capability, flexible scalability and superior security, providing stable, fast and secure domain name resolution for your sites.
Tencent Cloud Private DNS is a private domain resolution and management service based on Tencent Cloud Virtual Private Cloud (VPC), providing you with safe, stable, and efficient private network resolution service. It supports quick building of a DNS system in VPCs to fulfill your needs.
To use private network DNS in Tencent Cloud environment:
Add the following parameter in the YAML file: --tencent-cloud-zone-type=private
Create a DNS domain in the PrivateDNS console. The DNS records are included in the DNS domain name records.
To use public network DNS in Tencent Cloud environment:
Add the following parameter in the YAML file: --tencent-cloud-zone-type=public
Create a DNS domain in the DNSPod console. The DNS records are included in the DNS domain name records.

Deploying resource objects in the Kuberentes cluster

apiVersion: v1
kind: ServiceAccount
metadata:
name: external-dns
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
name: external-dns
rules:
- apiGroups: [""]
resources: ["services","endpoints","pods"]
verbs: ["get","watch","list"]
- apiGroups: ["extensions","networking.k8s.io"]
resources: ["ingresses"]
verbs: ["get","watch","list"]
- apiGroups: [""]
resources: ["nodes"]
verbs: ["list"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: external-dns-viewer
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: external-dns
subjects:
- kind: ServiceAccount
name: external-dns
namespace: default
---
apiVersion: v1
kind: ConfigMap
metadata:
name: external-dns
data:
tencent-cloud.json: |
{
"regionId": "ap-shanghai", # (Required) ID of the region where the cluster locates
"secretId": "******",
"secretKey": "******",
"vpcId": "vpc-******" (Required), ID of the VPC where the cluster is deployed
}
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: external-dns
spec:
strategy:
type: Recreate
selector:
matchLabels:
app: external-dns
template:
metadata:
labels:
app: external-dns
spec:
containers:
- args:
- --source=service
- --source=ingress
- --domain-filter=external-dns-test.com # Make ExternalDNS see only the hosted zones matching provided domain, omit to process all available hosted zones
- --provider=tencentcloud
- --policy=sync # Set it to `upssert-only` to prevent ExternalDNS from deleting any records
- --tencent-cloud-zone-type=private # Only look at private hosted zones. To use public DNS service, set it to `public`.
- --tencent-cloud-config-file=/etc/kubernetes/tencent-cloud.json
image: ccr.ccs.tencentyun.com/tke-market/external-dns:v1.0.0
imagePullPolicy: Always
name: external-dns
resources: {}
terminationMessagePath: /dev/termination-log
terminationMessagePolicy: File
volumeMounts:
- mountPath: /etc/kubernetes
name: config-volume
readOnly: true
dnsPolicy: ClusterFirst
restartPolicy: Always
schedulerName: default-scheduler
securityContext: {}
serviceAccount: external-dns
serviceAccountName: external-dns
terminationGracePeriodSeconds: 30
volumes:
- configMap:
defaultMode: 420
items:
- key: tencent-cloud.json
path: tencent-cloud.json
name: external-dns
name: config-volume

Example

Creating a Service named “nginx”
apiVersion: v1
kind: Service
metadata:
name: nginx
annotations:
external-dns.alpha.kubernetes.io/hostname: nginx.external-dns-test.com # Public domain name address
external-dns.alpha.kubernetes.io/internal-hostname: nginx-internal.external-dns-test.com # Private domain name address
external-dns.alpha.kubernetes.io/ttl: "600"
spec:
type: LoadBalancer
ports:
- port: 80
name: http
targetPort: 80
selector:
app: nginx
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: nginx
spec:
selector:
matchLabels:
app: nginx
template:
metadata:
labels:
app: nginx
spec:
containers:
- image: nginx
name: nginx
ports:
- containerPort: 80
name: http
nginx.external-dns-test.com will record the service's loadbalancer VIP.
nginx-internal.external-dns-test.com will record the service's ClusterIP. The TTL of all DNS records is 600.

Verification

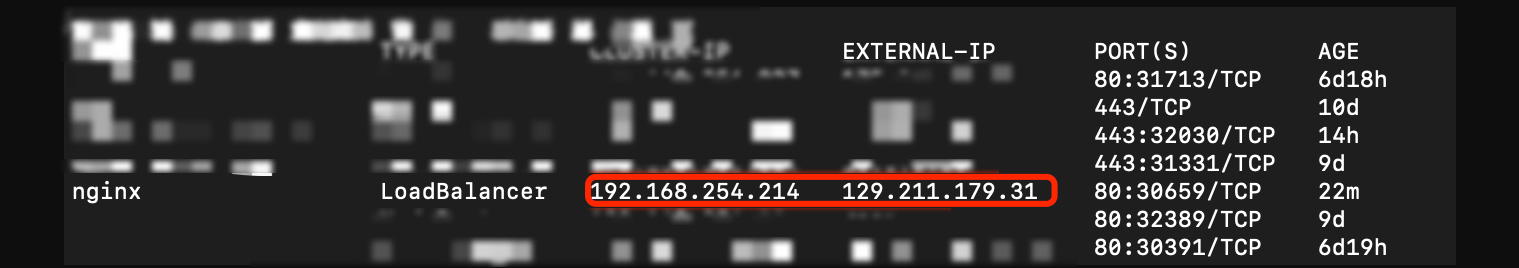

A Service named “nginx” is created with the ClusterIP 192.168.254.214 and Loadbalancer VIP 129.211.179.31. As shown below:

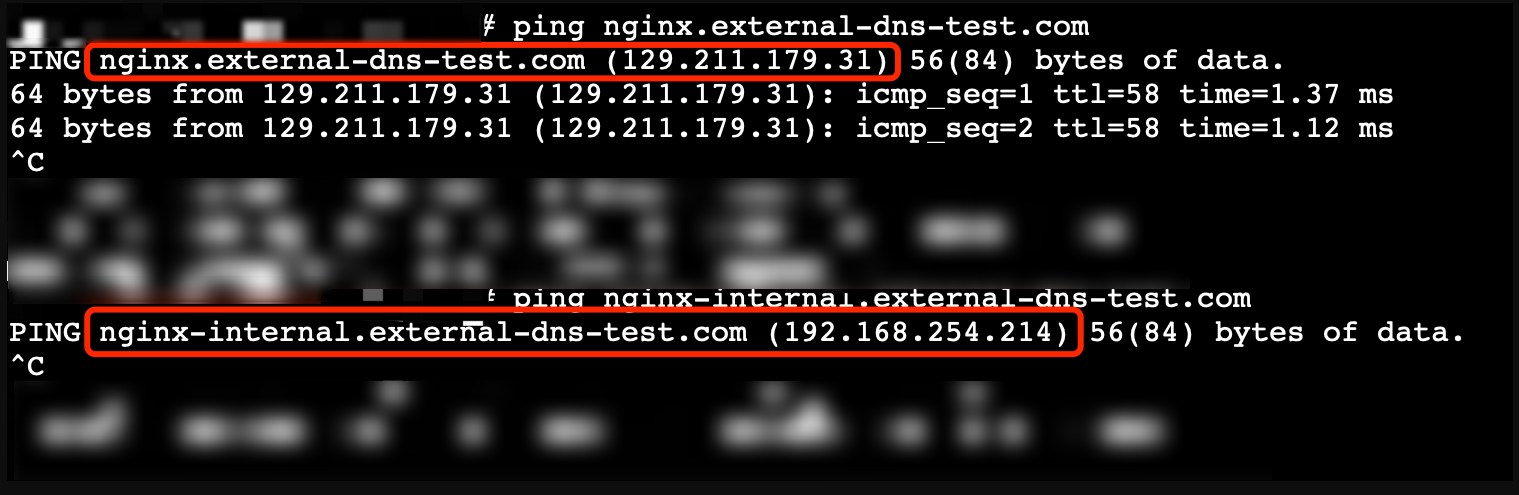

Log in to a node in the same VPC as the cluster. PING the domain name in the annotation of nginx service. The domain name will be resolved to the ClusterIP and Loadbalancer VIP. As shown below:
