Nginx-ingress Log Configuration

Last updated: 2024-12-23 11:30:47

Integrating with CLS, TKE provides a complete set of productized capabilities to implement Nginx-ingress log collection and consumption capabilities.
Nginx-ingress Log Types
Nginx Controller collects and provides the following logs to users:
Nginx Controller Log: major. The control plane logs, which record the modification of the Nginx Controller control plane. It is mainly used for control plane troubleshooting, for example, due to the incorrect configuration of the Ingress template, the synchronization is not performed.
AccessLog Log: major. User data plane logs, which record the relevant information of user’s layer-7 request. It is mainly used for users to perform data analysis, audit, business troubleshooting, etc.
ErrorLog Log: minor. The internal error log of Nginx.
By default, the AccessLog and Nginx Controller logs will be mixed into the standard output stream, and there will be difficulties for log collection. This document describes how to distinguish log paths and collect logs separately.
Prerequisites
You have enabled Log Collection in Feature Management in the TKE console. For more information, see Enabling Log Collection.
TKE Nginx-ingress Log Collection
Log collection directions
1. Install Nginx-ingress Addon for the target cluster.
2. On Services and Routes > NginxIngress page, select an installed add-on to go to its details page.

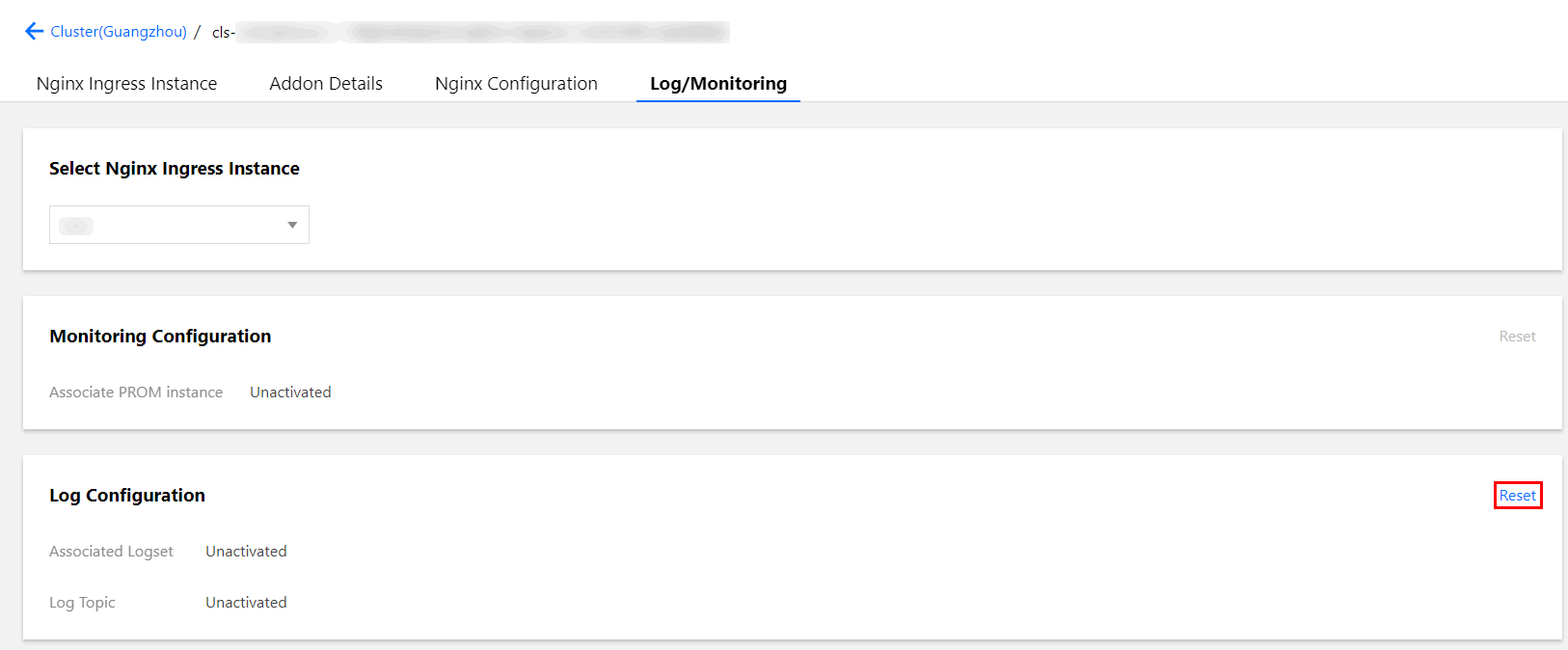

3. On the Log Monitoring page, click Reset in the upper-right corner of the Log Configuration area.
﻿

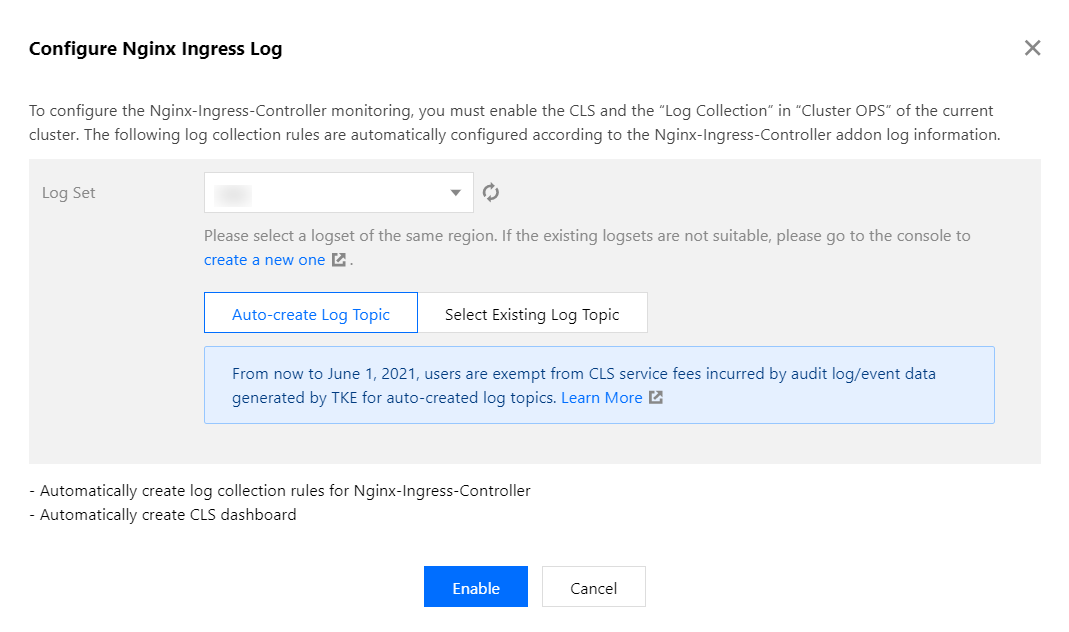

4. Select or create a logset in the pop-up window, as shown in the figure below:
﻿
5. Click Enable.
Note:
 For information on CLS billing rules and billing standards, see Billing Overview.
Log collection metrics
The log collection metrics are as follows:
apiVersion: cls.cloud.tencent.com/v1
kind: LogConfig
metadata:
  name: nginx-ingress-test
  resourceVersion: "7169042"
  selfLink: /apis/cls.cloud.tencent.com/v1/logconfigs/nginx-ingress-test
  uid: 67c96f86-4160-****-****-f6faf8d544dc
spec:
  clsDetail:
    extractRule:
      beginningRegex: (\\S+)\\s-\\s(\\S+)\\s\\[(\\S+)\\]\\s(\\S+)\\s\\"(\\w+)\\s(\\S+)\\s([^\\"]+)\\"\\s(\\S+)\\s(\\S+)\\s\\"([^"]*)\\"\\s\\"([^"]*)\\"\\s(\\S+)\\s(\\S+)\\s\\[([^\\]]*)\\]\\s\\[([^\\]]*)\\]\\s\\[([^\\]]*)\\]\\s\\[([^\\]]*)\\]\\s\\[([^\\]]*)\\]\\s\\[([^\\]]*)\\]\\s(\\S+)
      keys:
      - remote_addr
      - remote_user
      - time_local
      - timestamp
      - method
      - url
      - version
      - status
      - body_bytes_sent
      - http_referer
      - http_user_agent
      - request_length
      - request_time
      - proxy_upstream_name
      - proxy_alternative_upstream_name
      - upstream_addr
      - upstream_response_length
      - upstream_response_time
      - upstream_status
      - req_id
      logRegex: (\\S+)\\s-\\s(\\S+)\\s\\[(\\S+)\\]\\s(\\S+)\\s\\"(\\w+)\\s(\\S+)\\s([^\\"]+)\\"\\s(\\S+)\\s(\\S+)\\s\\"([^"]*)\\"\\s\\"([^"]*)\\"\\s(\\S+)\\s(\\S+)\\s\\[([^\\]]*)\\]\\s\\[([^\\]]*)\\]\\s\\[([^\\]]*)\\]\\s\\[([^\\]]*)\\]\\s\\[([^\\]]*)\\]\\s\\[([^\\]]*)\\]\\s(\\S+)
    logType: fullregex_log
    topicId: 56766bad-368e-****-****-ed77ebcdefa8
  inputDetail:
    containerFile:
      container: controller
      filePattern: nginx_access.log
      logPath: /var/log/nginx
      namespace: default
      workload:
        kind: deployment
        name: nginx-ingress-nginx-controller
    type: container_file
Nginx-ingress log dashboard

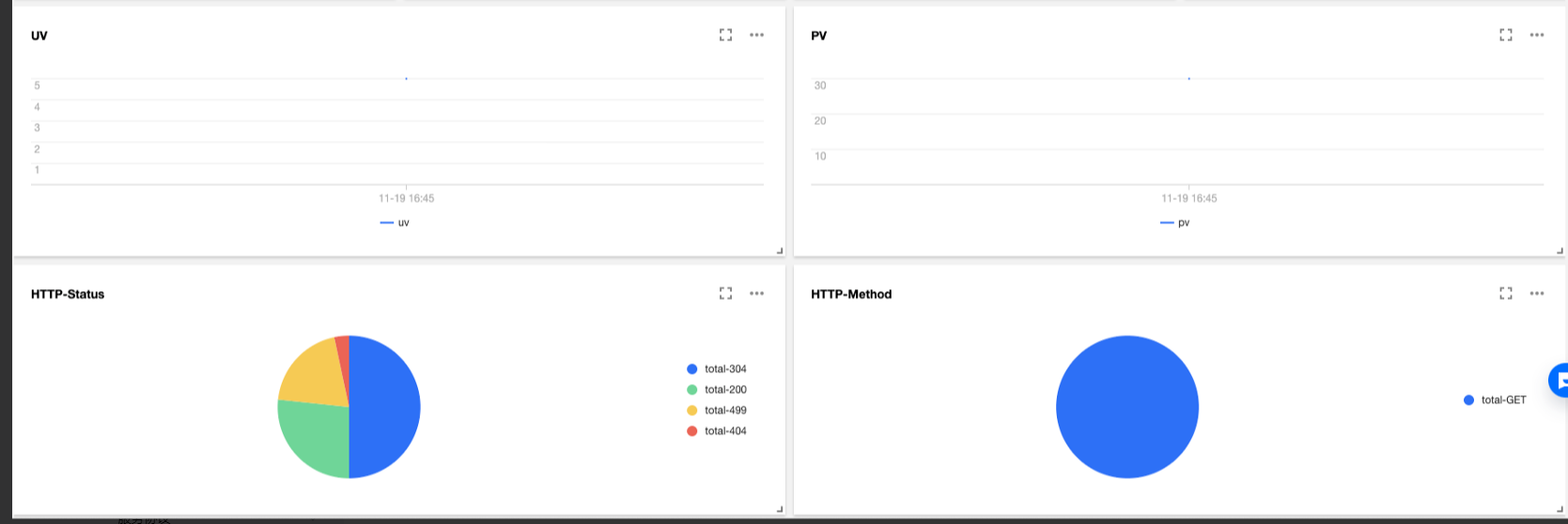

TKE will automatically create a standard log dashboard once Nginx-ingress log collection enabled. You can also configure the chart on the CLS console based on your business needs, as shown in the figure below:
﻿
References
If you need to customize log collection rules and indexes, see Custom Nginx Ingress Log.
