    Inventory Overview

    Terakhir diperbarui:2024-03-25 15:28:24
    Unduh PDF

      What Is Inventory?

      The inventory feature helps users manage objects in a bucket. It operates periodically as an alternative to the COS synchronous List API. COS can daily or weekly scan a specified object or objects with the same prefix in a bucket based on an inventory job configured, and export and save the inventory report in CSV format to a specified bucket. The report lists the objects stored and their metadata, and records the desired object attributes as configured.
      You can use the inventory feature for various purposes, including but not limited to:
      Reviewing and reporting the replication and encryption status of objects.
      Simplifying and accelerating business workflows and big data jobs.
      Note:
      You can configure multiple inventory jobs in one bucket. Such jobs do not directly read the object content during their execution; instead, they only scan the attribute information such as object metadata.

      Inventory Parameters

      After you configure an inventory job for a bucket, COS regularly scans specified objects in the bucket based on your configuration, and exports an inventory report in .csv format. Currently, the inventory report can record the following information:
      Inventory Information
      Description
      AppID
      Account ID
      Bucket
      Name of the bucket where the inventory job is performed
      fileFormat
      File format
      listObjectCount
      Number of objects to list, which will be used for billing. For more information, see the inventory feature fees in Management Feature Fees.
      listStorageSize
      Size of listed objects
      filterObjectCount
      Number of filtered objects
      filterStorageSize
      Size of filtered objects
      Key
      Name of an object file in a bucket. When the CSV file format is used, the key name is URL-encoded and must be decoded before you can use it.
      VersionId
      Version ID of an object. After versioning is enabled for a bucket, COS specifies a version ID for the object added to the bucket. If the inventory is for the current version only, this field is not included.
      IsLatest
      Set to True if the latest object version is used. This field is not included if the inventory is only for the current version of objects.
      IsDeleteMarker
      Set to True if the object is a delete marker. This field is not included if the inventory is only for the current version of objects.
      Size
      Object size in bytes
      LastModifiedDate
      The last modified date of the object
      ETag
      Hash value of an object. It displays only modification to the content of an object, rather than to its metadata. The ETag may be or may not be the MD5 checksum of the data of the object, and this depends on how the object is created and encrypted.
      StorageClass
      Storage class of the object. For more information, see Storage Class
      IsMultipartUploaded
      Set to True if the object is uploaded in multiple parts. For more information, see Multipart Upload
      Replicationstatus
      Status of source and replica files in object replication. Source file status: PENDING (to be replicated), COMPLETED (replicated), or FAILED (failed). Replica file status: REPLICA (replicated with replica file generated). For more information, see Actions.
      Tag
      Object tag

      How to Configure Inventory

      Before configuring an inventory, you need to understand two concepts:
      Source bucket: The bucket for which you want to enable inventory, containing:
      Objects listed in the inventory
      Configuration of the inventory
      Destination bucket: The bucket where to store the inventory report, containing:
      An inventory list file
      Manifest files that describe the location of the inventory list file
      An inventory can be configured as follows:

      Specify the information of the objects to be analyzed in the source bucket

      To inform COS of object information to be analyzed, you need to configure the following information in the source bucket for the inventory:
      Select object versions: List all the versions of the object or list only the current version. If you select to list all the versions of the object, COS adds information about the object in all historical versions to the inventory report. If you select to list only the current version, COS records only the object in the latest version.
      Configure the attributes of the objects to be analyzed: You need to tell COS which information in the object attributes needs to be included in the inventory report. Currently, supported object attributes include account ID, source bucket name, object file name, object version ID, whether the object is of the latest version, whether the object is a deletion flag, object size, object's last modified date, ETag, object's storage class, cross-region replication tag, and whether the object is a part in multipart upload.

      Configure the storage information for the inventory report

      You need to tell COS how often to export the inventory report, which bucket to store the report in, and whether the report should be encrypted. The configuration information is as follows:
      Select an export frequency: Daily or weekly. COS will execute the inventory feature at the specified frequency.
      Select an encryption mode: No encryption or SSE-COS. If SSE-COS is selected, COS encrypts the generated inventory report.
      Configure the output location of the inventory: You need to specify the bucket where to store the inventory report.
      Note:
      The destination bucket must be in the same region as the source bucket. They can be the same bucket.

      How to Use

      Configuring inventory via the console

      Refer to Enabling Inventory to learn how to configure the inventory feature in the console.

      Configuring inventory via APIs

      To enable the inventory feature for a specified bucket using APIs, follow the steps below:
      1. Create a COS role.
      2. Bind permissions to the COS role.
      3. Enable inventory.

      1. Creating a COS role

      Create a COS role. For more information about the API, see CreateRole. Here, roleName must be COS_QcsRole. policyDocument must be:
      {
          "version": "2.0",
          "statement": [{
              "action": "name/sts:AssumeRole",
              "effect": "allow",
              "principal": {
                  "service": "cos.cloud.tencent.com"
              }
          }]
      }

      2. Binding permissions to the COS role

      Grant the log role permissions. For more information about the API, see AttachRolePolicy. Here, policyName is set to QcloudCOSFullAccess, roleName is the COS_QcsRole in step 1, or the roleID returned when roleName was created.

      3. Enabling inventory

      Call the API to enable inventory. For more information about the API, see PUT Bucket inventory. Note that the destination bucket to store the inventory files should be in the same region as the source bucket.

      Storage Path of the Inventory Report

      The inventory report and manifest files are put in the destination bucket. The inventory report is located in the following path:
      destination-prefix/appid/source-bucket/config-ID/

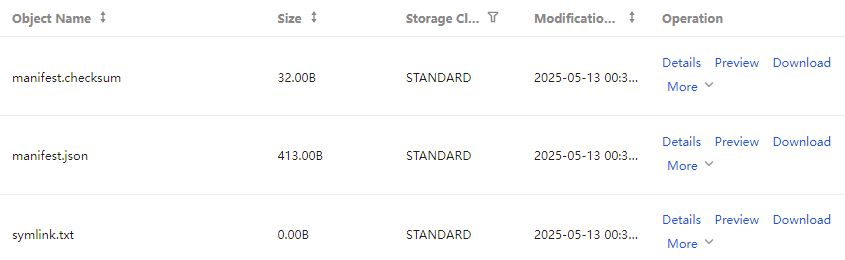

      Manifest files are located in the following paths in the destination bucket:
      destination-prefix/appid/source-bucket/config-ID/YYYYMMDD/manifest.json
      destination-prefix/appid/source-bucket/config-ID/YYYYMMDD/manifest.checksum
      The meanings of the paths are as follows:
      destination-prefix: This is the "destination prefix" set when you configure the inventory, which can be used to group all inventory reports in a public location in the destination bucket.
      source-bucket: This is the name of the source bucket corresponding to the inventory report. This folder is added to avoid conflicts that may occur when multiple source buckets send their inventory reports to the same destination bucket.
      config-ID: This is the "inventory name" set when you configure the inventory. If multiple inventory reports are configured in the same source bucket and delivered to the same destination bucket, config-ID can be used to distinguish among different reports.
      YYYYMMDD: Timestamp, including the time and date when the bucket scan is started when the inventory report is generated.
      manifest.json: This is the manifest file.
      manifest.checksum: This is the MD5 of the content of the manifest.json file.
      There are two manifest files: manifest.json and manifest.checksum.
      Note:
      The following describes the manifest files:
      Both manifest.json and manifest.checksum are manifest files. manifest.json describes the location of the inventory report, and manifest.checksum is the MD5 of the content of the manifest.json file. Each time a new inventory report is delivered, it is accompanied by a new set of manifest files.
      Each manifest contained in manifest.json provides metadata and basic information about the inventory, including:
      Source bucket name.
      Destination bucket name.
      Inventory version.
      Timestamp, including the time and date when the bucket scan is started when the inventory report is generated.
      Format and architecture of the inventory file.
      Object key, size, and md5Checksum of the inventory report in the destination bucket.

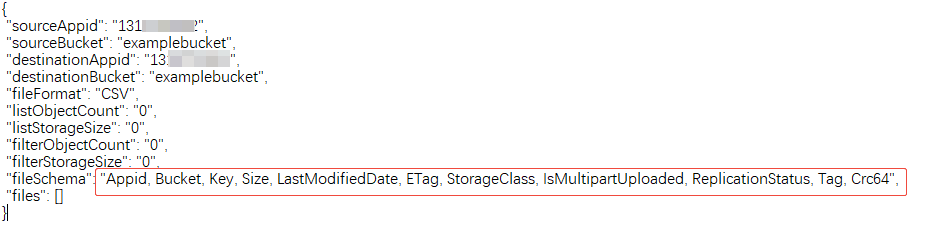

      The following example shows a manifest in the manifest.json file for CSV-formatted inventory:
      {
       "sourceAppid": "1250000000",
       "sourceBucket": "example-source-bucket",
       "destinationAppid": "1250000000",
       "destinationBucket": "example-inventory-destination-bucket",
       "fileFormat": "CSV",
       "listObjectCount": "13",
       "listStorageSize": "7212835",
       "filterObjectCount": "13",
       "filterStorageSize": "7212835",
       "fileSchema": "Appid, Bucket, Key, Size, LastModifiedDate, ETag, StorageClass, IsMultipartUploaded, ReplicationStatus",
       "files": [
        {
         "key": "cos_bucket_inventory/1250000000/examplebucket/inventory01/04d73d9debc73d9f0bf85af461abde6c.csv.gz",
         "size": "502",
         "md5Checksum": "7d40288a09c25b302ad6cb5fced54f35"
        }
       ]
      }

      Inventory consistency

      All of your objects might not appear in each inventory list. The inventory list provides eventual consistency for PUTs of both new objects and overwrites, and DELETEs. Therefore, the inventory report possibly does not include the latest added or deleted object. For example, if the user uploads or deletes an object when COS is executing an inventory job configured by the user, the results of the upload or deletion operations may not be reflected in the inventory report.
      If you want to verify the object status before the execution, we recommend you call the HEAD Object API to extract the object metadata, or check the object attributes in the COS console.
