npm create vite@latest TUIRoom-demo -- --template vue
cd TUIRoom-demonpm installnpm run dev

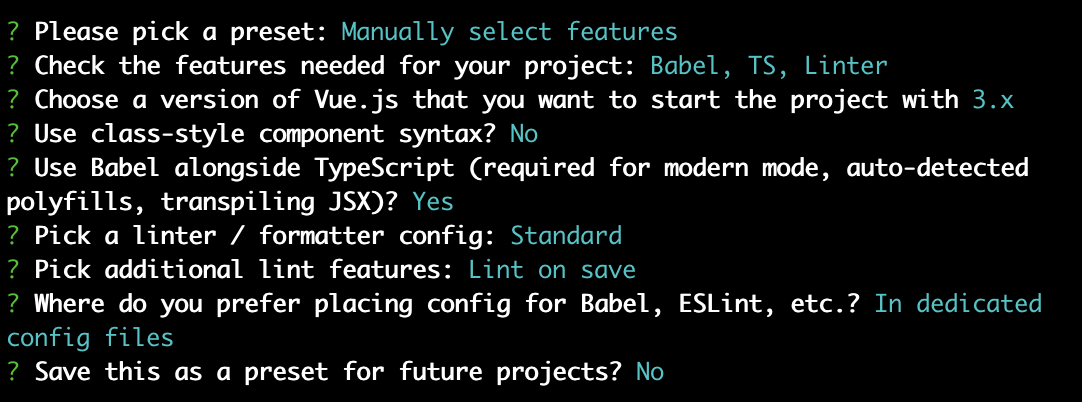

// 安装 vue-cli,注意 Vue CLI 4.x 要求 Node.js 为 v10 以上版本npm install -g @vue/cli// 创建 Vue3 + Webpack + TS 模版工程vue create TUIRoom-demo
cd TUIRoom-demonpm run serve
TUIRoom/Web/src/TUIRoom
文件夹到已有项目 src/
目录下。App.vue
组件中引入 TUIRoom 组件。<template><room ref="TUIRoomRef"></room></template><script setup lang="ts">import { ref, onMounted } from 'vue';// 引入 TUIRoom 组件,注意确认引入路径是否正确import Room from './TUIRoom/index.vue';// 获取 TUIRoom 组件元素,用于调用 TUIRoom 组件的方法const TUIRoomRef = ref();onMounted(async () => {// 初始化 TUIRoom 组件// 主持人在创建房间前需要先初始化 TUIRoom 组件// 普通成员在进入房间前需要先初始化 TUIRoom 组件await TUIRoomRef.value.init({// 获取 sdkAppId 请您参考 步骤一sdkAppId: 0,// 用户在您业务中的唯一标示 IduserId: '',// 本地开发调试可在 https://console.tencentcloud.com/trtc/usersigtool 页面快速生成 userSig, 注意 userSig 与 userId 为一一对应关系userSig: '',// 用户在您业务中使用的昵称userName: '',// 用户在您业务中使用的头像链接userAvatar: '',// 用户用于屏幕分享的唯一 Id,要求 shareUserId = `share_${userId}`, 无屏幕分享功能需求可不传入shareUserId: '',// 请您参考本文 步骤一 > 第三步 并使用 sdkAppId 及 shareUserId 签发 shareUserSigshareUserSig: '',})// 默认执行创建房间,实际接入可按需求择机执行 handleCreateRoom 方法await handleCreateRoom();})// 主持人创建房间,该方法只在创建房间时调用async function handleCreateRoom() {// roomId 为用户进入的房间号, 要求 roomId 类型为 number// roomMode 包含'FreeSpeech'(自由发言模式) 和'ApplySpeech'(举手发言模式) 两种模式,默认为'FreeSpeech',注意目前仅支持自由发言模式// roomParam 指定了用户进入房间的默认行为(是否默认开启麦克风,是否默认开启摄像头,默认媒体设备Id)const roomId = 123456;const roomMode = 'FreeSpeech';const roomParam = {isOpenCamera: true,isOpenMicrophone: true,}await TUIRoomRef.value.createRoom(roomId, roomMode, roomParam);}// 普通成员进入房间,该方法在普通成员进入已创建好的房间时调用async function handleEnterRoom() {// roomId 为用户进入的房间号, 要求 roomId 类型为 number// roomParam 指定了用户进入房间的默认行为(是否默认开启麦克风,是否默认开启摄像头,默认媒体设备Id)const roomId = 123456;const roomParam = {isOpenCamera: true,isOpenMicrophone: true,}await TUIRoomRef.value.enterRoom(roomId, roomParam);}</script><style>html, body {width: 100%;height: 100%;margin: 0;}#app {width: 100%;height: 100%;}</style>
npm install sass typescript unplugin-auto-import unplugin-vue-components -S -D
npm install element-plus events mitt pinia rtc-beauty-plugin tim-js-sdk trtc-js-sdk tsignaling -S
src/main.ts
文件。// src/main.ts 文件import { createPinia } from 'pinia';const app = createApp(App);// 注册 piniaapp.use(createPinia());app.mount('#app');
vite.config.ts
中配置 element-plus 组件按需加载。// vite.config.tsimport AutoImport from 'unplugin-auto-import/vite';import Components from 'unplugin-vue-components/vite';import { ElementPlusResolver } from 'unplugin-vue-components/resolvers';export default defineConfig({// ...plugins: [AutoImport({resolvers: [ElementPlusResolver()],}),Components({resolvers: [ElementPlusResolver({importStyle: 'sass',})],}),],css: {preprocessorOptions: {scss: {// ...additionalData: `@use "./src/TUIRoom/assets/style/element.scss" as *;`,},},},});
src/main.ts
中加载 element-plus 组件样式。// src/main.tsimport 'element-plus/theme-chalk/el-message.css';import 'element-plus/theme-chalk/el-message-box.css';
npm install sass sass-loader typescript unplugin-auto-import unplugin-vue-components unplugin-element-plus @types/events -S -D
npm install element-plus events mitt pinia rtc-beauty-plugin tim-js-sdk trtc-js-sdk tsignaling -S
src/main.ts
文件。// src/main.ts 文件import { createPinia } from 'pinia';const app = createApp(App);// 注册 piniaapp.use(createPinia());app.mount('#app');
vue.config.js
中配置 element-plus 组件按需加载。// vue.config.jsconst { defineConfig } = require('@vue/cli-service')const AutoImport = require('unplugin-auto-import/webpack')const Components = require('unplugin-vue-components/webpack')const { ElementPlusResolver } = require('unplugin-vue-components/resolvers')const ElementPlus = require('unplugin-element-plus/webpack')module.exports = defineConfig({transpileDependencies: true,css: {loaderOptions: {scss: {additionalData: '@use "./src/TUIRoom/assets/style/element.scss" as *;'}}},configureWebpack: {plugins: [AutoImport({resolvers: [ElementPlusResolver({ importStyle: 'sass' })]}),Components({resolvers: [ElementPlusResolver({ importStyle: 'sass' })]}),// 在按需导入时自定义主题颜色ElementPlus({useSource: true})]}})
src/main.ts
中加载 element-plus 组件样式。// src/main.tsimport 'element-plus/theme-chalk/el-message.css';import 'element-plus/theme-chalk/el-message-box.css';
src/shims-vue.d.ts
文件中添加以下配置:declare module 'tsignaling/tsignaling-js' {import TSignaling from 'tsignaling/tsignaling-js';export default TSignaling;}declare module 'tim-js-sdk' {import TIM from 'tim-js-sdk';export default TIM;}declare const Aegis: any;
npm run dev
http://localhost:3000/
。npm run serve
http://localhost:8080/
npm run build
TUIRoomRef.value.init(roomData);
参数 | 类型 | 含义 |
roomData | object | |
roomData.sdkAppId | number | 客户的 SDKAppId |
roomData.userId | string | 用户的唯一 ID |
roomData.userSig | string | 用户的 UserSig |
roomData.userName | string | 用户的昵称 |
roomData.userAvatar | string | 用户的头像 |
roomData.shareUserId | string | 非必填,用户进行屏幕分享的 UserId,要求 shareUserId = share_${userId} ,无屏幕分享功能可不传入 |
roomData.shareUserSig | string | 非必填,用户进行屏幕分享的 UserSig |
TUIRoomRef.value.createRoom(roomId, roomMode, roomParam);
参数 | 类型 | 含义 |
roomId | number | 房间 ID |
roomMode | string | 房间模式,'FreeSpeech'(自由发言模式)和 'ApplySpeech'(举手发言模式),默认为 'FreeSpeech',注意目前仅支持自由发言模式 |
roomParam | Object | 非必填 |
roomParam.isOpenCamera | string | 非必填,进房是否打开摄像头,默认为关闭 |
roomParam.isOpenMicrophone | string | 非必填,进房是否打开麦克风,默认为关闭 |
roomParam.defaultCameraId | string | 非必填,默认摄像头设备 ID |
roomParam.defaultMicrophoneId | string | 非必填,默认麦克风设备 ID |
roomParam.defaultSpeakerId | String | 非必填,默认扬声器设备 ID |
TUIRoomRef.value.enterRoom(roomId, roomParam);
参数 | 类型 | 含义 |
roomId | number | 房间 ID |
roomParam | Object | 非必填 |
roomParam.isOpenCamera | string | 非必填,进房是否打开摄像头,默认为关闭 |
roomParam.isOpenMicrophone | string | 非必填,进房是否打开麦克风,默认为关闭 |
roomParam.defaultCameraId | string | 非必填,默认摄像头设备 ID |
roomParam.defaultMicrophoneId | string | 非必填,默认麦克风设备 ID |
roomParam.defaultSpeakerId | String | 非必填,默认扬声器设备 ID |
<template><room ref="TUIRoomRef" @on-room-create="handleRoomCreate"></room></template><script setup lang="ts">// 引入 TUIRoom 组件,注意确认引入路径是否正确import Room from './TUIRoom/index.vue';function handleRoomCreate(info) {if (info.code === 0) {console.log('创建房间成功')}}</script>
<template><room ref="TUIRoomRef" @on-room-enter="handleRoomEnter"></room></template><script setup lang="ts">// 引入 TUIRoom 组件,注意确认引入路径是否正确import Room from './TUIRoom/index.vue';function handleRoomEnter(info) {if (info.code === 0) {console.log('进入房间成功')}}</script>
<template><room ref="TUIRoomRef" @on-room-destory="handleRoomDestory"></room></template><script setup lang="ts">// 引入 TUIRoom 组件,注意确认引入路径是否正确import Room from './TUIRoom/index.vue';function handleRoomDestory(info) {if (info.code === 0) {console.log('主持人销毁成功')}}</script>
<template><room ref="TUIRoomRef" @on-room-exit="handleRoomExit"></room></template><script setup lang="ts">// 引入 TUIRoom 组件,注意确认引入路径是否正确import Room from './TUIRoom/index.vue';function handleRoomExit(info) {if (info.code === 0) {console.log('普通成员退出房间成功')}}</script>
<template><room ref="TUIRoomRef" @on-kick-off="handleKickOff"></room></template><script setup lang="ts">// 引入 TUIRoom 组件,注意确认引入路径是否正确import Room from './TUIRoom/index.vue';function handleKickOff(info) {if (info.code === 0) {console.log('普通成员被主持人踢出房间')}}</script>
