Logging In to Windows Instance Using RDP

Last updated: 2024-01-08 09:32:02
    Note:
    Currently, the standard login method (WebRDP) is used for Windows instances by default. It allows you to log in to a Windows instance in the console without downloading a local login client. For the login method, see Logging in to Windows Instance Using Standard Login Method.

    Overview

    Remote Desktop Protocol (RDP) is a multiple-channel protocol developed by Microsoft that allows a local computer to connect to a remote computer. We recommend you use RDP to log in to your Windows CVMs. This document describes how to log in to Windows instances using RDP files.

    Supported Systems

    You can log in to your CVMs from Windows, Linux, and MacOS using RDP.

    Prerequisites

    You must have the admin account and password for logging in to a Windows instance remotely.
    If you have chosen to generate a random password when creating an instance, please get it from Message Center.
    If you have set a login password, please use it for login. If you forgot it, please reset it.
    You have purchased a public IP for your CVM instance and opened a remote login port (3389 by default) for the WebRDP proxy IP in the security group associated with the instance.
    If you purchase a CVM instance through quick configuration, the port is opened by default.
    If you purchase a CVM instance through custom configuration, you can manually open the port as instructed in Security Group Use Cases.
    Make sure that the public network bandwidth of your instance is ≥ 5 Mbit/s; otherwise, the remote desktop may lag. To adjust the network bandwidth, please see Adjusting Network Configuration.

    Directions

    Logging in to your Windows CVM using RDP
    Logging in to your Linux CVM using RDP
    Logging into you MacOS CVM using RDP
    1. Log in to the CVM console.
    2. On the instance management page, proceed according to the actually used view mode:

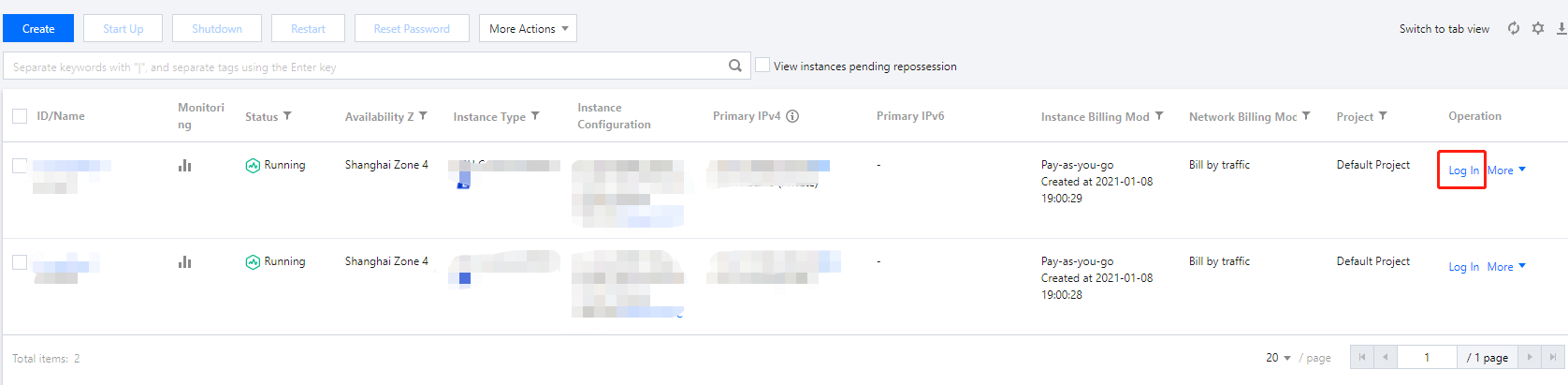

    List mode: locate the Windows CVM instance you want to log in to and click Log In on the right as shown below:

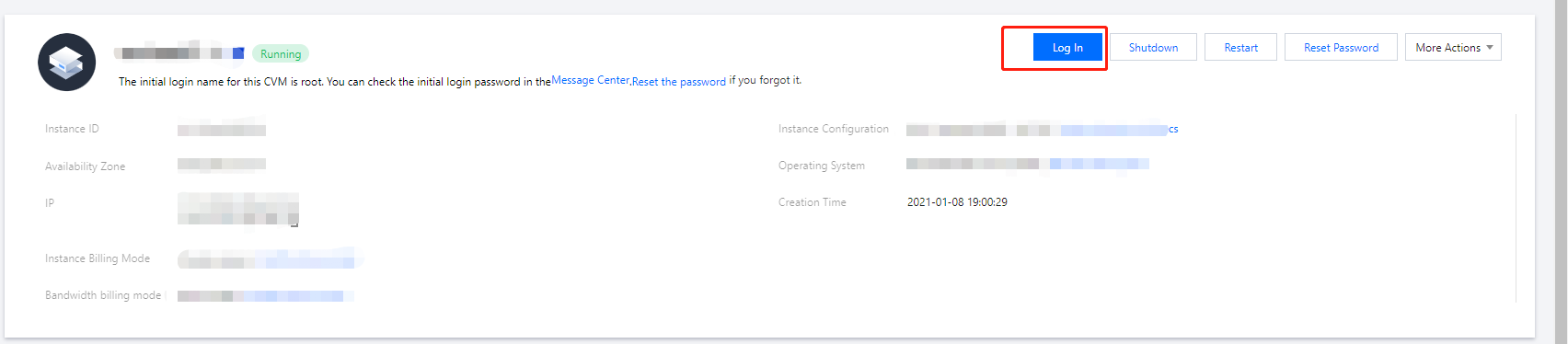

    Tab mode: select the tab of the Windows CVM instance you want to log in to and click Log In as shown below:


    3. In the Standard Login | Windows Instance window that is opened, select Download RDP File.
    Note:
    If you have changed the remote login port, append the IP address with :port in the RDP file.



    4. Double-Click the downloaded RDP file, enter the password, and click OK to remotely connect to your Windows CVM.
    If you use a system default password to log in to the instance, you can obtain the password at the Message Center.
    If you forgot your password, please reset the instance password.
    Note:
    We recommend you use rdesktop as the remote desktop client. For more information, see the official introduction to rdesktop.
    1. Run the following command to check whether rdesktop has been installed.
    rdesktop
    If yes, perform step 4.
    If no, you will be prompted with "command not found". In this case, perform step 2.
    2.
    Open a terminal
    window and run the following command to download rdesktop. This step uses rdesktop v1.8.3 as an example.
    wget https://github.com/rdesktop/rdesktop/releases/download/v1.8.3/rdesktop-1.8.3.tar.gz
    If you want to install the latest version, visit the rdesktop page on GitHub to find it. Then replace the path in the command with that of the latest version.
    3. In the directory where rdesktop will be installed, run the following commands to decompress and install rdesktop.
    tar xvzf rdesktop-<x.x.x>.tar.gz ## Replace x.x.x with the version number of the downloaded rdesktop.
    cd rdesktop-1.8.3
    ./configure
    make
    make install
    4.
    Run the following command to connect to the remote Windows instance.

    Note:
    Replace the parameters in the example with your own parameters.
    rdesktop -u Administrator -p <your-password> <hostname or IP address>
    Administrator refers to the admin account mentioned in the prerequisites section.
    <your-password> refers to the login password that you set. If you use a system default password to log in to the instance, you can obtain the password at the Message Center. If you forgot your password, please reset the instance password.
    <hostname or IP address> is the public IP or custom domain name of your Windows instance. For more information on how to get the public IP, please see Getting Public IP Addresses.
    Note:
    The following operations use Microsoft Remote Desktop for Mac as an example. Microsoft stopped providing a link to download the Remote Desktop client in 2017. Currently, its subsidiary HockeyApp is responsible for releasing the beta client. Go to Microsoft Remote Desktop Beta to download a Beta version.
    The following operations use a CVM on Windows Server 2012 R2 as an example.
    1. Download and install Microsoft Remote Desktop for Mac on your local computer.
    2. Start MRD and click Add Desktop, as shown below:


    3. In the Add PC pop-up window, follow the steps illustrated in the following image to establish a connection to your Windows CVM.


    3.1 In the PC name text file, enter the public IP address of your CVM instance. For more information on how to obtain the public IP address, see Getting Public IP Addresses.
    3.2 Click Add.
    3.3 Retain the default settings for the other options and establish the connection. Your entry has now been saved, as shown below:


    4. Double-click the new entry. Input your username and password for CVM and click Continue.
    5. If you use a system default password to log in to the instance, you can obtain the password at the Message Center.
    6. If you forgot your password, please reset the instance password.
    7. In the pop-up window, click Continue to establish the connection, as shown below:

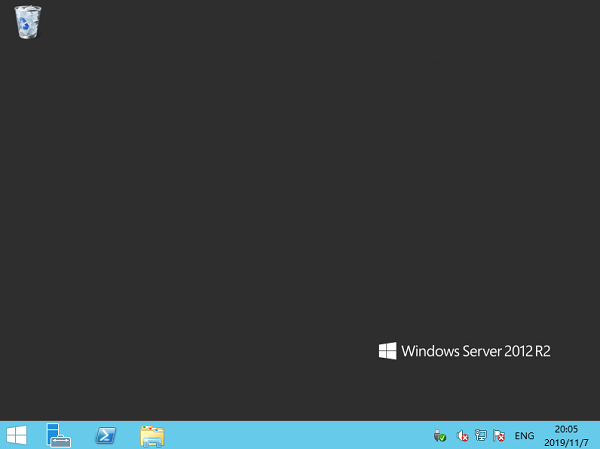

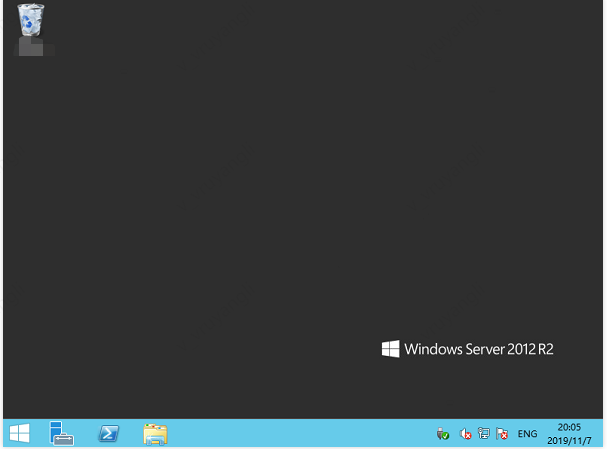

    If the connection is successful, the following page will appear:



    RDP Bandwidth Limit Description

    The available network bandwidth directly affects the experience of logging in to and using CVM instances over RDP, and different applications and display resolutions require different network configurations. Microsoft has laid down the minimum bandwidth requirements for instances when using RDP in different application scenarios. Please check out the following table to make sure that the network configuration of your instance can meet your business needs; otherwise, issues such as lag may occur.
    Note:
    To adjust the bandwidth of your instance, please see Adjusting Network Configuration.
    These numbers apply to a single monitor configuration with 1920x1080 resolution and with both default graphics mode and H.264/AVC 444 graphics mode.
    Scenario
    Default Mode
    H.264/AVC 444 Mode
    Description
    Idle
    0.3 Kbps
    0.3 Kbps
    User has paused their work, and there's no active screen updates.
    Microsoft Word
    100–150 Kbps
    200–300 Kbps
    User is actively working with Microsoft Word, typing, pasting graphics, and switching between documents.
    Microsoft Excel
    150–200 Kbps
    400–500 Kbps
    User is actively working with Microsoft Excel and updating multiple cells with formulas and charts simultaneously.
    Microsoft PowerPoint
    4–4.5 Mbps
    1.6–1.8 Mbps
    User is actively working with Microsoft PowerPoint, typing, and pasting. User is also modifying rich graphics and using slide transition effects.
    Web browsing
    6–6.5 Mbps
    0.9–1 Mbps
    User is actively working with a graphically rich website that contains multiple static and animated images. User scrolls the pages both horizontally and vertically.
    Image gallery
    3.3–3.6 Mbps
    0.7–0.8 Mbps
    User is actively working with the image gallery application, browsing, zooming, resizing, and rotating images.
    Video playback
    8.5–9.5 Mbps
    2.5–2.8 Mbps
    User is watching a 30 FPS video that consumes 1/2 of the screen.
    Fullscreen video playback
    7.5–8.5 Mbps
    2.5–3.1 Mbps
    User is watching a 30 FPS video that is maximized to a fullscreen.
