    Setting Hotlink Protection

    Last updated: 2024-01-06 14:59:34
    Download PDF

      Overview

      Tencent Cloud COS provides hotlink protection to help users avoid unnecessary losses caused by malicious programs' stealing public network traffic using resource URLs or stealing resources. We recommend that you configure the blocklist/allowlist in Hotlink Protection Settings on the console to ensure security protection.
      Note:
      If a signature is carried in the access URL or headers, hotlink protection−based verification will not be performed.
      When configuring hotlink protection, you can add your domain to the allowlist for the multipart upload request of large files.

      Directions

      1. Log in to the COS console. Click Bucket List on the left sidebar to open the Bucket List page.
      2. Locate the bucket for which you want to set hotlink protection, and click its name to enter the bucket management page.
      3. Click Security Management > Hotlink Protection, find the hotlink protection configuration item, and click Edit.

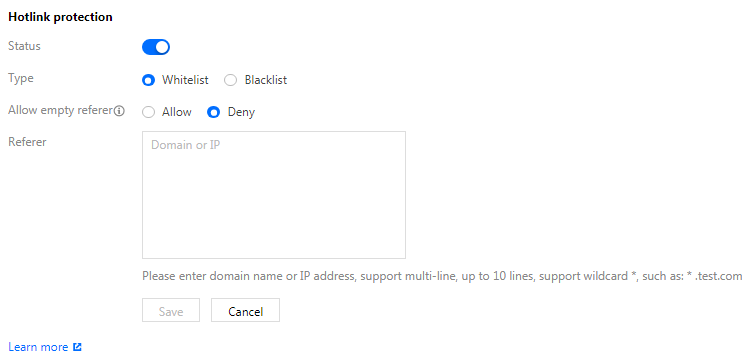

      4. Switch the status to Enable, select a list type (blocklist or allowlist), enter the applicable domain names, and then click Save. The configuration items are described as follows:

      Blocklist: domain names on this list are not allowed to access the default access address of the bucket. 403 is returned if any domain name on the list accesses such address.
      Allowlist: domain names on this list are allowed to access the default access address of the bucket. 403 is returned if any domain name not on the list accesses such address.
      Empty referer: For an HTTP request, the header referer can be left empty (i.e., the HTTP request header has no referer field or the referer field is empty).
      Referer: Enter up to 30 domain names or IP addresses (one per line). The wildcard * is supported, such as *.test.com. Examples are as follows:
      If www.example.com is specified, www.example.com/123, www.example.com.cn, and other addresses with the prefix of www.example.com will also be included in the list.
      Domain names and IPs with ports are supported, such as www.example.com:8080 and 10.10.10.10:8080.
      If *.example.com is specified, addresses such as a.b.example.com/123 and a.example.com are also included.
      Note:
      If accelerated access is implemented via a CDN endpoint domain name, CDN hotlink protection rules will be executed before COS hotlink protection rules.

      Example

      A user with the APPID of 1250000000 creates a bucket named examplebucket-1250000000 and places an image picture.jpg in the root directory. COS has generated the following default access address according to the rules:
      examplebucket-1250000000.file.myqcloud.com/picture.jpg
      User A owns a website:
      www.example.com
      and embeds the image into the homepage index.html.
      Webmaster B manages a website:
      www.fake.com
      and wants to put this image on www.fake.com. But he doesn't want to pay for traffic costs. He creates a direct link to picture.jpg through the following address and places it into the homepage index.html on www.fake.com.
      examplebucket-1250000000.file.myqcloud.com/picture.jpg
      In such cases, to avoid losses for User A, we provide the following two methods of enabling hotlink protection.

      Method 1

      Configure the blacklist by entering the domain name *.fake.com, and save.

      Method 2

      The allowlist method: Add *.example.com to the allowlist and save.
      The image is displayed normally when http://www.example.com/index.html is accessed. The image is also displayed normally when http://www.fake.com/index.html is accessed.
      The image is displayed normally when http://www.example.com/index.html is accessed. The image cannot be displayed when http://www.fake.com/index.html is accessed.

      Notes for Mini Program

      1. For network requests using Weixin Mini Programs, the referer value is fixed as https://servicewechat.com/{appid}/{version}/page-frame.html.
      2. If hotlink protection is enabled for your bucket, to allow Weixin Mini Programs to load COS images, add servicewechat.com to your hotlink allowlist in the COS console.
