Introduction
The variables of the rule engine allow you to dynamically extract and process data within request. These variables can not only store static values but also use for specific fields or information in the request, the value of which may change when processing each request. For example: the http.request.host variable, which can extract the hostname in each HTTP request. This capability enables the rule engine to handle more complex business logic.
Content
Name
Type
Description
Example
http.request.scheme
String
Client request protocol
http
https
http.request.zone
String
Site name
example.com
http.request.zoneid
String
Site ID
zone-2c2r77pc3796
http.request.host
String
Hostname in the client request URI
www.example.com
http.request.full_uri
String
Full URI of the client request (not including #fragment)
htt­ps://www.example.org/articles/index?section=539061&expand=comments
http.request.method
String
Client request HTTP method
GET
http.request.uri
String
Client request URI path and query string
/articles/index?section=539061&expand=comments
http.request.uri.path
String
Client request URI path
/articles/index
http.request.file_extension
String
File extension of the client request file
jpg
http.request.filename
String
Filename of the client request file
bot.txt
http.request.uri.query
String
The whole query string of the client request, not including the ? separator
section=539061&expand=comments
http.request.headers["key"]
String
The header value of the specified header name "key" in the client request, "key" can be replaced with your specified name
https://developer.mozilla.org
http.request.uri.args["key"]
String
The parameter value of the specified parameter name "key" in the client query string, "key" can be replaced with your specified name
value
http.request.version
String
The version of the HTTP protocol used in the client request
HTTP/1.0
HTTP/1.1
HTTP/2
HTTP/3
http.request.ip
String
Client TCP IP address, for example: 1.1.1.1
93.184.216.34
http.request.ip.port
String
Client Port
1028
http.request.ip.city
String
City associated with the client IP address
San Francisco
http.request.ip.continent
String
Continent code associated with the client IP address
AF: Africa
AS: Asia
EU: Europe
NA: North America
SA: South America
OC: Oceania
AN: Antarctica
http.request.ip.country
String
2-letter country code in ISO 3166-1 Alpha 2 format associated with the client IP address
GB, see more in ISO 3166-1 Alpha 2﻿
Use Case

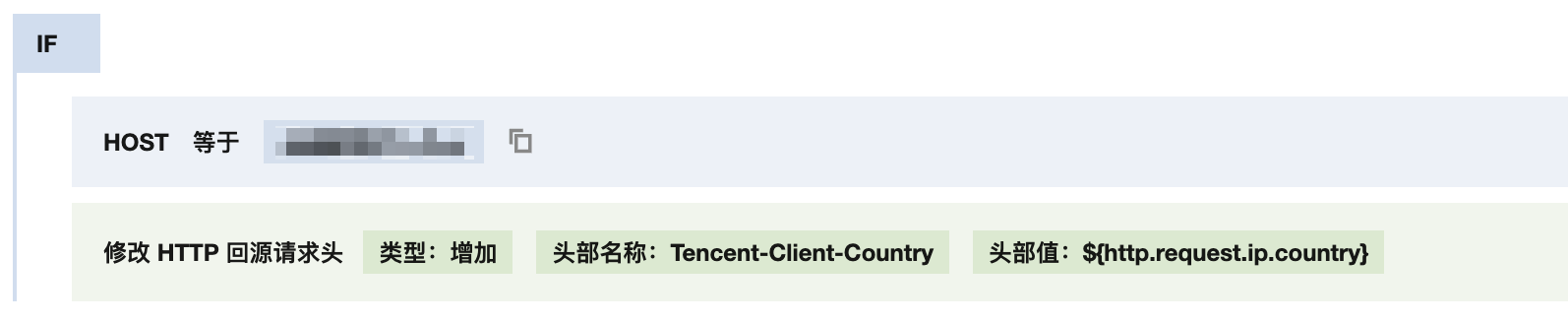

1. The custom origin-pull request header carries the information of the country where the client IP address is located back to the origin.
﻿
2. Custom origin-pull request headers allow the origin server to collect and analyze which domains have been accelerated by Tencent's EdgeOne.
﻿

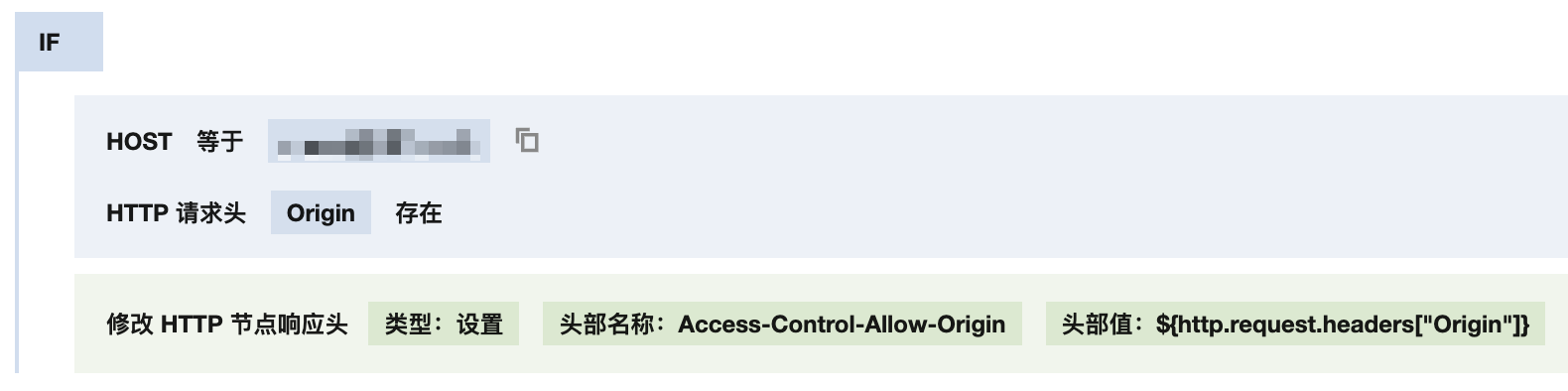

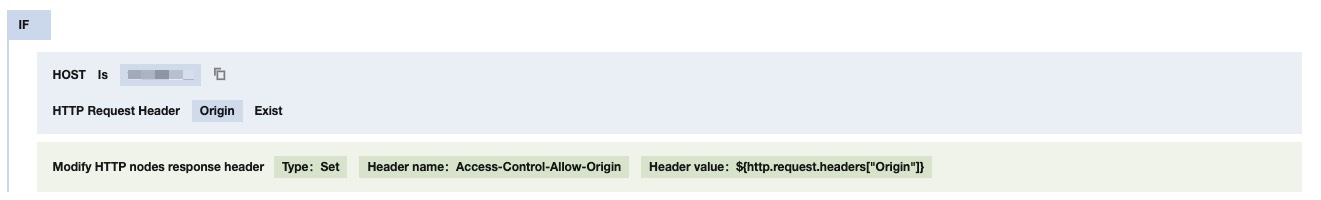

3. Custom Cross-Origin Request Policy: Allows cross-origin requests from domains specified in the Origin header of the request.
﻿
﻿
