Switching Database Proxy Network
Last updated: 2025-06-10 15:11:07
This document describes how to modify the database proxy network in the TDSQL-C for MySQL console.
Prerequisite
Notes
Switching the network will cause the database proxy IP address of the instance to change. The maximum retention time can be set to 168 hours, and after the set time has elapsed, the old access IP address will become invalid. Please update the client program promptly.
If Valid Hours of Old IP is set to 0 hours, the IP is released immediately after the network is changed.
You can select only a VPC in the region where the cluster of TDSQL-C for MySQL resides, but you can choose a subnet in any AZ and view its IP range.
Directions
Switching the network will cause the database proxy IP address of the instance to change. The maximum retention time can be set to 168 hours, and after the set time has elapsed, the old access IP address will become invalid. Please update the client program promptly.
1. Log in to the TDSQL-C for MySQL console, select the cluster with the proxy enabled in the cluster list, and click the cluster ID to enter the cluster management page.
2. In the topology diagram under Cluster Management > Cluster Details, hover the mouse pointer over the database proxy section and click Details to enter the database proxy management page. Alternatively, you can directly select the Database Proxy tab on the cluster management page to enter the database proxy management page.

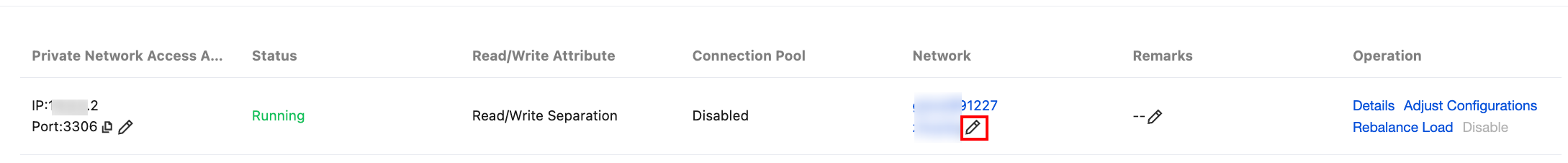

3. On the database proxy page, select Overview > Connection Address > Network and then click the edit icon.
4. In the pop-up dialog box, set the relevant configuration items and click OK.
Select Network: Select a VPC and subnet in the region and AZ where the cluster resides.
Valid Hours of Old IP: Its range is 0–168 hours and default value is 0 hours.
5. After successfully changing the network, you can view the new network under Connection Address.
