Integrating TUIRoom (Flutter)

Last updated: 2024-09-14 16:38:21
    You can download and install the demo app we provide to try out TRTC's group audio/video room features, including screen sharing, beauty filters, and low-latency conferencing.
    Note
    All TUIKit components are based on Tencent Cloud's TRTC and Chat. When you activate TRTC, Chat and the trial edition of the Chat SDK (which supports up to 100 DAUs) will also be activated automatically. For Chat billing details, see Pricing.


    Using the App’s UI



    Step 1. Create an application

    1. In the TRTC console, click Development Assistance > Demo Quick Run.
    2. Enter an application name such as TestMeetingRoom and click Create.
    3. Click Next.



    Note
    This feature relies on Tencent Cloud's TRTC and Chat services. When you activate TRTC, Chat will be activated automatically. For Chat billing details, see Pricing.

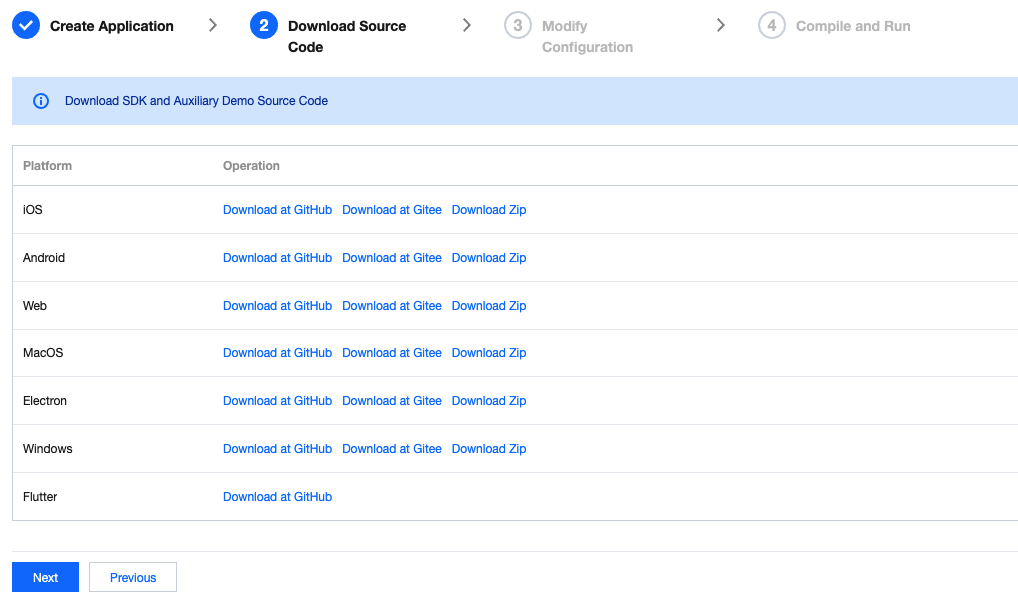

    Step 2. Download the application source code

    Clone or download the TRTCFlutterScenesDemo source code.


    Step 3. Configure the application file

    1. In the Modify Configuration step, select your platform.
    2. Find and open /lib/debug/GenerateTestUserSig.dart.
    3. Set parameters in GenerateTestUserSig.dart as follows.
    SDKAPPID: A placeholder by default. Set it to the actual `SDKAppID`.
    SECRETKEY: A placeholder by default. Set it to the actual secret key.


    4. Click Next to complete the creation.
    5. After compilation, click Return to Overview Page.
    Note
    In this document, the method to obtain UserSig is to configure the secret key in the client code. In this method, the secret key is vulnerable to decompilation and reverse engineering. Once your secret key is leaked, attackers can steal your Tencent Cloud traffic. Therefore, this method is only suitable for locally running a demo project and debugging.
    The best practice is to integrate the calculation code of UserSig into your server and provide an application-oriented API. When UserSig is needed, your application can send a request to your server for a dynamic UserSig. For more information, see How do I calculate UserSig during production?.


    Step 4. Compile and run the demo

    Caution
    An Android project must be run on a real device rather than a simulator.
    1. Run flutter pub get.
    2. Compile, run, and test the project.
    iOS
    Android
    1. Open \\ios project in the source code directory with Xcode (11.0 or above).
    2. Compile and run the demo project.
    1. Run flutter run.
    2. Open the demo project with Android Studio (3.5 or later), and click Run.


    Step 5. Modify the demo source code

    The TRTCMeetingDemo folder in the source code contains two subfolders: ui and model. The ui subfolder contains UI code. The table below lists the files (folders) and the UI views they represent. You can refer to it when making UI changes.
    File or Folder
    Description
    TRTCMeetingIndex.dart
    The view for meeting creation or join
    TRTCMeetingRoom.dart
    The main view for video conferencing
    TRTCMeetingMemberList.dart
    The view for the participant list
    TRTCMeetingSetting.dart
    The view for video conferencing parameter settings


    Customizing UI

    The TRTCMeetingDemo folder in the source code contains two subfolders: ui and model. The model subfolder contains the reusable open-source component TRTCMeeting. You can find the component's APIs in TRTCMeeting.dart and use them to customize your own UI.




    Step 1. Integrate the SDK

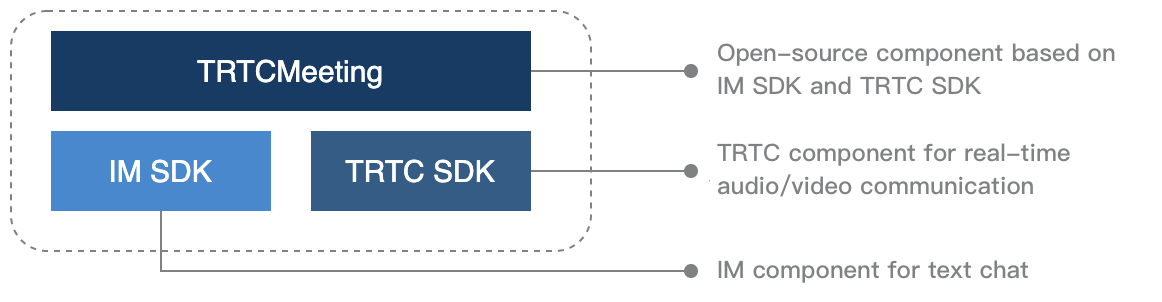

    The interactive live streaming component TRTCMeeting depends on the TRTC SDK and Chat SDK. You can configure pubspec.yaml to download their updates automatically.
    Add the following dependencies to pubspec.yaml of your project.
    dependencies:
    tencent_trtc_cloud: latest version number
    tencent_im_sdk_plugin: latest version number


    Step 2. Configure permission requests and obfuscation rules

    iOS
    Android
    Add request for mic permission in Info.plist:
    <key>NSMicrophoneUsageDescription</key>
    <string>Audio calls are possible only with mic access.</string>

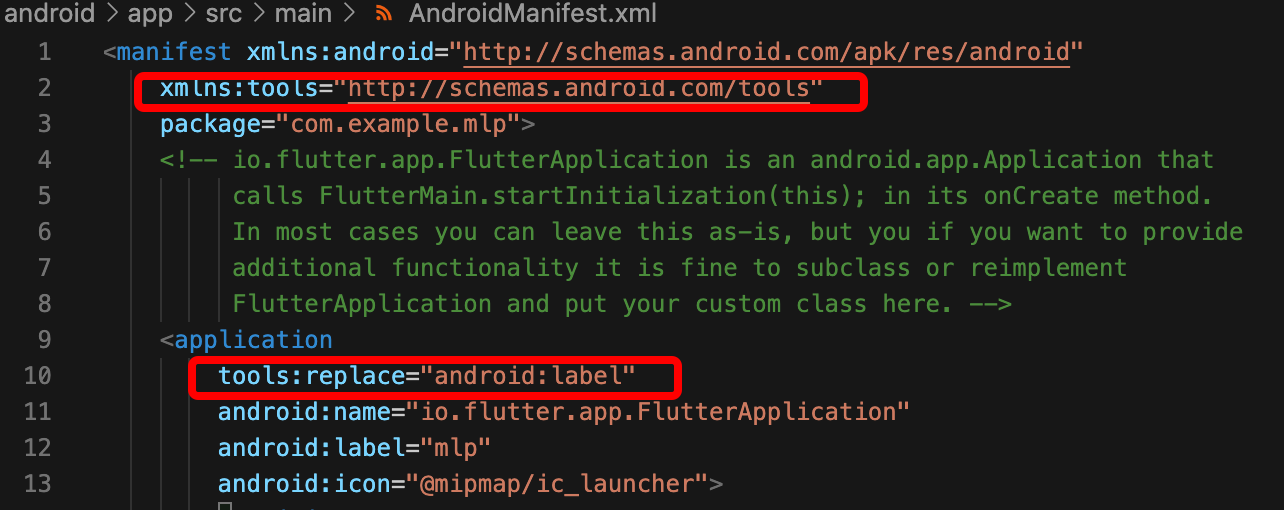

    1. Open /android/app/src/main/AndroidManifest.xml.
    2. Add xmlns:tools="http://schemas.android.com/tools" to manifest.
    3. Add tools:replace="android:label" to application.
    Note
    Without the above steps, the Android Manifest merge failed error will occur and the compilation will fail.

    Illustration




    Step 3. Import the TRTCMeeting component.

    Copy all the files in the directory below to your project:
    lib/TRTCMeetingDemo/model/


    Step 4. Create an instance and log in

    1. Call the sharedInstance API to create an instance of the TRTCMeeting component.
    2. Call the registerListener function to register event callbacks of the component.
    3. Call the login API to log in to the component, and set the key parameters as described below.
    Parameter
    Description
    SDKAppID
    You can view `SDKAppID` in the TRTC console.
    userId
    ID of the current user, which is a string that can contain letters (a-z and A-Z), digits (0-9), hyphens (-), and underscores (_). We recommend you set it based on your business account system.
    userSig
    Tencent Cloud's proprietary security signature. To obtain one, see UserSig.
    TRTCMeeting trtcMeeting = TRTCMeeting.sharedInstance();
    trtcMeeting.registerListener(onListener);
    ActionCallback res = await trtcMeeting.login(
    GenerateTestUserSig.sdkAppId,
    userId,
    GenerateTestUserSig.genTestSig(userId),
    );
    if (res.code == 0) {
    // Login succeeded
    }

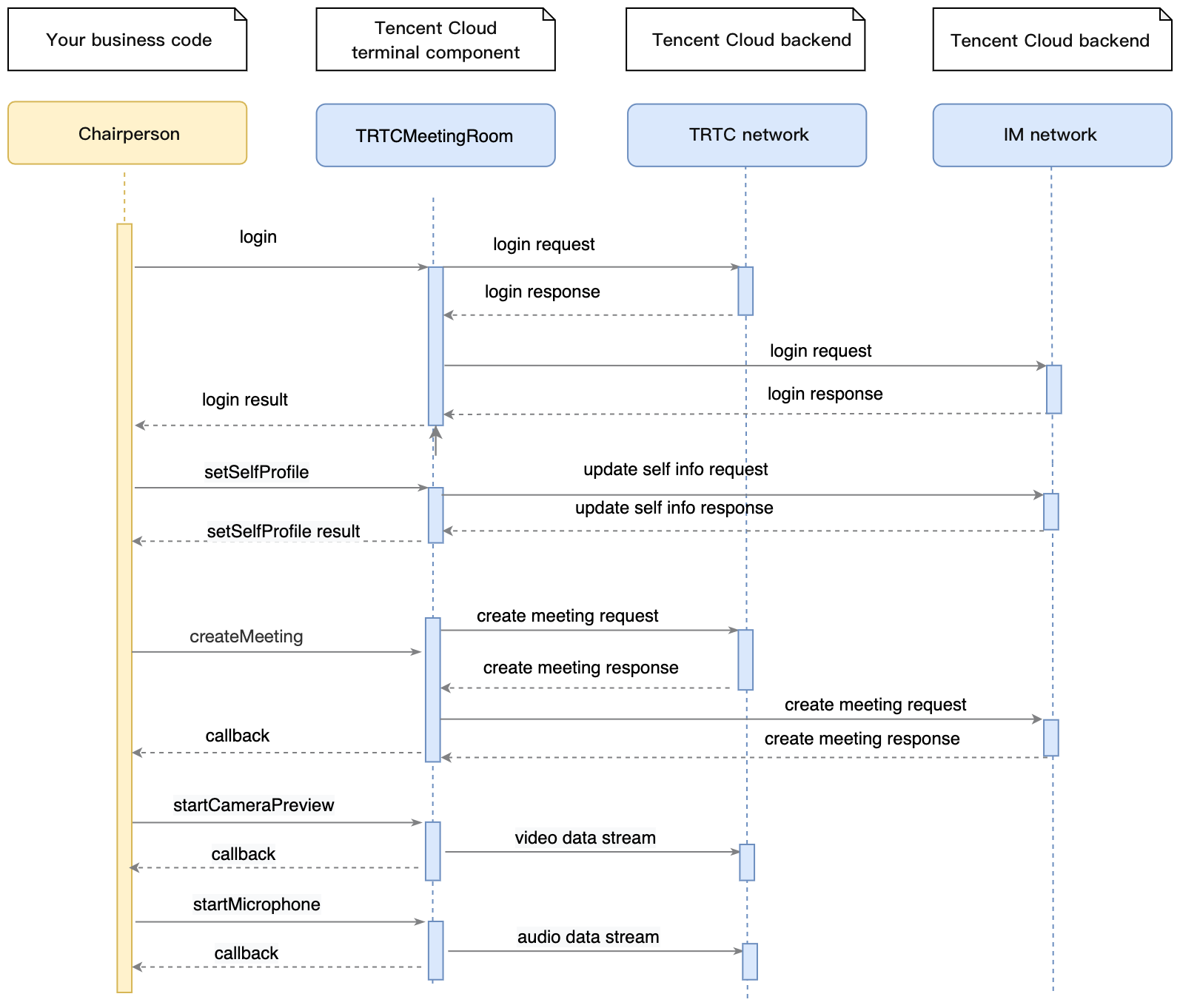

    Step 5. Create a conference room

    1. After performing step 4 to log in, call setSelfProfile to set your username and profile photo as a host.
    2. Call createMeeting to create a meeting room.
    3. Call startCameraPreview to capture video and startMicrophone to capture audio.
    4. To use beauty filters, you can add beauty filter buttons to the UI and set beauty filters through getBeautyManager.
    Note
    Only the Enterprise Edition SDK supports face changing and stickers.



    // 1. Set your username and profile photo as a host
    trtcMeeting.setSelfProfile('my_name', 'my_avatar');

    // 2. The host creates a meeting.
    ActionCallback res = await trtcMeeting.createMeeting(roomId);
    if (res.code == 0) {
    // Created the meeting successfully
    // 3. The host turns the camera on and enables audio capturing.
    trtcMeeting.startCameraPreview(true, TRTCCloudVideoViewId);
    trtcMeeting.startMicrophone();
    // 4. Set the beauty filter.
    trtcMeeting.getBeautyManager().setBeautyStyle(TRTCCloudDef.TRTC_BEAUTY_STYLE_PITU);
    trtcMeeting.getBeautyManager().setBeautyLevel(6);
    }

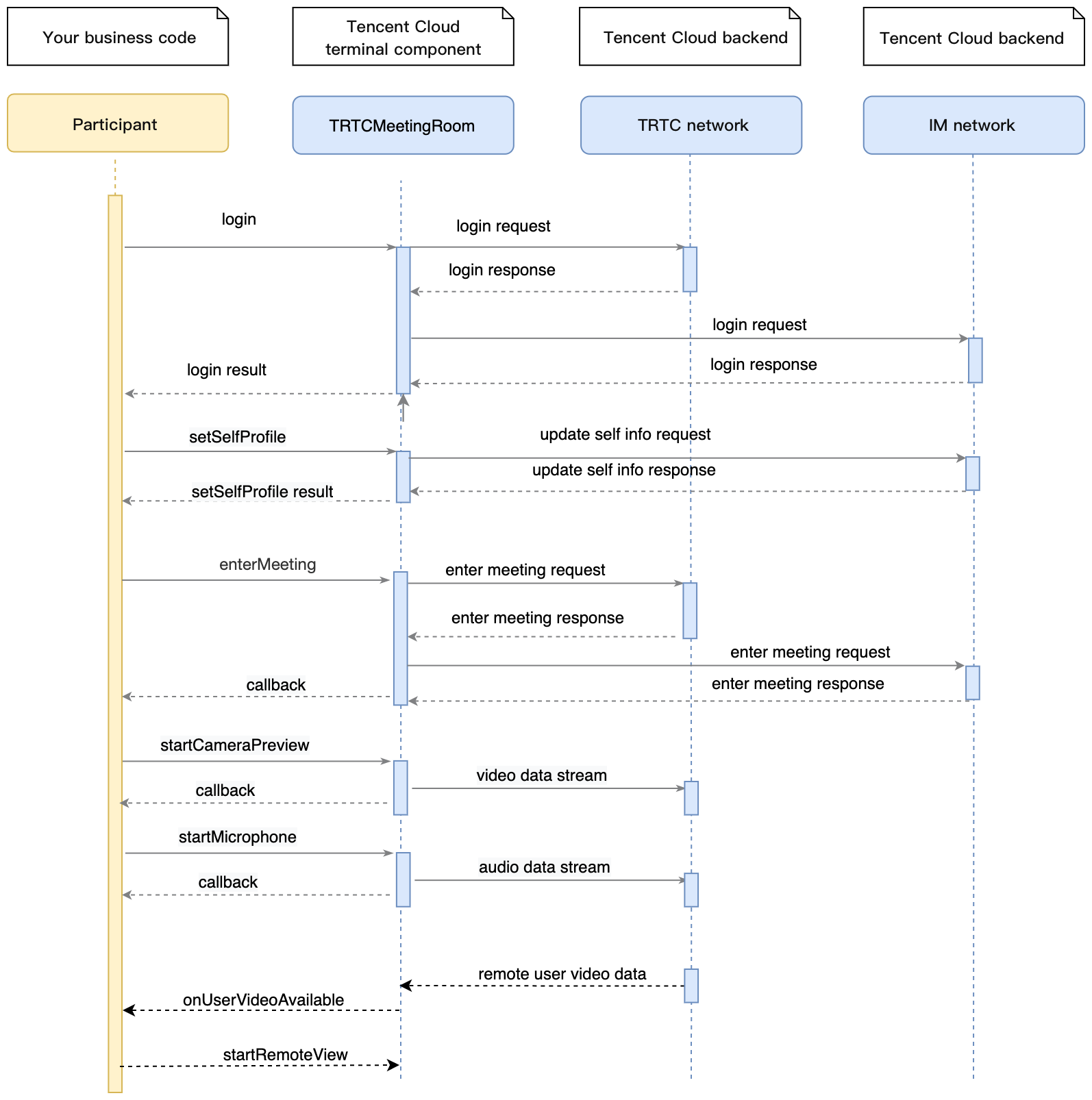

    Step 6. Join a conference as a participant

    1. After performing step 4 to log in, call setSelfProfile to set your username and profile photo as a participant.
    2. Call enterMeeting, passing in the conference room ID to enter the room.
    3. Call startCameraPreview to capture video and startMicrophone to capture audio.
    4. If another participant turns the camera on, you will receive the onUserVideoAvailable notification, and can call startRemoteView and pass in the userId to play the attendee’s video.



    // 1. Set your username and profile photo as a participant.
    trtcMeeting.setSelfProfile('my_name', 'my_avatar');

    // 2. Call `enterMeeting` to enter the meeting room.
    ActionCallback res = await trtcMeeting.enterMeeting(roomId);
    if (res.code == 0) {
    // Joined the meeting successfully
    // 3. The host turns the camera on and enables audio capturing.
    trtcMeeting.startCameraPreview(true, TRTCCloudVideoViewId);
    trtcMeeting.startMicrophone();
    // 4. Set the beauty filter.
    trtcMeeting.getBeautyManager().setBeautyStyle(TRTCCloudDef.TRTC_BEAUTY_STYLE_PITU);
    trtcMeeting.getBeautyManager().setBeautyLevel(6);
    }

    // 5. Receive the notification that another member enabled the camera and start playback.
    trtcMeeting.registerListener(onListener);
    onListener(TRTCMeetingDelegate type, param) {
    switch (type) {
    case TRTCMeetingDelegate.onUserVideoAvailable:
    if (param['available']) {
    trtcMeeting.startCameraPreview(
    param['userId'],
    TRTCCloudDef.TRTC_VIDEO_STREAM_TYPE_BIG,
    TRTCCloudVideoViewId
    );
    } else {
    trtcMeeting.stopRemoteView(
    param['userId'],
    TRTCCloudDef.TRTC_VIDEO_STREAM_TYPE_BIG
    );
    }
    break;
    }
    }



    Step 7. Share the screen

    1. The screen sharing feature requires the floating window permission, so you need to include the permission requesting logic in your UI.
    2. Call startScreenCapture and pass in encoding parameters and the floating window during screen recording to start screen sharing. For more information, see TRTC SDK.
    3. Other members in the room will receive the onUserVideoAvailable event notification.
    Note
    Screen sharing and camera capturing are mutually exclusive. Before enabling screen sharing, you need to call stopCameraPreview to disable camera capturing. For more information, please see TRTC SDK.
    await trtcMeeting.stopCameraPreview();
    trtcMeeting.startScreenCapture(
    videoFps: 10,
    videoBitrate: 1600,
    videoResolution: TRTCCloudDef.TRTC_VIDEO_RESOLUTION_1280_720,
    videoResolutionMode: TRTCCloudDef.TRTC_VIDEO_RESOLUTION_MODE_PORTRAIT,
    appGroup: iosAppGroup,
    );



    Step 8. Implement text chat and muting notifications

    Call sendRoomTextMsg to send text messages. All participants in the meeting will receive the onRecvRoomTextMsg callback. Chat has its default content moderation rules. Text chat messages that contain restricted terms will not be forwarded by the cloud.
    // Sender: Sends text chat messages
    trtcMeeting.sendRoomTextMsg('Hello Word!');
    // Receiver: Listens for text chat messages
    trtcMeeting.registerListener(onListener);
    onListener(TRTCMeetingDelegate type, param) {
    switch (type) {
    case TRTCMeetingDelegate.onRecvRoomTextMsg:
    print('Received a message from' + param['userName'] + ':' + param['message']);
    break;
    }
    }

    Call sendRoomCustomMsg to send custom (signaling) messages, and all participants in the meeting will receive the onRecvRoomCustomMsg callback. Custom messages are often used to transfer custom signals, such as muting notifications and notifications about other meeting controls.
    // Sender: Customize CMD to distinguish a muting notification
    // For example, use "CMD_MUTE_AUDIO" to indicate muting notifications
    trtcMeeting.sendRoomCustomMsg('CMD_MUTE_AUDIO', '1');
    // Receiver: Listens for custom messages
    trtcMeeting.registerListener(onListener);
    onListener(TRTCMeetingDelegate type, param) {
    switch (type) {
    case TRTCMeetingDelegate.onRecvRoomCustomMsg:
    if (param['command'] == 'CMD_MUTE_AUDIO') {
    // Receive a muting notification.
    print('Received a muting notification from' + param['userName'] + ':' + param['message']);
    trtcMeeting.muteLocalAudio(message == '1');
    }
    break;
    }
    }
