    1.1 Implementation process

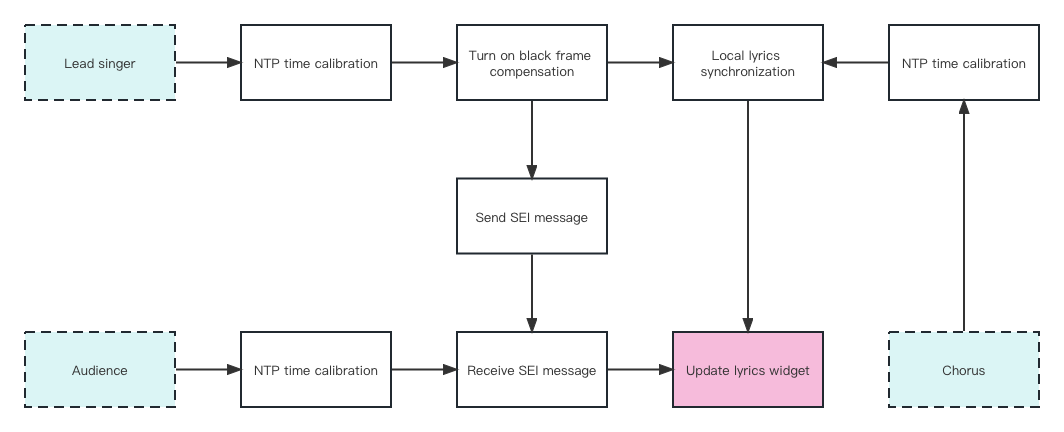

    In the lyrics synchronization solution, the actions of the three different roles are as follows:
    Main Singer
    Chorus
    Audience
    NTP time calibration
    Enable black frame insertion
    Send SEI messages
    Local lyrics synchronization
    Update lyrics control
    NTP time calibration
    Local lyrics synchronization
    Update lyrics control
    NTP time calibration
    Receive SEI messages
    Update lyrics control
    Among them, the main singer and chorus update the lyrics progress locally based on the synchronized song playback progress; the audience end needs to receive SEI messages containing the latest lyrics progress sent by the main singer end to update the local lyrics progress.

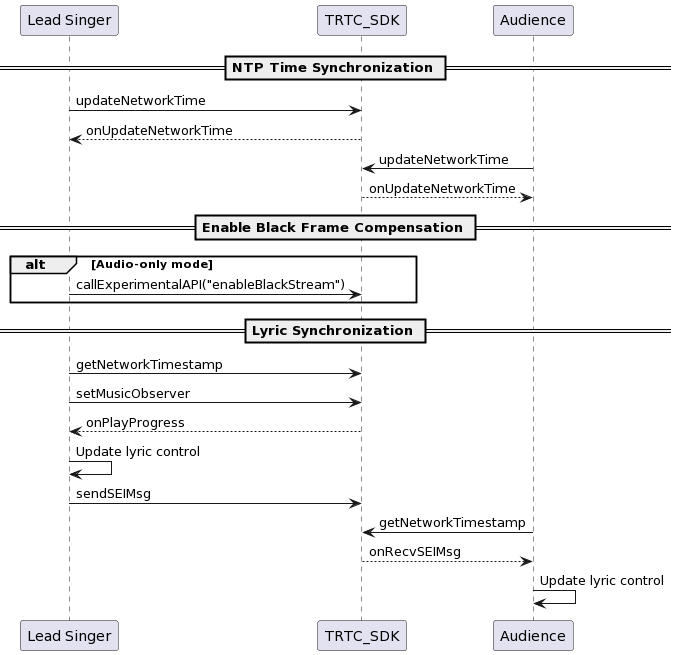

    Timing diagram






    The synchronization of lyrics timing can mainly be divided into three parts: NTP time synchronization, enabling black frame compensation, and local and remote lyrics synchronization. The code implementation of NTP time synchronization has been provided in the Song Synchronization document. The following will provide specific code implementation for the latter two parts.

    Key code implementation

    1. Enable Black Frame Insertion

    // In pure audio mode, the main instance (vocal instance)
    // needs to enable black frame padding to carry SEI messages.
    NSDictionary *jsonDic = @{
    @"api": @"enableBlackStream",
    @"params":
    @{
    @"enable": @(1)
    }
    };
    NSData *jsonData = [NSJSONSerialization dataWithJSONObject:jsonDic options:NSJSONWritingPrettyPrinted error:nil];
    NSString *jsonString = [[NSString alloc] initWithData:jsonData encoding:NSUTF8StringEncoding];
    [trtcCloud callExperimentalAPI:jsonString];
    Note:
    The experimental interface enableBlackStream needs to be called after entering the room;
    On Android, the value type of the enable parameter is Boolean, and on iOS it is Integer;
    The receiving end needs to call startRemoteView(userId, null) after receiving onUserVideoAvailable(userId, true).

    2. Sending Song Progress through SEI Message

    TXAudioMusicProgressBlock progressBlock = ^(NSInteger progressMs, NSInteger durationMs) {
    // current ntp time
    NSInteger ntpTime = [TXLiveBase getNetworkTimestamp];
    // Notify the song progress, users will scroll the lyrics here.
    NSDictionary *progressMsg = @{
    @"bgmProgressTime":@(progressMs),
    @"ntpTime":@(ntpTime),
    @"musicId": @(musicId),
    @"duration": @(durationMs),
    };
    NSData *jsonData = [NSJSONSerialization dataWithJSONObject:progressMsg options:NSJSONWritingPrettyPrinted error:nil];
    NSString *jsonString = [[NSString alloc] initWithData:jsonData encoding:NSUTF8StringEncoding];
    [trtcCloud sendSEIMsg:[jsonString dataUsingEncoding:NSUTF8StringEncoding] repeatCount:1];
    };
    Note:
    The frequency at which the lead singer sends SEI messages is determined by the frequency of background music playback event callbacks, which is usually 200ms;
    The reason for not directly using CMD messages to send song progress is that the signaling transmitted through the SEI channel can be transmitted with the video frame to the live CDN, which has better compatibility for viewers who pull the CDN stream.

    3. Synchronization of Local and Remote Lyrics

    // local lyrics synchronization
    TXAudioMusicProgressBlock progressBlock = ^(NSInteger progressMs, NSInteger durationMs) {
    ...
    // TODO Update the logic of the lyrics control.
    // Determine whether it is necessary to seek the lyrics control
    // based on the latest progress and the error of the local lyrics progress.
    ...
    };

    // remote lyrics synchronization.
    - (void)onRecvSEIMsg:(NSString *)userId message:(NSData *)message {
    NSError *err = nil;
    NSDictionary *dic = [NSJSONSerialization JSONObjectWithData:message options:NSJSONReadingMutableContainers error:&err];
    if (err || ![dic isKindOfClass:[NSDictionary class]]) {
    // Parsing error.
    return;
    }
    NSInteger bgmProgressTime = [[dic objectForKey:@"bgmProgressTime"] integerValue];
    NSInteger ntpTime = [[dic objectForKey:@"ntpTime"] integerValue];
    int32_t musicId = [[dic objectForKey:@"musicId"] intValue];
    NSInteger duration = [[dic objectForKey:@"duration"] integerValue];
    ...
    // TODO Update the logic of the lyrics control.
    // Determine whether it is necessary to seek the lyrics control
    // based on the received latest progress and the error of the local lyrics progress.
    ...
    }
    Note
    If reusing the TUIKaraoke component's lyric control, please refer to the code logic in the TUIKaraoke TRTCLyricView section to synchronize the progress of the lyric control.
