Electron

Last updated: 2024-07-29 15:34:04
    This document will guide you on how to quickly integrate the desktop TUILiveKit component into your project, thereby providing your application with live streaming capabilities.

    Environmental Preparation

    Operating System: Windows 10 or 11.
    Node.js version ≥ 16.19.1 (Recommended to use the official LTS version, and the npm version should match the node version).

    Step 1: Activate the service

    Before using the Audio and Video Services provided by Tencent Cloud, you need to go to the Console and activate the service for your application. For detailed steps, refer to Activate the service.

    Step 2: Download TUILiveKit source code

    Get open source code from Github, or you can clone the code with the git command as below:
    git clone https://github.com/Tencent-RTC/ultra-live-electron.git

    Step 3: Integrate TUILiveKit

    When TUILiveKit runs on the desktop, two Electron browser windows need to be created to accommodate the main page view and settings page view, respectively. We call these two windows the TUILiveKit main window and sub-window, respectively. After integrating TUILiveKit into your existing application, you can send a message to Electron main process, for exapme by cilcking a button, to open TUILiveKit main window. Then you can explore all features of TUILiveKit.

    Prerequirement

    Your existing code project need to include the following technology support:
    Vue3
    Webpack
    TypeScript
    Electron
    Note:
    If you do not have a project that meets the integration prerequirement, you can refer to the common questionsat the bottom of the document for guidance.

    Install dependencies

    npm install --save pinia
    npm install --save trtc-electron-sdk@11.8.603-alpha.0 # Must use this version
    npm install --save @tencentcloud/tuiroom-engine-electron@2.4.0-alpha.2 # TUILiveKit Engine
    npm install --save trtc-electron-plugin-xmagic@latest # TUILiveKit beauty plugin
    npm install --save-dev native-ext-loader electron-devtools-installer electron-builder

    Copy TUILiveKit soure code to your project

    1. Copy TUILiveKit components
    Copy directory ultra-live-electron/src/TUILiveKit into src directory of your project.
    2. Copy TUILiveKit windows creation code
    Copy ultra-live-electron/TUILiveKit.main.js and ultra-live-electron/TUILiveKit.preload.js files into root directory of your project.
    3. Copy TUILiveKit main window and sub-window pages and their router configuration
    Copy ultra-live-electron/src/views/TUILiveKitChild.vue and ultra-live-electron/src/views/TUILiveKitMain.vue files into src/views directory of you project。
    Add the following pages routing configuration in src/router/index.ts file of your project:
    // src/router/index.ts
    import { createRouter, createWebHashHistory, RouteRecordRaw } from 'vue-router';
    import HomeView from '../views/HomeView.vue';

    const routes: Array<RouteRecordRaw> = [
    { // Default page of your application, contains a button to trigger the openning of TUILiveKit main window
    path: '/',
    name: 'home',
    component: HomeView
    },
    // ********************************** TUILiveKit required code start ********************************** //
    { // TUILiveKit main window page
    path: '/tui-live-kit-main',
    name: 'tui-live-kit-main',
    component: () => import(/* webpackChunkName: "TUILiveKitMain" */ '../views/TUILiveKitMain.vue')
    },
    { // TUILiveKit sub-window page
    path: '/tui-live-kit-child',
    name: 'tui-live-kit-child',
    component: () => import(/* webpackChunkName: "TUILiveKitChild" */ '../views/TUILiveKitChild.vue'),
    },
    // ********************************** TUILiveKit required code end ********************************** //
    ];

    // ********************************** TUILiveKit required code start ********************************** //
    window.ipcRenderer.on('window-type', (event: any, type: string) => {
    console.log(`[router] window type:${type}`);
    console.log(`[router] current href:${window.location.href}`);
    router.replace({ name: `tui-live-kit-${type}`});
    });
    // ********************************** TUILiveKit required code end ********************************** //

    const router = createRouter({
    history: createWebHashHistory(),
    routes
    });

    export default router;
    4. Copy beauty-related code, resources, and configurations.
    Copy ultra-live-electron/public/assets directory and ultra-live-electron/public/avatar.png file into the public directory of your project.
    Copy ultra-live-electron/scripts/prestart.js file into the scripts directory of your project, and add the following command in the scripts section of the package.json file of your project.
    {
    "scripts": {
    "prestart": "node ./scripts/prestart.js"
    }
    }
    Here we do not enable the humain beauty function right now. The above configuration, code, and resource copied can ensure the project runs without errors. For how to enable the beauty function, see How to Enable the Beauty Function.
    5. Modify vue.config.js
    Add the following configuration in the vue.config.js file of your project:
    // vue.config.js
    const { defineConfig } = require('@vue/cli-service')
    // *********************************** TUILiveKit required code start *********************************** //
    const os = require("os");
    const isProduction = process.env.NODE_ENV === "production";
    const platform = os.platform();
    // *********************************** TUILiveKit required code end *********************************** //

    module.exports = defineConfig({
    transpileDependencies: true,
    // *********************************** TUILiveKit required code start *********************************** //
    publicPath: "./",
    configureWebpack: {
    devtool: isProduction ? "source-map" : "inline-source-map",
    target: "electron-renderer",
    module: {
    rules: [
    {
    test: /\\.node$/,
    loader: "native-ext-loader",
    options: {
    rewritePath: isProduction
    ? platform === "win32"
    ? "./resources"
    : "../Resources"
    : "./node_modules/trtc-electron-sdk/build/Release",
    },
    },
    ],
    },
    }
    // *********************************** TUILiveKit required code end *********************************** //
    });

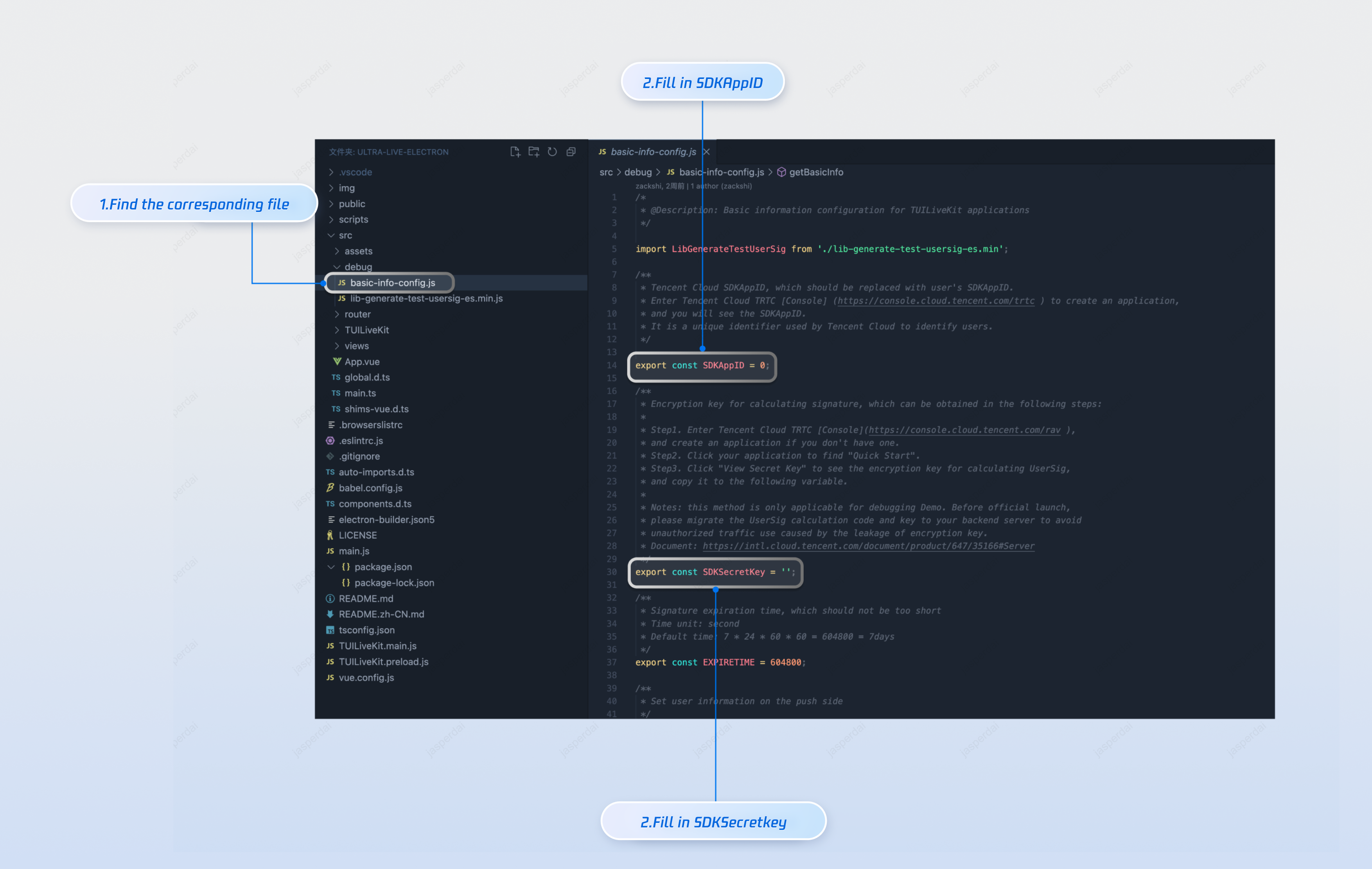

    6. Copy src/debug directory and configure SDKAppID and SDKSecretKey .
    Copy ultra-live-electron/src/debug directory into the src directory of your project, open the copied file basic-info-config.js to enter the SDKAppID and SDKSecretKey obtained from Step 1: Activate the service .
    // basic-info-config.js
    /**
    * Tencent Cloud SDKAppID, which should be replaced with user's SDKAppID.
    * Enter Tencent Cloud TRTC [Console] (https://console.tencentcloud.com/trtc ) to create an application,
    * and you will see the SDKAppID.
    * It is a unique identifier used by Tencent Cloud to identify users.
    */
    export const SDKAppID = 0;


    /**
    * Encryption key for calculating signature, which can be obtained in the following steps:
    *
    * Step1. Enter Tencent Cloud TRTC [Console](https://console.tencentcloud.com/rav ),
    * and create an application if you don't have one.
    * Step2. Click your application to find "Quick Start".
    * Step3. Click "View Secret Key" to see the encryption key for calculating UserSig,
    * and copy it to the following variable.
    *
    * Notes: this method is only applicable for debugging Demo. Before official launch,
    * please migrate the UserSig calculation code and key to your backend server to avoid
    * unauthorized traffic use caused by the leakage of encryption key.
    * Document: https://www.tencentcloud.com/document/product/647/35166#Server
    */
    export const SDKSecretKey = '';
    7. Enable pinia
    Open the src/main.ts file in your project, add the following configuration to enable pinia:
    // main.ts
    import { createApp } from 'vue';
    // *********************************** TUILiveKit required code start *********************************** //
    import { createPinia } from 'pinia';
    // *********************************** TUILiveKit required code end *********************************** //
    import App from './App.vue'
    import router from './router'

    createApp(App)
    // *********************************** TUILiveKit required code start *********************************** //
    .use(createPinia())
    // *********************************** TUILiveKit required code end *********************************** //
    .use(router)
    .mount('#app');
    8. Modify global.d.ts
    Add the following configuration in your project src/global.d.ts file. Need to declare several properties on the global Window type:
    // src/global.d.ts
    export {}
    declare global {
    interface Window {
    // *********************************** TUILiveKit required code start *********************************** //
    ipcRenderer: any;
    nativeWindowHandle: Uint8Array;
    mainWindowPort: MessagePort | null;
    }
    // *********************************** TUILiveKit required code end *********************************** //
    }

    Add an entry to open the TUILiveKit main window

    Vue Component
    Electron preload script
    Eletron main process
    package.json
    In a page view of your vue project, add a button. When clicked, it will notify the Electron main process to open the TUILiveKit main window. As shown below, this is our implementation example code.
    // HomeView.vue
    <template>
    <div class="home">
    <button @click="openTUILiveKit">Open TUILiveKit</button>
    </div>
    </template>

    <script setup lang="ts">
    import { ref } from 'vue';
    import type { Ref } from 'vue';
    import { getBasicInfo } from '../debug/basic-info-config';

    const isOpen:Ref<boolean> = ref(false);

    const openTUILiveKit = async () => {
    if (!isOpen.value) {
    const currentUserInfo = await getBasicInfo();
    if (currentUserInfo) {
    window.ipcRenderer.send('openTUILiveKit', {
    userInfo: currentUserInfo // Note: User information is required to open TUILiveKit main window
    });
    isOpen.value = true;
    } else {
    console.error('Error: cannot get current user info');
    }
    }
    };
    </script>
    To facilitate communication with the Electron main process in Vue components and JavaScript/TypeScript scripts, put the ipcRenderer object of Electron onto the global object window in the preload script of your Electron project.
    // preload.js
    const { ipcRenderer } = require("electron");

    // Enable `ipcRenderer` can be used in vue and Javascript module
    window.ipcRenderer = ipcRenderer;
    When received openTUILiveKit message from Vue component, the Electron main process will open the TUILiveKit main window.
    // main.js
    const { app, BrowserWindow, ipcMain } = require('electron');
    const path = require('path');
    // *********************************** TUILiveKit required code start *********************************** //
    const { TUILiveKitMain } = require("./TUILiveKit.main");
    // *********************************** TUILiveKit required code end *********************************** //

    let mainWindow = null;
    const createWindow = () => {
    mainWindow = new BrowserWindow({
    width: 800,
    height: 600,
    // *********************************** TUILiveKit required code start *********************************** //
    webPreferences: {
    preload: path.join(__dirname, 'preload.js'),
    nodeIntegration: true,
    contextIsolation: false,
    }
    // *********************************** TUILiveKit required code end *********************************** //
    });

    // *********************************** TUILiveKit required code start *********************************** //
    bindIPCMainEvent();
    // *********************************** TUILiveKit required code end *********************************** //
    if (app.isPackaged) {
    mainWindow.loadFile("dist/index.html");
    } else {
    mainWindow.loadURL('http://localhost:8080');
    }
    }

    // *********************************** TUILiveKit required code start *********************************** //
    function bindIPCMainEvent() {
    ipcMain.on("openTUILiveKit", (event, args) => {
    console.log(`[main] open live kit`, args);
    TUILiveKitMain.open(args); // Open TUILiveKit main window
    });
    }
    // *********************************** TUILiveKit required code end *********************************** //
    app.whenReady().then(() => {
    createWindow();
    app.on('activate', () => {
    if (BrowserWindow.getAllWindows().length === 0) createWindow()
    });
    })

    app.on('window-all-closed', () => {
    if (process.platform !== 'darwin') app.quit()
    });
    Add the following command in "scripts" of your project package.json file to enable the starting of Electron applicaiton in development mode.
    {
    "scripts": {
    "start": "electron ."
    }
    }

    Step 4: Run in development mode

    1. Enter the root diectory of your project with cmd.exe and execute the following command to start the vue web project.
    npm run serve
    If you encounter an error Component name "Index" should always be multi-word vue/multi-word-component-names at startup, it indicates that there is a difference in eslint configuration between your project and TUILiveKit. Add the following "vue/multi-word-component-names" validation rule in your project's .eslintrc.js file or eslintConfig section of the package.json file.
    // .eslintrc.js
    module.exports = {
    root: true,
    env: {
    node: true
    },
    'extends': [
    'plugin:vue/vue3-essential',
    'eslint:recommended',
    '@vue/typescript/recommended'
    ],
    parserOptions: {
    ecmaVersion: 2020
    },
    rules: {
    'no-console': process.env.NODE_ENV === 'production' ? 'warn' : 'off',
    'no-debugger': process.env.NODE_ENV === 'production' ? 'warn' : 'off',
    // *********************************** TUILiveKit required code start *********************************** //
    "vue/multi-word-component-names": process.env.NODE_ENV === 'production' ? 'warn' : 'off',
    // *********************************** TUILiveKit required code end *********************************** //
    }
    }
    2. Enter the root directory of your project with another cmd.exe and execute the following command to start Electron applicaiton in development mode:
    npm run start

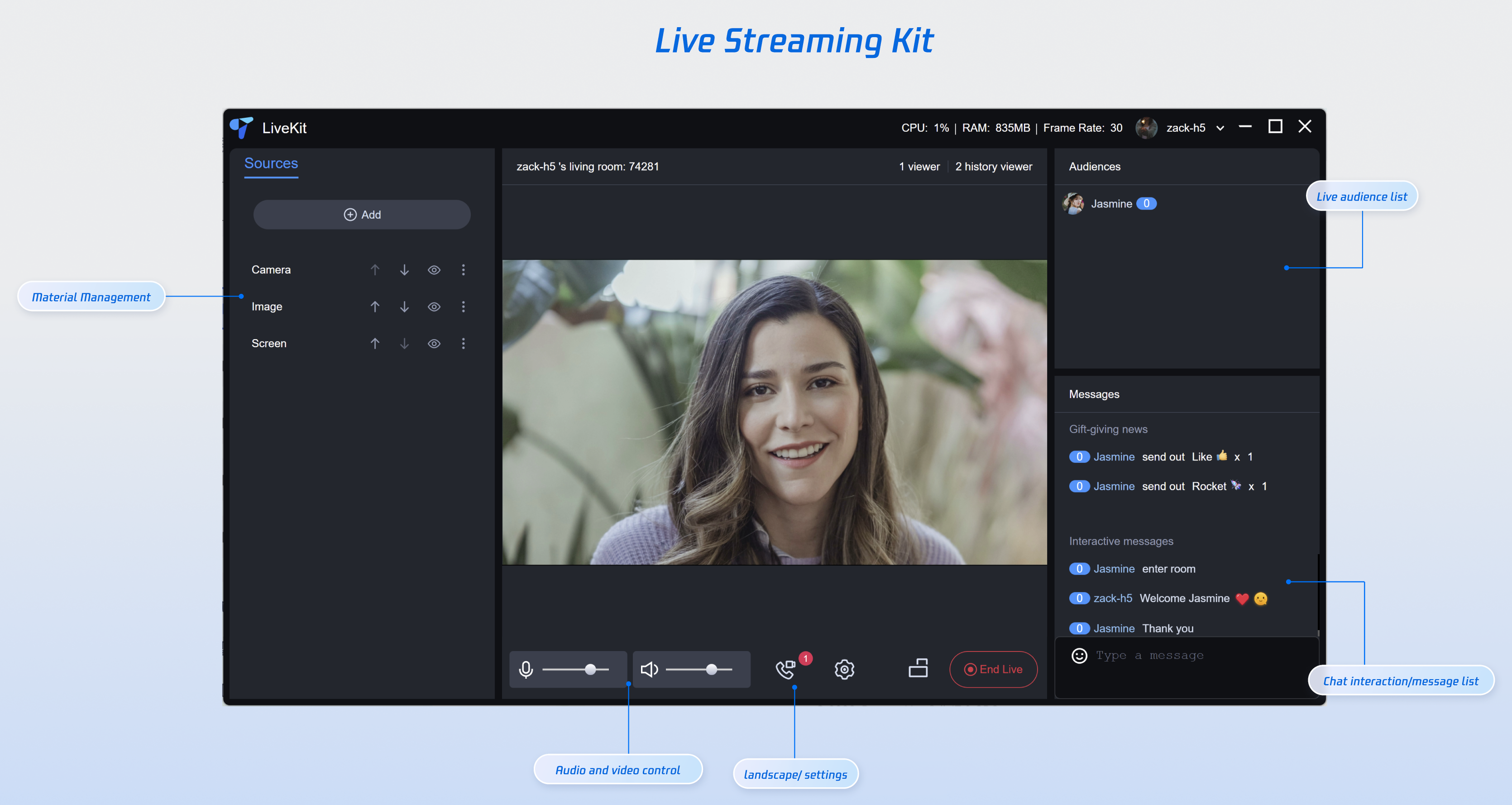

    After successfully started, Click the "Open TUILiveKit" button to open TUILiveKit main window which is showing as below:

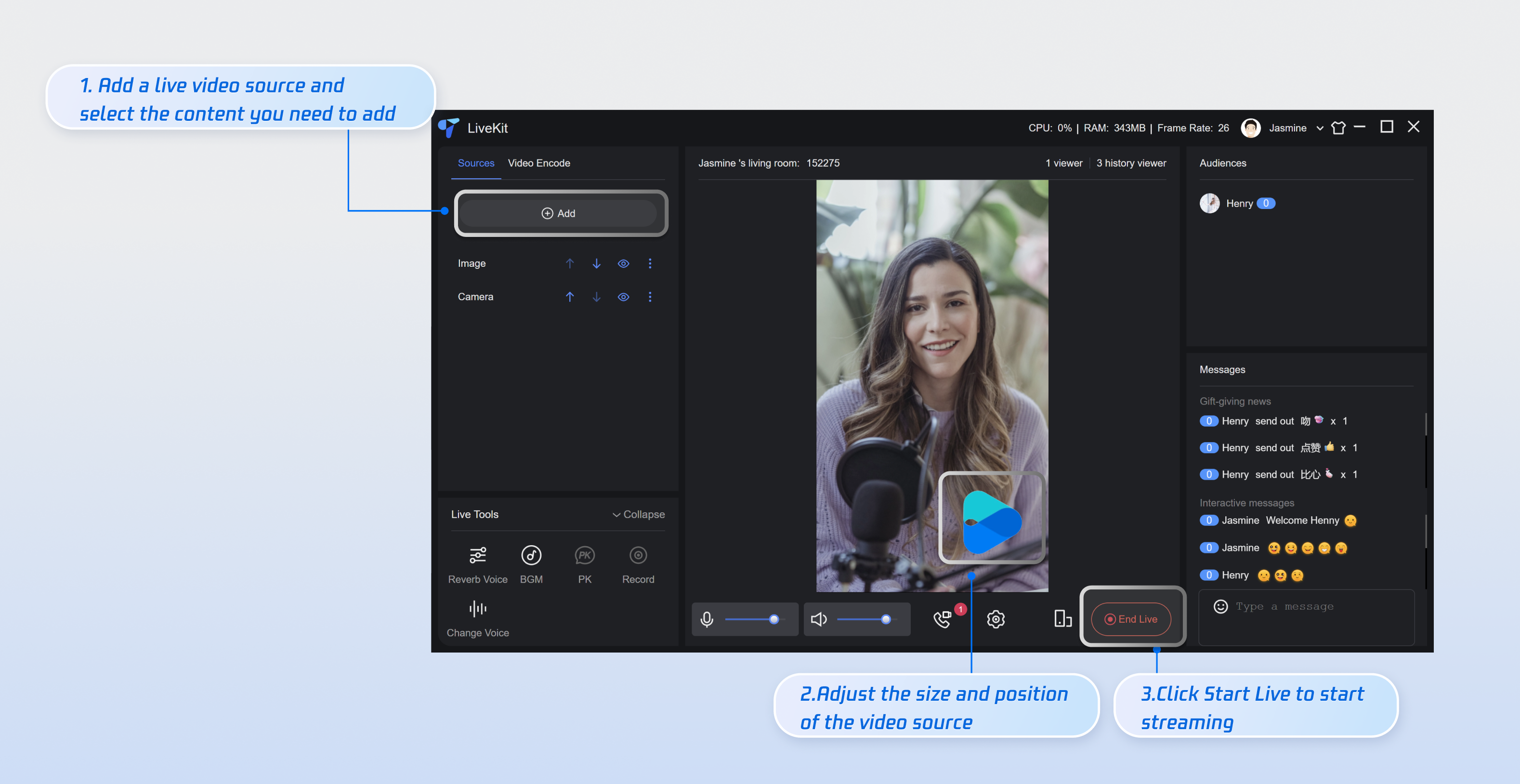

    Step 5: Start your first live broadcast

    1. Add a camera
    Firstly, you should add some multimedia source before start live broadcast. Multimedia sources supported include: camera, image, screen and window capture.For example, the image below shows the effect after adding a camera.



    2. Add your logo image
    If you need to add your own brand logo during a live broadcast, you can add a logo image. As shown in the image below, this is the effect after adding a transparent background logo image. The newly added image will have a yellow border around it, indicating that it is currently selected. A selected multimedia source can be moved and resized with mouse. It can also be rotated and modify its display level by right-click menu.



    3. Start a live broadcast
    Click 'Go Live' button to start a live broadcast . Once the broadcast starts successfully, the Go Live button will turn into End. Click it to end the live boradcast.



    4. View the live broadcast
    The desktop version only supports the host starting the broadcast. To watch, you need to use the mobile app. Find the corresponding live room in the live list on the mobile app and enter the live room. For the use of the mobile app, please refer to the documentation foriOSand Android.

    Step 6: Build installation package

    1. Copy `ultra-live-electron/electron-builder.json5` file into your project's root directory. You can modify the `productName` and `appId` as you like.
    2. Add the following command in your project's package.json file to enable buliding installation package.
    {
    "scripts": {
    "build:win64": "electron-builder --win --x64",
    "pack:win64": "npm run build && npm run build:win64"
    }
    }
    3. Build installation package
    Enter the root path of your project with `cmd.exe` and execute the following command. The created installation package is in release directory.
    npm run pack:win64
    4. Install the pacakge and run.

    Common questions

    Have no project meets the integration requirement, How can I start?

    There are several ways to start your TUILiveKit journey:
    If you do not have a project, then you can just start with our open source Github . Just clone it and modify the code as you need.
    If you already have a project, you can adjust your project as our open source Template project: trtc-electron-template-vue3-webpack to ingerated TUILiveKit.
    If you have a JavaScript project withour TypeScript support, you can refer to "How to integrate TUILiveKit in JavaScript project?".

    Does TUILiveKit support Vite?

    Currently, TUILiveKit does not support running with Vite.

    How to integrate TUILiveKit in JavaScript project?

    JavaScript project can not integrate TUILiveKit directly. It should be modify to support TypeScript to integrate TUILiveKit.
    1. Install dependencies
    npm install --save-dev typescript@4.5.5 @typescript-eslint/eslint-plugin@5.4.0 @typescript-eslint/parser@5.4.0 @vue/cli-plugin-typescript@5.0.0 @vue/eslint-config-typescript@9.1.0
    2. Copy ultra-live-electron/tsconfig.json file into your project root diectory.
    3. Copy ultra-live-electron/src/global.d.ts file into your project root diectory.

    How to Enable the Beauty Function?

    The humain beauty capability in TUILiveKit is base on Tencent Effect SDK, which you have to buy and activate to abtain thelicenseURL and licenseKey to use. Enter thelicenseURL and licenseKey into src/TUILiveKit/utils/beauty.ts file to quick start.
    Note:
    For production projects, it is necessary to obtain the licenseURL and licenseKey by calling the backend service. Writing them into a JavaScript file can enable quick startting, but there is a very high risk of leakage for both licenseURL and licenseKey . This method is only suitable for quick integration and testing purposes.
    // beauty.ts
    export const XmagicLicense = {
    licenseURL: "",
    licenseKey: "",
    };

    Suggestions and Feedback

    If you have any suggestions or feedback, please contact info_rtc@tencent.com.
    Contact Us

    Contact our sales team or business advisors to help your business.

    Technical Support

    Open a ticket if you're looking for further assistance. Our Ticket is 7x24 avaliable.

    7x24 Phone Support
