Fundamentals
Last updated: 2024-12-19 16:57:48
Download PDF

icon

Feature description:Icon component.
Parameter and description:
Property
Type
Default value
Description
type
string
-
The type of icon. Valid values are: success, success_no_circle, info, warn, waiting, cancel, download, search, clear.
size
umber/string
23
The size of the icon. The default unit is pixel.
color
string
-
The color of the icon, following the same rules as Cascading Style Sheets (CSS) color.

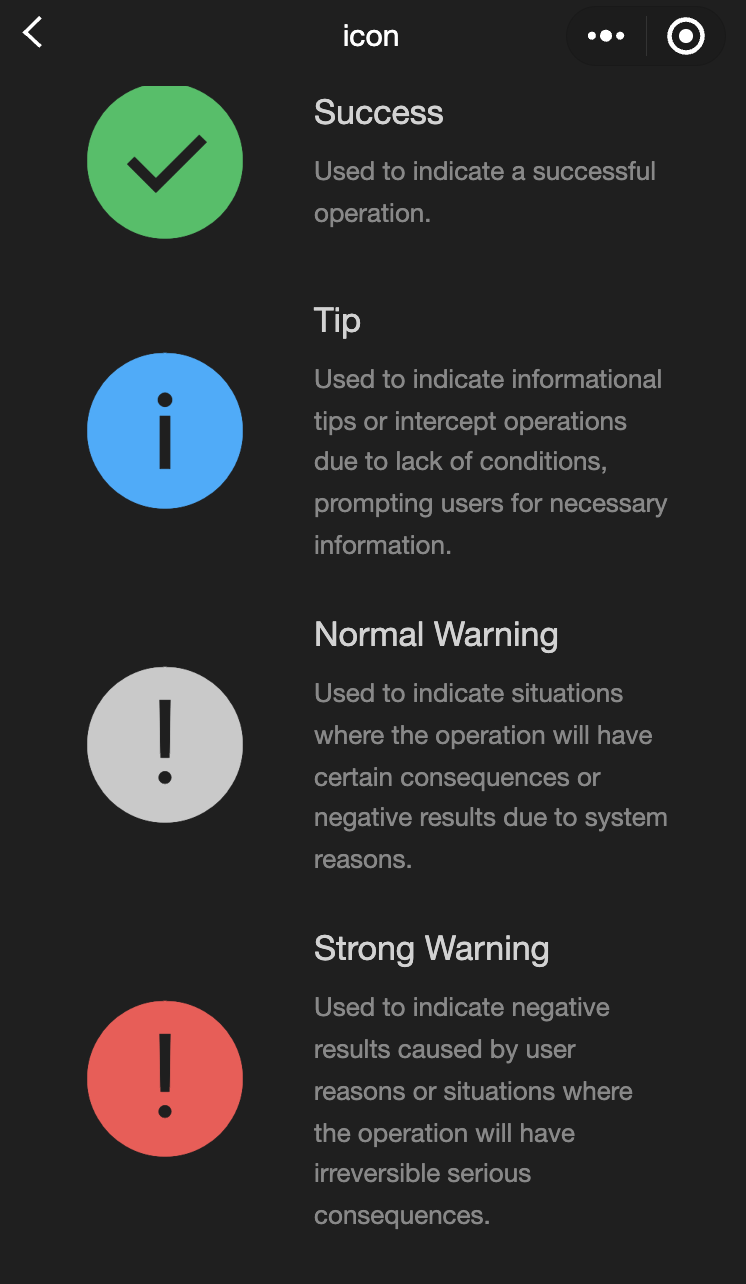

Example:
WXML
JAVASCRIPT
<view class="container">
  <view class="icon-box">
    <icon class="icon-box-img" type="success" size="93"></icon>
    <view class="icon-box-ctn">
      <view class="icon-box-title">Success</view>
      <view class="icon-box-desc">Used to indicate a successful operation.</view>
    </view>
  </view>
  <view class="icon-box">
    <icon class="icon-box-img" type="info" size="93"></icon>
    <view class="icon-box-ctn">
      <view class="icon-box-title">Info</view>
      <view class="icon-box-desc">Used for informational prompts and to intercept operations lacking necessary conditions, prompting the user for required information.</view>
    </view>
  </view>
  <view class="icon-box">
    <icon class="icon-box-img" type="warn" size="93" color="#C9C9C9"></icon>
    <view class="icon-box-ctn">
      <view class="icon-box-title">Warning</view>
      <view class="icon-box-desc">Indicates potential consequences of an operation or negative outcomes due to system issues.</view>
    </view>
  </view>
  <view class="icon-box">
    <icon class="icon-box-img" type="warn" size="93"></icon>
    <view class="icon-box-ctn">
      <view class="icon-box-title">Strong warning</view>
      <view class="icon-box-desc">Indicates negative outcomes from user actions or irreversible serious consequences.</view>
    </view>
  </view>
  <view class="icon-box">
    <icon class="icon-box-img" type="waiting" size="93"></icon>
    <view class="icon-box-ctn">
      <view class="icon-box-title">Waiting</view>
      <view class="icon-box-desc">Indicates that the user needs to wait for the result.</view>
    </view>
  </view>
  <view class="icon-box">
    <view class="icon-small-wrp">
      <icon class="icon-small" type="success_no_circle" size="23"></icon>
    </view>
    <view class="icon-box-ctn">
      <view class="icon-box-title">Multi-select icon_Selected</view>
      <view class="icon-box-desc">Used in the multi-select control to indicate that the item has been selected.</view>
    </view>
  </view>
  <view class="icon-box">
    <view class="icon-small-wrp">
      <icon class="icon-small" type="circle" size="23"></icon>
    </view>
    <view class="icon-box-ctn">
      <view class="icon-box-title">Multi-select icon_Not selected</view>
      <view class="icon-box-desc">Used in the multi-select control to indicate that the item is selectable but has not been selected.</view>
    </view>
  </view>
  <view class="icon-box">
    <view class="icon-small-wrp">
      <icon class="icon-small" type="warn" size="23"></icon>
    </view>
    <view class="icon-box-ctn">
      <view class="icon-box-title">Error</view>
      <view class="icon-box-desc">Indicates that an error occurs in the form.</view>
    </view>
  </view>
  <view class="icon-box">
    <view class="icon-small-wrp">
      <icon class="icon-small" type="success" size="23"></icon>
    </view>
    <view class="icon-box-ctn">
      <view class="icon-box-title">Single-select icon_Selected</view>
      <view class="icon-box-desc">Used in the single-select control to indicate that the item has been selected.</view>
    </view>
  </view>
  <view class="icon-box">
    <view class="icon-small-wrp">
      <icon class="icon-small" type="download" size="23"></icon>
    </view>
    <view class="icon-box-ctn">
      <view class="icon-box-title">Download</view>
      <view class="icon-box-desc">Indicates that the item is downloadable.</view>
    </view>
  </view>
  <view class="icon-box">
    <view class="icon-small-wrp">
      <icon class="icon-small" type="info_circle" size="23"></icon>
    </view>
    <view class="icon-box-ctn">
      <view class="icon-box-title">Info</view>
      <view class="icon-box-desc">Indicates that there is an information prompt in the form.</view>
    </view>
  </view>
  <view class="icon-box">
    <view class="icon-small-wrp">
      <icon class="icon-small" type="cancel" size="23"></icon>
    </view>
    <view class="icon-box-ctn">
      <view class="icon-box-title">Stop or close</view>
      <view class="icon-box-desc">Indicates close or stop in the form.</view>
    </view>
  </view>
  <view class="icon-box">
    <view class="icon-small-wrp">
      <icon class="icon-small" type="search" size="14"></icon>
    </view>
    <view class="icon-box-ctn">
      <view class="icon-box-title">Search</view>
      <view class="icon-box-desc">Used in the search control to indicate that search can be implemented.</view>
    </view>
  </view>
</view>
Page({
  data: {
    iconSize: [20, 30, 40, 50, 60, 70],
    iconColor: [
      'red', 'orange', 'yellow', 'green', 'rgb(0,255,255)', 'blue', 'purple'
    ],
    iconType: [
      'success', 'success_no_circle', 'info', 'warn', 'waiting', 'cancel', 'download', 'search', 'clear'
    ]
  }
})


progress

Feature description:Progress bar.
Parameter and description:
Property
Type
Default value
Description
percent
float
-
Percentage (0-100).
show-info
boolean
false
Displays the percentage on the right side of the progress bar.
border-radius
number / string
0
Border radius in pixel.
font-size
number / string
16
Font size of the percentage on the right side in pixel.
stroke-width
number / string
6
Width of the progress bar line.
color
color
#09BB07
Progress bar color (use activeColor)
activeColor
color
#09BB07
Color of the selected progress bar.
backgroundColor
color
#EBEBEB
Color of the unselected progress bar.
active
boolean
false
Animation of the progress bar moving from left to right.
active-mode
string
backwards
backwards: Animation starts from the beginning.
forwards: Animation continues from the last end point.
bindactiveend
eventhandle
-
Event triggered when the animation completes.

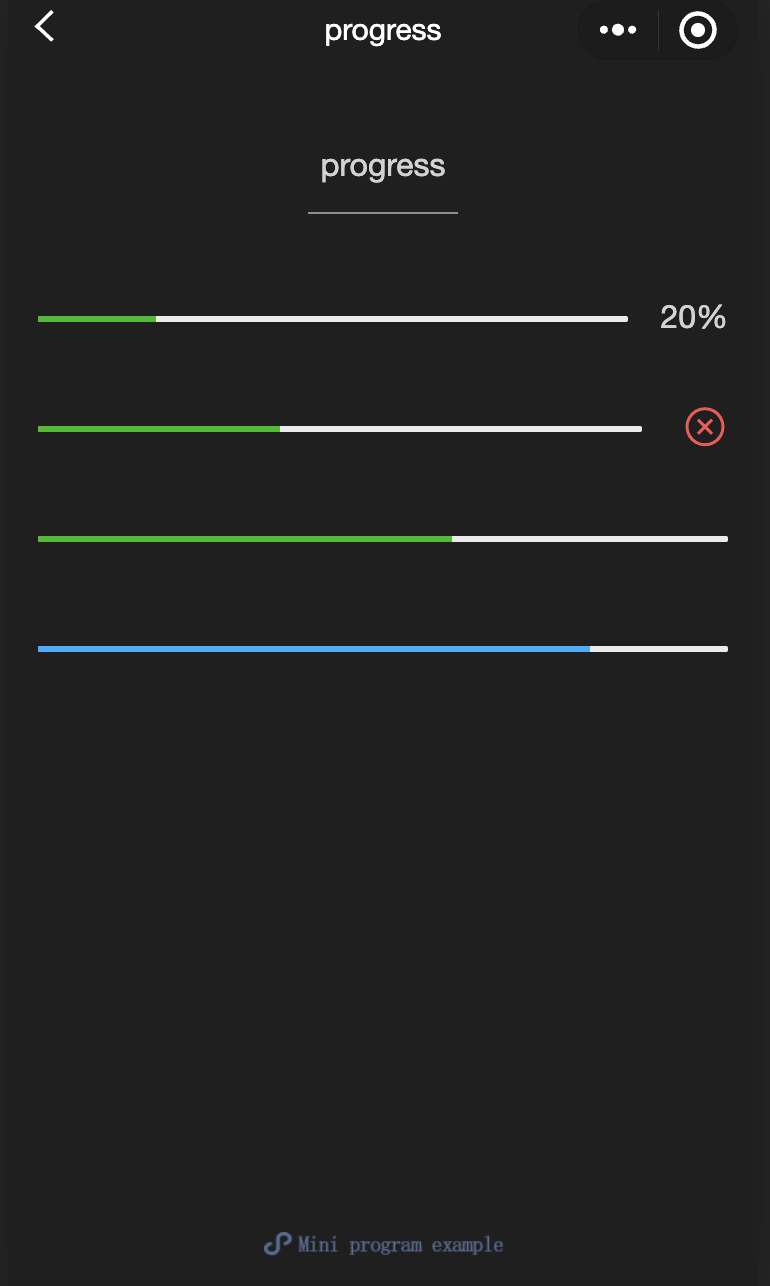

Example:
WXML
<view class="progress-box">
  <progress percent="20" show-info stroke-width="3"/>
</view>

<view class="progress-box">
  <progress percent="40" active stroke-width="3" />
  <icon class="progress-cancel" type="cancel"></icon>
</view>

<view class="progress-box">
  <progress percent="60" active stroke-width="3" />
</view>

<view class="progress-box">
  <progress percent="80" color="#10AEFF" active stroke-width="3" />
</view>


text

Feature description:Text.
Parameter and description:
Property
Type
Default value
Description
selectable
boolean
false
Whether the text is selectable.
space
string
-
Displays continuous spaces:
ensp: Half-width space of a Chinese character
emsp: Full-width space of a Chinese character
nbsp: Space size based on font settings.
decode
boolean
false
Whether to decode the character entities in the text.
Notes:
Decode can be parsed with&lt; &gt; &amp; &apos; &ensp; &emsp;.
The standard of whitespace is not consistent across operating systems.
The text component only supports nesting of text elements.
Nodes other than text cannot be pressed and held to select.

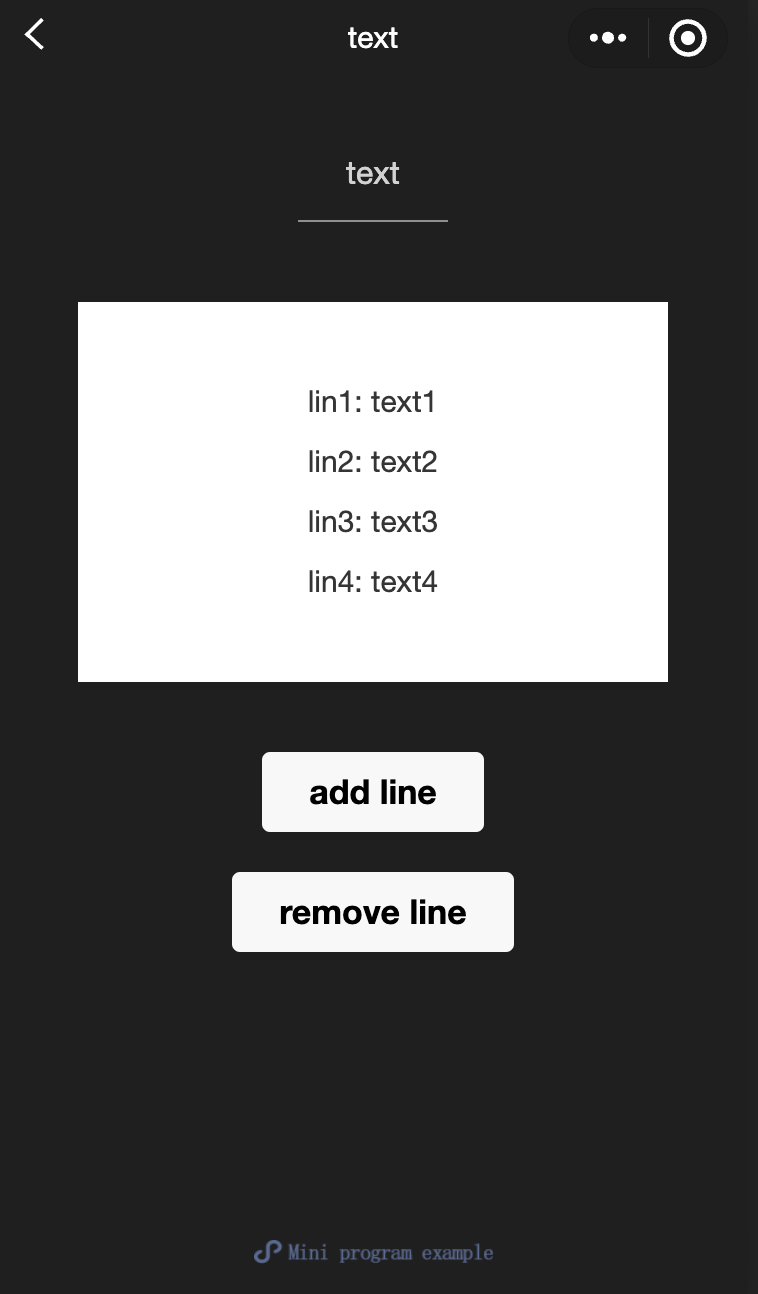

WXML
JAVASCRIPT
<view class="container">
  <view class="page-body">
    <view class="page-section page-section-spacing">
      <view class="text-box" scroll-y="true" scroll-top="{{scrollTop}}">
        <text>{{text}}</text>
      </view>
      <button disabled="{{!canAdd}}" bindtap="add">add line</button>
      <button disabled="{{!canRemove}}" bindtap="remove">remove line</button>
    </view>
  </view>
</view>
const texts = [
    'lin1: text1',
    'lin2: text2',
    'lin3: text3',
    'lin4: text4',
    'lin5: text5',
    'lin6: text6',
    'lin7: text7',
    'lin8: text8',
    'lin9: text9',
    'lin10: text10',
    'lin11: text11',
    'lin12: text12',
    '......'
  ]

Page({
  onShareAppMessage() {
    return {
      title: 'text',
      path: 'page/component/pages/text/text'
    }
  },

  data: {
    text: '',
    canAdd: true,
    canRemove: false
  },
  extraLine: [],

  add() {
    this.extraLine.push(texts[this.extraLine.length % 12])
    this.setData({
      text: this.extraLine.join('\\n'),
      canAdd: this.extraLine.length &lt; 12,
      canRemove: this.extraLine.length > 0
    })
    setTimeout(() => {
      this.setData({
        scrollTop: 99999
      })
    }, 0)
  },
  remove() {
    if (this.extraLine.length > 0) {
      this.extraLine.pop()
      this.setData({
        text: this.extraLine.join('\\n'),
        canAdd: this.extraLine.length &lt; 12,
        canRemove: this.extraLine.length > 0,
      })
    }
    setTimeout(() => {
      this.setData({
        scrollTop: 99999
      })
    }, 0)
  }
})


rich-text

Feature description:Rich text.
Parameter and description:
Property
Type
Default value
Description
nodes
array/string
[]
List of nodes/HTML string.
space
string
-
Displays continuous spaces:
ensp: Half-width space of a Chinese character
emsp: Full-width space of a Chinese character
nbsp: Space size based on font settings.
Supports default events, including:tap,touchstart,touchmove,touchcancel,touchendandlongtap.
nodes
The nodes property is recommended to be used as an Array type. Using a String type will result in a performance decrease since the component converts it to an Array.Two types of nodes are supported, distinguished by the type: Element nodes and text nodes. By default, it is an element node, which is the displayed HTML nodes within the rich text area.
Element node: type = node
Property
Description
Type
‍Required
Note
name
Tag name
string
True
Supports a subset of trusted HTML nodes.
attrs
Property
object
False
Supports a subset of trusted properties, following PascalCase naming convention.
children
List of child nodes
array
False
The structure is the same as the nodes.
Text node: type=text
Property
Description
Type
‍Required
Note
text
Text
string
True
Supports entities.
Trusted HTML nodes and properties
Globally supports the class and style properties,but does not support the id property.
Node
Property
Node
Property
a
-
alt,src,height,width
abbr
-
ins
-
b
-
label
-
br
-
legend
-
code
-
li
-
col
span,width
ol
start,type
colgroup
span,width
p
-
dd
-
q
-
del
-
span
-
div
-
strong
-
dl
-
sub
-
dt
-
sup
-
em
-
table
width
fieldset
-
tbody
-
h1
-
td
colspan,height,rowspan,width
h2
-
tfoot
-
h3
-
th
colspan,height,rowspan,width
h4
-
thead
-
h5
-
tr
-
h6
-
ul
-
hr
-
-
-
Notes:
Using a String type for nodes is not recommended due to performance degradation.
All node events within the rich-text component will be blocked to ensure that users cannot tap, touch, or trigger any events.
The attrs property does not support id, but it does support class.
The name property is case-insensitive.
If an untrusted HTML node is used, the nodes and all their children will be removed.
The img tag only supports online images.
If the rich-text component is used within a custom component, only the custom component's WeiXin Style Sheets (WXSS) styles will apply to classes within rich-text.

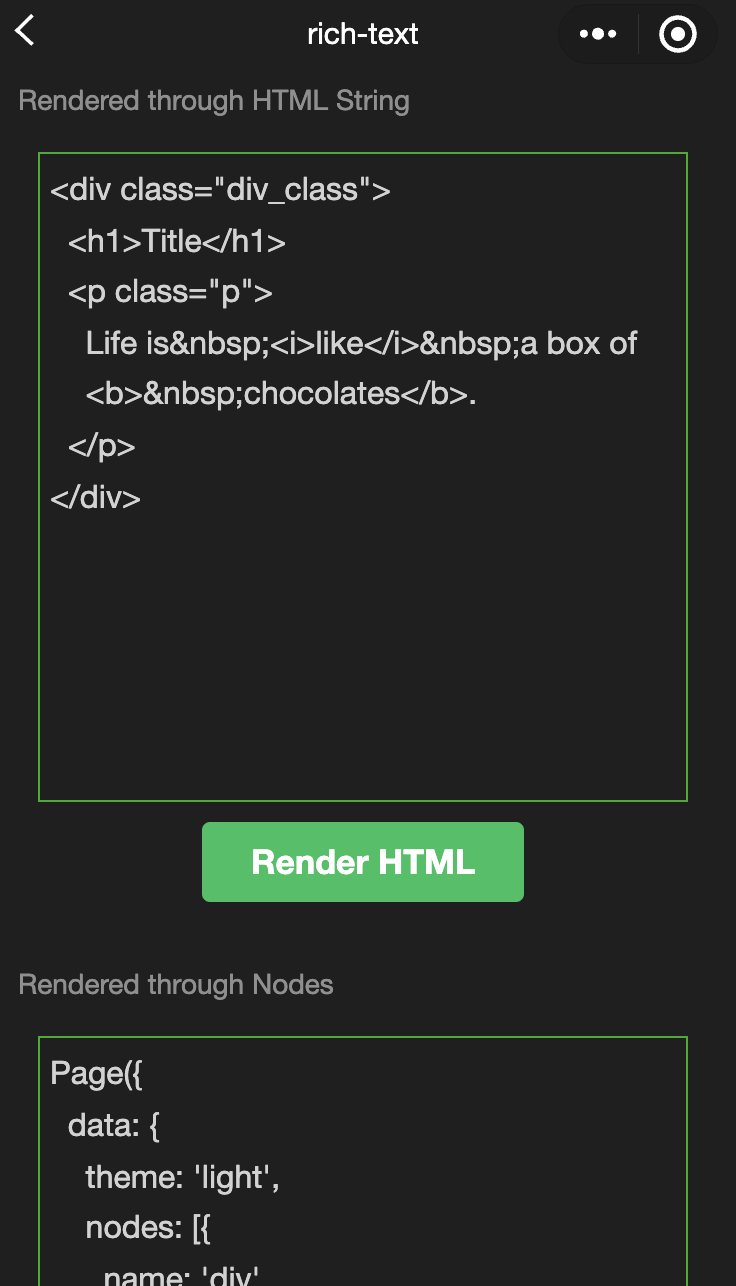

Example
WXML
JAVASCRIPT
<view class="container">
  <view class="page-body">
    <view class="page-section">
      <view class="page-section-title">Render via HTML String</view>
      <view class="page-content">
        <scroll-view scroll-y>{{htmlSnip}}</scroll-view>
        <button style="margin: 30rpx 0" type="primary" bindtap="renderHtml">Render HTML</button>
        <block wx:if="{{renderedByHtml}}">
          <rich-text nodes="{{htmlSnip}}"></rich-text>
        </block>
      </view>
    </view>

    <view class="page-section">
      <view class="page-section-title">Render via nodes</view>
      <view class="page-content">
        <scroll-view scroll-y>{{nodeSnip}}</scroll-view>
        <button style="margin: 30rpx 0" type="primary" bindtap="renderNode">Render nodes</button>
        <block wx:if="{{renderedByNode}}">
          <rich-text nodes="{{nodes}}"></rich-text>
        </block>
      </view>
    </view>
  </view>
</view>
const htmlSnip =
`<div class="div_class">
  <h1>Title</h1>
  <p class="p">
    Life is <i>like</i> a box of
    <b> chocolates</b>.
  </p>
</div>
`

const nodeSnip =
`Page({
  data: {
    nodes: [{
      name: 'div',
      attrs: {
        class: 'div_class',
        style: 'line-height: 60px; color: red;'
      },
      children: [{
        type: 'text',
        text: 'You never know what you're gonna get.'
      }]
    }]
  }
})
`

Page({
  onShareAppMessage() {
    return {
      title: 'rich-text',
      path: 'page/component/pages/rich-text/rich-text'
    }
  },

  data: {
    htmlSnip,
    nodeSnip,
    renderedByHtml: false,
    renderedByNode: false,
    nodes: [{
      name: 'div',
      attrs: {
        class: 'div_class',
        style: 'line-height: 60px; color: #1AAD19;'
      },
      children: [{
        type: 'text',
        text: 'You never know what you\\'re gonna get.'
      }]
    }]
  },
  renderHtml() {
    this.setData({
      renderedByHtml: true
    })
  },
  renderNode() {
    this.setData({
      renderedByNode: true
    })
  },
  enterCode(e) {
    console.log(e.detail.value)
    this.setData({
      htmlSnip: e.detail.value
    })
  }
})



Was this page helpful?
You can also Contact Sales or Submit a Ticket for help.
Yes
No

Feedback

Contact Us

Contact our sales team or business advisors to help your business.

Contact Us
Technical Support

Open a ticket if you're looking for further assistance. Our Ticket is 7x24 available.

Submit a Ticket
7x24 Phone Support
Hong Kong, China
+852 800 906 020 (Toll Free)
United States
+1 844 606 0804 (Toll Free)
United Kingdom
+44 808 196 4551 (Toll Free)
Canada
+1 888 605 7930 (Toll Free)
Australia
+61 1300 986 386 (Toll Free)
EdgeOne hotline
+852 300 80699
More local hotlines coming soon
