Viewing Dashboard

Last updated: 2024-01-27 17:45:42

Using the dashboard feature, you can switch between Recent Dashboards, Favorite Dashboards, and Custom Dashboards. This document describes how to view dashboards after creating them.
Preparations
1. Log in to the Tencent Cloud Observability Platform console.
2. In the left sidebar, click Dashboard > Dashboard List to go to the dashboard list page.
Viewing a Dashboard in the Full Screen Mode
1. In the dashboard list, find the dashboard that you want to view, and click the dashboard name to go to the dashboard management page.
2. Click
﻿
 to view the dashboard in the full screen mode.
﻿
﻿
Exiting the Full Screen Mode
You can press Esc or click the close icon
﻿
 in the upper-right corner to exit the full screen mode.
Switching Dashboards
1. In the dashboard list, click any dashboard name to go to the dashboard management page.

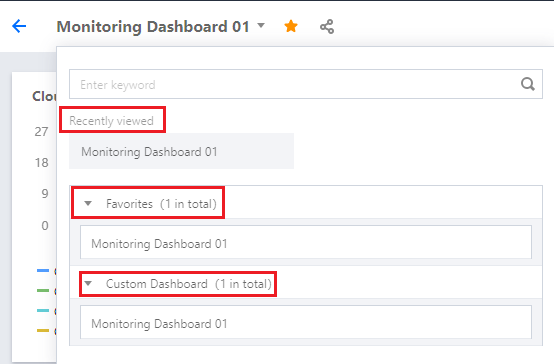

2. As shown in the figure below, click
﻿
 in the dashboard area to switch between Recent Dashboards, Favorite Dashboards, and Custom Dashboards.
Recent Dashboards: displays the most recent three dashboards you have accessed.
Favorite Dashboards: displays all the dashboards you have added to Favorites.
Custom Dashboards: displays all the dashboards you have customized.
﻿
﻿
Note:
To add a dashboard to Favorites, see Adding a Dashboard to Favorites.
Adjusting the Time Span and Refreshing Frequency of a Dashboard
By default, dashboards display the data of the last 12 hours, and monitoring data is refreshed in real time.
You can adjust the time span and granularity for all charts on the current dashboard by using the time selector in the upper-right corner of the dashboard. In this way, you can review historical monitoring data and perform troubleshooting.
﻿
﻿
In the upper-right corner of the dashboard, you can click the refresh button to refresh the dashboard or select a time interval from the drop-down list to adjust the refreshing frequency.
﻿
﻿
