    Overview

    TUI components have three built-in themes by default: Light, Lively, and Serious. You can switch or modify the built-in themes, or add new themes as needed.
    Note:
    Only the classic UI supports switch, modification, and addition of themes. The minimalist UI does not support these functions.

    Theme Resources

    You can see the theme resources supported by any TUI component in the res folder inside that component. For example, in TUIChat/tuichat/src/main/ of the TUIChat component, you can see the built-in theme resources Light, Serious, and Lively of TUIChat in the res-light, res-serious, and res-lively folders respectively and the general resources in the res folder.


    The directory structures of the theme resource folders are the same as that of the general resource folder.

    Applying Themes

    TUIKit uses the Light theme by default. If you want to set a theme for TUI components and your app's main project, you can call the changeTheme method of TUIThemeManager to set the current theme.
    You can refer to the code in the ThemeSelectActivity.java file of TUIKitDemo.
    You can also switch a theme as follows:
    // The theme ID is 0 for the Light theme, 1 for the Lively theme, and 2 for the Serious theme.
    TUIThemeManager.getInstance().changeTheme(context, themeID);
    System.exit(0);
    Intent intent = context.getPackageManager().getLaunchIntentForPackage(context.getPackageName());
    context.startActivity(intent);

    Obtaining Theme Resources

    Note
    Theme attributes are defined in the src/main/res/values/tui_theme_attrs.xml file of each component, and the attribute names cannot be duplicated.
    After a theme is applied successfully, you can call the TUIThemeManager.getAttrResId(context, attrID) method in Java code to obtain the resource ID based on the theme attributes and then use the resource ID obtained to obtain the real resource.
    mArrowImageView.setBackgroundResource(TUIThemeManager.getAttrResId(getContext(), R.attr.chat_jump_recent_down_icon));

    replyContentTv.setTextColor(resources.getColor(TUIThemeManager.getAttrResId(context, R.attr.chat_other_reply_text_color)));
    In the XML resource file, you can use the ?attr/** method to use the resources of the current theme based on the theme attributes. For example:
    <?xml version="1.0" encoding="utf-8"?>
    <shape xmlns:android="http://schemas.android.com/apk/res/android"
    android:shape="ring"
    android:innerRadius="22.5dp"
    android:thickness="1.5dp"
    android:useLevel="false">

    <solid android:color="?attr/core_primary_color" />
    </shape>
    <ImageView
    android:id="@+id/demo_login_theme_arrow"
    android:layout_width="9.6dp"
    android:layout_height="9.6dp"
    android:layout_gravity="center"
    android:background="?attr/demo_login_language_arrow" />
    Caution
    The preceding two methods can obtain only the resource IDs of themes that have been successfully applied, but cannot obtain the resource IDs of themes that have not been applied.

    Modifying Built-in Themes

    You can follow the steps below to customize the colors, fonts, images, and other resources of the built-in themes of TUI components:
    1. Locate the specific resource of a theme to modify.
    2. Replace or modify the resource.
    3. Switch to the corresponding theme and check the modification effect.
    For example, the TUIChat component allows you to set different bubble chat background colors for the text messages sent by yourself under different themes. Assume that the current color value of the bubble chat background of the built-in "Lively" theme is #FF9D85 and you want to change it to #EA286C. Then, you only need to perform the following steps:
    1. In the TUIChat source code, locate the R.attr.chat_bubble_self_bg attribute, which specifies the background of the bubbles of text messages sent by yourself.



    In the tuichat/src/main/res-lively/values/lively_styles.xml file, locate the @drawable/chat_bubble_self_bg_lively resource corresponding to the chat_bubble_self_bg attribute.



    Open the corresponding resource file, and you can see that the background color is @color/chat_bubble_self_color_lively:



    2. Replace the @color/chat_bubble_self_color_lively color value in the @drawable/chat_bubble_self_bg_lively resource, which is found in the previous step, with #EA286C:

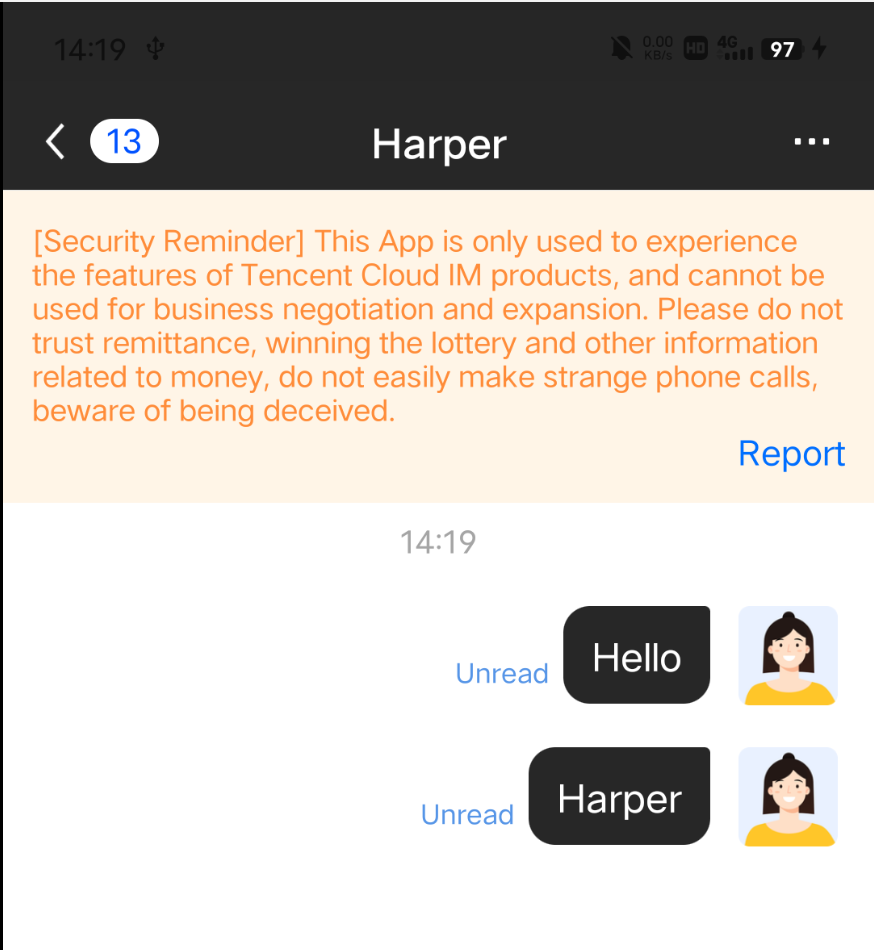

    3. Save the file, re-compile and install the app, and switch the current theme to the Lively theme. Then you can see the effect.

    Creating a Theme

    If the three built-in themes do not meet your needs, you can create a theme for a component as needed. Assume that you want to create a theme called Enterprise. The steps are as follows:
    1. In each component, under the same directory as other themes, create the res-enterprise directory in the resource directory. In the res-enterprise/values/ directory, create the enterprise_styles.xml file enterprise_styles.xml, which stores the mapping between theme attributes and real resources.


    Caution
    1. The res-enterprise directory must contain all the resources of the theme to be switched to. Otherwise, the app will crash due to the resource obtaining failure when switching to the Enterprise theme. 2. The theme resource name cannot be the same as the system resource name or an existing resource name. Otherwise, errors may occur at compilation and runtime. Therefore, ensure that the theme resource name is globally unique.
    2. Create the theme resource mapping in the enterprise_styles.xml file: The src/main/res/values/tui_theme_attrs.xml file of the component specifies the attributes of the theme to be switched to, and the attributes must have corresponding implementation under each theme. The src/main/res/values/enterprise_styles.xml file stores the mapping between attributes and resources. The following is an example:
    <?xml version="1.0" encoding="utf-8"?>
    <resources>
    <style name="TUIChatEnterpriseTheme" parent="TUIBaseEnterpriseTheme">
    <item name="chat_bubble_self_bg">@drawable/chat_bubble_self_bg_enterprise</item>
    <item name="chat_bubble_other_bg">@drawable/chat_bubble_other_bg_enterprise</item>
    <item name="chat_input_area_bg">@color/chat_input_layout_bg_enterprise</item>
    <item name="chat_unread_dot_bg_color">@color/chat_unread_dot_bg_color_enterprise</item>
    <item name="chat_unread_dot_text_color">?attr/core_primary_color</item>
    <item name="chat_title_bar_more_menu">@drawable/chat_title_bar_more_menu_enterprise</item>
    <item name="chat_other_msg_text_color">@color/chat_other_msg_text_color_enterprise</item>

    ...

    </style>
    </resources>
    3. In the build.gradle file of each component, add configuration to specify the resource directory. Include the resource directory in App packaging. You need to add the compilation of the resource directory to the build.gradle file of each component.
    android {
    ...
    // Theme resourcce folder
    sourceSets {
    main {
    res.srcDirs += "src/main/res-light"
    res.srcDirs += "src/main/res-lively"
    res.srcDirs += "src/main/res-serious"
    res.srcDirs += "src/main/res-enterprise"
    }
    }
    }
    4. Register the theme upon app start. The Enterprise theme can be applied only after it is registered with each component and the app. The earlier a theme is registered, the better. Generally, a theme is registered when the Application is started so that the theme can be used when Activity is created.
    Caution
    Numbers 0-2 are the IDs of built-in themes. Therefore, the ID of a created theme must be equal to or greater than 3.
    public class DemoApplication extends Application {
    @Override
    public void onCreate() {
    int enterpriseThemeID = 3;
    TUIThemeManager.addTheme(enterpriseThemeID, R.style.DemoEnterpriseTheme);
    TUIThemeManager.addTheme(enterpriseThemeID, R.style.TUIChatEnterpriseTheme);
    TUIThemeManager.addTheme(enterpriseThemeID, R.style.TUIContactEnterpriseTheme);
    TUIThemeManager.addTheme(enterpriseThemeID, R.style.TUIGroupEnterpriseTheme);
    // Switch a theme
    TUIThemeManager.getInstance().changeTheme(this, enterpriseThemeID);
    }
    }
    5. After switching to the Enterprise theme, you can see the new theme style as shown below:



    Theme Styles

    Basic styles

    Storage location

    All basic styles are stored in the TUICore component and are referenced by each component. Basic styles provide common UI specifications, such as the preferred background color and dividing line color. Modifications on the basic styles apply to all components.
    You can find all theme attributes of TUICore in the TUICore/tuicore/src/main/res/values/tui_theme_attrs.xml file. The corresponding resources of the theme attributes are placed in the tuicore/src/main/res-*** folder.

    UI styles



    Icons
    Attribute
    Description
    core_title_bar_back_icon
    Icon of the return button on the title bar
    core_default_group_icon_public
    Icon of the default profile photo of a Public group
    core_default_group_icon_work
    Icon of the default profile photo of a Work group
    core_default_group_icon_meeting
    Icon of the default profile photo of a Meeting group
    core_default_group_icon_community
    Icon of the default profile photo of a Community group
    core_default_user_icon
    Icon of the default profile photo of a user
    user_status_online
    Online state icon of a user
    user_status_offline
    Offline state icon of a user
    core_selected_icon
    Selected icon
    Background color
    Attribute
    Description
    core_light_bg_title_text_color
    Title text color on a light background
    core_light_bg_primary_text_color
    Primary text color on a light background
    core_light_bg_secondary_text_color
    Secondary text color on a light background
    core_light_bg_secondary2_text_color
    Next secondary text color on a light background
    core_light_bg_disable_text_color
    Disabled text color on a light background
    core_dark_bg_primary_text_color
    Primary text color on a dark background
    core_bg_color
    Primary background color
    core_primary_color
    Primary color
    core_error_tip_color
    Error message color
    core_success_tip_color
    Success message color
    core_bubble_bg_color
    Bubble chat background color
    core_divide_color
    Dividing line color
    core_border_color
    Border color
    core_header_start_color
    Title bar start color
    core_header_end_color
    Title bar end color
    core_btn_normal_color
    Normal color of a button
    core_btn_pressed_color
    Color of a pressed button
    core_btn_disable_color
    Color of a disabled button
    core_title_bar_bg
    Title bar background
    core_title_bar_text_bg
    Text background color of a title bar

    Chat UI styles

    Storage location

    You can find all theme attributes of TUIChat in the TUIChat/tuichat/src/main/res/values/tui_theme_attrs.xml file. The corresponding resources of the theme attributes are placed in the tuichat/src/main/res-*** folder.

    UI styles




    Icons
    Attribute
    Description
    chat_title_bar_more_menu
    Title bar menu icon
    chat_reply_detail_icon
    Reply details icon
    chat_jump_recent_down_icon
    Downward redirection icon of the message list
    chat_jump_recent_up_icon
    Upward redirection icon of the message list
    Background color
    Attribute
    Description
    chat_bubble_self_bg
    Bubble background of messages sent by yourself
    chat_bubble_other_bg
    Bubble background of messages sent by the peer party
    chat_bubble_self_bg_color
    Bubble background color of messages sent by yourself
    chat_bubble_other_bg_color
    Bubble background color of messages sent by the peer party
    chat_input_area_bg
    Background color of the input interface
    chat_unread_dot_bg_color
    Background color of the unread icon
    chat_unread_dot_text_color
    Text color on the unread icon
    chat_other_msg_text_color
    Text color of messages sent by the peer party
    chat_self_msg_text_color
    Text color of messages sent by yourself
    chat_self_custom_msg_text_color
    Text color of messages customized by yourself
    chat_other_custom_msg_text_color
    Text color of messages customized by the peer party
    chat_self_custom_msg_link_color
    Link text color of messages customized by yourself
    chat_other_custom_msg_link_color
    Link text color of messages customized by the peer party
    chat_tip_text_color
    Tip text color
    chat_self_reply_quote_bg_color
    Background color of messages replied and quoted by yourself
    chat_other_reply_quote_bg_color
    Background color of messages replied and quoted by the peer party
    chat_self_reply_line_bg_color
    Background color of the vertical bar of messages replied by yourself
    chat_other_reply_line_bg_color
    Background color of the vertical bar of messages replied by the peer party
    chat_self_reply_quote_text_color
    Original message text color of messages replied by yourself
    chat_other_reply_quote_text_color
    Original message text color of messages replied by the peer party
    chat_self_reply_text_color
    Text color of messages replied by yourself
    chat_other_reply_text_color
    Text color of messages replied by the peer party
    chat_read_receipt_text_color
    Text color of read receipts
    chat_react_text_color
    Text color of emojis replied by yourself
    chat_react_other_text_color
    Text color of emojis replied by the peer party
    chat_pressed_bg_color
    Background color of a tapped and held-on button in a pop-up window

    Group UI styles

    Storage location

    You can find all theme attributes of TUIGroup in the TUIGroup/tuigroup/src/main/res/values/tui_theme_attrs.xml file. The corresponding resources of the theme attributes are placed in the tuigroup/src/main/res-*** folder.

    UI styles




    Attribute
    Description
    group_add_icon
    Icon of the Add button

    Contacts UI styles

    Storage location

    You can find all theme attributes of TUIContact in the TUIContact/tuicontact/src/main/res/values/tui_theme_attrs.xml file. The corresponding resources of the theme attributes are placed in the tuicontact/src/main/res-*** folder.

    UI styles




    Attribute
    Description
    contact_new_friend_icon
    Icon of the new contacts menu
    contact_group_list_icon
    Icon of the group chat menu
    contact_black_list_icon
    Icon of the blocklist menu
