    聊天界面

    最后更新时间：2024-10-30 10:56:24
    下载PDF
      下文将向您展示如何设置聊天界面自定义选项及其效果。

      消息列表相关

      聊天界面背景色、背景图片

      API 作用：设置聊天界面消息列表背景色、背景图片，针对所有聊天界面生效。
      API 原型：
      // TUIChatConfigMinimalist.java
      /**
       * Customize the backgroud of message list interface.
       * This configuration takes effect in all message list interfaces.
       */
      public static void setBackground(Drawable background)
      示例代码：
      // When to call: Before initializing the message list interface.
      TUIChatConfigMinimalist.setBackground(new ColorDrawable(0xFFE1FFFF));
      TUIChatConfigMinimalist.setBackground(context.getDrawable(R.drawable.your_background_image));
      设置效果：

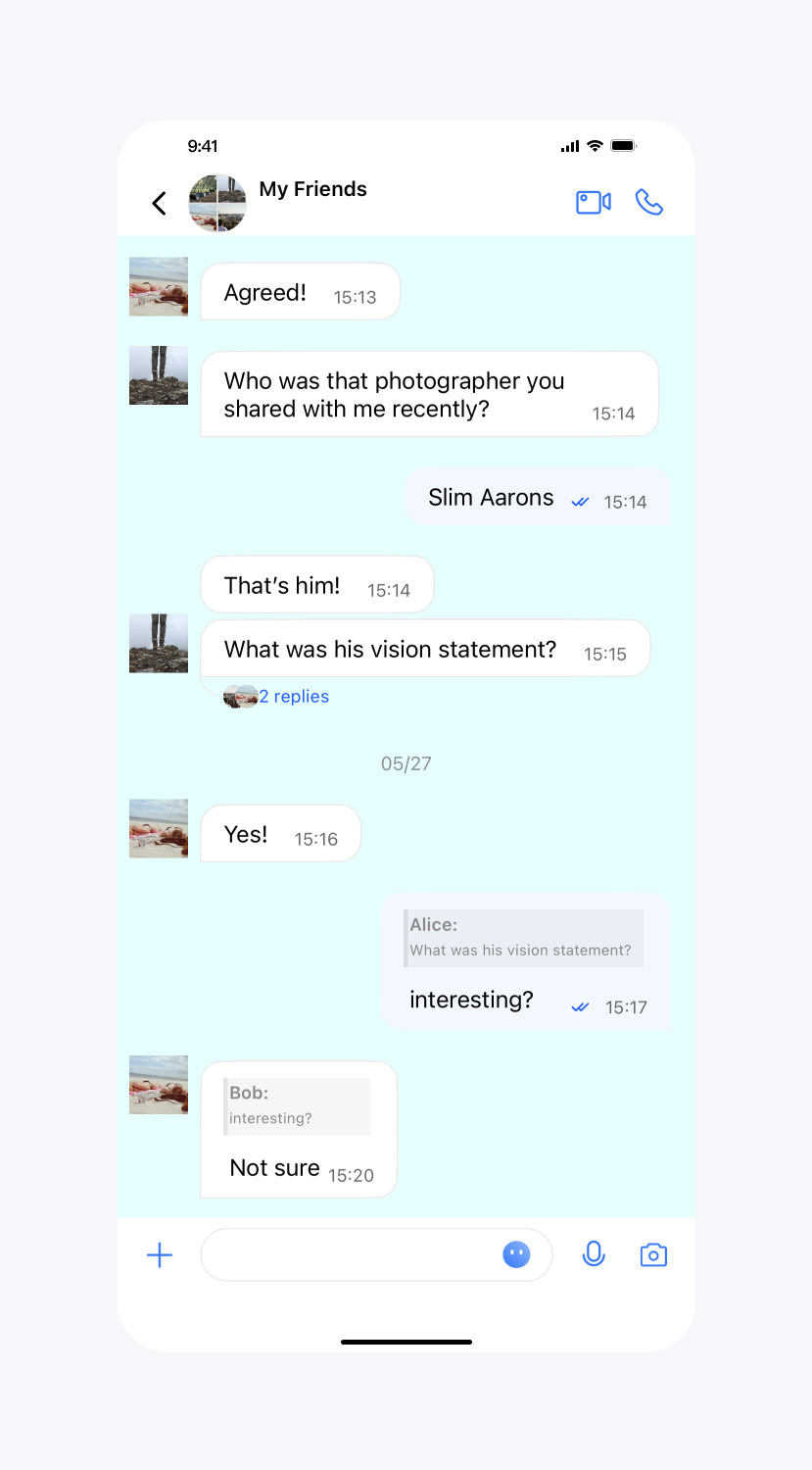

      背景色

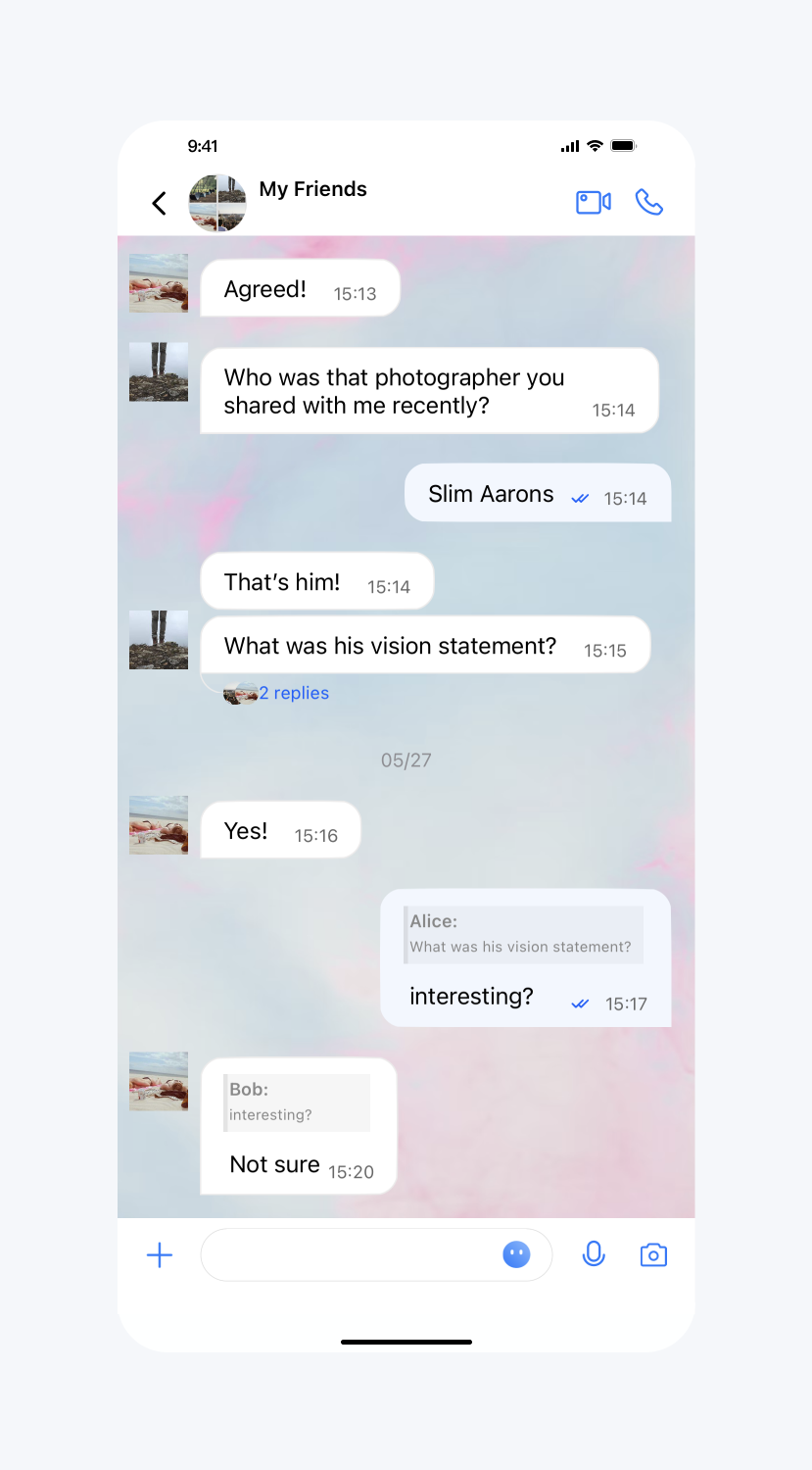

      设置背景图片

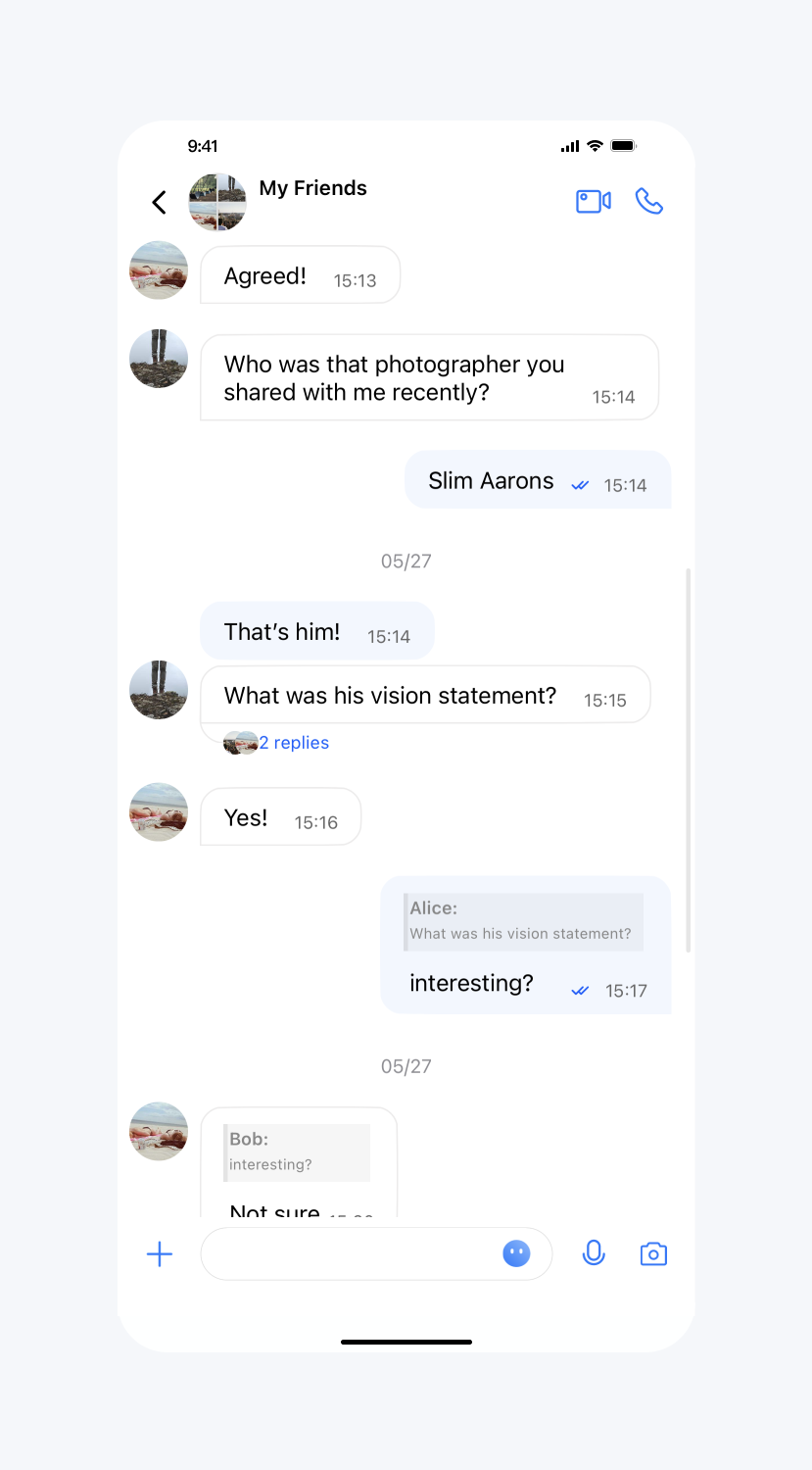

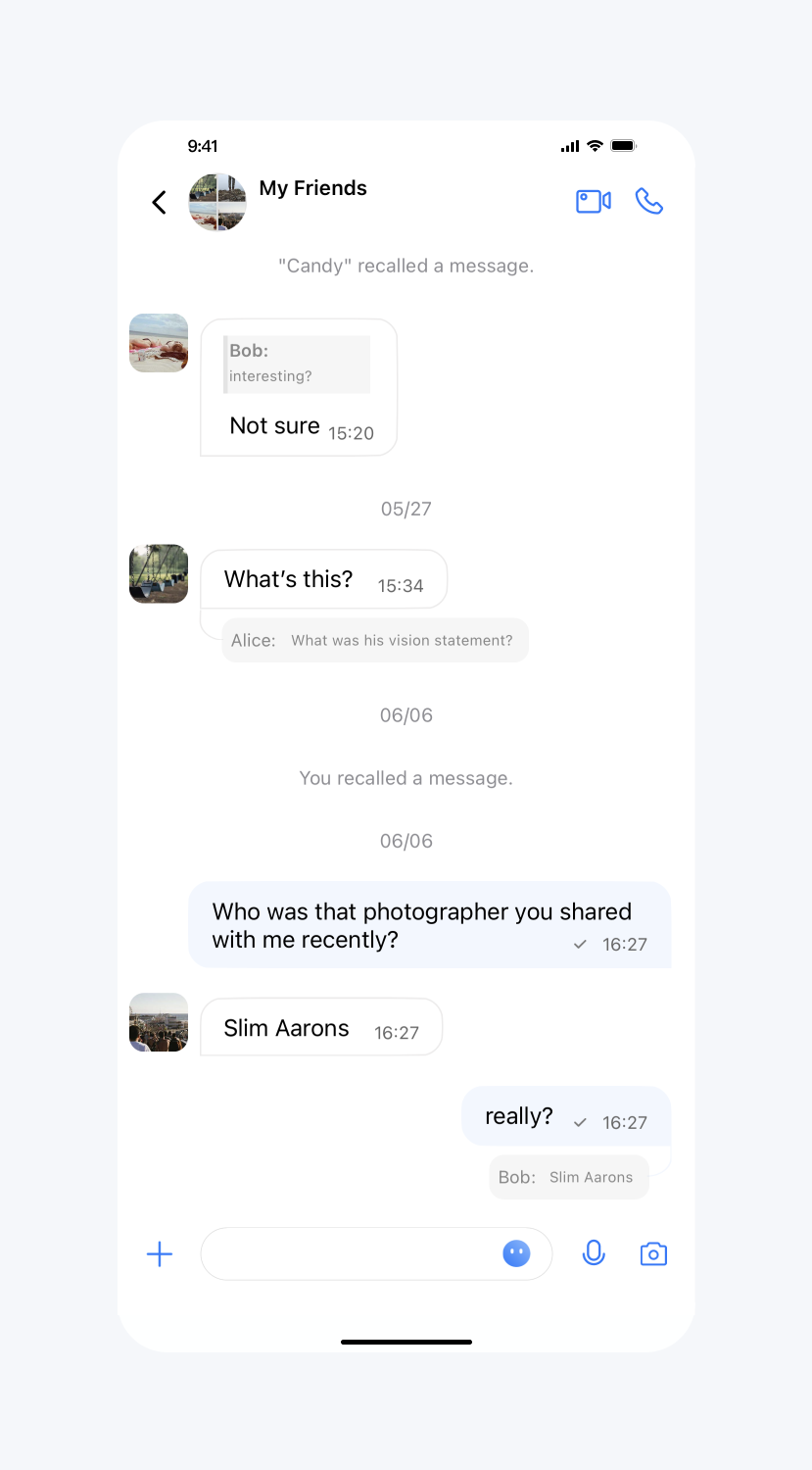

      默认










      消息列表用户头像大小、圆角半径

      API 作用：设置消息列表用户头像大小、圆角半径。
      API 原型：
      // TUIConfigMinimalist.java

      /**
       *  Customize the size of avatar.
       *  This configuration takes effect in message list.
       */
      public static void setMessageListAvatarSize(int size)

      /**
       *  Customize the corner radius of the avatar.
       *  This configuration takes effect in message list.
       */
      public static void setMessageListAvatarRadius(int radius)
      示例代码：
      // When to call: Before initializing the TUIKit interfaces.
      // Set size
      TUIConfigMinimalist.setMessageListAvatarSize(50);
      // Set cornerRadius
      TUIConfigMinimalist.setMessageListAvatarRadius(10);

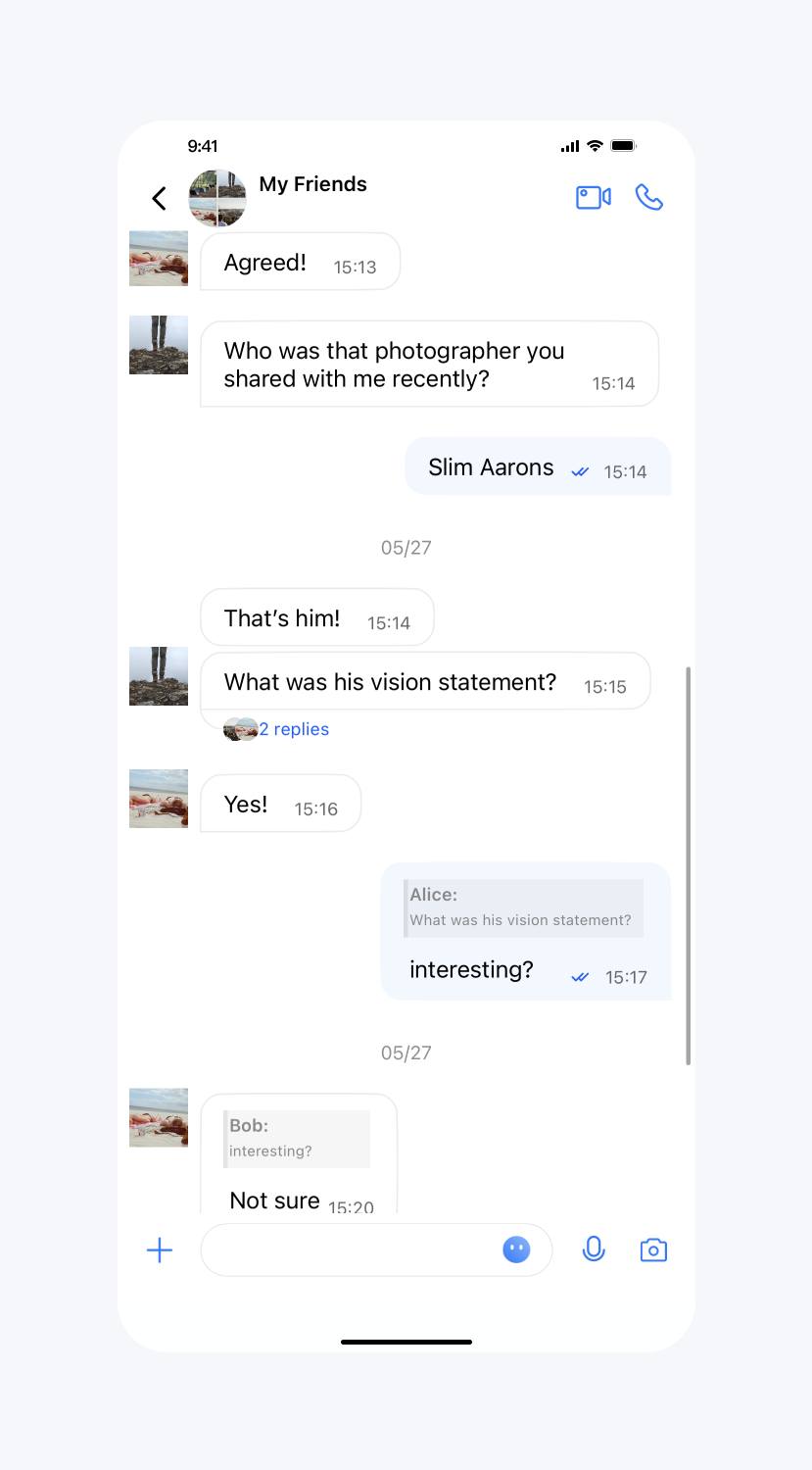

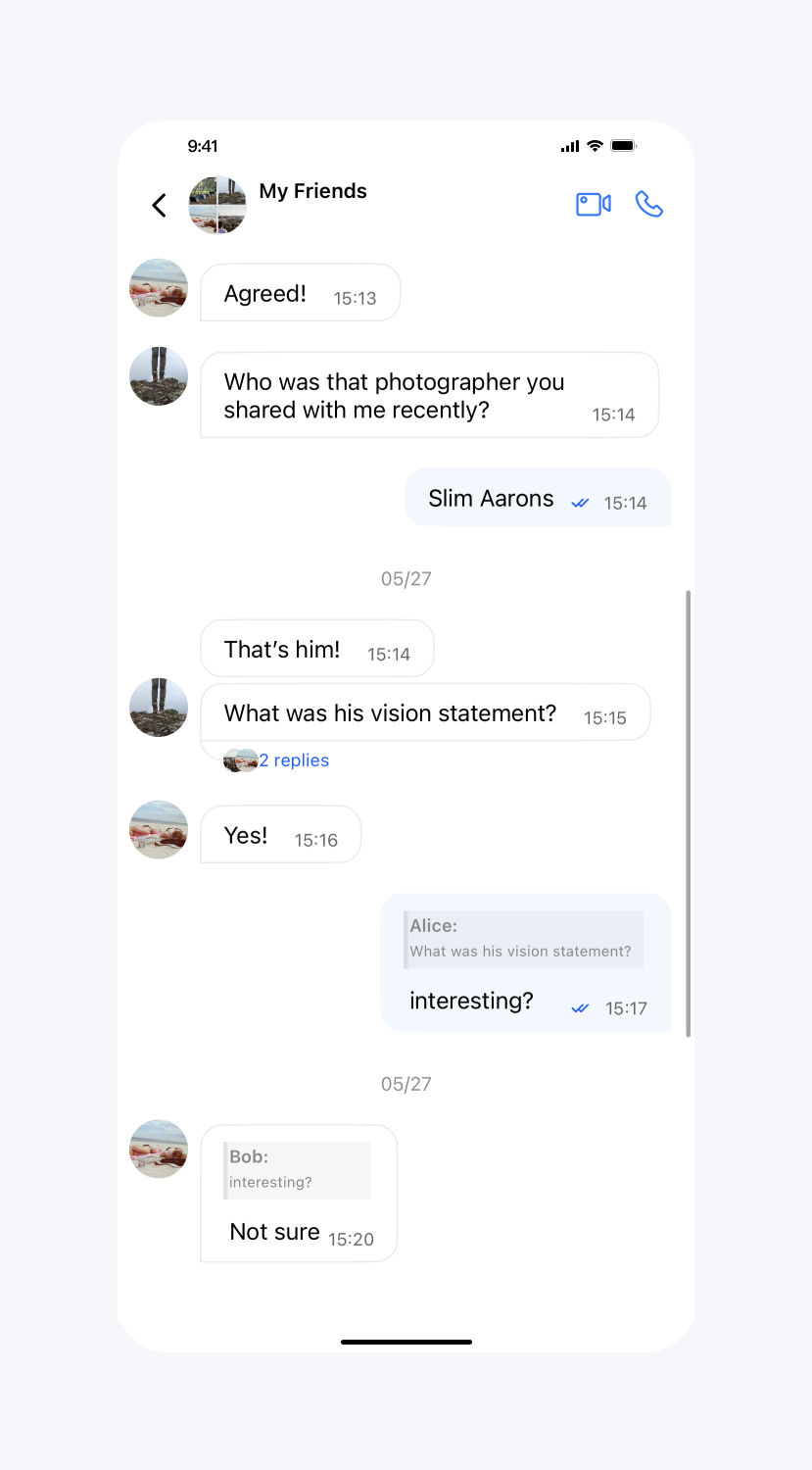

      设置效果：
      默认圆形头像
      设置圆角矩形头像
      设置矩形头像

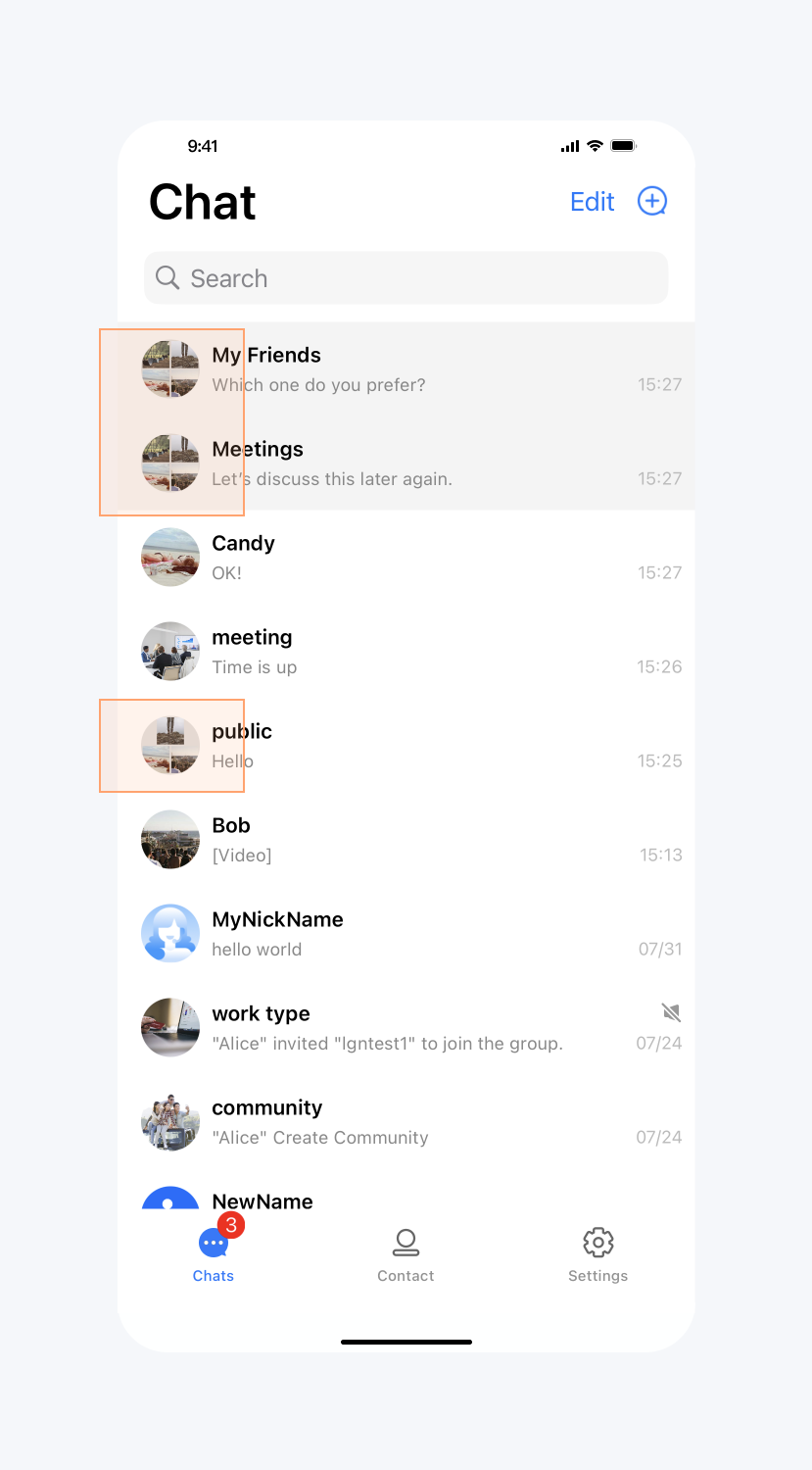

      设置群头像展示九宫格

      API 作用：设置群头像展示九宫格。针对消息列表、会话列表和联系人列表生效。
      API 原型：
      // TUIConfigMinimalist.java
      /**
       * Display the group avatar in the nine-square grid style.
       * The default value is true.
       * This configuration takes effect in all groups.
       */
      public static void setEnableGroupGridAvatar(boolean enableGroupGridAvatar)
      示例代码：
      // When to call: Before initializing the TUIKit interfaces.
      TUIConfigMinimalist.setEnableGroupGridAvatar(false);
      设置效果：

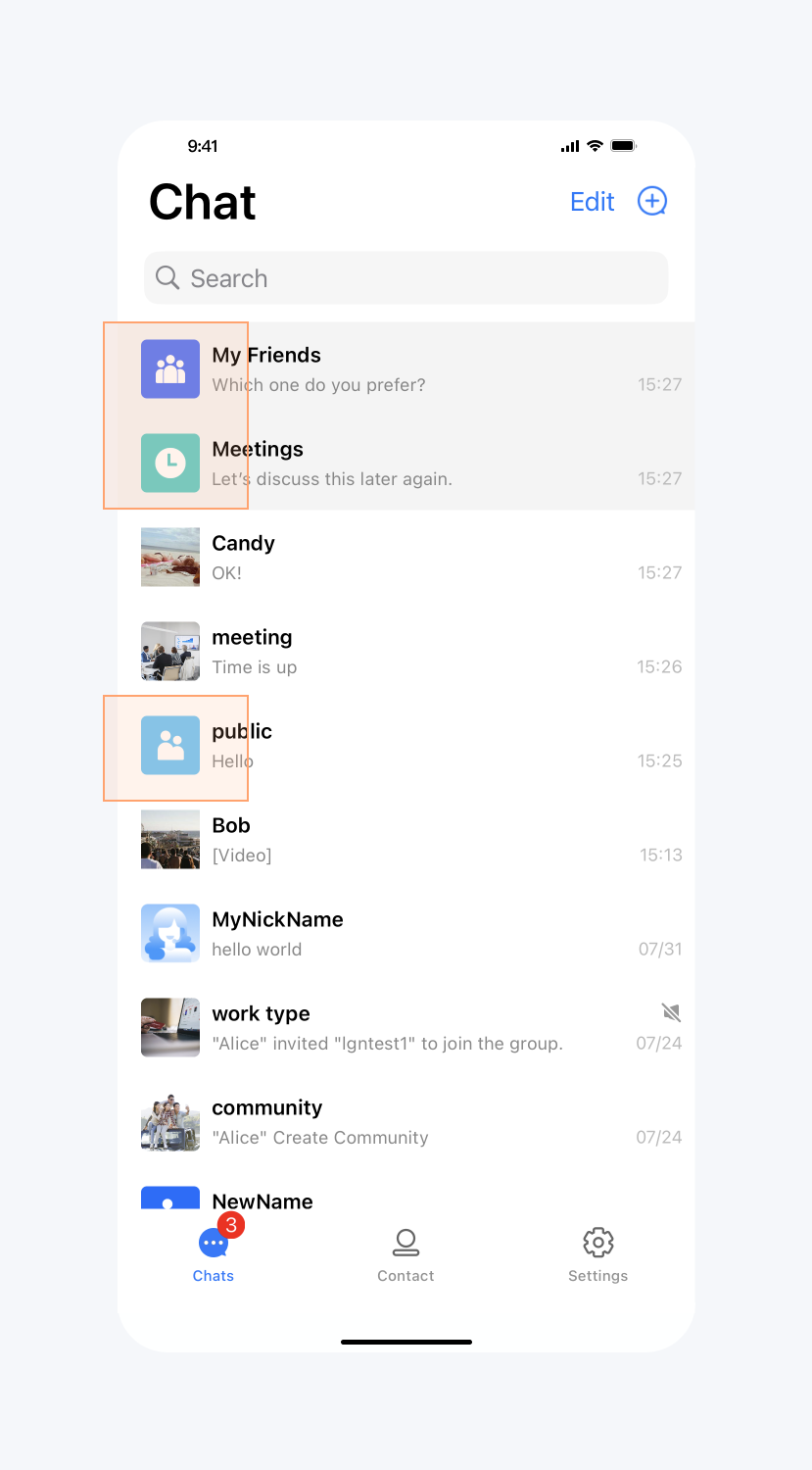

      设置群头像不展示九宫格
      默认








      开启正在输入状态指示

      API 作用：开启“正在输入”状态指示。针对所有 1v1 聊天消息界面生效。
      API 原型：
      // TUIChatConfigMinimalist.java
      /**
       *  Enable the display "Alice is typing..." on one-to-one chat interface.
       *  The default value is true.
       *  This configuration takes effect in all one-to-one chat message list interfaces.
       */
      public static void setEnableTypingIndicator(boolean enableTypingIndicator)
      示例代码：
      // When to call: Before initializing the message list interface.
      TUIChatConfigMinimalist.setEnableTypingIndicator(false);
      设置效果：

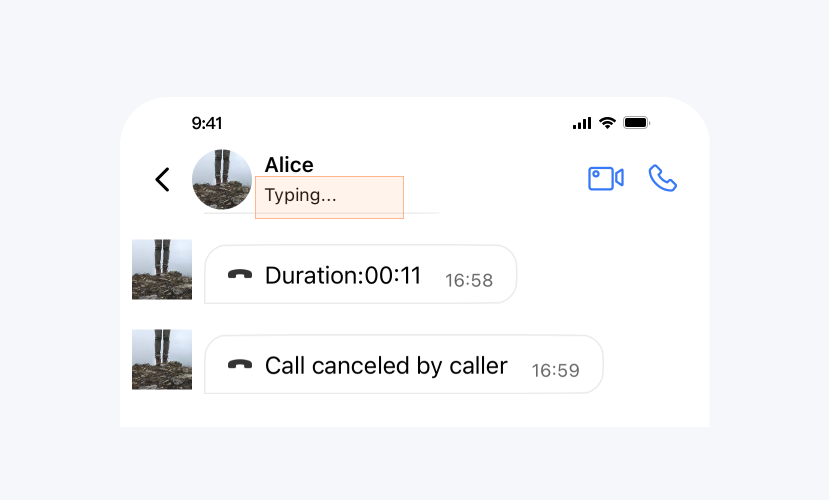

      开启“正在输入”
      不开启“正在输入”







      开启消息已读回执

      API 作用：开启消息已读回执，开启后可以在消息详情中查看已读信息。针对所有消息生效。
      API 原型：
      // TUIChatConfigMinimalist.java
      /**
       *  When sending a message, set this flag to require message read receipt.
       *  The default value is false.
       *  This configuration takes effect in all chat message list interfaces.
       */
      public static void setMessageReadReceiptNeeded(boolean messageReadReceiptNeeded)
      示例代码：
      // When to call: Before sending messages.
      TUIChatConfigMinimalist.setMessageReadReceiptNeeded(true);
      设置效果：

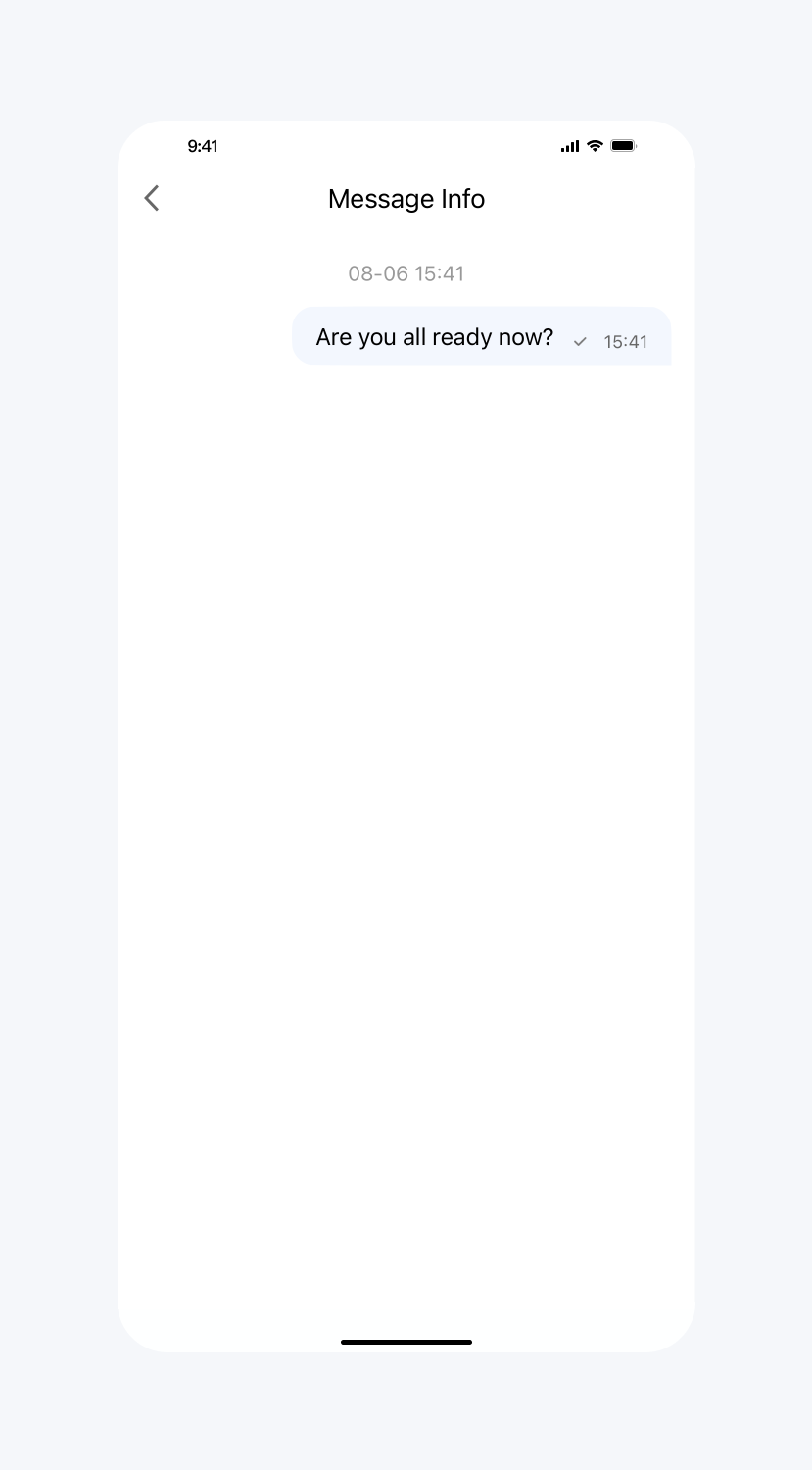

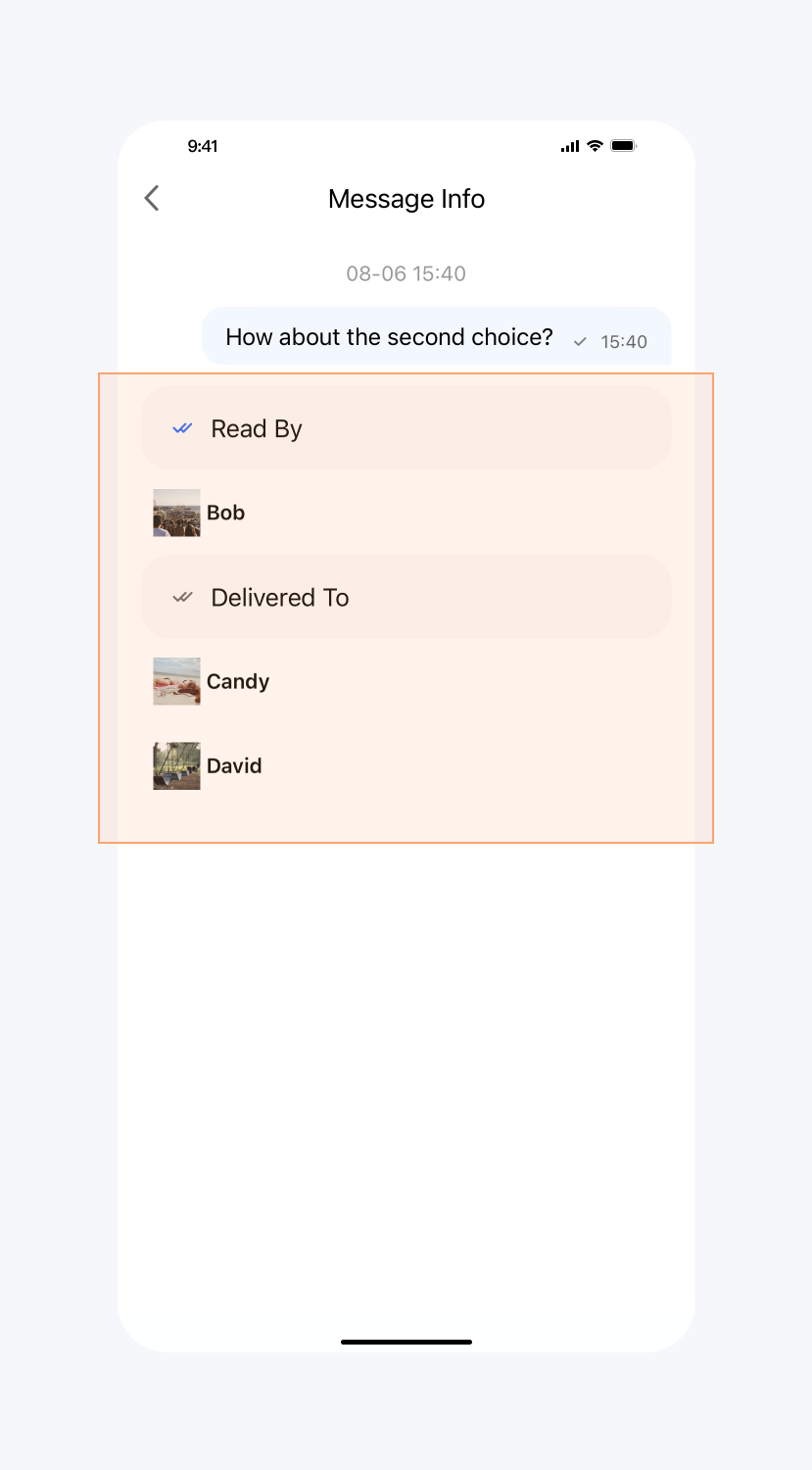

      开启消息已读回执
      不开启消息已读回执

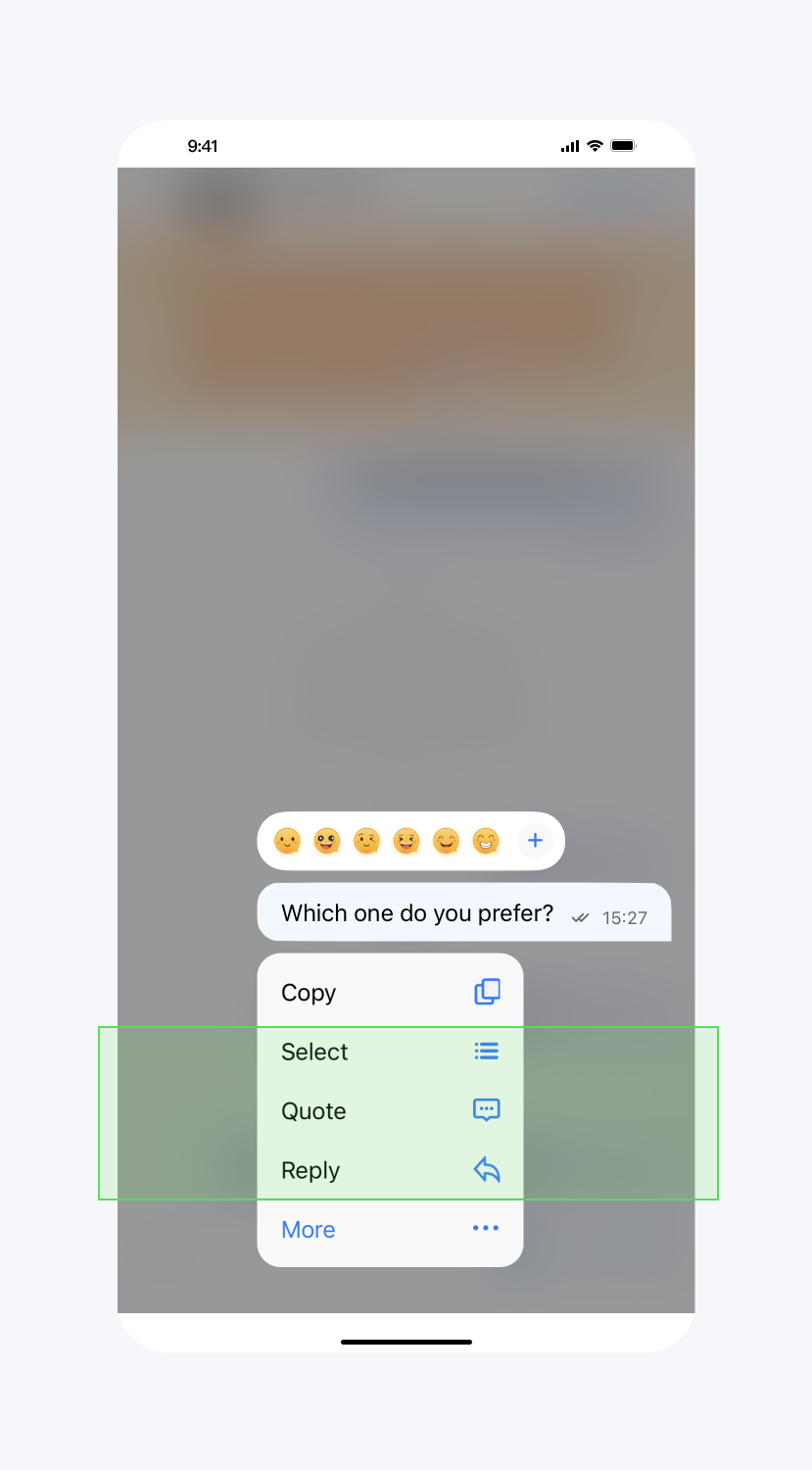

      隐藏长按消息菜单按钮

      API 作用：隐藏长按消息菜单中的指定按钮，针对所有聊天消息生效。
      API 原型：
      // TUIChatConfigMinimalist.java
      public static final int REPLY = 1;
public static final int QUOTE = 2;
public static final int EMOJI_REACTION = 3;
public static final int PIN = 4;
public static final int RECALL = 5;
public static final int TRANSLATE = 6;
public static final int CONVERT = 7;
public static final int FORWARD = 8;
public static final int SELECT = 9;
public static final int COPY = 10;
public static final int DELETE = 11;
public static final int INFO = 12;
public static final int SPEAKER_MODE_SWITCH = 13;

@IntDef({REPLY, QUOTE, EMOJI_REACTION, PIN, RECALL, TRANSLATE, CONVERT, FORWARD, SELECT, COPY, DELETE, INFO, SPEAKER_MODE_SWITCH})
public @interface LongPressPopMenuItem {}

      /**
       * Hide the items in the pop-up menu when user presses the message.
       */
      public static void hideItemsWhenLongPressMessage(@LongPressPopMenuItem int... items)
      示例代码：
      // When to call: Before displaying the pop-up menu when user presses the message.
      TUIChatConfigMinimalist.hideItemsWhenLongPressMessage(TUIChatConfigMinimalist.FORWARD,
                                                            TUIChatConfigMinimalist.INFO);
      设置效果：
      不隐藏任何按钮

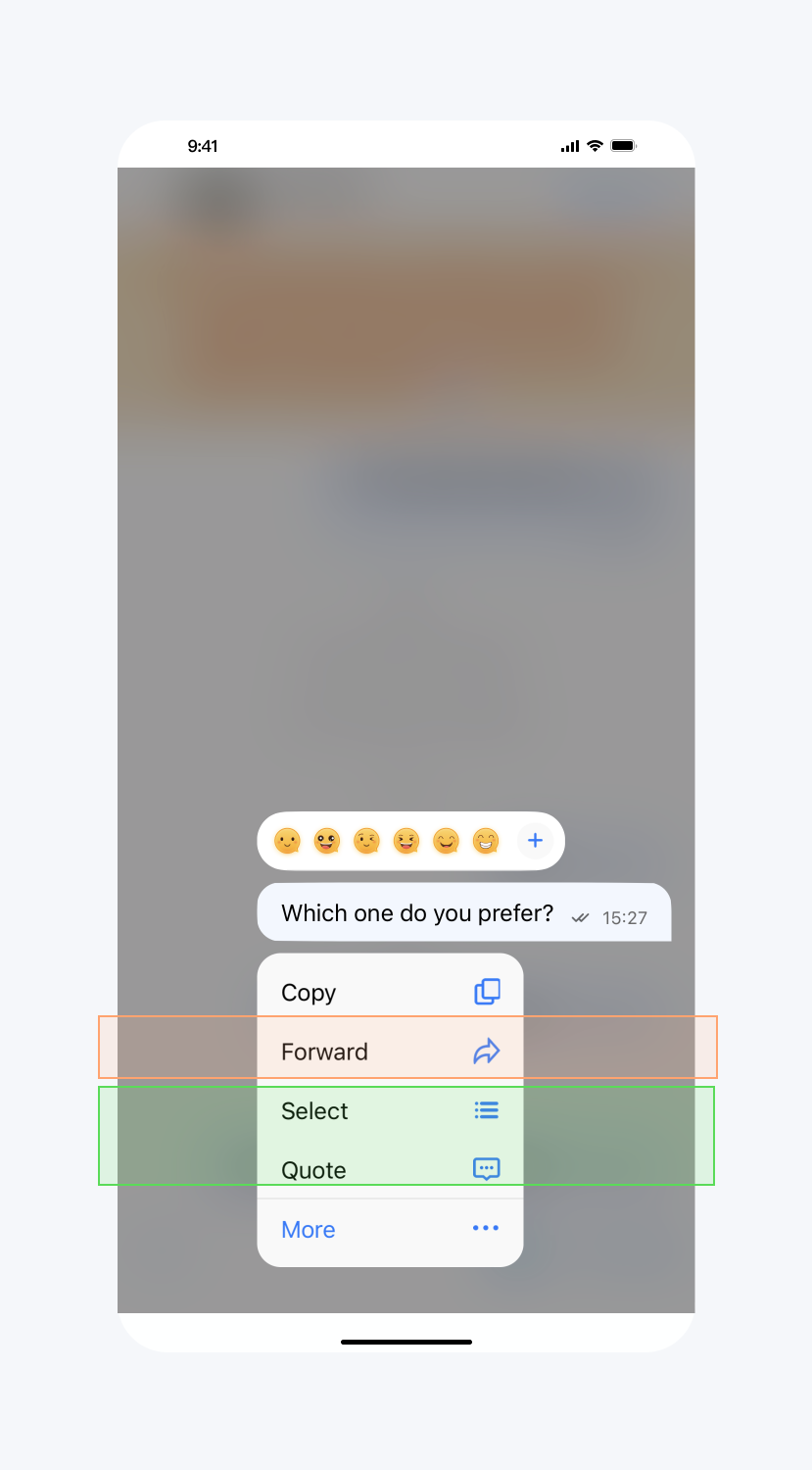

      隐藏 Forward 按钮







      开启音视频通话浮窗

      API 作用：开启音视频通话浮窗。开启后，您可以将音视频通话界面以小窗口的形式漂浮在聊天界面。针对所有音视频通话界面生效。
      API 原型：
      // TUIChatConfigMinimalist.java
      /**
       * Turn on audio and video call floating windows,
       * The default value is true.
       */
      public static void setEnableFloatWindowForCall(boolean enableFloatWindowForCall)
      示例代码：
      // When to call: Before entering the message list interface.
      TUIChatConfigMinimalist.setEnableFloatWindowForCall(false);

      开启音视频通话多端登录

      API 作用：开启音视频通话多端登录。针对所有音视频通话生效。
      API 原型：
      // TUIChatConfigMinimalist.java
      /**
       * Enable multi-terminal login function for audio and video calls
       * The default value is false.
       */
      public static void setEnableMultiDeviceForCall(boolean enableMultiDeviceForCall)
      示例代码：
      // When to call: Before entering the message list interface.
      TUIChatConfigMinimalist.setEnableMultiDeviceForCall(true);

      设置消息列表顶部自定义 View

      API 作用：设置聊天界面顶部自定义 View，针对所有聊天消息界面生效。
      API 原型：
      // TUIChatConfigMinimalist.java
      /**
       * Add a custom view at the top of the chat interface.
       * This view will be displayed at the top of the message list and will not slide up.
       */
      public static void setCustomTopView(View customTopView)
      示例代码：
      // When to call: Before initializing the message list interface.
      // tipsView is your customized view.
      TUIChatConfigMinimalist.setCustomTopView(tipsView);
      设置效果：

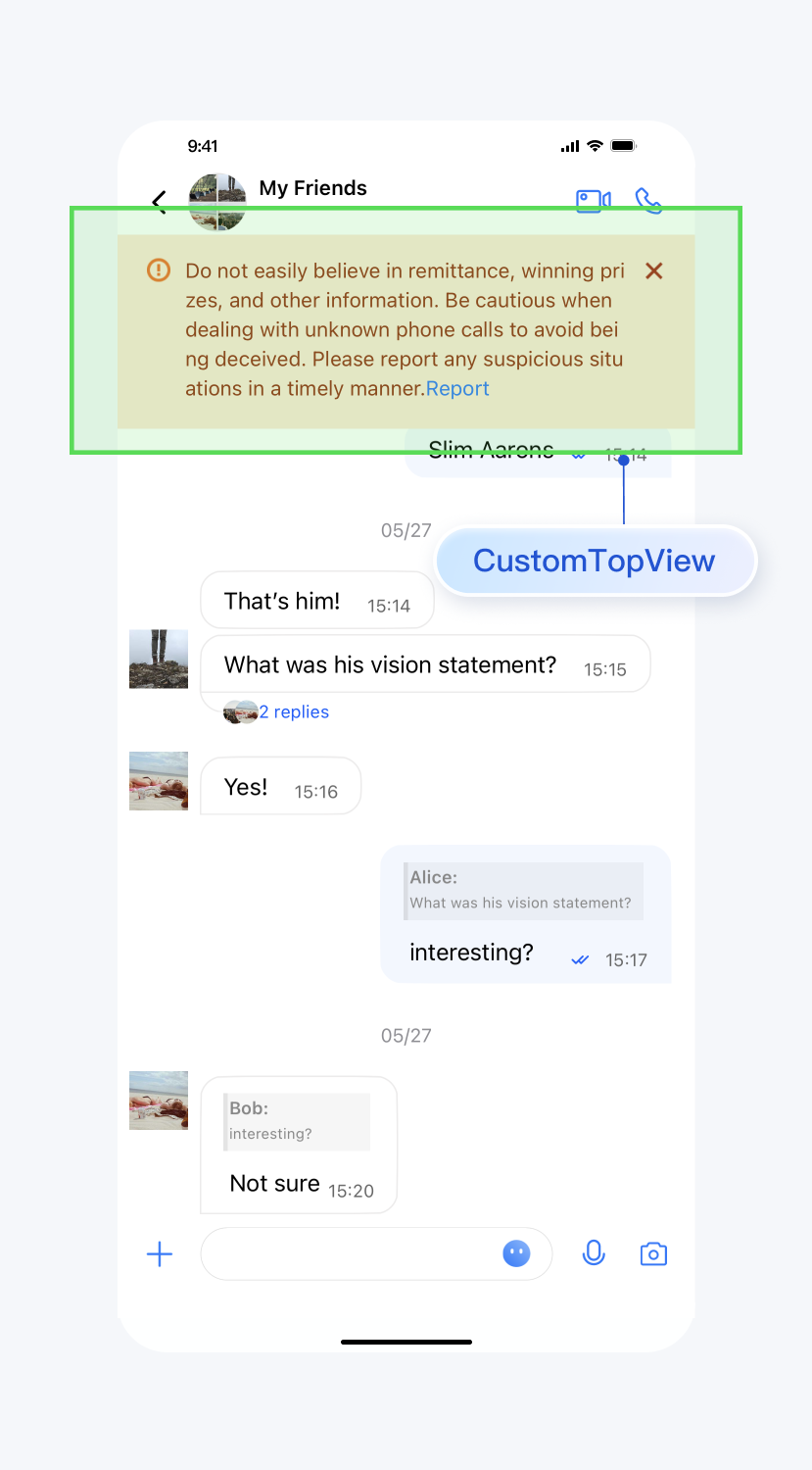

      设置自定义view
      默认







      设置消息是否不计入未读

      API 作用：设置即将发送的消息不更新会话未读数，针对所有消息生效。
      API 原型：
      // TUIChatConfigMinimalist.java
      /**
       * Set this parameter when the sender sends a message, and the receiver will not update the unread count after receiving the message.
       * The default value is false.
       */
      public static void setExcludedFromUnreadCount(boolean excludedFromUnreadCount)
      示例代码：
      // When to call: Before sending messages.
      TUIChatConfigMinimalist.setExcludedFromUnreadCount(true);

      设置消息是否不更新会话 lastMsg

      API 作用：设置即将发送的消息不更新会话 lastMsg，针对所有消息生效。
      API 原型：
      // TUIChatConfigMinimalist.java
      /**
       * Set this parameter when the sender sends a message, and the receiver will not update the last message of the conversation after receiving the message.
       * The default value is false.
       */
      public static void setExcludedFromLastMessage(boolean excludedFromLastMessage)
      示例代码：
      // When to call: Before sending messages.
      TUIChatConfigMinimalist.setExcludedFromLastMessage(true);

      消息撤回时间间隔

      API 作用：设置消息撤回时间，针对所有消息生效。
      API 原型：
      // TUIChatConfigMinimalist.java
      /**
       * Time interval within which a message can be recalled after being sent.
       * The default value is 120 seconds.
       * If you want to adjust this configuration, please modify the setting on Chat Console synchronously: https://trtc.io/document/34419?platform=web&product=chat&menulabel=uikit#message-recall-settings
       */
      public static void setTimeIntervalForAllowedMessageRecall(int timeIntervalForAllowedMessageRecall)
      示例代码：
      // When to call: Before sending messages.
      TUIChatConfigMinimalist.setTimeIntervalForAllowedMessageRecall(90);

      语音、视频消息最长录制时长

      API 作用：设置语音、视频消息最长录制时长，针对所有语音、视频消息生效。
      API 原型：
      // TUIChatConfigMinimalist.java
      /**
       * Maximum audio recording duration, no more than 60s.
       * The default value is 60 seconds.
       */
      public static void setMaxAudioRecordDuration(int maxAudioRecordDuration)
      /**
       * Maximum video recording duration, no more than 15s.
       * The default value is 15 seconds.
       */
      public static void setMaxVideoRecordDuration(int maxVideoRecordDuration)
      示例代码：
      // When to call: Before recording audio or video messages.
      TUIChatConfigMinimalist.setMaxAudioRecordDuration(10);
      TUIChatConfigMinimalist.setMaxVideoRecordDuration(10);

      开启自定义铃声

      API 作用：设置 Android 设备收到消息时的铃声为内置的自定义铃声，针对所有消息生效。
      API 原型：
      // TUIChatConfigMinimalist.java
      /**
       * Enable custom ringtone.
       * This config takes effect only for Android devices.
       */
      public static void setEnableAndroidCustomRing(boolean enableAndroidCustomRing)
      示例代码：
      // When to call: Before sending messages.
      TUIChatConfigMinimalist.setEnableAndroidCustomRing(true);

      开启语音消息扬声器播放

      API 作用：设置播放语音消息时默认使用扬声器而不是听筒播放。针对所有语音消息生效。
      API 原型：
      // TUIChatConfigMinimalist.java
      /**
       * Call this method to use speakers instead of handsets by default when playing voice messages.
       */
      public static void setPlayingSoundMessageViaSpeakerByDefault(boolean playingSoundMessageViaSpeakerByDefault)
      示例代码：
      // When to call: Before initializing the Message interface.
      TUIChatConfigMinimalist.setPlayingSoundMessageViaSpeakerByDefault(true);

      注册自定义消息

      API 作用：注册自定义消息。使用场景请参考文档《添加自定义消息》。
      API 原型：
      // TUIChatConfigMinimalist.java
      /**
       * Register custom message.
       * - Parameters:
       *   - businessID: Customized message‘s businessID, which is unique.
       *   - messageBeanClass: Customized message's MessagBean class.
       *   - messageViewHolderClass: Customized message's MessagViewHolder class.
       *   - isUseEmptyViewGroup: If true, the user avatar and message bubble will not be displayed.
       */
      public static void registerCustomMessage(String businessID, Class<? extends TUIMessageBean> messageBeanClass,
    Class<? extends RecyclerView.ViewHolder> messageViewHolderClass, boolean isUseEmptyViewGroup)
      示例代码：
      // When to call: Before initializing the Message List interface.
      TUIChatConfigMinimalist.registerCustomMessage(CUSTOM_LINK_MESSAGE_BUSINESS_ID,
                          						  CustomLinkMessageBean.class,
                          						  CustomLinkMessageHolder.class,
                                                    false);


      点击、长按消息列表里的用户头像

      API 作用：用户点击、长按了消息列表里的用户头像的事件回调。
      API 原型：
      // TUIChatConfigMinimalist.java
      public interface ChatEventListener {
          /**
          * Tells the listener a user's avatar in the chat list is clicked.
          * Returning true indicates this event has been intercepted, and Chat will not process it further.
          * Returning false indicates this event is not intercepted, and Chat will continue to process it.
          */
          default boolean onUserIconClicked(View view, TUIMessageBean messageBean) {
        return false;
    }

          /**
          * Tells the listener a user's avatar in the chat list is long pressed.
          * Returning true indicates that this event has been intercepted, and Chat will not process it further.
          * Returning false indicates that this event is not intercepted, and Chat will continue to process it.
          */
          default boolean onUserIconLongClicked(View view, TUIMessageBean messageBean) {
        return false;
    }
      }
      示例代码：
      TUIChatConfigMinimalist.setChatEventListener(new ChatEventListener() {
          @Override
          public boolean onUserIconClicked(View view, TUIMessageBean messageBean) {
              // Customize your own action when user avatar is clicked.
              ToastUtil.toastShortMessage("onUserIconClicked");
              return true;
          }

          @Override
          public boolean onUserIconLongClicked(View view, TUIMessageBean messageBean) {
              // Customize your own action when user avatar is long pressed.
              ToastUtil.toastShortMessage("onUserIconLongClicked");
              return true;
          }
      }

      点击、长按消息列表里的消息

      API 作用：用户点击、长按了消息列表里的消息的事件回调。
      API 原型：
      // TUIChatConfigMinimalist.java
      public interface ChatEventListener {
           /**
           * Tells the listener a message in the chat list is clicked.
           * Returning true indicates that this event has been intercepted, and Chat will not process it further.
           * Returning false indicates that this event is not intercepted, and Chat will continue to process it.
           */
    default boolean onMessageClicked(View view, TUIMessageBean messageBean) {
        return false;
    }

    /**
           * Tells the listener a message in the chat list is long pressed.
           * Returning true indicates that this event has been intercepted, and Chat will not process it further.
           * Returning false indicates that this event is not intercepted, and Chat will continue to process it.
           */
    default boolean onMessageLongClicked(View view, TUIMessageBean messageBean) {
        return false;
    }
      }
      示例代码：
      TUIChatConfigMinimalist.setChatEventListener(new ChatEventListener() {
          @Override
          public boolean onMessageClicked(View view, TUIMessageBean messageBean) {
              // Customize your own action when message is clicked.
              ToastUtil.toastShortMessage("onMessageClicked");
              return true;
          }

          @Override
          public boolean onMessageLongClicked(View view, TUIMessageBean messageBean) {
              // Customize your own action when message is long pressed.
              ToastUtil.toastShortMessage("onMessageLongClicked");
              return true;
          }
      }

      消息样式相关

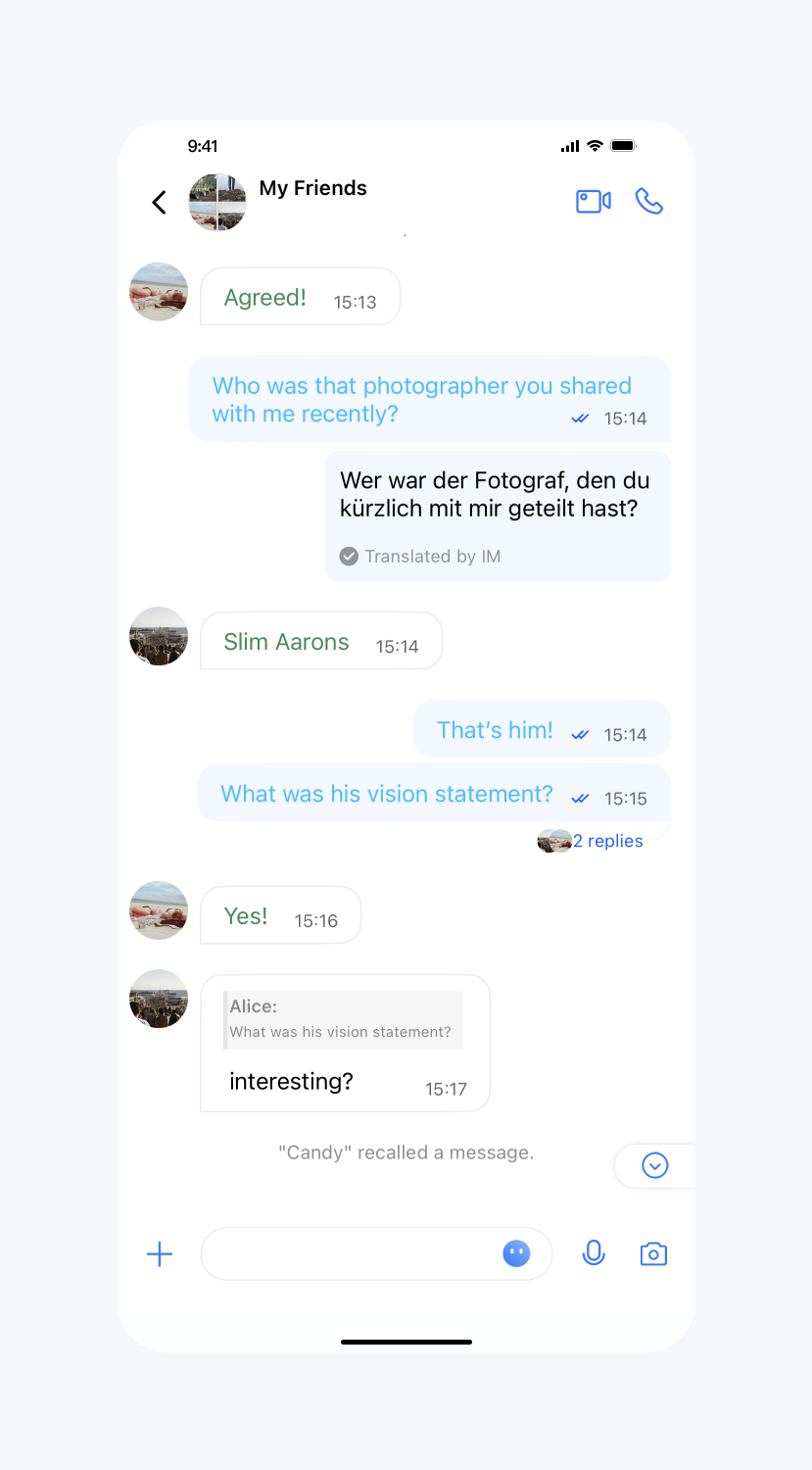

      文本消息的颜色、字体

      API 作用：设置发送、接收的文本消息的文字颜色和字体。针对所有的文本消息生效。
      API 原型：
      // TUIChatConfigMinimalist.java
      /**
       * The color of send text message.
       */
      public static void setSendTextMessageColor(int color)
      /**
       * The font size of send text message.
       */
      public static void setSendTextMessageFontSize(int size)
      /*
       * The color of receive text message.
       */
      public static void setReceiveTextMessageColor(int color)
      /**
       * The font size of receive text message.
       */
      public static void setReceiveTextMessageFontSize(int size)
      示例代码：
      // When to call: After initializing the message list interface and before entering it.
      TUIChatConfigMinimalist.setSendTextMessageColor(0xFF00BFFF);
      TUIChatConfigMinimalist.setSendTextMessageFontSize(20);
      TUIChatConfigMinimalist.setReceiveTextMessageColor(0xFF2E8B57);
      TUIChatConfigMinimalist.setReceiveTextMessageFontSize(23);
      设置效果：
      设置文本消息文字颜色
      设置文本消息字体
      默认










      系统通知消息字体、颜色和背景色

      API 作用：设置系统通知消息文字的字体、颜色和背景色，针对所有系统通知消息生效。
      API 原型：
      // TUIChatConfigMinimalist.java
      /**
       * The text color of system message.
       */
      public static void setSystemMessageTextColor(int color)
      /**
       * The font size of system message.
       */
      public static void setSystemMessageFontSize(int size)
      /**
       * The background of system message.
       */
      public static void setSystemMessageBackground(Drawable drawable)
      示例代码：
      // When to call: After initializing the message list interface and before entering it.
      TUIChatConfigMinimalist.setSystemMessageTextColor(0xFFFF8C00);
      TUIChatConfigMinimalist.setSystemMessageFontSize(23);
      TUIChatConfigMinimalist.setSystemMessageBackground(new ColorDrawable(0xFFF0FFF0));
      设置效果：

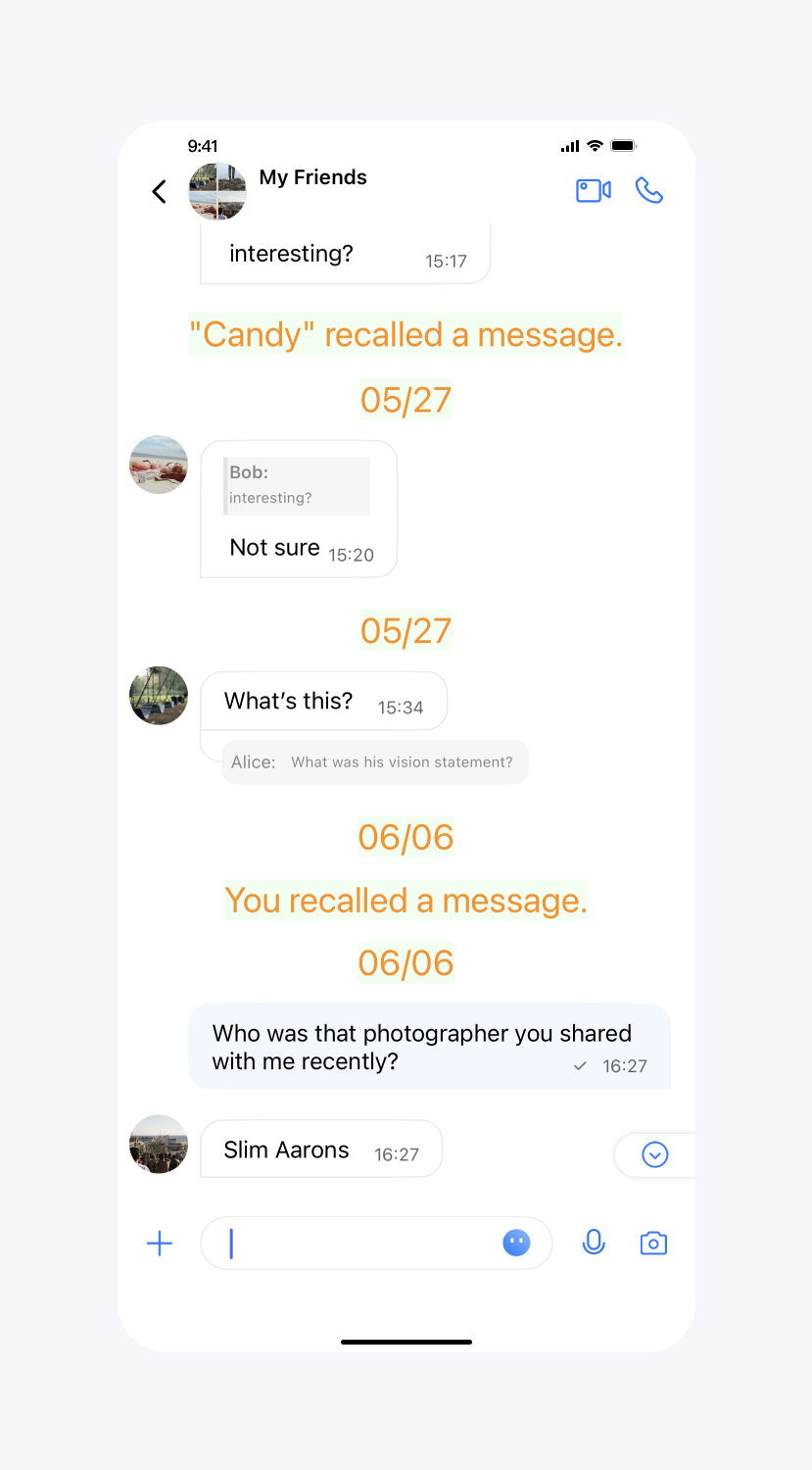

      设置系统通知消息文字的字体、颜色和背景色
      默认







      消息气泡相关

      开启消息气泡展示

      API 作用：开启消息气泡展示，针对所有聊天界面生效。
      API 原型：
      // TUIConfigMinimalist.java
      /**
       * Enable the message display in the bubble style.
       * The default value is true.
       */
      public static void setEnableMessageBubbleStyle(boolean enable)
      示例代码：
      // When to call: After initializing the message list interface and before entering it.
      TUIConfigMinimalist.setEnableMessageBubbleStyle(false);
      设置效果：
      不显示消息气泡
      默认







      气泡背景图设置

      API 作用：设置气泡背景图，针对所有聊天界面生效。
      API 原型：
      // TUIConfigMinimalist.java
      /**
       * Set the background of the last sent message bubble in consecutive messages.
       */
      public static void setSendLastBubbleBackground(Drawable drawable)
      /**
       * Set the background of the non-last sent message bubble in consecutive message.
       */
      public static void setSendBubbleBackground(Drawable drawable)
      /**
       * Set the background of the last received message bubble in consecutive message.
       */
      public static void setReceiveLastBubbleBackground(Drawable drawable)
      /**
       * Set the background of the non-last received message bubble in consecutive message.
       */
      public static void setReceiveBubbleBackground(Drawable drawable)
      /**
       * Set the light color when the message bubble needs to flicker.
       */
      public static void setBubbleHighlightLightColor(int color)
      /**
       * Set the dark color when the message bubble needs to flicker.
       */
      public static void setBubbleHighlightDarkColor(int color)
      示例代码：
      // When to call: After initializing the message list interface and before entering it.
      TUIConfigMinimalist.setSendLastBubbleBackground(context.getDrawable(R.drawable.SenderTextNodeBkg))
      TUIConfigMinimalist.setSendBubbleBackground(context.getDrawable(R.drawable.SenderTextNodeBkg))
      TUIConfigMinimalist.setReceiveLastBubbleBackground(context.getDrawable(R.drawable.ReceiverTextNodeBkg));
      TUIConfigMinimalist.setReceiveBubbleBackground(context.getDrawable(R.drawable.ReceiverTextNodeBkg));
      设置效果：

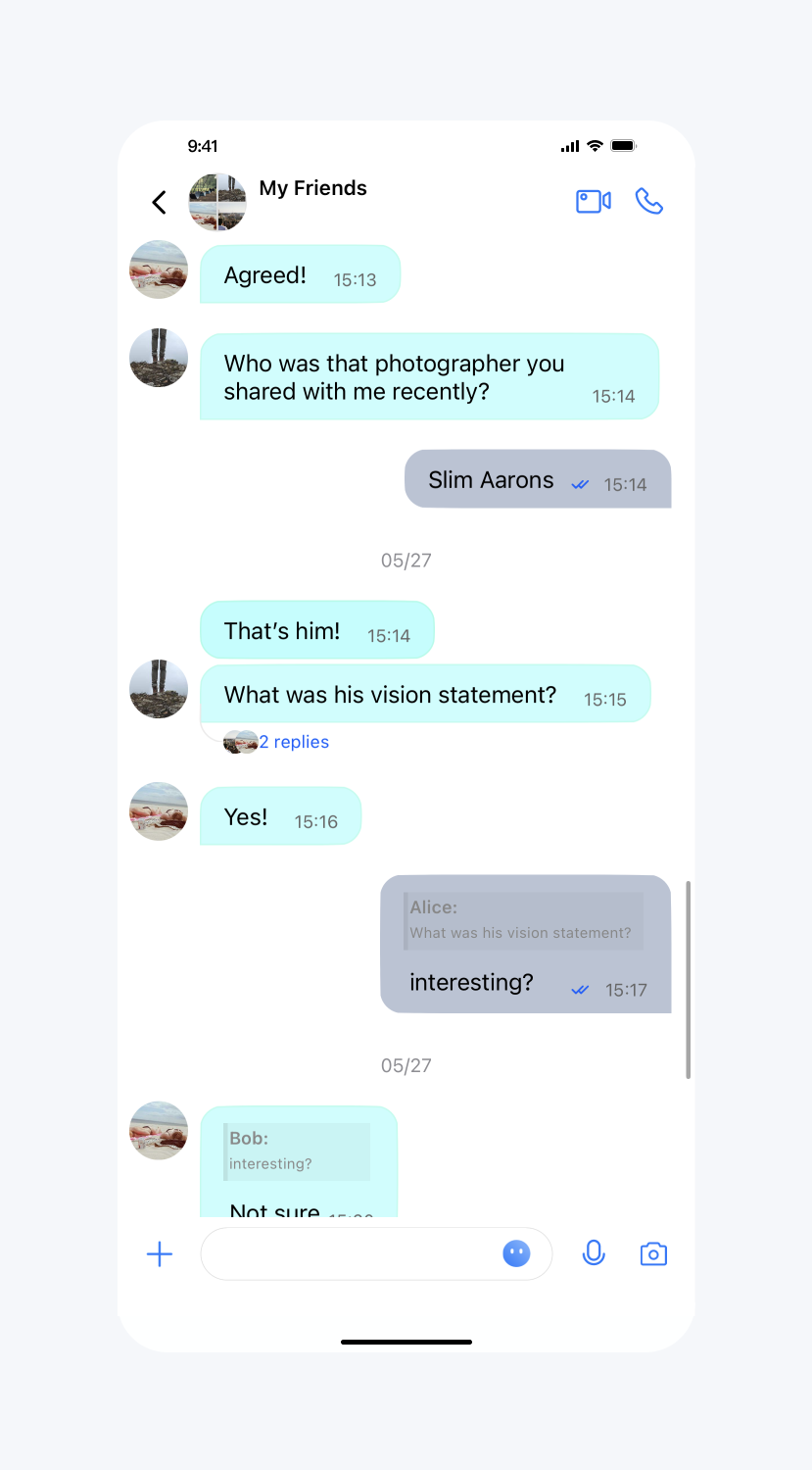

      设置气泡背景图
      默认







      输入栏相关

      展示聊天界面输入框

      API 作用：展示聊天界面输入框，针对所有聊天界面生效。
      API 原型：
      // TUIChatConfigMinimalist.java
      /**
       *  Show the input bar in the message list interface.
       *  The default value is true.
       */
      public static void setShowInputBar(boolean showInputBar)
      示例代码：
      // When to call: After initializing the message list interface and before entering it.
      TUIChatConfigMinimalist.setShowInputBar(false);
      设置效果：
      隐藏输入框
      默认







      隐藏更多菜单中选项（全局）

      API 作用：隐藏更多菜单中的按钮，针对所有聊天界面生效。
      API 原型：
      // TUIChatConfigMinimalist.java
      /**
       *  Hide items in more menu.
       */
      public static void hideItemsInMoreMenu(@InputMoreMenuItem int... items)
      示例代码：
      // When to call: After initializing the message list interface and before entering it.
      TUIChatConfigMinimalist.hideItemsInMoreMenu(TUIChatConfigMinimalist.CUSTOM,
                                                  TUIChatConfigMinimalist.RECORD_VIDEO,
                                                  TUIChatConfigMinimalist.FILE);
      设置效果：
      隐藏部分 item
      默认







      隐藏更多菜单中选项（局部）

      API 作用：隐藏更多菜单中的按钮，针对指定聊天界面生效。
      API 原型：
      // TUIChatConfigMinimalist.java
      public static final int CUSTOM = 1;
public static final int RECORD_VIDEO = 2;
public static final int TAKE_PHOTO = 3;
public static final int ALBUM = 4;
public static final int FILE = 5;

@IntDef({CUSTOM, RECORD_VIDEO, TAKE_PHOTO, ALBUM, FILE})
public @interface InputMoreMenuItem {}

      public interface ChatInputMoreDataSource {
    default @InputMoreMenuItem List<Integer> inputBarShouldHideItemsInMoreMenuOfInfo(ChatInfo chatInfo) {
        return new ArrayList<>();
    }
}
      示例代码：
      // When to call: After initializing the message list interface and before entering it.
      TUIChatConfigMinimalist.setChatInputMoreDataSource(new TUIChatConfigMinimalist.ChatInputMoreDataSource() {
          @Override
          public List<Integer> inputBarShouldHideItemsInMoreMenuOfInfo(ChatInfo chatInfo) {
              return Arrays.asList(TUIChatConfigMinimalist.CUSTOM, TUIChatConfigMinimalist.RECORD_VIDEO,
                                   TUIChatConfigMinimalist.TAKE_PHOTO, TUIChatConfigMinimalist.ALBUM,
                                   TUIChatConfigMinimalist.FILE);
              }
      });

      更多菜单添加选项（局部）

      API 作用：向更多菜单添加选项，针对指定聊天界面生效。
      API 原型：
      // TUIChatConfigMinimalist.java
      public interface ChatInputMoreDataSource {
    default List<InputMoreItem> inputBarShouldAddNewItemToMoreMenuOfInfo(ChatInfo chatInfo) {
        return new ArrayList<>();
    }
}
      示例代码：
      // When to call: After initializing the message list interface and before entering it.
      TUIChatConfigMinimalist.setChatInputMoreDataSource(new TUIChatConfigMinimalist.ChatInputMoreDataSource() {
          @Override
          public List<InputMoreItem> inputBarShouldAddNewItemToMoreMenuOfInfo(ChatInfo chatInfo) {
              InputMoreItem inputMoreItem = new InputMoreItem() {
                  @Override
                  public void onAction(String chatInfoId, int chatType) {
                    ToastUtil.toastShortMessage("on click");
                  }
              };
              inputMoreItem.setName("item1");
              inputMoreItem.setPriority(10000);
              inputMoreItem.setIconResId(R.drawable.ic_launcher);

              InputMoreItem inputMoreItem2 = new InputMoreItem() {
                  @Override
                  public void onAction(String chatInfoId, int chatType) {
                    ToastUtil.toastShortMessage("on click");
                  }
              };
              inputMoreItem2.setName("item1");
              inputMoreItem2.setPriority(8000);
              inputMoreItem2.setIconResId(R.drawable.ic_launcher);

              return Arrays.asList(inputMoreItem, inputMoreItem2);
          }
      });
      设置效果：

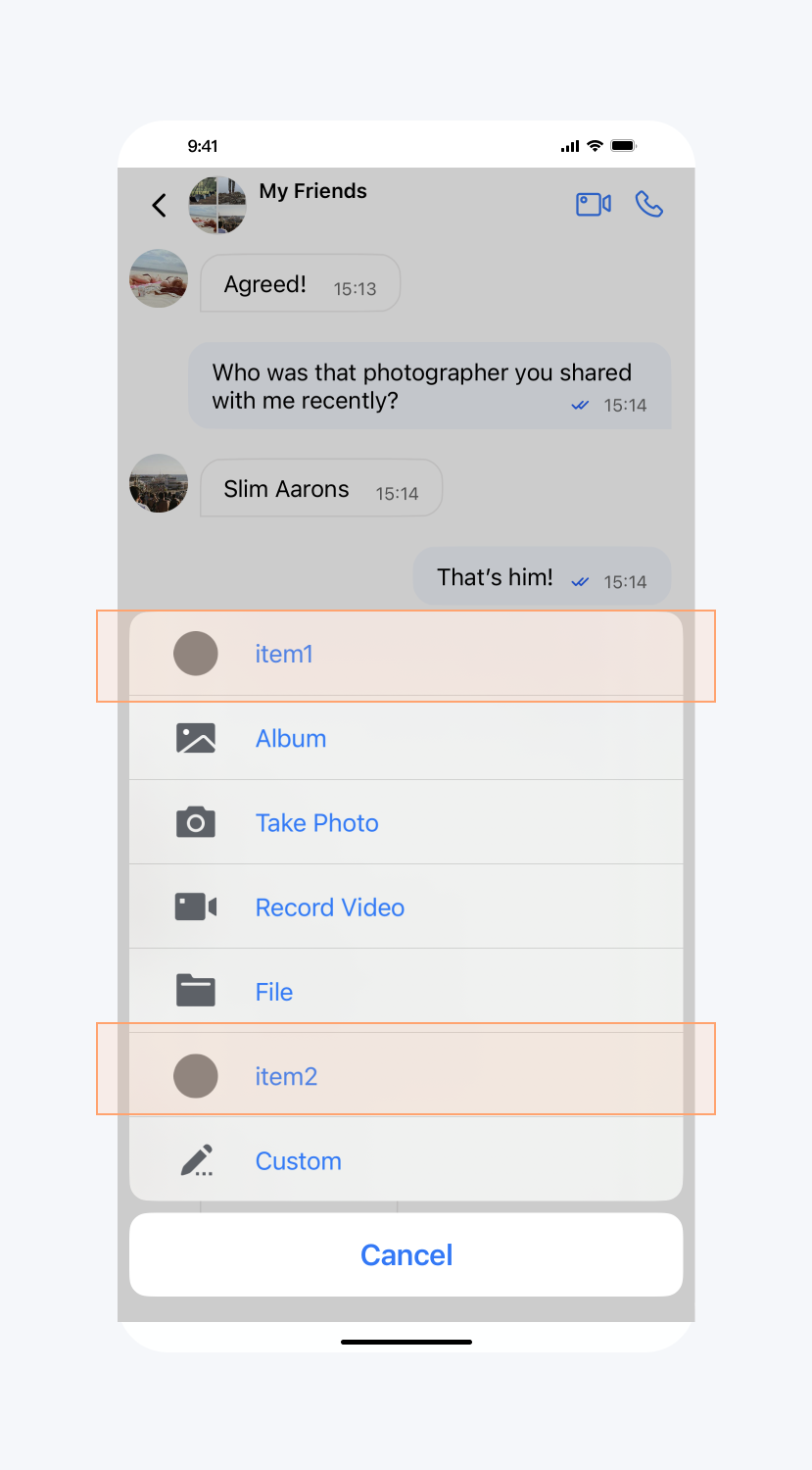

      添加 item
      默认







      添加表情组

      API 作用：向表情菜单中添加表情组，针对所有聊天界面生效。使用场景请参考文档《添加自定义表情》。
      API 原型：
      // TUIChatConfigMinimalist.java
      /**
       * Add sticker group.
       */
      public static void addStickerGroup(int groupID, FaceGroup<? extends ChatFace> faceGroup)
      示例代码：
      // When to call: After initializing the message list interface and before entering it.
      FaceGroup faceGroup1 = new FaceGroup();
      faceGroup1.setPageColumnCount(5);
      faceGroup1.setPageRowCount(2);
      faceGroup1.setGroupID(1);
      faceGroup1.setFaceGroupIconUrl("file:///android_asset/4350/yz00@2x.gif");
      faceGroup1.setGroupName("4350");
      for (int i = 0; i <= 17; i++) {
            CustomFace customFace = new CustomFace();
            String index = "" + i;
            if (i < 10) {
                index = "0" + i;
            }
            customFace.setAssetPath("4350/yz" + index + "@2x.gif");
            String faceKey = "yz" + index;
            customFace.setFaceKey(faceKey);
            customFace.setWidth(170);
            customFace.setHeight(170);
            faceGroup1.addFace(faceKey, customFace);
      }
      TUIChatConfigMinimalist.addStickerGroup(1, faceGroup1);

      联系我们

      联系我们，为您的业务提供专属服务。

      联系我们
      技术支持

      如果你想寻求进一步的帮助，通过工单与我们进行联络。我们提供7x24的工单服务。

      提交工单
      7x24 电话支持
      Copyright © 2013-2024 Tencent Cloud. All Rights Reserved.
      隐私条款服务条款缓存条款
